CDA WF141 Hoja de especificaciones
Customer Care Department • The Group Ltd. • Harby Road • Langar • Nottinghamshire • NG13 9HY
T : 01949 862 012 F : 01949 862 003 E : customer.care@cda.eu W : www.cda.eu www.cda.eu
WF141
Freestanding
Dishwasher
Installation, Use and Maintenance
2
Important
The CDA Group Ltd cannot be held responsible for injuries or losses
caused by incorrect use or installation of this product. Please note
that CDA reserve the right to invalidate the guarantee supplied with
this product following incorrect installation or misuse of the appliance.
This appliance is not designed to be used by people (including
children) with reduced physical, sensorial or mental capacity, or
who lack experience or knowledge about it, unless they have had
supervision or instructions on how to use the appliance by someone
who is responsible for their safety.
Under no circumstances should any external covers be removed for
servicing or maintenance except by suitably qualified personnel.
Appliance information:
Please enter the details on the appliance rating plate below for
reference, to assist CDA Customer Care in the event of a fault with
your appliance and to register your appliance for guarantee purposes.
Appliance Model
Serial Number
This appliance has been designed for domestic use only. Commercial
use will invalidate the warranty.
3
EU Declarations of Conformity:
This product meets the requirements of all applicable EU directives
with the corresponding harmonised standards, which provide for CE
marking.
Availability of this manual in an alternative format:
A soft copy of this manual is available for download from www.cda.eu.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE
PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.
At the end of its working life, the product must be taken to a special
local authority waste collection centre or to a dealer providing appli-
ance recycling services.
Disposing of a household appliance separately avoids possible nega-
tive consequences for the environment and health. It also enables
the constituent materials to be recovered, saving both energy and
resources. As a reminder of the need to dispose of household appli-
ances separately, the product is marked with a crossed-out wheeled
dustbin .
4
Important
•Read the instructions prior to installation and use of the
appliance.
•Do not lean or climb on the open dishwasher door, to
prevent damage.
•Close the dishwasher door after use to prevent accidents.
•Use only detergents, salt and rinse aid specifically
designed for dishwashers.
•Do not put solvents in the dishwasher detergent
compartment to prevent risk of explosion.
•Only put dishwasher safe items into the dishwasher. If in
doubt, check with the manufacturer of the items.
•Take care when loading the dishwasher to observe the
recommendations for best loading practice, and also to
ensure that sharp objects such as knives are placed blade
down to prevent accidents.
•Do not open the dishwasher door when a programme
is running. If it is necessary to do so, then open it only
slightly to allow the dishwasher to pause the programme
and prevent any water spilling out. Remember that
the water in the dishwasher can be very hot when the
programme is running.
•When the dishwasher is not in use, we recommend
that you turn o the water supply at the supply tap and
disconnect the main supply.
•If you are leaving the dishwasher for an extended period
you should leave the door slightly open to prevent the
formation of unpleasant smells.
5
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
Recommendations
•To reduce energy and water consumption, remove all dirt residues
from the dishes prior to loading the dishwasher.
•Only run the dishwasher when fully loaded.
•Place hollow items (bowls, glasses and pans) face down in the basket.
Before First Use
•Set the water softener level as required by the water hardness in the
area.
•Add 1kg of salt into the salt compartment and then fill with water to the
top of the salt compartment.
•Remove all the packaging materials from the interior of the dishwasher.
•Fill the rinse aid compartment.
•Run a hot programme without any dishes in the dishwasher.
6
Control Panel
6 7
1 3 4 5 8 2
1 - Power button
2 - Programme Selection dial
3 - Delay Timer button
4 - Prewash button
5 - Start/Pause button
6 - Delay Timer/Progress Indicator lights
7 - Rinse Aid Warning light
8 - Salt Warning light
7
Starting a programme
•Press the “Power” button (1) to switch the dishwasher on.
•Turn the “Programme Selection” dial (2) until the required programme
is indicated.
•If required, press the “Delay Timer” button (3) repeatedly to set the
programme.
•If required, press the “Prewash” button (4).
•Ensure the dishwasher door is closed.
•Press the “Start/Pause” button (5) to begin the programme.
If possible, do not open the dishwasher door once the programme has
started.
Using the delay timer
The dishwasher is equipped with a variable delay timer of three, six,
nine or twelve hours duration.
•To set the delay timer, press the “Delay Timer” button (3). This
will switch on the delay timer for three hours, and the 3h light will
illuminate.
•To change the duration, press the “Delay Timer” button again until the
light next to the required time (6h, 9h or 12h) is illuminated.
•To cancel the timer, press the “Delay Timer” button again until none of
the “Delay Timer” indicator lights are illuminated.
As the delay timer counts down, the “Delay Timer” indicator lights (6)
will illuminate in turn, for example at six hours delay the 6h light will
illuminate, and at three hours delay the 3h light will illuminate.
8
Using the prewash function
The dishwasher is equipped with a prewash function to rinse o
residues prior to a full programme.
•To run a prewash programme on its own, first press the “Power”
button, then press the “Prewash” button and then press the “Start/
Pause” button.
•To run the extra-intensive programme, first press the “Power” button,
then press the “Prewash” button, select the intensive programme
with the “Programme Selection” dial and then press the “Start/Pause”
button.
Progress indicator lights
The “Progress Indicator” lights (6) illuminate in turn to show the
progress of the programme. The light for end of programme will remain
illuminated until the power is switched o.
Changing a programme in progress
•Press the “Start/Pause” button.
•Once the programme has stopped, turn the “Programme Selection”
dial to the required programme and press the “Start/Pause” button
again.
Cancelling a programme in progress
•Press the “Start/Pause” button.
•Turn the “Programme Selection” dial to “0”, then press the “Start/
Pause” button again. The dishwasher will drain for approximately
thirty seconds, and the end “Progress Indicator” light will illuminate
once the programme is cancelled.
9
Switching the dishwasher o
•Once the end progress indicator light illuminates, the dishwasher can
be switched o by pressing the Power button.
•Then turn o the water tap and remove the plug from the power
socket.
Please note: The dishwasher will automatically continue on the
programme it has started if the door is opened and closed or in the
event of a power cut.
10

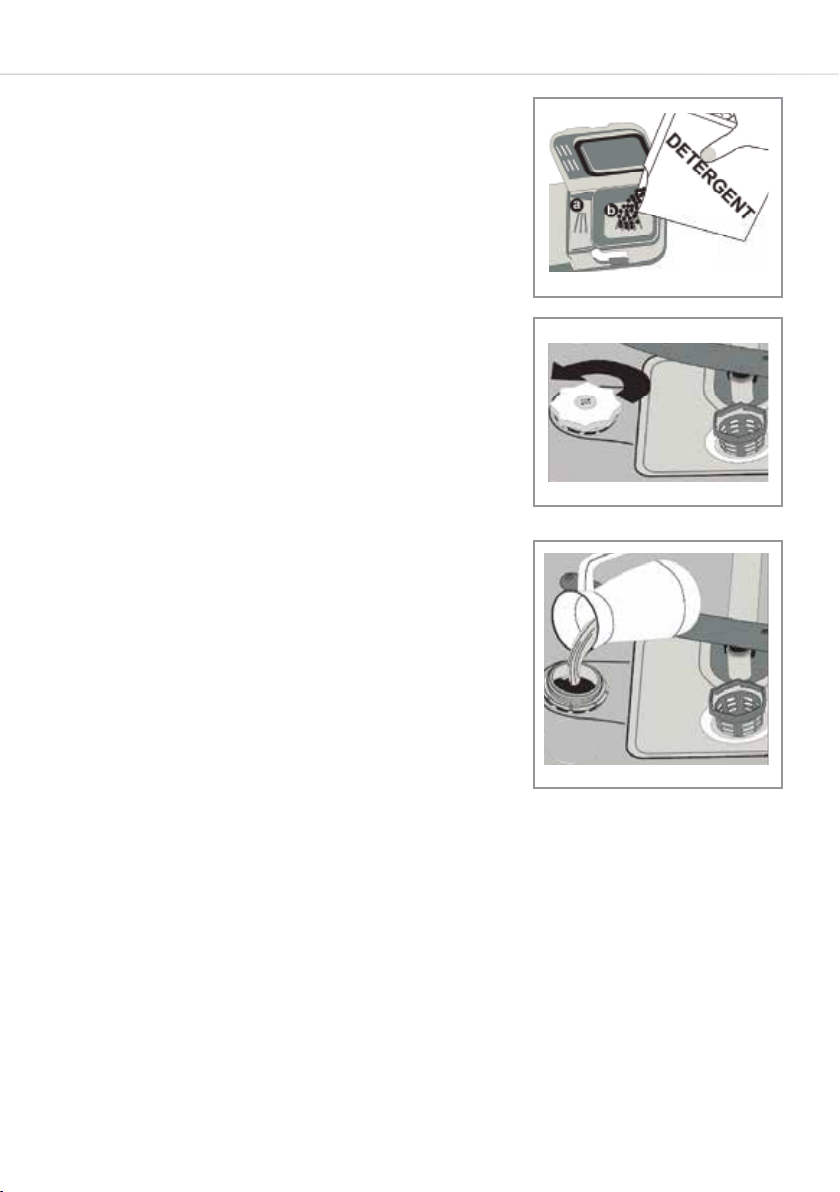

Detergent
To fill the detergent compartment
1. Push the latch to open the
compartment.
2. Add the required amount of detergent.
The main detergent compartment (b
in Fig. 1) has lines to allow for specific
amounts of detergent.
These are marked at either 15cm3or
25cm3, depending on how dirty the
dishes are.
If your dishes are in need of an
intensive wash, then add 5cm3of
detergent into the prewash section
of the compartment (a in Fig 1).
3. Then close the detergent
compartment lid until the latch locks.
Please note: You should only use
detergents designed specifically for use in dishwashers.
If using dishwasher tablets, always use the detergent compartment,
do not put them in the main body of the dishwasher or in the cutlery
basket. The solubility of dishwasher tablets can vary depending on
the temperature and duration of the programme. As a result, it is
recommended that powder detergents should be used in the shorter
programmes to allow better performance.
Fig. 1
Fig. 3
Fig. 2
