CBC ZN-C Series Manual de instrucciones

Quick User Guide ZN-C Series Network Camera

Warning before installation

-Power off the Network camera if it is found to be smoking or smells unusual.

-Keep the Network camera away from water. If the Network camera gets wet, power

off immediately.

-Do not place the Network camera near heat sources, such as a television or oven.

-Refer to your instruction manual for the operating temperature.

-Keep the Network camera away from direct sunlight.

-Do not place the Network camera in high humidity environments.

-Do not place the Network camera on unsteady surfaces.

-Do not touch the Network camera when there is lightning present.

-Do not disassemble the Network camera.

-Do not drop the Network camera.

-Do not insert any object into the Network camera, such as a screwdriver.

For other safety and regulation information, please refer to “User’s manual”.

1. Check Contents

No. Item Description

1 Network Camera ZN-C Series (ZN-C2M / ZN-C1M / ZN-C1)

2 Software CD User’s Manual, Utility software

3 Quick User Guide This document

4 Accessories Tripod mount

Screws for tripod mount

C mount adapter ring

DC jack adapter

Dust protection cap,

Terminal block connector

Allen Wrench

5 Lens (Optional)

2. Physical Description

Rear View

1. Alarm In/Out, Audio In/Out (use terminal block connector)

2. Video Out

3. Micro SD card (SDHC supported)

Quick User Guide ZN-C Series Network Camera

4. Network (RJ-45 PoE supported)

5. Reset Button

6. Power (DC12V / AC24V)

7. Status LED

8. DC Iris

Front View

9. Flange back locking screw

3. Making Connection

1. If you have external devices such

as sensor or alarms, make connection

from terminal block connector.

2. Connect Ethernet cable to make connection

to the network hub.

3. Connect power cable to the camera.

When you use PoE function, you don’t

need to connect power.

Quick User Guide ZN-C Series Network Camera

4. Assign IP address

The default setting of the camera is set to “DHCP” and “UPnP” function is

set to ON. If you have a DHCP server on your network and UPnP function is

enabled on your PC you can find the network camera in “My network”.

If a DHCP server is not available on your network, please assign IP address

by the following process.

1) Execute PixelPro Discovery Tool and click “Search” button.

2) After the camera is listed in camera list, select the camera.

3) Type in the all network information.

4) Click “Apply” button, the setting will be showed in the list.

5) Click “Setting” Button to set network information to the camera.

Then double click the camera in the list, Internet explorer will open

automatically.

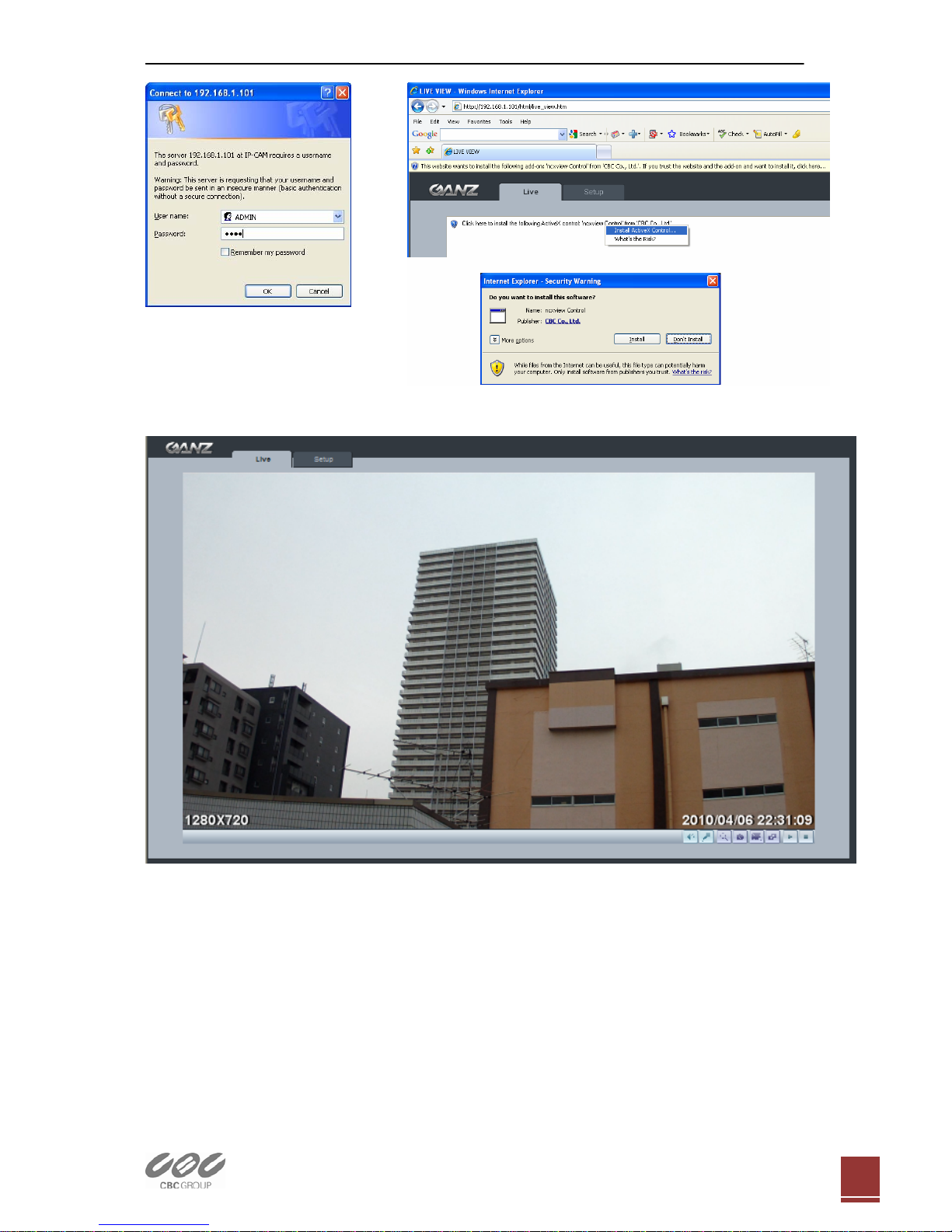

5. Web browser connection

Note : The Network camera supports Internet Explorer 7 or above.

Please check version of your browser and update it if necessary.

When you first access the camera you need to download and install an

Active X control from the camera to display a Live image.

Default User and Password are set to “ADMIN” and “1234”. Please type in

the user ID and password to connect the network camera.

Quick User Guide ZN-C Series Network Camera

Note: By Default the cameras come with “Installation Mode” set to “ON” to

enable Analog output. You must turn installation mode off to use 720p

or 1080p streaming.

For further information for setup, please refer to User’s manual

in software CD.
