Casio QV-5000SX Guía de solución de problemas

ZOOM MODE

–

DISP

ON/OFF

POWER

REC

PLAY

LCD ON/OFF

QV-5000SX

MAY. 1998

(without price)

(KX-777)

CONTENTS

SPECIFICATIONS....................................................................................................................................... 1

BLOCK DIAGRAM ...................................................................................................................................... 2

POWER SUPPLY FLOW ............................................................................................................................ 3

VOLTAGE TABLE....................................................................................................................................... 4

ADJUSTMENT ............................................................................................................................................ 5

1. Complete Unit .................................................................................................................................... 5

1-1. Loading ADJ................................................................................................................................. 5

1-2. White balance · Sensitivity adjustment ..................................................................................... 5

1-3. Flash operation and recharge operation ................................................................................... 7

1-4. Current consumption .................................................................................................................. 9

1-5. Operation check (Reference)...................................................................................................... 9

1-6. Test mode ................................................................................................................................... 10

2. D-PCB Assy ...................................................................................................................................... 13

2-1. Operation check......................................................................................................................... 13

3. L-PCB Assy ...................................................................................................................................... 15

3-1. VCC18, VCC15, VEE7 voltage adjustment............................................................................... 15

DISASSEMBLY ......................................................................................................................................... 16

PRECAUTIONS WHEN ASSEMBLING.................................................................................................... 21

EXPLODED VIEW ..................................................................................................................................... 23

PARTS LIST .............................................................................................................................................. 24

PRINTED CIRCUIT BOARDS ................................................................................................................... 32

SCHEMATIC DIAGRAMS ......................................................................................................................... 37

TROUBLESHOOTING .............................................................................................................................. 45

— 1 —

SPECIFICATIONS

Item Specification

Recording System Digital (JPEG base); PC Link software can be used to input images in CAM, JPEG,

TIFF and other format.

Recording Medium Flash memory (8MB)

Memory Capacity/ SUPER FINE: 16 images

Computer Output image (450KB compressed – 1280 x 960 pixels)

FINE: 30 images

(225KB compressed – 1280 x 960 pixels)

NORMAL: 57 images

(113KB compressed – 1280 x 960 pixels)

ECONOMY: 88 images

(64KB compressed – 640 x 480 pixels)

The above figures are approximations only. The actual number of images depends on

image subject matter.

Image Element 1/3-inch CCD (Total Pixels: 1,310,000; Effective Pixels: 1,250,000)

Computer Output image 1280 x 960 / 640 x 480 pixels

Lens F2.8, f = 5.47mm

Focusing Selectable between phase-difference detection system autofocus and manual focus.

Aperture Lens shutter/auto iris

Focus Range NORMAL: 0.3m to ∞

MACRO: 10cm

(From surface of protective lens.)

Light Metering TTL center priority by CCD

Exposure Metering Program AE

Exposure Range EV +6 to 17

Exposure Correction –2EV to +2EV (1/2EV units)

Shutter CCD electronic shutter/mechanical shutter

Shutter Speed 1/8 to 1/500 second

White Balance Automatic

Self-timer 10 seconds

Recording Modes Single-image; Self-timer; Movie; Panorama; Title; Macro

Flash Modes AUTO, ON, OFF, Red-eye Reduction

Monitor/Viewfinder 1.8-inch TFT low-glare color LCD; 122,100 (555 x 220) pixels

Video Output NTSC/PAL (selectable)

Input/Output Terminals DIGITAL OUT, VIDEO OUT, AC adaptor connector

Power Supply Four batteries (AA-size alkaline or lithium batteries)/AC adaptor (AD-C620)

Power Consumption Approximately 7.6 W

Dimensions 131(W) x 69(H) x 43(D) mm

Weight Approximately 250g (excluding batteries)

Standard Accessories wrist strap; soft case; video cable; four LR6 alkaline batteries; owner’s manual

• The liquid crystal panel built into this camera is the product of precision engineering, with an effective pixel rate of

99.99%. This also means, however that 0.01% of the pixels can be expected to fail to light or to remain lit at all

times.

— 2 —

BLOCK DIAGRAM

ST-UNIT

C-PCB

High voltage

generator

Lens

UNIT

Battery

Voltage

LAMP

D-PCB

AF-PCB

PW-PCB

KA-PCB

sensor

Comparator

Voltage Controller

3.3V

VCC3-1

VCC3-2

VCC3-3

12.75V

VCC13

7.5V

VCC7

5.0V

VCC2

–14.5V

VEE2

3.0V

VDD

B, G

R/VIDEO

AGND5

VCC5-1

CSYNC

VOUT

SGND

LTTRGN

FBN

PREN

/SHUTTER

CH3A

CH1A

CH3B

SUB

CH1B

OFDC

RESET

/STBY1.2

DB0

DB9

RSTCCD

SHP

SHD

CLAMP

SDI

SCK

LOAD

RLED

GLED

COMMAND

STATUS

/SCK

/FLB

/SHUTTER

/FLB

/LSRT

VCC1-L

LGND

BLCONT

PWCONT

DGND3

JKSW

PW0~3

ADPTN

GND5

VCC5-1

SLED

DGND3

VCC3-1

EVCC3

AGND3

VCC3-2

GND

VCC1-3

VCC1-L

PLAY/REC

BLACTB

VCC3-1

SDIPO

SDOPO

6.0V

BL-VCC

AGND

PGND

V. PM

VCC3-3

GND3

DGND

VCC

VCC18

VCC5-4

VCC15

GND4

3.3V

EVCC3

18.5V

VCC18

15V

VCC15

–9V

VEE7

GND

VCC5-1

VCC1-ST

16pin

(C FPC C)

10pin

51pin

15pin 10pin

6pin

14pin

(C FPC C)

16pin

26pin (C to F)

20pin

(B to B)

20pin

60pin

(C FPC B) 20pin

(B to B)

20pin

Battery

5.0V

VCC5-1

VCC5-2

VCC5-3

VCC5-4

KEY

MODE

DISP

S/N/F/E

S-TIMER

FLASH

VGH

VREFH

VGL

VREFL

GRES

GPCK

GSRT

SCK

SUBCE

INHN

KIN0

KIN1

KIN2

KIN3

KOUT2

DGND3

PACT

KOUT0

KOUT1

VCC3-1

KIN0

KIN1

KIN2

DGND3

RESET

MODE2

VCOM

VBC

SRTR

SRTL

BLCNT

HDB

BL-VCC

BLGND

DGND3

BLACTB

CLR

HCNT

MCLK

MODE1

VSS

GOUT

BOUT

VDD

VSH

CA481-TS

SUB-LCD

V-Dr

LZ23J3V

CCD XRD44L60

CDS/AGC/ADC

IR3Y26A1

RGB Interface

VIDEO/RGB

CM7018

TFT Controller

LC75821

LCD

Controller

1.8"TFT

LCD Module

COD18T1022

V-Dr

SUB

CPU

AF-PCB

BL-PCB

JACK

KEY

SHUTTER

(+)

(–)

VIDEO

JACK

Serial

Commu-

nication

Jack

DRIVER

EEPROM

CL-UNIT

VCC1-ST

VCC5-1

GND

H-BUFFER

2 color

LED

Timer

LED

DRIVER

KB-PCB

L-PCB

JK-IN

Serial

communication

buffer

VIDEO75Ω

driver

DCAM-101

FLASH/MASK memory

8Mbit

MSM82C55A

Extension I/O

Volrtage

detector

DRAM ×2

32Mbit (50ns)

NAND FLASH memory

64Mbit

Backlight controller

circuit

LCD

ON/OFF

SOP

SIP

DGND5

LGND

VIDEO

VGND VSW

10pin (B to B)

— 3 —

PW2=H PW2=L (BLCONT=L PWCONT=L) PW2=H (PWCONT=H CSYNC Start BLCONT=H)

(2) REC MODE, LCD ON

POWER SUPPLY FLOW

When power is turned on, the power supply flows in each mode are as shown below.

(1) PLAY MODE

(3) REC MODE, LCD OFF

PW2=H PW2=L (BLCONT=L PWCONT=L) (PW1=H PW3=H) PW2=H (PWCONT=H CSYNC start BLCONT=H)

PW2=H PW2=L (BLCONT=L PWCONT=L) (PW1=H PW3=H) PW2=H

— 4 —

VOLTAGE TABLE

PCB

Signal

VCC1-3

EVCC3

VCC3 VCC3-1

VCC3-2

VCC3-4

VCC5-1

VCC18

VCC15

VCC5-4

VCC3 VCC3-1

VCC3-3

VEE7

VCC5-2

VCC5-3

VCC3-1

VCC1-ST

VCC5-1

F.B. VCC13

VCC7

VCC2

VEE2

VDD

VCC5-1

VCC3-1

BL-VCC

Control signal (“H” active)

Non, Sw,

PW0

PW2

PW1

PW3

PW0

PW3

PW1

PW0

Non, Sw,

PW2

PWCONT

PW2

PW0

PWCONT ∗BLCONT

Main Bolock

F, F, (POWER SW)

CPU, Flash, ROM, RAM

CPU (Analog)

CCD, Strobe

Strobe (Logic)

VDr

CCD, VDr, Buff,

C-MOSBuff,

CDS,AGC, AD (Driver)

CDS,AGC, AD, VDr

CCD, VDr,

AFMotor

Eyeris, Measure

AF (Logic)

Strobe Charge

Strobe (Logic)

Disp (Gate)

Disp (Source) RGB I/F

RGBI/F

Disp (Gate)

Disp (Logic), TFTController

Video Out, Serial

SignalSW, Serial

BackLight

Voltage [V]

BATTERY

3.3

5.0

18.5

15.0

5.0

3.3

-9.0

5.0

3.3

BATTERY

5.0

13.5

7.5

5.0Adj

-15.0

3.0

5.0

3.3

6.0Adj

— 5 —

RS232C port

Link cable

QV-5000SX

ADJUSTMENT

1. Complete Unit

1-1. Loading ADJ

Set QV-5000SX to “PLAY” mode.

(1) Connect QV-5000SX and DOS/V PC with link cable.

(2) Execute the adjustment software shown below on PC.

DT777E - aok 98042101.adj ENTER

(3) During the procedure, “MEMORY ERROR#4” appears on the display of QV-5000SX but this

does not indicate malfunction.

(4) Parameter loading complete message will be displayed.

1-2. White balance · Sensitivity adjustment

1. Preparation

(1) Viewer (Kenko light box handy 5000) (Modified in order to input DC externally)

(2) Voltage regulator (Output voltage: 0 to 10 V, Output current: 0 ~ 1 A)

(3) Use two ND filter together, one ND10 and one ND20.

(4) Use two color temperature converter filter together, one LA10 and one LA20.

*Although those filters are sold at a large camera store, they are available from CASIO. Please

refer to the parts list (page 31).

2. Setting of equipment

(1) Supply 6 V to simplified viewer from voltage regulator.

(2) Turn on power of simplified viewer and leave it on for more than 30 minutes.

3. Adjustment procedure

(1) Start test mode MENU2.

•Set function switch to REC mode

•Turn POWER switch ON while pressing DISP key and Shutter button simultaneously.

•Press mode key twice

•Press flash key and menu key simultaneously.

(On display, cursor is placed on CCD RGB ADJUST)

(2) Set the filter so that center of illuminance face and center of two color temperature converter

filters are lined up.

(3) Bring lens of QV-5000SX close to the center of color temperature converter filters then stick QV-

5000SX and filters together.

(4) Press the shutter button.

(5) When RGB ADJUST COMPLETE is displayed the initialization, of white balance is completed.

(6) Remove two color temperature filters from simplified viewer.

(7) Set the filter so that center of illuminance face and center of two ND filters are lined up.

[

— 6 —

Equipment needed to execute white balance and sensitivity adjustment

(8) Bring lens of QV-5000SX close to the center of ND filters, then stick QV-5000SX and filters

together.

(9) Press the shutter button.

(10) When SENS ADJ COMPLETE is displayed the adjustment of sensitivity is completed.

(11) Turn power switch off.

•When using kenko light box handy 5000 go on with the procedure listed below, 12. to 15.

Execute them only once. If you execute more than once start from procedure 1.

(12) Set function switch to PLAY mode, then turn on power.

(13) Connect QV-5000SX and PC with a link cable then execute R, BGAIN compensation software

(kadj1E.exe) on Windows 95.

(14) Click “replace AD”.

(15) White balance adjustment is completed when “AD replacement complete” is displayed.

4. Checking Adjustment

(1) White balance

•Set white balance manually to sunlight.

•Turn on the power switch of simplified viewer and take a picture.

•Compare it with a regular picture and if there are no difference, its setting is OK.

(2) Sensitivity

•Set strobe to AUTO.

•Take a picture of a person’s face in a dark room at a distance of about 1 meter.

•Compare it with a regular picture and if there are no difference, its setting is OK.

No. 1

No. 2

ADJ SOFT

CCD RGB ADJUST

CCD SENSADJUST

Color temperature

(K) light source 1

4400 ±200

Light intensisty

(cd/m2) light source 2

50 ±5

Note

No specified figure for

light intensity

No specified figure for

color temperature

Light source (viewer)

PRECAUTIONS

• Since the intensity of light and color temperature varies in the simplified viewer, let it sit for 30

minutes before using.

• The deviation of simplified viewer’s illuminace face’s point light intensity is large, try to set the

illuminace face at the center.

• Pay attention since the figure of R, BGAIN compensation software (kadj1E. exe) keeps changing.

— 7 —

1-3. Flash operation and recharge operation

• Apply 6.0 ±0.1 V voltage on DC in jack.

• Set QV-5000SX in “REC” mode.

• Perform after flash adjustment.

(1) Shoot a picture with flash ON.

(2) Shoot in red eye reduction mode.

(3) Shoot in macro mode.

(4) Set QV-5000SX in “PLAY” mode and check the pictures taken.

(5) Monitor the trigger waveform of (1), (2) and (3) on a digital oscilloscope and make sure there are

no errors.

(6) Shoot a picture with flash OFF. (Make sure there is no flash)

(7) Make sure that the charging current is less than 1.3 A.

Note: Make sure that the pictures taken in steps (1) and (2) are not whitish, dark or erroneously

colored.

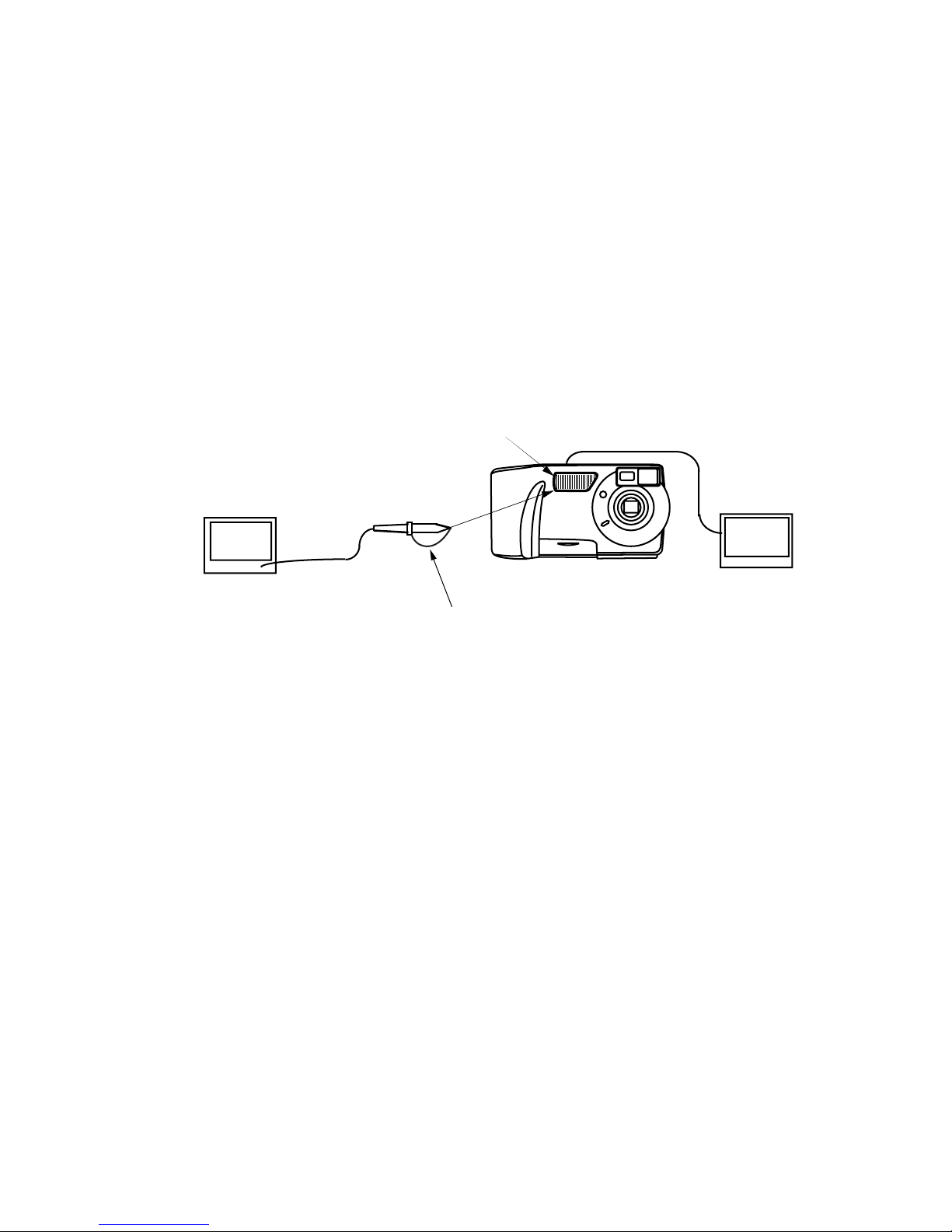

Flash lens face

Monitor

Digital oscilloscope Probe close to

flash lens face

QV-5000SX

Earth of hte probe

Should be hooked as shown above.

TIME : 1.0 µsec/DIV

VOLTS: 1 V/DIV (AC mode)

— 8 —

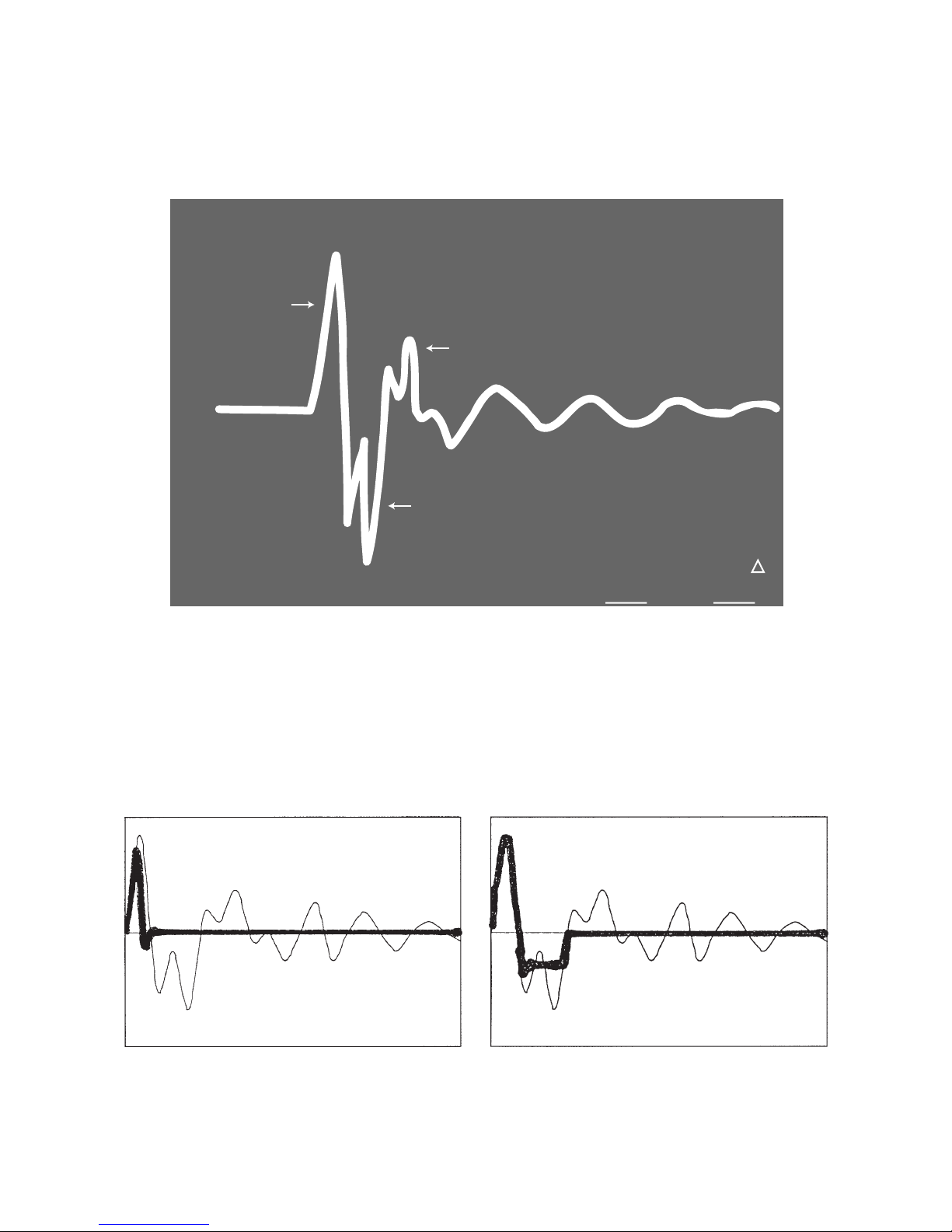

Flash trigger waveform

1. Normal waveform TIME : 1 µsec/DIV

VOLTS : 1 V/DIV

(2) When trigger skipping occurs on the first

negative pulse.

ACQUIRE

NORMAL 1

ENVELOPE 2

AVS REPET

ON | OFF SAVE ON

ON | OFF

CH1 1V 757µVUERT1µV

First positive

pulse.

First negative

pulse.

OK if second positive pulse is shown.

2. NG waveforms when trigger skipping occurs.

(1) When trigger skipping occurs on the first

positive pulse.

Otros manuales para QV-5000SX

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cámara digital de Casio

Casio

Casio Exilim EX-TR15 Manual de usuario

Casio

Casio Exilim EX-Z1050 Manual de usuario

Casio

Casio QV-2400UX Manual de usuario

Casio

Casio EX-TR60 Manual de usuario

Casio

Casio EX-FC150 - EXILIM Digital Camera Manual de usuario

Casio

Casio QV-10B Guía de solución de problemas

Casio

Casio Exilim EX-S770 Manual de usuario

Casio

Casio EX-S3 - Exilim 3MP Digital Camera Manual de usuario

Casio

Casio EX-M2 - EXILIM Digital Camera Manual de usuario

Casio

Casio QV-R3 Manual de usuario

Casio

Casio EXILIM EX - Digital Camera - 3.2 Megapixel Manual de usuario

Casio

Casio EXILIM EXS3DBA Manual de usuario

Casio

Casio EXILIM K1124PCM2DMX Manual de usuario

Casio

Casio EX-ZR3600 Manual de usuario

Casio

Casio Exilim EX-S8 Manual de usuario

Casio

Casio Exilim EX-ZR1000 Manual de usuario

Casio

Casio EX-M20U - 4 Manual de usuario

Casio

Casio EExilim X-FH25 Manual de usuario

Casio

Casio Exilim EX-H10 Manual de usuario

Casio

Casio KX-787 Guía de solución de problemas

Casio

Casio EX-FR100CA Manual de usuario

Casio

Casio Exilim EX-ZR850 Manual de usuario

Casio

Casio Exilim EX-M20U Manual de instrucciones y seguridad

Casio

Casio Exilim EX-Z300 Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
