Carrier Comfort Non-Programmable Manual de usuario

Comfort TM Non°Programmable

Owner's Manua_

This Comfort non-programmable thermostat is an easy to use model that provides

the most sought-after features for keeping your home comfortable. And with a slim

profile, it is designed to be as smart - and smart-looking - as any of the other

electronics in your home. Let this manual show you how easy it is to enjoy the

newest experience in home comfort.

@ ( E Designed and Assembled in the U.S.A.

NOTE: Read the entire instruction manual before starting the installation.

BUTTONIDENTIFICATION................................. 4

ON-SCREENINDICATORS..................................... 6

OPERATINGTHETHERMOSTAT

Settingthetemperaturesforheatingandcooling.................... 8

Usingthefan.................................................. 9

Usingemergencyheat(heatpumpsystemsonly).................. 10

Installingorreplacingthebatteries............................... 11

Usingthethermostattoturntheheatingandcoolingsystemoff ...... 14

Autochangeover.............................................. 14

ADVANCEDOPTIONS

Advancedoptionsdisplaycodeschart............................ 15

ChangingfromFahrenheittoCelsius............................ 16

Turningonthecontinuousbacklighting.......................... 17

Keypadlockout............................................... 18

Unlockingthekeypad........................................ 19

WHATIF...

Thebatteryiconisdisplayed.................................... 20

"Auxheaton"isdisplayed(heatpumpsystemsonly).............. 20

"Emheat"isdisplayed(heatpumpsystemsonly).................. 20

Thereisapoweroutage........................................ 21

Yougetasystemerrormessage................................. 21

COMMONTERMSANDWHERETOFINDTHEM

Autochangeover.............................................. 22

Auxiliaryheat(heatpumpsystemsonly)......................... 22

Backlighting................................................. 22

Emergencyheat(heatpumpsystemsonly)........................ 22

Mode........................................................ 22

WARRANTY.................................................. 23

o F

fall actualtemp

88_,,_'

setat ?

a. FAN Selects whether the fan operates continuously (on) or only when

needed for heating or cooling (auto)

b. MODE Selects whether thermostat is set for heating, cooling, emergency

heat (heat pump system only), auto (heat and cool as needed), or off

c. UP Increases the temperature or adjusts the screen selection up when

setting advanced features

d. DOWN Decreases the temperature or adjusts the screen selection down

when setting advanced features

off

heat

aux

heat

fan

auto

fan

on setat ---___ @

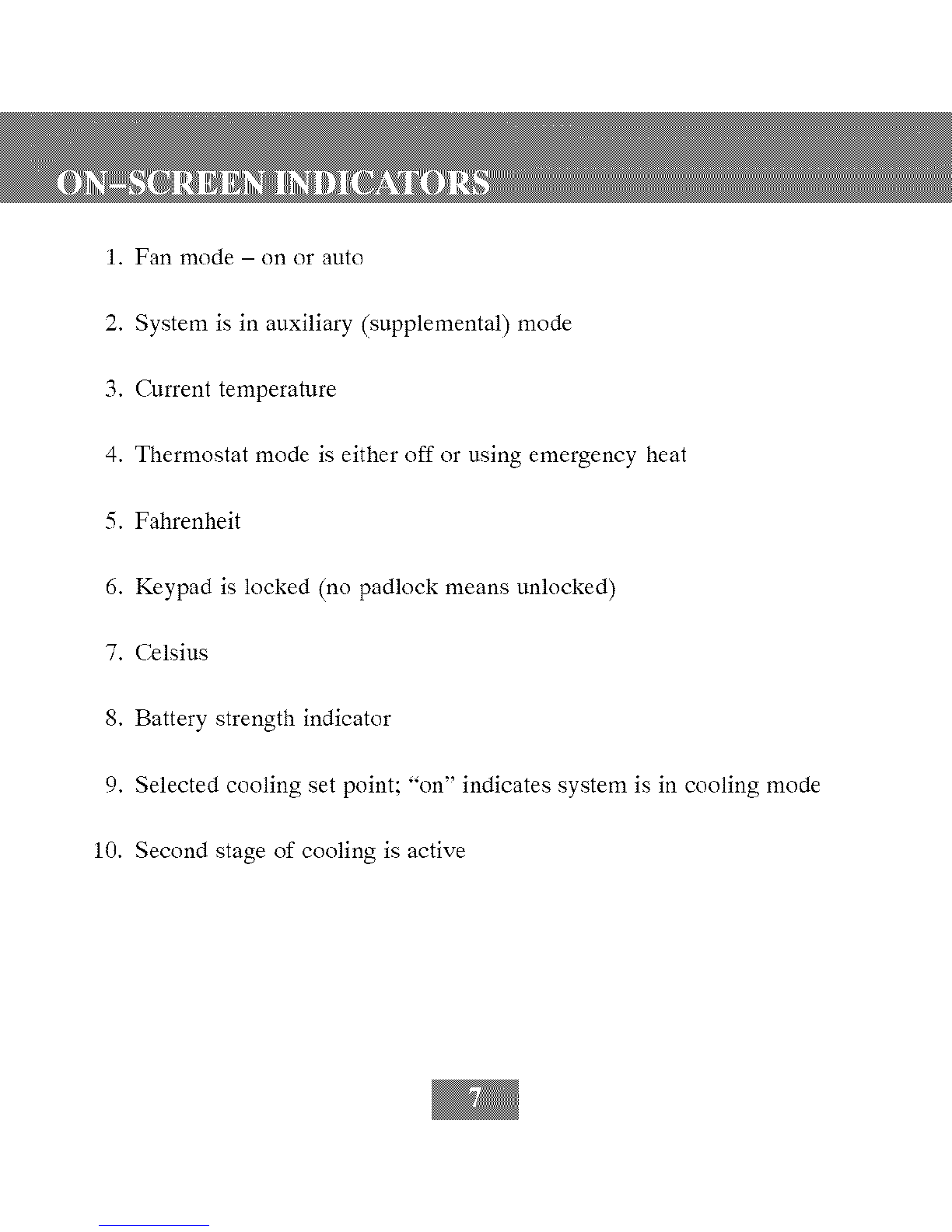

1. Fan mode - on or auto

2. System is in auxiliary (supplemental) mode

3. Current temperature

4. Thermostat mode is either off or using emergency heat

5. Fahrenheit

6. Keypad is locked (no padlock means unlocked)

7. Celsius

8. Battery strength indicator

9. Selected cooling set point; "on" indicates system is in cooling mode

10. Second stage of cooling is active

Setting the temperatures for heating and cooling

Your thermostat is installed with the heating set at 68 ° F and the cooling set at 72 ° F.

You can use these or change them so your home is as warm or as cool as you would

like it to be. These steps will hold the temperature where you set it.

1. To change the heating temperature, press the modebut- "_001

ton on the left until the screen says hoar. o

2. Press the up or down button located on the right side of

the display until you reach the desired temperature, o_:]

3. To change the cooling temperature, press the mode but- o

ton on the left until the screen says cool.

4. Press the up or down button located on the right side of the display until

you reach the desired temperature.

Using the fan

When the fan is on, it helps distribute air throughout your home for a more even

temperature in all spaces. You can set the thermostat so that the fan runs only

during your heating and cooling cycles (auto mode) or to run continuously.

The thermostat is set at the factory to run automatically as needed. Here's how to

change the setting so it runs continuously.

1. Press the fan button on the left. The display message will change from auto

fan to fan on.

2. To return the fan to auto mode, press the fan button °l I°]

again. You will see fan auto on the display, e
