Car Solutions RNS-E PU Manual de usuario

–

RNS E PU

Video Interface

www.car-solutions.com [email protected]

Car-Solutions.com

Product Composition

Interface Board 1 EA

Power Cable 1 EA

RGB Navi Cable 1 EA

A/V Cable 1 EA LVDS Cable 1 EA Audio Cable 1 EA

Sub Board 1 EA LVDS Cable 1 EA OSD Keypad 1 EA

Car-Solutions.com

About Interface

-Dimension

127mm * 83mm * 22mm

-External Appearance

* This can change under manufacturer’s circumstance

Car-Solutions.com

Connector Pin Assignment

Car-Solutions.com

DIP S/W Setting

※ON : DOWN , OFF : UP

PIN FUNCTION DIP S/W Selection

1 RGB INPUT MUTE ON

OFF

: Skipping RGB Mode

: NAVI Display

2 CVBS1 MUTE ON

OFF

: Skipping CVBS1

: CVBS1 Display

3 CVBS2 MUTE ON

OFF

: Skipping CVBS2

: CVBS2 Display

4 NAVI ON

OFF

: NAVI-AV

: NAVI-RGB

5 N.C

6 N.C

N.C

Car-Solutions.com

I-DRIVE Control

Mode Change Control

Mode Change

Push Long :

Car-Solutions.com

OSD MENU

First Menu Second Menu Third Menu Action ELT-980XU Slim AMPIRE DVX-101

Config

NAVI-RGB

GI4000 Selection Korea 480*234

GI8000 Selection Korea 800*480

GI8000 3G Selection Korea 800*480

PANASONIC Selection Taiwan 480*234

PT-GPS800A Selection China 480*234

KD900(WVGA) Selection China 800*480 SANYO NECVOX

KD900(WQVGA) Selection China 480*234

PURENAV18 Selection Taiwan 480*234

SINGAPORE Selection Singapore 480*234

NAVI-AV

DVD

ELT-980XU Slim Selection Europe

LCKT Selection China

SANYO Selection China

NECBOX DVA-3206 Selection China

AMPIRE DVX-101 Selection Singapore

PIONEER Selection Japan

Car-Solutions.com

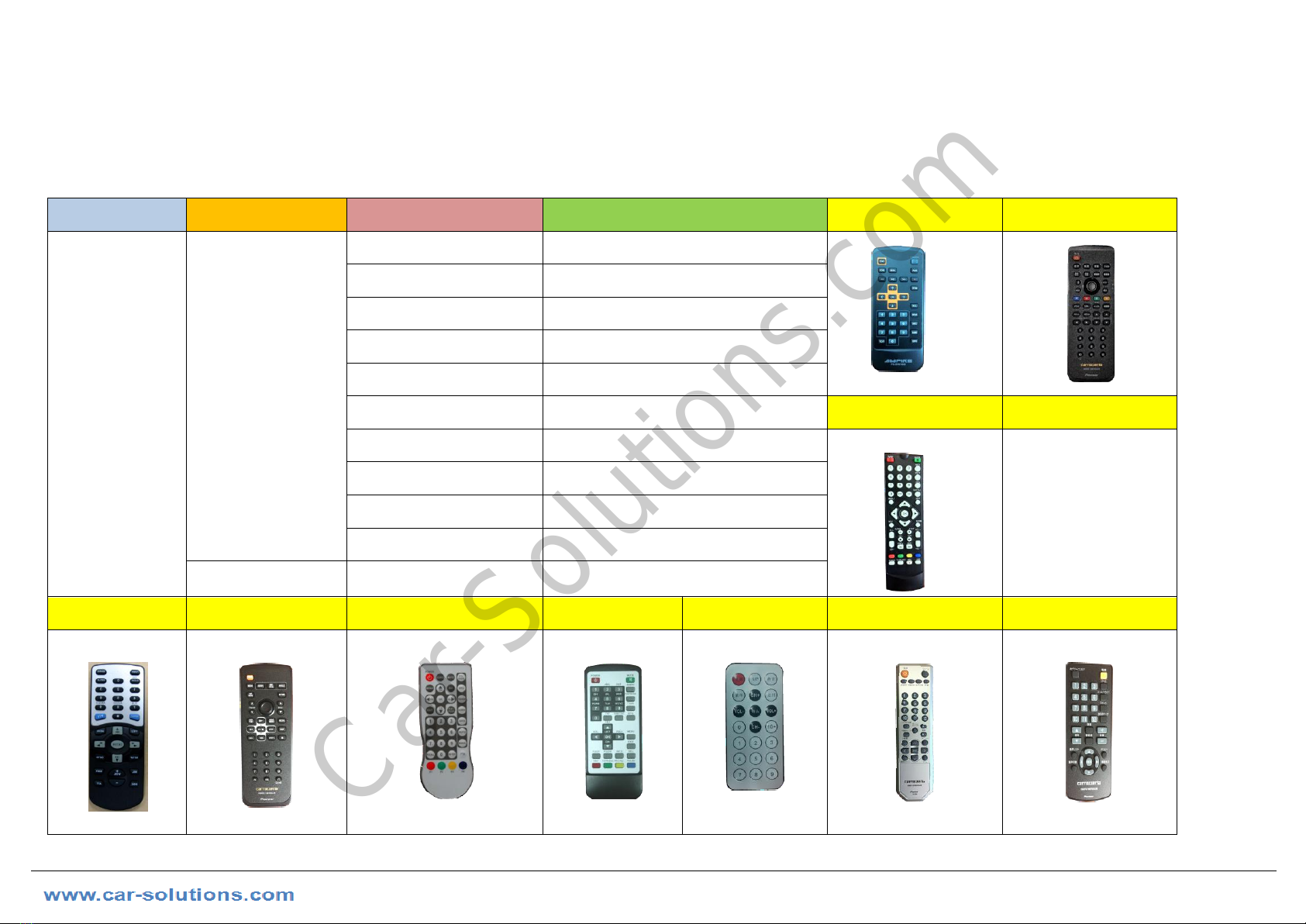

OSD MENU

First Menu Second Menu Third Menu Action DVBT55HD Pioneer

Config DVB-T(DMB)

ELT-DVBT20 Selection Europe

NET-770 Selection Korea

MEDIALIFE Selection Korea

PANASONIC Selection Japan

PIONEER Selection Japan

GEX-DTV Selection Japan DVB-T2010HD

PORTUGAL Selection Europe

DVB-T20010HD Selection Europe

DVBT55-HD Selection Europe

CMMB-ZW Selection China

Reset EXCUTE Config Menu all Reset

LCKT PIONEER ELT-DVBT20 Portugal CMMB-ZW GEX-DTV GEX-DTV

Car-Solutions.com

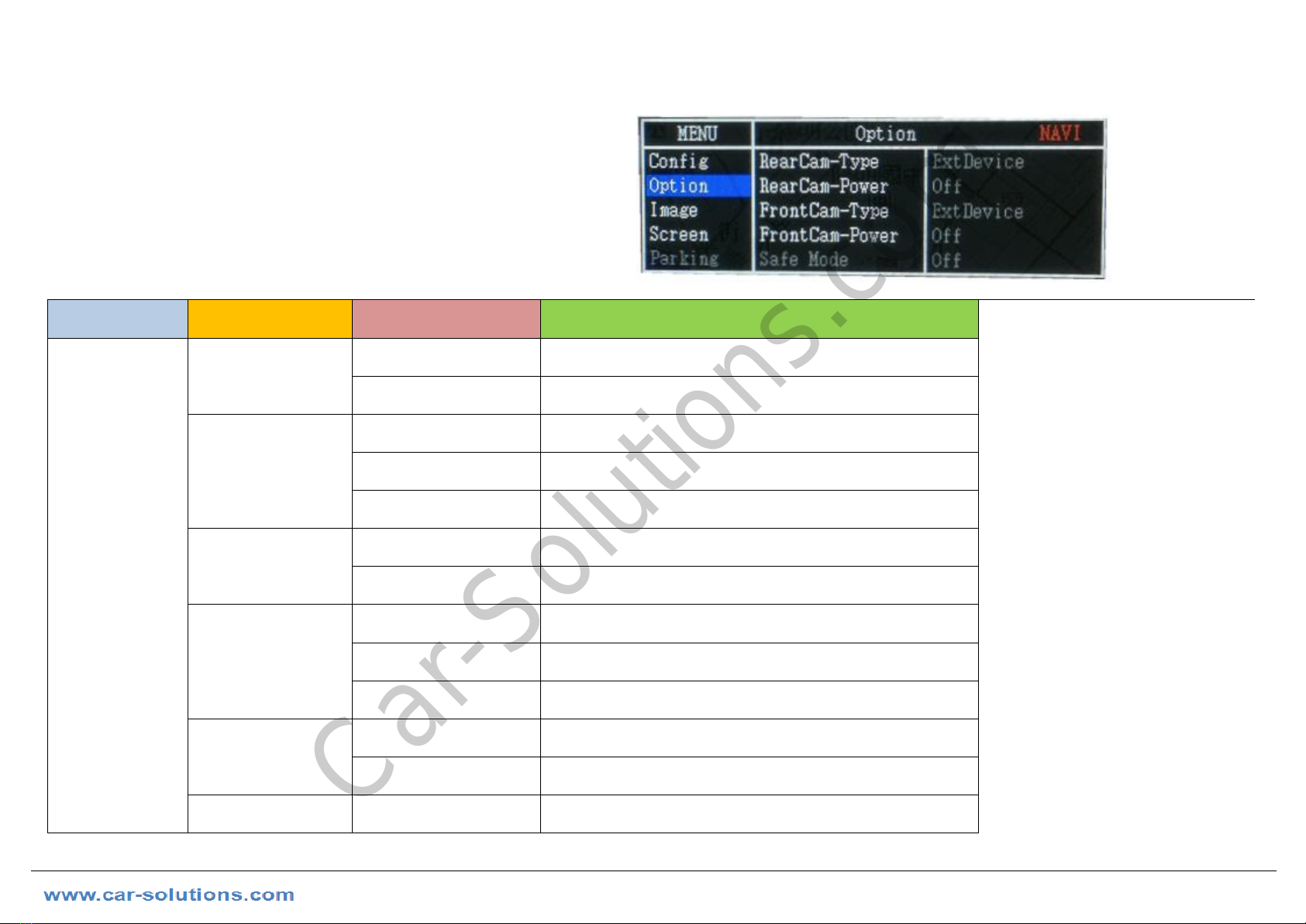

OSD Menu

First Menu Second Menu Third Menu Action

Option

RearCam –Type

OEM Original Rear camera

ExtDevice Use aftermarket Rear camera

RearCam –Power

ON Rear camera get +12V consistently

AUTO Rear camera get +12V when reverse gear on.

OFF Shut out the power supply.

FrontCam –Type

OEM Original Front camera

ExtDevice Use aftermarket Front camera

FrontCam –Power

ON Front camera get +12V consistently

AUTO Front camera get +12V when reverse gear on.

OFF Shut out the power supply.

RearCam-RcvOpt

ON Show Frontcam 25sec after rear mode.

OFF Default

Reset Excute Option Menu all Reset

Car-Solutions.com

OSD Menu

▶Navi-RGB Menu

First Menu Second Menu Third Menu Action


Brightness Adjust the value of brightness

Contrast Adjust the value of contrast

Color –Red Adjust the value of RED

Color –Green Adjust the value of GREEN

Color –Blue Adjust the value of BLUE

Reset Excute Option Menu all Reset

▶DVD,DVB-T(DTV),Navi –AV, Rear, Front Menu

First Menu Second Menu Third Menu Action


Brightness Adjust the value of brightness

Contrast Adjust the value of contrast

Saturation Adjust the value of Saturation

Hue Adjust the value of Hue

Sharpness Adjust the value of Sharpness

Reset Excute Option Menu all Reset

Car-Solutions.com
