Car Solutions 500 Series Manual de usuario
Installation Manual
Video Interface for FIAT 500 series
car-solutions.com
car-solutions.com
2
Product Exterior
Package Content
Sub board * 1ea
(PCBSUBC0441)
IR * 1ea
(HIRCAB0002) Remote * 1ea
(REMOTE0001)
R-CAM * 1ea
(HARETC0002)
BUTTON * 1ea
(HARETC0001)
MODE(Button cable) | IR(IR cable) | POWER(Power cable) | REAR(rear cable) |
RGB-IN-HDMI(Mirroring connection) | RGB-IN-NAVI(RGB Navigation) |
AV IN/OUT(AV cable | TO NAVI T/S OUT(NAVI touch cable) | LVDS-OUT(Subboard)
TEST(No use) | LED | DIP S/W(Dip switch setting)
NAVI * 1ea
(HRGBCA0013)
TOUCH * 1ea
(HTOUCH0004)LVDS * 1ea
(HLVDSC0047)
FFC* 1ea
(FFCBAL0079)
FFC* 1ea
(FFCBAL0078)
FFC* 1ea
(FFCBAL0072)
Length-90mm
Height-18mm
Width-140mm
Power * 1ea
(HPOWER0180) AV * 1ea
(HAVCAB0002)
car-solutions.com
car-solutions.com
PIN Function Dip S/W
1 RGB mode OFF : Display RGB(Navi) Mode
ON : Skip RGB(Navi) Mode
2 AV1 mode OFF : Display AV1 Mode
ON : Skip AV1 Mode
3 AV2 mode OFF : Display A/V2 Mode
ON : Skip A/V2 Mode
4 Front camera OFF : Display A/V3 Mode
ON : Skip A/V2 Mode
5Car model Please refer below table
6
7 Rear Camera ON : Aftermarket rear camera
OFF : OEM rear camera
8 Please refer below table
ON : DOWN / OFF : UP
※Please make sure to disconnect and reconnect the power cable after hanging
the dip switch setting. Otherwise, new dip switch setting will not be applied.
3
DIP SWITCH
Dip 5 Dip 6 Dip 8
Fiat other OFF OFF OFF
Fiat 500x ON OFF OFF
Alfa Romeo OFF ON OFF
Fiat other America ON ON OFF
Renegade X X ON
2021 New Ducato ON OFF ON
car-solutions.com
car-solutions.com
4
Remote Control
Key Function
POWER & PIP No use
MENU Activate FACTORY mode
OK Select, Changing image display
▲Move up
▼Move down
◀Move left(Access to the factory mode if you press this button
more than 2 seconds)
▶Move right (Activate the data reset if you press this button
more than 2 seconds)
car-solutions.com
car-solutions.com
PARK
UTIL1
UTIL2
INFO
H-POSITION
V-POSITION
H-SIZE(NAVI)
Menu of FACTORY
MENU to Return SEL to Select/Save
5
Factory Setting
Adjust the position and size of image
PAS TYPE : Parking guideline setting
- NOT USED : No use parking guideline
- PAS ON : Selecting Dynamic parking guide line
- PAS OFF : Selecting fixed parking guide line
RAS SETUP : adjusting the position of the parking guideline
REAR TYPE : Choose rear camera recognition
* LAMP - Detecting the rear view camera via rear lamp (Installer must
connect “Rear-C” cable of the power cable to the rear lamp of the car.)
*CAN - Detecting the rear view camera by CAN signal (Installer must
connect “CAN” cable of the power cable to the “CAN” cable of the car.)
SAFE ENABLE : Able/unable to display the image of external modes
while driving(Default: Off)
<H-POSITION> <V-POSITION>
Setting for rear camera
H-POSITION : Move the image horizontally
V-POSITION : Move the image vertically.
H-SIZE(NAVI) : Adjust the size of navigation
image horizontally
PARK
UTIL1
UTIL2
INFO
PAS TYPE
PAS SETUP
REAR TYPE
SAFE ENABLE
Menu of FACTORY
MENU to Return SEL to Select/Save
car-solutions.com
car-solutions.com
6
Factory Setting
Select Navigation & Car model
NAVI MODEL : Select RGB Navigation model
CAR MODEL : No use
AVOUT SELECT : Select background mode sound
via Car Aux(AV1, AV2, Default)
HDMI SKIP : Able to skip HDMI mode
FACTORY RESET : FACTORY mode reset.
PARK
UTIL1
UTIL2
INFO
NAVI MODEL
CAR MODEL
AVOUT SELECT
HDMI SKIP
FACTORY RESET
Menu of FACTORY
MENU to Return SEL to Select/Save
Setting for other options
IR DATA MODEL
: Resister IR Memory of DVD, DTV
(Default, User)
TOUCH ENABLE : Activate/Deactivate
UI remote touch
IR DATA MEMORY : Enter Remote values
of DTV, DVD
CALIBRATE : Activate Touch calibration
Refer to IR manual for IR settings
PARK
UTIL1
UTIL2
INFO
IR DATA MODEL
TOUCH ENABLE
IR DATA MEMORY
CALIBRATE
Menu of FACTORY
MENU to Return SEL to Select/Save
Able to check the version of product
PARK
UTIL1
UTIL2
INFO
SYSTEM VERSION
(MAIN-130723)
Menu of FACTORY
MENU to Return SEL to Select/Save
car-solutions.com
car-solutions.com
7
OEM button
Long Press - Mode switch (RGB→AV1→AV2→F-CAM)
Short Press –Return to OEM mode
Long press –Activate the front camera
(Front camera image will disappear 10 seconds later)
Return to OEM mode if other buttons are pressed
car-solutions.com
car-solutions.com
8
Installation Diagram
NAVI BOX
ACC
REAR
MMI
GND
CAN-H-HS
CAN-L-HS
F-CAM-DET
SAFE
CAN-H-LS
CAN-L-LS
REAR (9V OUT)
GND
RGB
Cable
Touch Cable
CAN / ACC wire connection
- Connect Supplied CAN-H-HS wire (Green+Brown) to
OEM CAN HIGH wire(White)
- Connect Supplied CAN-L-HS wire(Green) to
OEM CAN LOW wire(Blue )
- Connect suppliedACC wire(Red) to OEM B+ wire (Red+Brown)
- Connect supplied GND wire(Black) to
OEM Ground (Black)
Cable position might be different based on certain car
models but the color of wires is same
Find OEM cables behind the command
CAN HIGH
CAN LOW
B+ GN
D
Connection
SUB BOARD
LVDS Cable
A
U
D
I
O
(R)
O
U
T
A
U
D
I
O
(L)
O
U
T
V
3
A
U
D
I
O
(R)
IN
1
A
U
D
I
O
(L)
IN
1
R
E
A
R
V
I
D
E
O
IN
1
V
I
D
E
O
O
U
T
1
V
I
D
E
O
O
U
T
2
A
U
D
I
O
(R)
IN
2
A
U
D
I
O
(L)
IN
2
V
I
D
E
O
IN
2
A/V CABLE
car-solutions.com
car-solutions.com
9

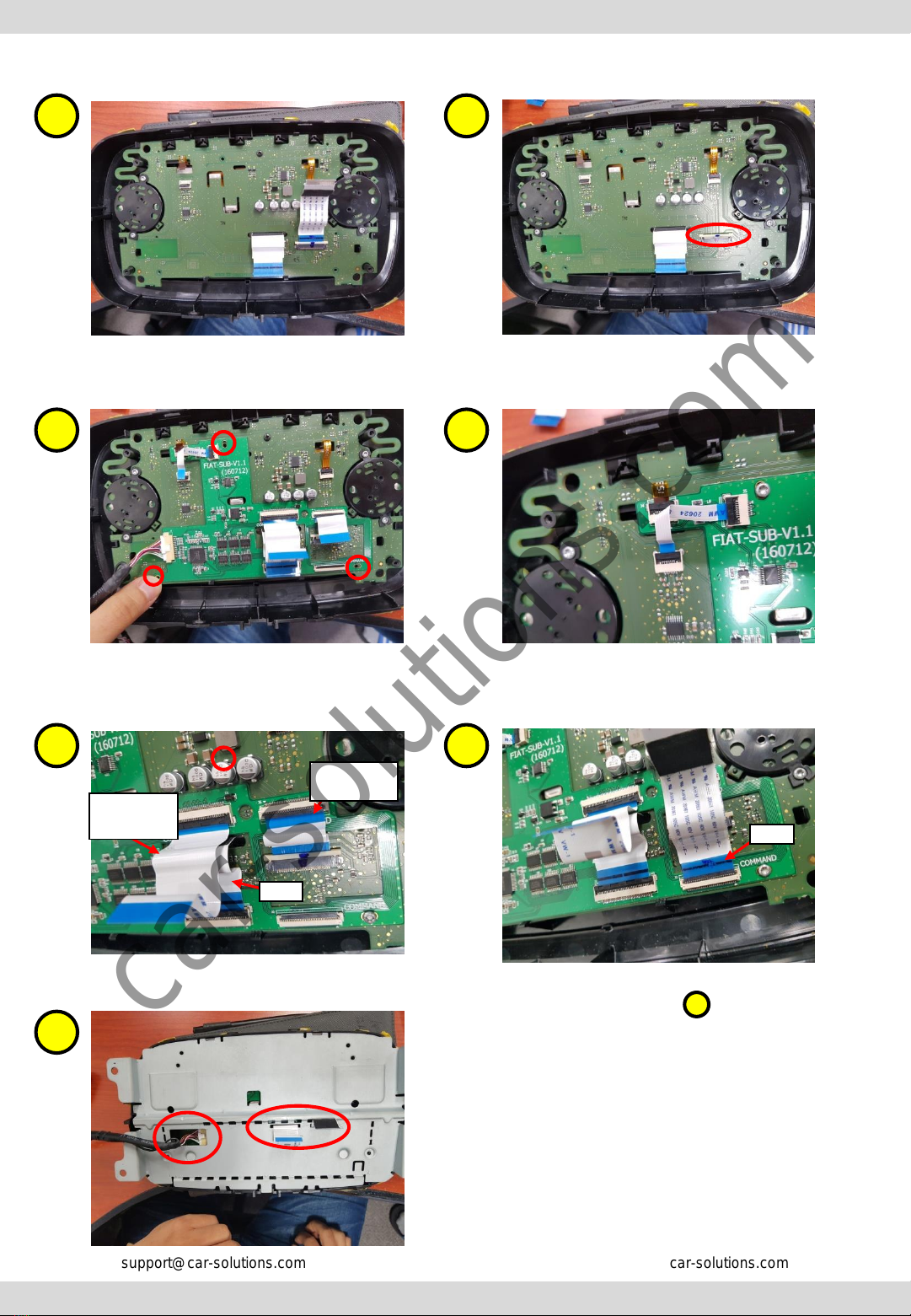

Sub board Monitor Connection
Disassemble the monitor Remove the original FFC cable
in a circle
Put the supplied subboard on the
top of PCB board and assemble
bolts in marked places (Use OEM
bolts)
Connect touch cable as shown
above
Connect FFC cable as above
OEM
Supplied
parts
Supplied
parts
Connect the original FFC cable
which is removed from NO.
Instruction to the marked place
1 2
3 4
5 6
7
2
순정
Take out the FFC&LVDS cables from
marked holes
car-solutions.com
car-solutions.com
10
New Ducato 2012~ MY
*Please make sure that New Ducato monitor works for only external AV & Rear
Camera input on the interface.
External Rear Camera screen
