Car Solutions Roik 4G Manual de usuario
- MODEL : ROiK 4G
ROiK 4G Installation Manual
- DATE : 2017.07.20
Car-Solutions.com
www.car-solutions.com
External connector
a b c d e f g h
i j k l m n
a
Power/Can Calbe
h Wifi Antenna
b K-Pad i SD Card Slot
c LVDS Out j HDMI Input
d LVDS In k USB 3
e Universal Calbe l Dip Switch
f AV Cable m USB 2
g GPS Antenna n USB 1
Car-Solutions.com
www.car-solutions.com
Connector Pin Assignment
※POWER & CAN
※AV IN
1
23
45
67
89
1011
1213
1415
16
1 BATTERY 2 GND
3 N.C. 4 N.C.
5 VDD_12V 6 N.C.
7 N.C. 8 REAR_12V
9 AUDI_MMI 10 N.C.
11 ECU_CAN_IN_H 12 ECU_CAN_IN_L
13 MON_CAN_IN_H 14 MON_CAN_IN_L
15 MON_CAN_OUT_H 16 MON_CAN_OUT_L
1
23
45
67
89
1011
1213
1415
16
1 DVBT_IN_V 2 GND
3 DVBT_IN_R 4 GND
5 DVBT_IN_L 6 GND
7 DVD_IN_V 8 GND
9 DVD_IN_R 10 GND
11 DVD_IN_L 12 GND
13 FRONT_IN 14 GND
15 REAR_IN 16 GND
※AV IN/OUT
1
23
45
67
89
1011
1213
1415
1617
1819
2021
22
1 SPK_P 2 SPK_N
3 AUX_OUT_R 4 AUX_GND
5 AUX_OUT_L 6 AUX_GND
7 MIC_P 8 MIC_N
9 I2C_CAP_SCL 10 CAP_GND
11 I2C_CAP_SDA 12 CAP3.3V
13 CAP_TU_INT 14 CAP_TU_RST
15 MMI_TXD 16 MMI_GND
17 MMI_RXD 18 IR_IN
19 DVB-T_IR 20 IR_GND
21 DVD_IR 22 IR_POWER
Car-Solutions.com
www.car-solutions.com
Components
ROiK 4G Power/Can
Cable Universal
Cable AV Cable
External GPS
Antenna Speaker
WiFi/BT
Antenna
LVDS Cable
MIC SD Card SD Card
Reader Quad Lock
Cable
(option)
K-PAD
Car-Solutions.com
www.car-solutions.com

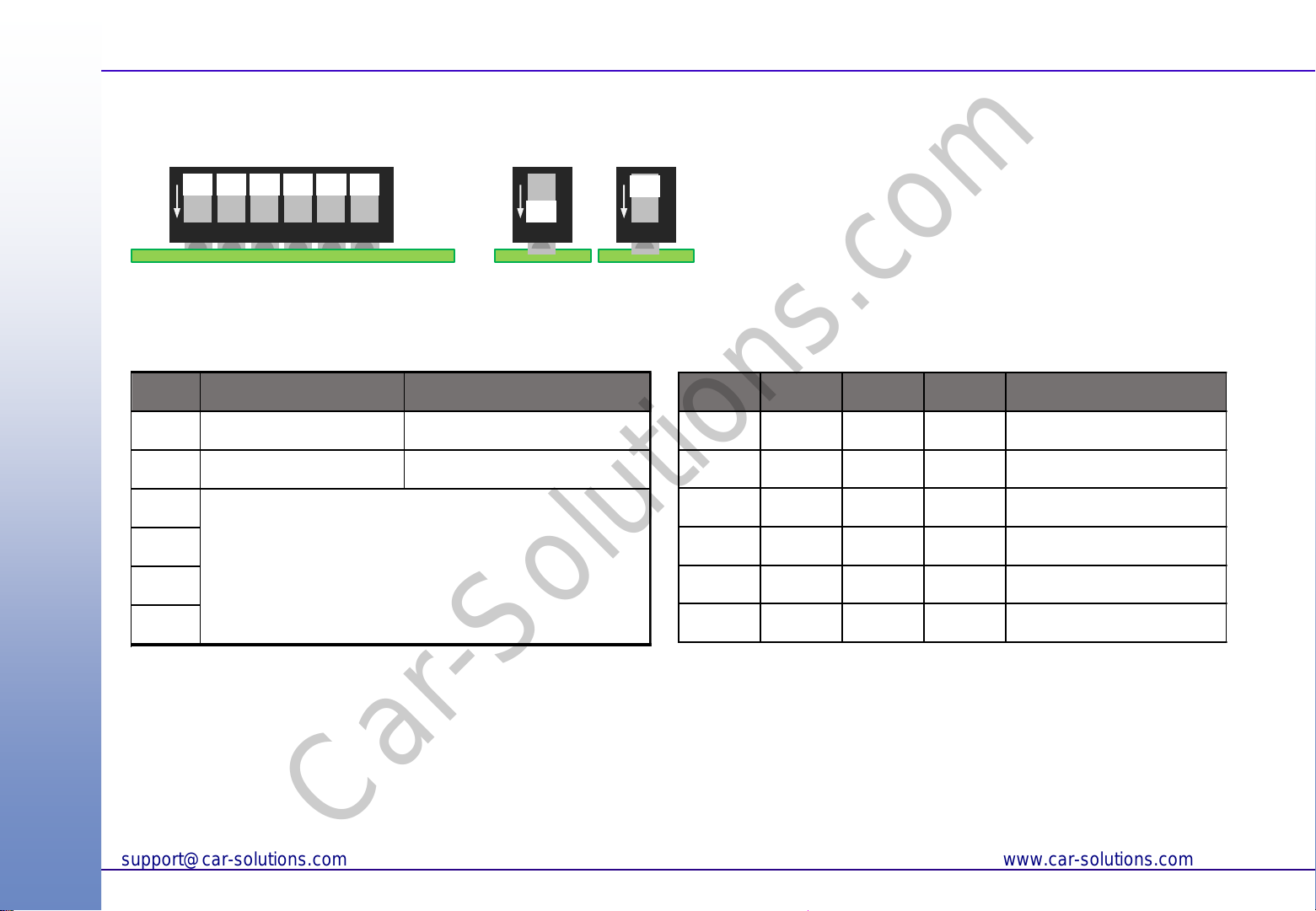

Dip Switch Information
ON1 2 3 4 5 6 1 1
ON OFF
Pin No. ON OFF
1 External Rear Camera Orignal Rear Camera
2 External Front Camera Skip External Front Camera
3
4
5
6
Selection of Car Model
No. 3 No. 4 No. 5 No. 6 Car Model
OFF OFF OFF OFF Porsche
OFF OFF OFF ON
Audi Q7 7inch
OFF OFF ON ON Volkswagen 8inch
OFF ON OFF OFF Skoda 6.5 inch
OFF ON OFF ON Skoda 5.8 inch
OFF ON ON OFF Bentley Bentayga
Car-Solutions.com
www.car-solutions.com
Porsche - Power / LVDS connection with Quad Lock Cable
SD
SLOT
HDMI
IN USB3 DIP
SW
KE
YUSB2 USB1
POWER/CAN DEBUG
1
K-
PAD
LVDS
OUT
LVDS
IN
AV
IN
AV
IN/OUT
GP
S
WIFI/B
T
ROiK 4G
Android Interface
DVBT IN AUDIO R
DVBT IN AUDIO L
DVBT IN VIDEO
DVD IN AUDIO R
DVD IN AUDIO L
DVD IN VIDEO
REAR IN
FRONT IN
AUX OUT R
AUX OUT L
SPEAKER
MIC
UART
DVD IR
DVB-T IR
CAP-TOUCH
IR IN
ff
12V_OUT
AUX OUT R
AUX OUT L
REAR 12V
Original LVDS cable from command
LVDS cable from Interface to command
Connect to aux out in universal cable
Car-Solutions.com
www.car-solutions.com
Porsche - Power / LVDS connection with Power/Can Cable
SD
SLOT
HDMI
IN USB3 DIP
SW
KE
YUSB2 USB1
POWER/CAN DEBUG
1
K-
PAD
LVDS
OUT
LVDS
IN
AV
IN
AV
IN/OUT
GP
S
WIFI/B
T
ROiK 4G
Android Interface
DVBT IN AUDIO R
DVBT IN AUDIO L
DVBT IN VIDEO
DVD IN AUDIO R
DVD IN AUDIO L
DVD IN VIDEO
REAR IN
FRONT IN
AUX OUT R
AUX OUT L
SPEAKER
MIC
UART
DVD IR
DVB-T IR
CAP-TOUCH
IR IN
Original LVDS cable from command
LVDS cable from Interface to command
REAR 12V
12V OUT
GROUND
BAT+
BAT GND
Car-Solutions.com
www.car-solutions.com
REAR 12V
12V OUT
GROUND
BAT+
Audi Q77inch- Power / LVDS connection with Power/Can Cable
SD
SLOT
HDMI
IN USB3 DIP
SW
KE
YUSB2 USB1
POWER/CAN DEBUG
1
K-
PAD
LVDS
OUT
LVDS
IN
AV
IN
AV
IN/OUT
GP
S
WIFI/B
T
ROiK 4G
Android Interface
DVBT IN AUDIO R
DVBT IN AUDIO L
DVBT IN VIDEO
DVD IN AUDIO R
DVD IN AUDIO L
DVD IN VIDEO
REAR IN
FRONT IN
AUX OUT R
AUX OUT L
SPEAKER
MIC
UART
DVD IR
DVB-T IR
CAP-TOUCH
IR IN
Original LVDS cable from command
LVDS cable from Interface to command
BAT GND
Car-Solutions.com
www.car-solutions.com
REAR 12V
12V OUT
GROUND
BAT+
Volkswagen - Power / LVDS connection with Power/Can Cable
SD
SLOT
HDMI
IN USB3 DIP
SW
KE
YUSB2 USB1
POWER/CAN DEBUG
1
K-
PAD
LVDS
OUT
LVDS
IN
AV
IN
AV
IN/OUT
GP
S
WIFI/B
T
ROiK 4G
Android Interface
DVBT IN AUDIO R
DVBT IN AUDIO L
DVBT IN VIDEO
DVD IN AUDIO R
DVD IN AUDIO L
DVD IN VIDEO
REAR IN
FRONT IN
AUX OUT R
AUX OUT L
SPEAKER
MIC
UART
DVD IR
DVB-T IR
CAP-TOUCH
IR IN
Original LVDS cable from command
LVDS cable from Interface to command
BAT GND
Car-Solutions.com
www.car-solutions.com
REAR 12V
12V OUT
GROUND
BAT+
Skoda - Power / LVDS connection with Power/Can Cable
SD
SLOT
HDMI
IN USB3 DIP
SW
KE
YUSB2 USB1
POWER/CAN DEBUG
1
K-
PAD
LVDS
OUT
LVDS
IN
AV
IN
AV
IN/OUT
GP
S
WIFI/B
T
ROiK 4G
Android Interface
DVBT IN AUDIO R
DVBT IN AUDIO L
DVBT IN VIDEO
DVD IN AUDIO R
DVD IN AUDIO L
DVD IN VIDEO
REAR IN
FRONT IN
AUX OUT R
AUX OUT L
SPEAKER
MIC
UART
DVD IR
DVB-T IR
CAP-TOUCH
IR IN
Original LVDS cable from command
LVDS cable from Interface to command
BAT GND
Car-Solutions.com
www.car-solutions.com
