Car-Interface.com C.LOGiC lite-Interface Manual de usuario

Version 20.09.2017 CI-C1-C25

c.LOGiC lite-Interface

CI-C1-C25

compatible with navigation systems

Mercedes Benz

Comand 2.5

Product features

• full plug and play multimedia interface

• 1 AV-input with separate IR-control channel

• control of after-market devices, e.g. DVB-T tuner, DVD-player, DVD-changer, …

• after-market rear-view camera input activation

• automatic switching to rear-view camera input (only from c.LOGiC-mode)

• rear-view camera power (+12V max. 1A)

• power on remote out trigger signal (+12V max. 1A) to switch on connected devices

• video-in-motion

Version 20.09.2017 CI-C1-C25

Page1

Contents

1. Prior to Installation

1.1. Delivery contents

1.2. Check compatibility of vehicle and accessories

2. Connection schema

3. Installation

3.1. Connections to the Comand

3.2. Interconnecting Interface-box and harnesses

3.3. Connecting peripheral devices

3.3.1. AV-source

3.3.2. Installing AV-source’s IR-sensor additionally

3.3.3. After-market rear-view camera

4. Operation

4.1. Activation of the video-in-motion function

4.2. Selecting the c.LOGiC as current AV-source

4.3. Assigning device control

4.4. Button assignment table

4.5. Picture settings

4.6. Audio settings

5. Specifications

Appendix A –Device control table

Version 20.09.2017 CI-C1-C25

Page2

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. This product should only

be used while standing or to display fixed menus or rear-view-camera video when the

vehicle is moving, for example the MP3 menu for DVD upgrades.

Changes/updates of the vehicle’s software can cause malfunctions of the interface. We

offer free software-updates for our interfaces for one year after purchase. To receive a free

update, the interface must be sent in at own cost. Labor cost for and other expenses

involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

1.1. Delivery contents

If remote function for the connected devices shall be used, additionally an IR-

remote cable and Y-adapter are needed, see chapter AV-source .

Take down the SW-version and HW-version of the interface boxes, and store this

manual for support purposes.

Harness

C1C-ME25

Interface-Box

C1C-M01

HW_____ SW_____

Version 20.09.2017 CI-C1-C25

Page3

1.2. Check compatibility of vehicle and accessories

Requirements

Vehicle CL-class (C215) til 08/2002, S-class (W220) til 08/2002

Navigation Comand 2.5

Limitations

Factory-TV-tuner Must NOT be installed.

After-market rear-view cam Automatic switching to camera only works from c.LOGiC-mode

Version 20.09.2017 CI-C1-C25

Page4

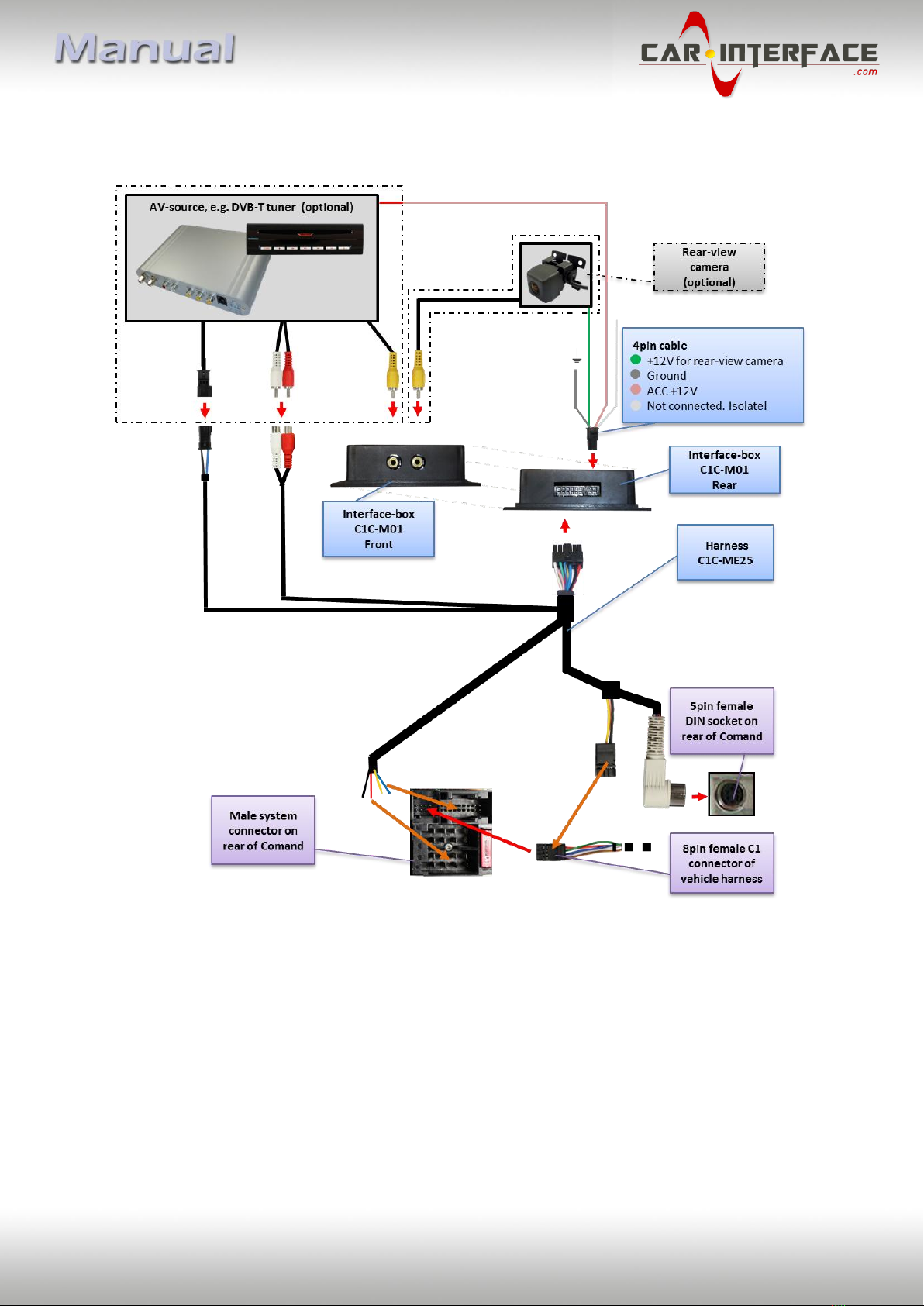

2. Connection schema

3. Installation

Switch off ignition and disconnect the vehicle’s battery! If according to factory rules

disconnecting the battery has to be avoided, it is usually sufficient to put the vehicle in

sleep-mode. In case the sleep-mode does not show success, disconnect the battery with a

resistor lead.

Version 20.09.2017 CI-C1-C25

Page5

3.1. Connections to the Comand

Place of installation is behind the Comand. Remove the head-unit from the dash-board.

If female 8pin C1 connector of factory harness exists, transfer pins from female 8pin

C1 connector of C1C-ME25 to corresponding slots of female 8pin C1 connector of

factory harness. If slots are occupied remove and isolate factory wires (take notes

before removing).

Otherwise use female 8pin C1 connector of C1C-ME25 instead of factory connector.

Connect yellow loose wire (CAN high) C1C-ME25

to pin 18 of chamber C2. Connect loose blue wire

(CAN low) of C1C-ME25 to pin 17 of chamber C2.

Connect loose red wire of C1C-ME25 to pin 4

of chamber A (+12V battery power).

Connect loose black wire of C1C-ME25 to pin 8

of chamber A (ground).

Plug female 8pin C1 connector of factory harness

(if not existing, of C1C-ME25) into C1 slot of

Comand’s male system connector.

Plug male 5pin DIN connector of harness C1C-ME25 into female 5pin DIN socket on

the Comand’s rear.

Version 20.09.2017 CI-C1-C25

Page6

3.2. Interconnecting Interface-box and harnesses

Plug harness C1C-ME25 into 12pin Molex of Interface-box C1C-M01.

3.3. Connecting peripheral devices

It is possible to connect one after-market AV-source and an after-market rear-view camera

to the c.LOGiC Interface.

Before final installation of the peripheral devices, we recommend to test-run the c.LOGiC

functions to detect incompatibility of vehicle, navigation, factory accessories or peripheral

devices as soon as possible.

Version 20.09.2017 CI-C1-C25

Page7

3.3.1. AV-source

The c.LOGiC interface has the possibility to connect and remotely control by navigation

buttons one pre-programmed device. The device list in the device control table (Appendix A)

shows the pre-programmed remote channels and the related IR-remote cables STA-xxx

which must be ordered separately for the control of the device.

Using the respective STA-xxx IR-control cable, interconnect the blue female 3pin AMP

connector of harness C1C-ME25 and the IR-port of the AV-source.

Using an RCA-cable, interconnect the female RCA-port Video In of the Interface-box

C1C-M01 with the AV-output of the AV-source.

The pink ACC-output wire (+12V max. 1A) of the 4pin cable can be connected to the

ACC-input wires of the connected device to switch it on. It carries +12V when the

head-unit is running.

3.3.2. Installing AV-source’s IR-sensor additionally

Additionally to the control via OEM navigation, it is possible to install the original IR-sensor

of a connected device. By using the respective Y-adapter (e.g. STA-Y35MM or STA-RJ12) for

the IR-Port of the connected device, the controls of navigation AND device’s IR-sensor can be

connected and used simultaneously. Installation of the IR-sensor is recommended as the

controls via navigation are limited, and not all functions may be covered.

Version 20.09.2017 CI-C1-C25

Page8

3.3.3. After-market rear-view camera

Connect the video RCA of the after-market rear-view camera to female

RCA connector R-CAM IN of Interface-box C1C-M01.

Connect the green wire of the 4pin cable to the camera power supply (+12V max. 1A)

of the after-market rear-view camera and the grey wire to ground of the vehicle. The

green wire is high (+12V max. 1A) when reverse gear is engaged. The white wire is

not connected and has to be isolated. In some cases it is possible that the automatic

switching does not work. In this case connect the white wire to the reverse gear light

(+12V).

Note: Automatic switching to camera only works from c.LOGiC mode.

4. Operation

4.1. Activation of the video-in-motion function

The video of the c.LOGiC is displayed also in motion.

Note: On vehicles with previously installed factory TV-tuner an extra video-in-motion

interface might be necessary. It is not possible to determine this prior to testing.

4.2. Selecting the c.LOGiC as current AV-source

Push TV button of Comand to choose the c.LOGiC as current AV-source.

Version 20.09.2017 CI-C1-C25

Page9

4.3. Assigning device control

After selecting the c.LOGiC as current AV source, longpress

the number “1”-button or shortpress the “RET”-button.

The display in the instruments will show “TV 1” and

“RC01”. Turn right knob until the device-related IR-code as

described in device control table (appendix A) is reached.

Push right knob to confirm the assignment.

If the vehicle has no MFD display in the instrument panel, you must count the notches when

turning the knob (to the right +1, to the left -1). At the same time, remember that the

starting point is channel RC01 (the first notch to the right is then already RC02).

4.4. Button assignment table

The button assignment table shows which functions of the connected devices can be

executed by Comand buttons. Once the AV-input is activated, the Comand button in the left

column will execute the function described in the corresponding device column. The

function description equals the remote control buttons of the optional c.LOGiC remote

control or the additional device. On the additional device the writing may vary (e.g. AV

instead of Source).
