Caple WI152 Manual

WI152

Caple 15cm wine cabinet

Technical information

Item Part Code Description Qty

1DG2-14 Power cord 1

2DG11-4 Dry filter 1

3DG1-58 Compressor 1

4DG26-84 Cabinet 1

5DG13-8 Decorative nail 3

6DG14-154-BR Top hinge module right 1

DG14-154-BL Top hinge module left 1

7DG12-77 Evaporator 1

8DG7-41-BH Evaporator fan(Upper) 1

DG17-144-1 1

9 DG22-397 Air duct board

10 DG22-396 Electrical

box

WI152

- Caple 15cm wine cabinet

11 DG3-41-W LED li

ht 1

12 DG13-127 LED Li

ht Cover 1

13 DG3-42 PCB board 1

14 DG13-348 Button

asket 1

15 DG20-258 Displa

panel 1

16 DG13-130-S Button 4

17 DG23-157 Cabinet door

18 DG22-3027 c

linder knop 1

19 M184-027 Gasket 1

20 DG15-139 Shelf

21 DG15-146 Shelf

22 DG8-7-W Senser 1

DG8-7-R Senser 1

23 DG13-511 Senser cover 1

24 DG22-386-B Decorative frame 1

25 DG14-167-BR Lower hin

e module ri

ht 1

DG14-167-BL Lower hin

e module left 1

26 DG14-116 Lower hin

27 DG7-22-BH Condenser fan 1

DG17-145-2 1

28 DG13-6-15 Cabinet le

, t

pe BC50 4

29 DG12-78 Condenser 1

30 DG6-2 Transformer 1

31 DG22-410 Electrical board box 1

32 DG22-409 Compressor bracket 1

Computer Controlled Wine Cellar

Wi152 Wi153

Service Manual

Here below we listed various faults while using the wine cellar, and the method of check-up and solve these default,

and find the information of the correspondent page.

Statement: (Fig.4 ) shows the reference figure Fig4

( →6.1.6 ) shows the reference item 6.1.6.

Warning: before attempting any cleaning or maintenance this unit MUST be disconnected from the electrical

supply, to prevent electrical shock

▲Preparation before maintenance

○Tools

1．Pliers 2．Phillips head screwdrivers

3．Process pipe 4．Electrical Multi meter

5．Amp meter (5A) (caliper cable type) 6．Electrical soldering iron

7．Wire strippers 8．Seal pliers

○Equipment

1．Vacuum pump 2．Soldering iron for copper pipes 3.Refrigerant meter

1. Safety rules on operation of repairing.(Rules must be obeyed).— 2

2. Electrical circuit diagram.—————————————————— 4

3. Cooling system diagram.———————————————————— 5

4. Name and function on control panel.—————————————— 5

5. How to diagnose the fault. —————————————————— 5

6. Gist on disassembly. ————————————————————— 7

7. How to maintain the default. ————————————————— 14

1. Safety rules on operation of repairing (Rules must be obeyed).

To avoid the accident during maintain the wine cooler, and make sure the product is safety, rules must be

obeyed list below.

○ Below we list the symbols and explain the danger if ignore it.

Danger This symbol means that the instance may have the chance to suffer

death or a serious wound.

Warning This symbol means that the instance may have the chance to suffer

death or a serious wound.’

Notice This symbol means that the instance may have the chance to suffer

a wound.’

○Below symbols’ distinguish and rules should be obeyed.

This symbol means the

instance hope to be noticed

This symbol means the

instance must be done forcibly

This symbol means the

instance forbidden

Danger

·Please make sure to discharge the rest refrigerant in the parts.

·When discharging refrigerant, make sure that it never go to the fire place and drain

to outdoors.

Tell the customers that they never close to the discharge place and the fire is

forbidden.

·Take apart the pipe by cutter.

Never take apart the part by soldering, otherwise it will fire the rest refrigerant in the

systems and cause blast.

·Exhaust the rest refrigerant in the systems before welding.

·After filling the refrigerant the sealing should be done by using smithing welding

nozzle.

Using the welding machine will fire the refrigerant and blast.

·Since the R600a is heavier than the air, please let the R600a on the ground go

especially for the hypogeum.

·The operation on the servicing refrigerant bottle should be done in place without fire

and outdoors.

·Use the refrigerant warner please， as the rest refrigerant will cause the fire.

·Don’t use fire in the place with rest refrigerant.

·Don’t place the default compressor in indoor.

Danger

·During repairing, the power plug should be disconnected.

Before remove, install, replace parts disconnect the power plug.

·Attention don’t get electric shock.

When checking current, voltage or charging never touch the connectors.

When changing the parts, don’t touch the charged parts within three minutes after

disconnect the plug.

The capacitor will discharge for some time.

·Don’t damage the cooling pipe, sine the refrigerant is flammable, the damage will

cause the fire or blast.

·Don’t smoking in the service car.

·Discharge the refrigerant entirely in the place without fire before disusing the

refrigerant bottle.

·Don’t touch the wine cooler when the cooling pipe damaged, don’t fie inside the wine

cooler, keep the windows open to exchange the air.

·Disusing the default compressor should be done outdoor without fire.

·The maximum weight of the refrigerant bottle loaded in the vehicle should be comply

to stated, the bottle should be place upright, the maximum leaning angle is 40°.

·Do use the appointed part, otherwise it have chance to smoke fire or default.

·Please put the default compressor into plastic bag and seal the peristome, then pack

it with strip, as the rest compressor oil may leak in the vehicle and cause fire or blast.

·Check if all the snails, parts, wiring are install in it’s place, if the area around the

service part worsen.

When measuring the grounding resistance make sure that the test range is more than

1MΩ.

Make sure the power cord and plug never be pinched on rear of the wine cooler.

Exchange the power cord when it damaged.

Clean the flake of the plug when it dirty.

Notice

·Attention the hot.

The running or just stop compressor and the pipe sometimes are very hot. And the

heating or just stop heater is very hot. The hot will cause scald.

·Attention the hot parts of the pipe after the welding.

·Attention the refrigerant during charge and discharge it, as it will frostbite the skin

when touch it.

·Attention the burr.

The burr on the metal or plastic part may hurt the hand.

·Attention the fins of the evaporator.

The fins of the evaporator may hurt the hand.

·Drive up the wine cooler when moving it. Pushing it may damage the floor. Cover a

protector board on the easy damage floor.

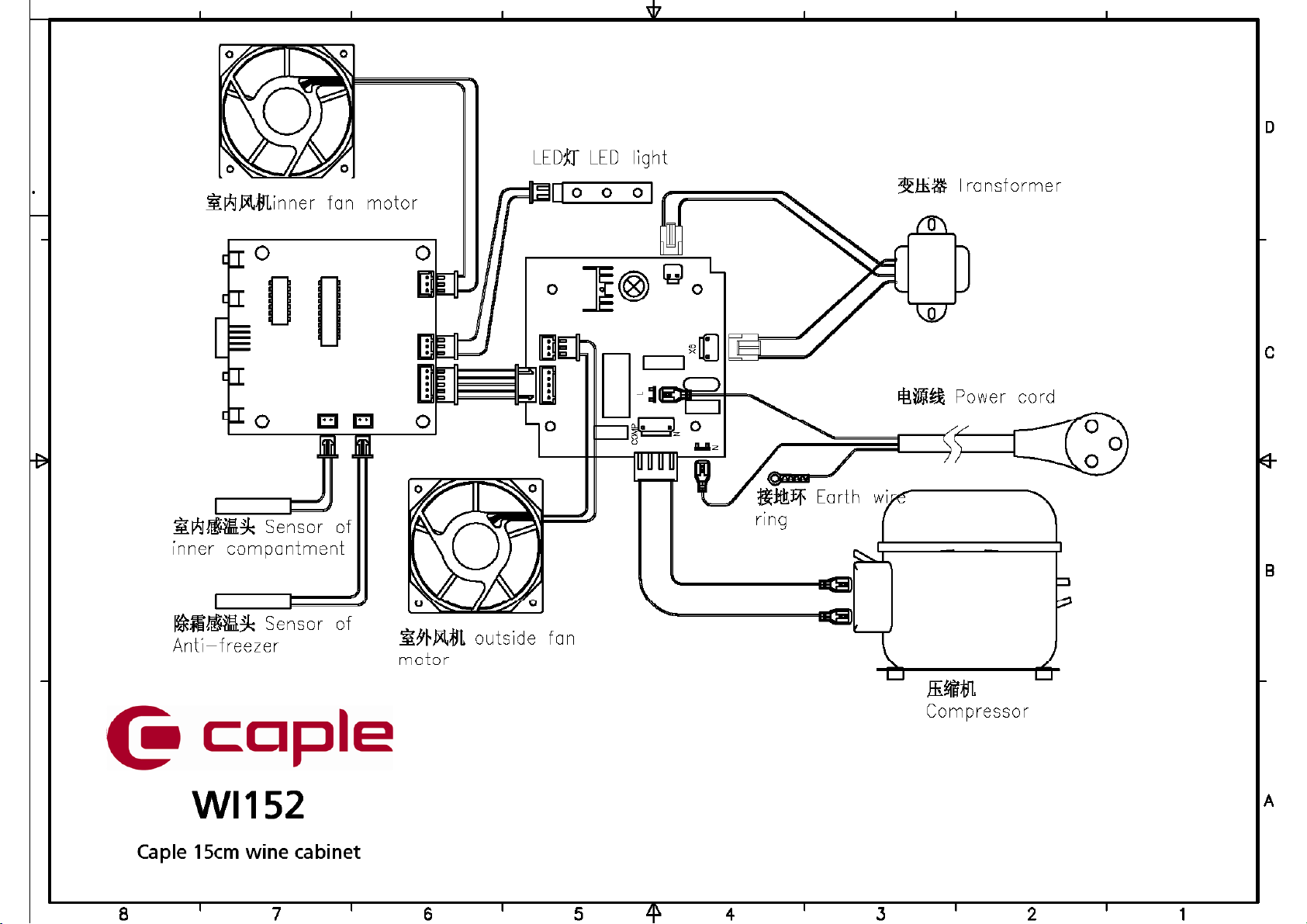

2. Electrical circuit diagram.

3. Cooling system diagram.
