Caple C711G Manual de usuario

Installation Requirements................ ........................................................................3

Installation ...............................................................................................................4

How To Use Your Gas Hob ............................ ......................................................6

Your Guarantee ..................... .................................................................................8

Thank you for buying your new CAPLE Gas Hob. To ensure that you get the best

results from your new CAPLE Gas Hob, we strongly suggest that you read this

instruction manual thoroughly before use. This manual contains installation advice,

usage instructions and a cleaning guide, as well as other important facts about your

CAPLE Gas Hob. If treated with care, your CAPLE Gas Hob should give you years

of trouble-free cooking.

For Spare Parts, Technical Advice

or Product Service call the

CAPLE HELPLINE on 0870 241 1142

(Answerphone outside office hours)

Contents

Technical Information

Total absorbed power 8.05 kW

Rapid burner (1 ) 3.05 kW

Rapid burner (2) 2.40 kW

Semi rapid burner 1.60 kW

Auxiliary burner 1.00 kW

Voltage 230 V Single phase

Cat. I2H - Class 3

The CE marking confirms that the appliance conforms to the following EU directives:

- safety requirements of the “Gas” Directive 90/396/EEC;

- safety requirements of EEC Directive “Low voltage” 73/23;

- protection requirements of EEC Directive “EMC” 89/336;

- requirements of EEC Directive 93/68.

Electrical Installation

This appliance must be connected by a

qualified electrician using fixed wiring via

a double pole isolating switch (fig. 1).

As the colours of the wires in the mains

lead for the appliance, may not corre-

spond with the coloured markings iden-

tifying the terminals in your spur box,

proceed as follows:

1) The wire which is coloured green

and yellow must be connected to

the terminal marked E(Earth)

or coloured Green.

FUSE

DOUBLE POLE SWITCHED

FUSED SPUR OUTLET

USE A 3 AMP FUSE

Fig. 1

2) The wire which is coloured blue must

be connected to the terminal marked

N(Neutral), or coloured Black.

3) The wire which is coloured brown

must be connected to the terminal

marked L(Live), or coloured Red.

WARNING!

ELECTRICITY CAN BE

EXTREMELY DANGEROUS.

THIS APPLIANCE MUST BE

EARTHED.

Gas installation

This appliance should be fitted by a

C.O.R.G.I. registered fitter.

The installation must comply with Gas

Safety (installation and use) Regulations

1994.

It is illegal to provide any assistance in

the installation of gas appliance except

to C.O.R.G.I registered installers.

Any C.O.R.G.I registered fitter requiring

help must provide name, address and

registration number. Information supplied

will be validated before help is provided.

This appliance is predisposed and

adjusted to operate with Natural Gas at

20 mbar.

BURNERS

Auxiliary (A) 1,00 0,32 40 65*

Semi-rapid (SR) 1,60 0,39 43 85*

Rapid (R2) 2,40 0,58 55 110*

Rapid (R1) 3,05 0,67 60 115 (.15*)

Nominal

input [kW] Reduced

input [kW] By-pass

[1/100 mm] Ø injector

[1/100 mm]

Natural Gas - 20 mbar

*= Injector brand

INJECTORS TABLE

Cat: I2H

Installation Requirements

Take care not to lose or

mishandle any parts when

unpacking the appliance.

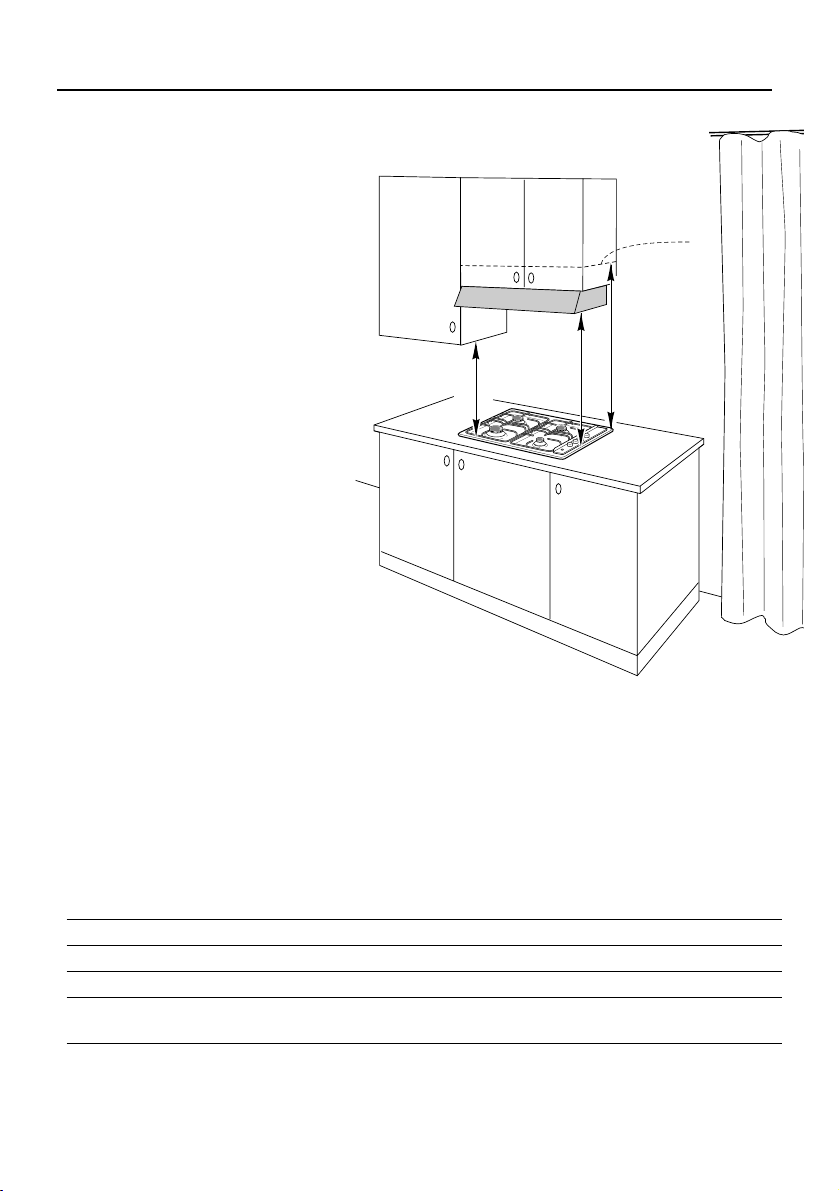

Positioning the appliance

The hob must be installed a

minimum of 50 mm from the

back wall and 150 mm from any

vertical surface either side of the

hob.

Adjacent units must be a

minimum of 366 mm above

the worksurface.

If you are installing a cooker

hood above the hob there

must be a minimum height of

750 mm between the

appliance.

If a cooker hood is not installed,

there must be a minimum

height of 900 mm between

cabinets above the hob.

This hob must not be installed

above refrigeration products.

750 mm

Cooker hood

Cabinet only

(without

cooker hood)

900 mm

366 mm

Fig. 2

Ventilation

All rooms require a window which can be opened or equivalent, while some rooms requi-

re a permanent vent in addition to a window.

This unit must not be used in a room with less than 5 m3.

Room Volume Air vent necessary (effective area)

5 m3100 cm2

5 m3to 10 m350 cm2

Greater than 11 m3No air vent necessary

A room 5 m3to 10 m3with a door No permanent air vent necessary

opening to the outside

The above requirements allow use of a gas oven and grill but if there are other fuel

burning appliances in the same room BS5440 part 2: 1989 (ventilation) should be

consulted to determine the necessary air venting requirements.

Installation

1. The hob requires a space in the kitchen work surface as shown in fig 3.

2. Apply the adhesive seal around the edge of the hob, making sure that the ends do

not overlap or leave a space (fig. 4).

3. Attach the hob to the worktop using the brackets supplied as indicated in figure 5.

4. Tighten carefully.

NOTE: A partition between the base of the hob and the cupboard below should be

fitted 100 mm below the worktop if the cupboard is to be used for storage.

Never place perishable foods in the cupboard below the hob.

560

580

500

480

;;;

;;;;;;;;;

20 mm min.

40 mm max.

Fig. 5

Fig. 3

Fig. 4

Adhesive

side

Installation

3 4

Fig. 6

BURNERS

1. Auxiliary burner

2. Rapid burner (R1)

3. Semi-rapid burner (SR)

3. Rapid burner (R2)

CONTROL PANEL

5. Burner 1 (A) control knob

6. Burner 2 (R1) control knob

7. Burner 3 (SR) control knob

8. Burner 4 (R2) control knob

9. Electrical ignition push button

How to use your gas hob

– Check that the electricity is switched on to allow spark ignition.

– Make sure that all controls are turned to zero.

– The gas flow to the burner is controlled by a knob operating on a safety tap. You

control the flow by turning the knob indicator to line up with the following symbols:

symbol ●: Off

symbol : Maximum

symbol : Minimum

– To ignite, simply push the required knob down and turn it to maximum, then press

ignition continuously until the burner lights.

When the flame is lit, you can control the temperature with the control knob.

– To switch off, turn the knob clockwise until you hear the safety click.

– Please note that, if you are using a burner at the minimum setting, you turn the knob

clockwise past the maximum setting before reaching the off position.

Cooking hints

The burners are different sizes, and can

be used in different ways; the largest for

boiling, to seal meat or foods that are

cooked quickly and the smallest for

stews and sauces.

Always ensure that you use the correct

size of saucepan.

For fast boiling, make sure that the

flame just reaches the edge of the pan.

Flames going up the side of the pan

means wasted heat and the contents

of the pan will take longer to boil.

Cleaning your hob

Your gas hob has an enamelled finish, so you should use a non-abrasive cleaner.

An abrasive cleaner will scratch the surface and could erase the control markings.

Cream cleaners may clog the holes in the burners. When cleaning, ensure that these

holes are kept clean and free from debris. Failure to do so will result in poor flame

pattem and possible scorching of cooking utensils.

Remember to let the hob cool down before you clean it.

Troubleshooting

If you acquire a problem with your hob, check the following points before calling an

engineer.

1. The power is switched on.

2. The controls are switched on.

3. Both the fuse and the mains fuse are intact.

4. The gas supply is connected to the appliance.

Should you still require an engineer then call the CAPLE Helpline on 0870 241 1142.

Fig. 7

How to use your gas hob

Cod. 1101800

CAPLE “Built-in” Service

Should you require service at any time,

please contact the Caple Helpline on

0870 241 1142.

Caple have a nationwide service

network of engineers who will respond

quickly to your call.

YOUR GUARANTEE

CAPLE guarantees all parts of this product for one year from the date of pur-

chase. During that time, should it become necessary CAPLE engineers will

replace or repair all defective parts free of charge, except for parts subject to

fair wear and tear, such as lightbulbs.

Parts and the engineers labour costs are chargeable after the first 12 months.

To qualify for benefits under the guarantee, you must be able to provide proof

of date of purchase and the appliance must have been supplied, installed and

used for domestic purposes only in accordance with CAPLE instructions.

Consequential losses and accidental damage to the product are not covered

by the guarantee.

This guarantee does not affect your statutory or common law rights.

CAPLE cannot be responsible for the results of using this appliance for any

other purposes other than those described in these instructions.

Always replace spare parts with gen-

uine Caple spares. These are available

from authorised Caple Service

Centres or by mail order from our

National Service Stores, simply tele-

phone 0870 241 1142.

When ordering parts always quote the

model number and serial number of

your appliance.
