Caple CAFF45GM Manual de usuario

CAFF45GM

Caple 4 door Freestanding Fridge Freezer

Technical Manual

CAFF45GM

Caple 4 door Freestanding Fridge Freezer

CAFF45GM

Caple 4 door Freestanding Fridge Freezer

CAFF45GM

Caple 4 door Freestanding Fridge Freezer

CAFF45GM

Caple 4 door Freestanding Fridge Freezer

CAFF45GM

Caple 4 door Freestanding Fridge Freezer

CAFF45GM

Caple 4 door Freestanding Fridge Freezer

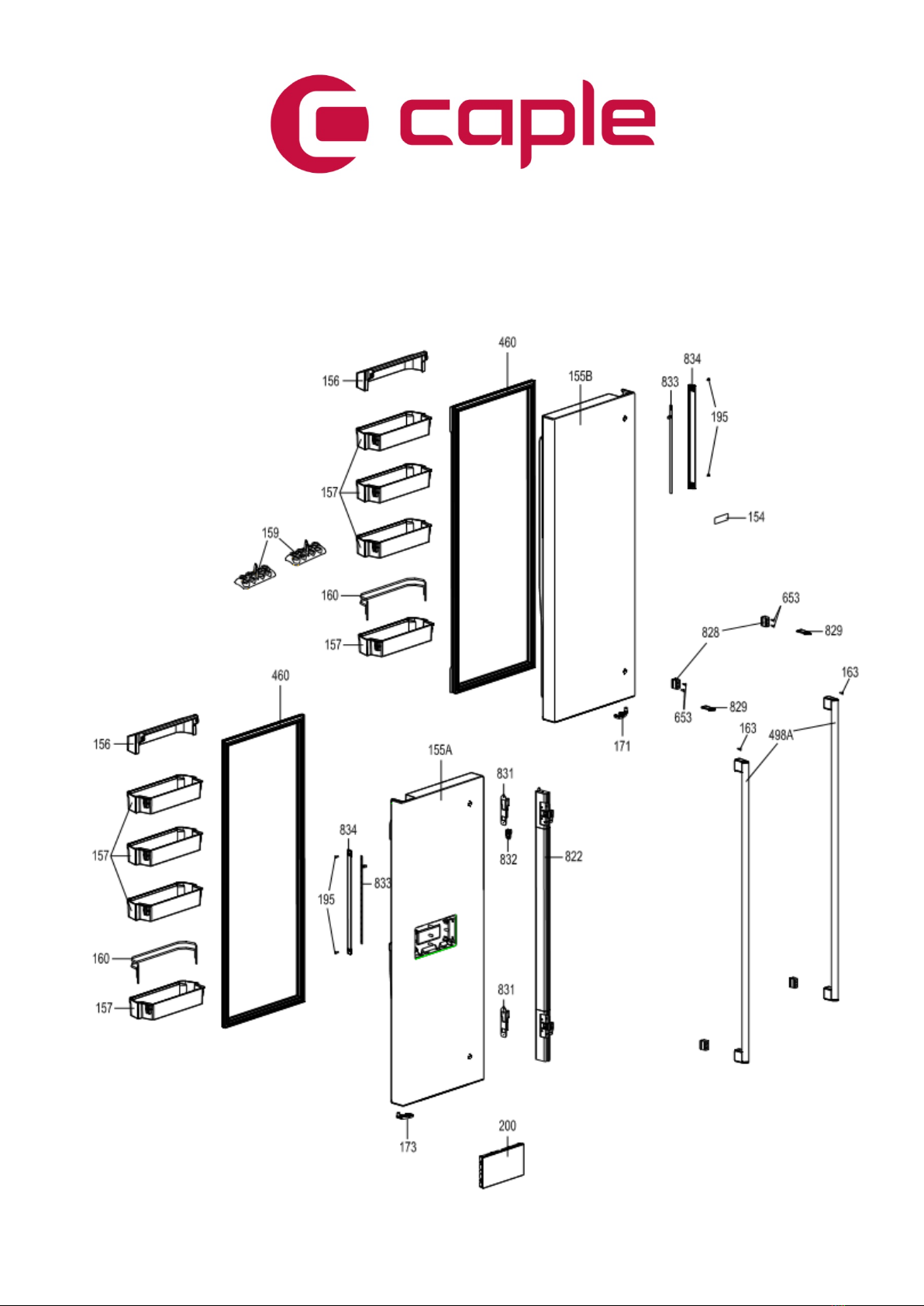

Item

Part Number

Description

37026056

TOP HINGE RIGHT 910 SERVICE RV2

37026055

TOP HINGE LEFT 910 SERVICE RV2

37024764

SCREW TT M5*16 YSB-F

37022373

MIDDLE HINGE RIGHT 910 RV1

37022374

MIDDLE HINGE LEFT 910 RV1

42170935

MIDDLE/HINGE SREW CAP(SMALL)VSG.GRAY

15A

37022462

BOTTOM HINGE RIGHT GR/910 RV1

15B

37022464

BOTTOM HINGE LEFT GR/910 RV1

47010443

ADJUSTABLE FOOT M10X40(GRAY)

42125774

ICE TRAY COMMON

19A

47008961

F GLASS SHELF/910

19B

47010779

FREEZER BOTTOM WIRE SHELF/910(ALKALZINK)

42166059

F.GLASS SHELF PRF/910(EXT)DRKHOT 333

35003482

SCREW 40*13 YSB-R-C-INOX

35000744

SCREW KA 40*18 YSB-C-INOX

47015238

COOLER GLASS SHELF AQUASAFE SRGF/910 RV2

41A

42111087

CRISPER 910-RIGHT(TRANS-WH-GRAY)

41B

42111088

CRISPER 910-LEFT(TRANS-WH-GRAY)

37029727

CRISPER PRF SRGF/910 DARKINX

42052644

KICK PLATE HOLDER GK(S.W.)

42166054

KICK PLATE/910 DARK

42130996

ICE TRAY COVER/366 RV1(S.W.)

35001678

SCREW KA 40*14 YSB-R-F-INOX

35003056

FRONT WHEEL GR.

42126562

TOP HINGE C./910 RIGHT(DARKGRAMATVER)RV3

88A

42126561

TOP HINGE C./910GR RIG(DARKGRAMATVER)RV3

88B

42126564

TOP HINGE C./910 LEFT(DARKGRAMATVER)RV3

131

35001721

SCREW KA 40*14 YSB-C-INOX

151

42073883

BURÃ‡ ÃœST 910(ELUXGRAY)

151

42128088

BUSHING/345P(LXG) RV1

153A

22037405

F DOOR ASSY/910-FD-LEFT-(DARKGRAY)

153B

22037404

F DOOR ASSY/910-FD-FLX(DARKGRAY)

154

47013813

LOGO CAPLE YENI TIP-4

155A

22037402

R DOOR ASSY/910-FD-FLX-SOL(DIFIX-KGRAY)

155B

22037403

R DOOR ASSY/910-FD-FLX-RIGHT(DIFIX-DGRAY

156

42111073

SHELF COVER/910

157

42166055

DOOR SHELF/910 GR.(TRA.-DARKINXPRF)

157

42191819

DOOR SHELF/910 GR.(TRA.-DARKINXPRF)

CAFF45GM

Caple 4 door Freestanding Fridge Freezer

Item

Part Number

Description

159

42163485

EGG HOLDER (TRANS.-NAT) RV1

160

47010425

DOOR SHELF 910

163

37012110

SCREW M4*10 YHB-F

164

42183204

DOOR HANDLE SCREW CAP(BND.GRAY)

171

42116228

DOOR CATCHER RIGHT GR/910 (NAT)

173

42116229

DOOR CATCHER LEFT GR/910 (NAT)

174

37014382

BOTTOM STOPPER/HC

187

42073916

BUSHING BOTTOM/910(LXG)

195

35007969

SCREW ST 3.5*13 OZEL1-C

200

32028959

DISP.PAN.GR/916(BLACK)EN HOTST 11-4

201

22061608

MAIN CONDANSER GR.915A+

201

37022210

CONDANSER COMPLETE/915A+

203

42118033

SPACER(NAT)

205

35009792

SCREW ST 4.8*13 YSB-T-C

207

42155463

RUBBER CONDANSER MUTUAL ANTIVIBRASYON

208

40017915

CONDANSER HOLDER(2)

209

32027387

SUP.CAB.GR.ZBH1122CY/5UF/2,5M/UK

210

32007439

POWER CORD(2.5m-ENG)

211

32020696

OVER L.GR.ZBH1122CY/B68-120/QP3-12A

211B

42177882

COMP.COVER/JIAXIPERA/24.01.59

212

32010690

CAPACITOR 5UF/400V P2-TIRNAK(6,3*0,8)

213

37022312

TRUSS ST 4*12 SPECIAL14-C

214

42099227

EVAPORATING TRAY GR/915(KAR)

215

37029010

DRYER(XH9,0.40MM,10GR,I.C.=3,1)

216

20020023

COMP FIXING BRACKET

217

32019159

COMP.ZBH1122CY/5MF/B68-120/QP3-12A/JIAX

218

37018198

COMP BASEMENT /910

218A

32032716

VALVE GR BI-STABLE I.C.=2,15(R600A)/520T

219

32027294

EARTH WIRE/WASHER

222

37023688

SCREW TT M4*6 YSB-T-F

225

35002664

SERVICE TUBE(105*6*0,7)TYPE B

226

35000752

DRYER VACUUM TUBE

227

42157011

FRONT/BACK WHEEL PP40KA

228

35000738

REAR WHELL PIN

232

35002921

SCREW M4*10 YSB-F

242

32029410

MB/BDA10-9/916/R207/V19-23335288

244

42164516

MAINBOARD COVER GR 910/FR(GRAY)

332A

42111078

CRISPER GR 910-RIGHT(TRANS-GRAY)

CAFF45GM

Caple 4 door Freestanding Fridge Freezer

Item

Part Number

Description

332B

42111079

CRISPER GR 910-LEFT(TRANS-GRAY)

333

42033005

CRISPER ROLLER/540(S.W.)

333B

42087619

CRISPER ROLLER/910(NAT)

334

42033070

CRISPER ROLLER HOLDER/540(NAT)

339

42173932

CHILLER SHELF GR/910(TRANS-WH-GRI)RV2

342

42111084

CHILLER SHELF /910(TRANS-WH-GRI)

400A

22031575

FINEVAPGR/915A+-CORDE(2ROWFEWFINTHER

401A

37025584

FIN EVAPORATOR/915A+AKUSZ(2SIRASEYFI.REZ

401B

37025585

FIN EVAPO/915A+AKUSZ(2SISEYFI.REZS-T1/RV

407

20676833

F FAN MOTOR GR/590UHS(NAT)

408B

42074178

F MULTIFLOW LEFT GR/910 (S.W)

409

42030263

PROPELLER/590(F.FAN MOTOR)BLACK

411

42031847

F FAN MOTOR COVER/590UHS(NAT)

413

32006707

EVAP FAN MOTOR/391-321-590

415

42074176

F MULTI FLOW COVER/910 (S.W)

428

42162194

R MULTI FLOW GR.916 NEW MI

429

42108053

R MULTI FLOW 916 NEW

431

32028874

TUR.FAN MOT.DC(92*92*25)T92T12MS5A7-5NDC

432

47011757

MOTOR FAN KAU.916-NEW

433B

32010909

SENSOR/STANDARD/R6K/70MM/SINGLE

449

42033244

R MULTIFLOW CAP/ 640(S.W.)

459

42077845

F DOOR GASKET/910(VFGRI)

460

42077799

R DOOR GASKET/910(VF GRAY)

498A

42148857

D.HANDLE FLX GR TOP-S(868)CLSIX

498B

42148858

D.HANDLE FLX GR BTTM-S(413)CLSIX

499

32028176

TERMAL FUSE SINGLE

500

42031850

F FAN MOTOR BOX

501B

52064812

F MULTI FLOW INSULATION 2ROWS/910

510

37003078

SCREW M,YHB,5x14,F,ST,A3K,TT

532B

32026886

FIN EVAP RES/2ROWS 80W 910/SHORT

542A

32017168

CASE RESISTANCE F LEFT/20W 910

542B

32017167

CASE RESISTANCE F RIGHT/20W 910

545

42053050

SENSOR COVER/566(S.W.)

588

37022711

SCREW ST 4.2*14 SPECIAL 17-C

618

37010180

SCREW 30*8 YSB-F-INOX

624

42163920

EMK SENSOR COVER GRAY RV

626

42030205

FREEZER FAN MOTOR RUBBER/590UHS

639

37014368

SCREW ST 4.2*12 OZEL8-C

CAFF45GM

Caple 4 door Freestanding Fridge Freezer

Item

Part Number

Description

642

42052437

WHEEL /GK

643

37014537

SCREW TT M5*25 YSB-F

651

37017354

CHILLER RAIL INTERNAL 350 910

652

37017355

CHILLER RAIL INTERNAL 350 910

653

37010281

SCREEW M4*15 YSB-F

653B

42040299

STORAGE BOX RAIL DUBEL/465

654

22033972

REED SWITCH GR/590UHS(WHITE) RV1

704

42074085

CRISPER UPPER SHELF CLAMP 910 (S.W.)

710

32013579

NIGHT SENSOR

713

42111074

CRISPER-CHILLER SHELF GR/910

714

42111085

CRISPER-CHILLER SHELF BOTTOM/910

718

37029729

CHILLER PRF SRGF/910 DARKINX

720

42111082

BOTTOM BASK./910

721

42166057

CRISPER TRIM 910GR.(EXT)DARKPRF

722

42166056

BOTTOM BASK.GR/910(TRANS-WH-GRAY)DARK

724

42111089

TOP CRISPER/910 (TRANS-GRAY)

725

42166058

TOP CRISPER GR/910 (TRANS-WH-GRAY)DARK

753

37017352

CRIS.RAIL OUT (RIGHT)910

753B

42074180

FRZ.BASKET ROLLER RAIL/TOP-RIGHT(910)

753C

42074190

FRZ.BASKET ROLLER RAIL/BOTTOM-RIGHT(910)

754

37017353

CRIS.RAIL OUT (LEFT)910

754B

42074186

FRZ.BASKET ROLLER RAIL/TOP-LEFT(910)

754C

42074188

FRZ.BASKET ROLLER RAIL/BOTTOM-LEFT(910)

800

42110561

TRIZ BAR CABINET GR.910(S.W.)RV1

801

37021419

CHILLER RAIL ASSEMBLY SHEET/FRONT

802

37017960

CHILLER RAIL ASSEMBLY SHEET/BACK

803

37018662

ABOVE CRISPER SHELF PIN 910

804

37021374

FREEZER AIR DUCT GRILLE(AC)910(ALKAZINK)

806A

42163013

SOG. LED CAP GR/485 PP SPIKED/2835

808A

32030848

LED STRIP/2835*3/R42MM/12V/485E

807

42148693

R LED OUT COVER /485(S.W) SNAP FIT

809

42148692

REF LED COVER/485 PP SNAP FIT

816

42074076

CRISPER MIDWALL GR.910 (S.W)

817

42074077

CRISPER MIDWALL 910 (S.W)

818

37021279

TELESCOPIC RAIL/RIGHT

819

37021280

TELESCOPIC RAIL/LEFT

820

42097727

BOTTOM HINGE COVER/910 LEFT MATVER

821

42097728

BOTTOM HINGE COVER/910 RIGHT MATVER
