Electric Plinth Heater
instruction manual
PH501E
PH501E Instruction manual.indd 1 16/07/2018 13:44
Instruction manual PH501E
Please keep this instruction manual for future reference
2
CONTENTS
Safety warnings 3
Environmental Protection 5
Fitting Instructions 6
Operation 10
Troubleshooting 14
Maintenance 15
Technical Data 15
Guarantee 15
PH501E Instruction manual.indd 2 16/07/2018 13:44
Instruction manual PH501E
Please keep this instruction manual for future reference
3
SAFETY INSTRUCTIONS
Read these instructions carefully and completely
before using your plinth heater, keep it in a
convenient place for reference when necessary
WARNINGS
-This appliance can be used by children aged from 8 years
and above.
-Persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge must be
supervised and given appropriate instruction concerning
the use of the appliance in a safe way and understand
the hazards involved.
-Children shall not play with the appliance.
-Cleaning and user maintenance should not be carried
out by children without supervision.
-Children less than 8 years of age should be kept away
unless continuously supervised.
-The appliance and its accessible parts become hot during
use. Care should be taken to avoid touching heating
elements.
-To prevent fire hazards do not block the ventilation grille
-Keep all flammable materials away from the appliance.
PH501E Instruction manual.indd 3 16/07/2018 13:44
Instruction manual PH501E
Please keep this instruction manual for future reference
4
WARNINGS
-It is dangerous to alter or modify the specifications of the
appliance in any way.
-This product is not designed for commercial use, it is a
household appliance only. It is not intended to be used in:
-Staff kitchen areas in shops, offices and other working
environments.
-Bed and breakfast type environments.
-By clients in hotels, motels and other residential type
environments.
-Ensure that the supply cord is not wedged during the
installation. If the supply cord is damaged, it must
be replaced by a Caple service technician or similarly
qualified persons in order to prevent a hazard.
-Do not use harsh abrasive cleaners or sharp metal
scrapers to clean the grille, as this may damage or
scratch the surface.
-Ensure the appliance is switched off before any cleaning
or maintenance.
-A Caple approved engineer or highly competent
person(s) should be used for other maintenance
requirements.
PH501E Instruction manual.indd 4 16/07/2018 13:44
Instruction manual PH501E
Please keep this instruction manual for future reference
5
ENVIRONMENTAL PROTECTION
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. Check with your Local Authority or retailer for recycling
advice. This appliance is marked according to the European directive on Waste
Electrical and Electronic Equipment (WEEE).
By ensuring this product is disposed of correctly, you will help prevent potential
negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The symbol
on the product indicates that this product may not be treated as household waste.
Instead it shall be handed over to the applicable collection point for the recycling of
electrical and electronic equipment. Disposal must be carried out in accordance with
local environmental regulations for waste disposal.
For more detailed information about treatment, recovery and recycling of this
product, please contact your local council, your household waste disposal service or
the retailer where you purchased the product.
CE DECLARATIONS OF CONFORMITY
This appliance has been manufactured to the strictest standards and complies
with all applicable legislation, Low Voltage Directive (LVD) and Electromagnetic
Compatibility (EMC).
PH501E Instruction manual.indd 5 16/07/2018 13:44
Instruction manual PH501E
Please keep this instruction manual for future reference
6
FITTING INSTRUCTIONS
The plinth heater pack contains the following items:
1 x Heater unit
1 x Stainless steel fascia grille with fixing screw pack
1 x Wall controller
1 x Instruction manual
Location
Select a location in a cavity beneath a kitchen cupboard ensuring the area is clean
and level. Care should be taken not to store perishable goods in the cupboard
directly above the heater.
NOTE:
This plinth heater must not be fitted in a bathroom or other high humidity area.
Preparation
This product is normally fitted directly onto the floor. Once the position has been
decided, mark out and cut the plinth to the dimensions as shown below. Please
take care to make the cut out sizes as accurate as possible as the grill is 100m high.
It is recommended that a gap of 20mm is left between the top of the plinth and the
shelf of the cupboard above to ensure adequate airflow
A
B
Floor mounting Plinth mounting
A = Width of cut out
B = Height of cut out
A
B
A B
360mm 96mm
PH501E Instruction manual.indd 6 16/07/2018 13:44
Instruction manual PH501E
Please keep this instruction manual for future reference
7

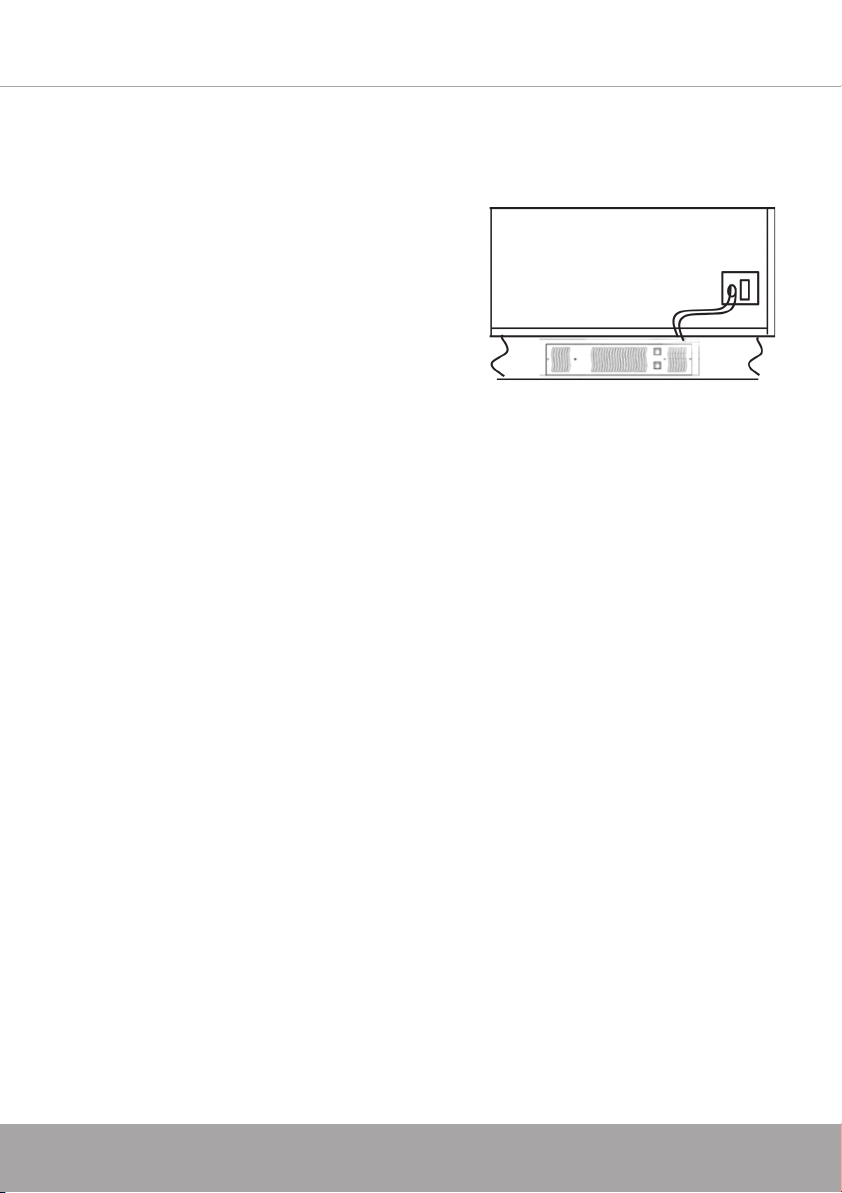

Electrical supply
WARNING:
Ensure the power supply to the socket is
isolated before starting any work.
Electrical connection should be via a double
pole 10 amp fused spur with a minimum
contact gap of 3mm. The fused spur should not
be directly above the heater unit, but should
be accessible after installation. This application
must be earthed.
NOTE:
It is recommended that all electrical work is carried out by a qualified electrician and
Electrical installation must comply with local and national regulations.
Wall Controller
Installation Instructions
Installation and connection should only be carried out by a suitably qualified person
and in accordance with the current edition of the IET wiring regulations.
WARNING:
Isolate mains supply before commencing installation.
Choosing a position in the room
The control unit should be fixed to the wall in a position which avoids areas of draft
or direct sunlight. Do not position above or close to other heaters or heat sources.
Also avoid areas which are damp or where the controller can be mechanically
damaged
Wiring box mounting
The controller is designed to fit directly onto a single gang back box. When a metal
box is used this must be earthed. The controller is powered by mains 240VAC 50HZ
and has a power consumption less than 1W. The maximum size of wire that can
be used is 1.5mm¬¬2. Do not overtighten the connector screws. Take care not to
damage the components when connecting the cables.
PH501E Instruction manual.indd 7 16/07/2018 13:44
Instruction manual PH501E
Please keep this instruction manual for future reference
8
Please ensure that all installations comply with current IER regulations
Commissioning the time switch
Ensure all dust and debris has been cleared away from the work area before
removing the time switch from its packaging.
Fitting the time switch
Connect the mains power supply cables Earth, L and N to the IN connectors Earth
(1), L (2) and N (3)
I
Connect the heater power cables N, L and Earth to the OUT connectors N (4), L (5)
and Earth (6)
Electrical installation should be carried out by a competent installer in accordance
with the IET wiring regulations (BS.7671) and any relevant local authority bye-laws.
The heater is fitted with a 3 core mains supply cable and should be permanently
connected to the electricity supply via a double pole switch having 3mm gap on
each pole. A switched fuse connection to BS.1363. part 4 is a recommended
mains supply connection accessory to ensure compliance with safety requirements
applicable to fixed wiring installation.
Once the cables are connected, to fit the controller to the back box, remove the
front display unit from the back plate by gently placing the end of a flat head
screwdriver in the 2 slots at the bottom of the controller and twisting gently as
shown in the diagram below.
Fixing holes
PH501E Instruction manual.indd 8 16/07/2018 13:44
Instruction manual PH501E
Please keep this instruction manual for future reference
9
Gently lift up the end of the facia and unclip from the tabs at the opposite end of
the controller. Do not force the facia off as it could damage the location tabs.
Once the facia is removed you will see the 2 fixing holes to allow the unit to be
screwed onto the back box.
Once back plate has been screwed to the back box place the facia on the location
tabs and close the facia onto the back plate until it locks in place.
General information
Before handing over the installation to the user, always ensure that the system
responds correctly on all control programs and that other electrically operated
equipment and controls are correctly adjusted. Explain how to operate the controls
and hand over the operating instructions to the user.
Safety
- Do not handle the controller with wet hands
- Do not use the controller in rooms where excessive dust is generated or present.
- Ensure all apertures on the controller are kept clear always
- Do not cover the controller
- Do not use the controller if it is damaged
Specification
- Supply – 240VAC 50 HZ Temperature Accuracy +/- 1°C
- Maximum load current 10A Temperature display range 5°C - 35°C
- Dimensions 86 x 86 x 14mm Temperature control accuracy ≤1°C
PH501E Instruction manual.indd 9 16/07/2018 13:44
Instruction manual PH501E
Please keep this instruction manual for future reference
10
Positioning the heater
Once the power supply has been connected ensuring that the electrical cable is not
in contact with any hot surfaces and the plinth is placed in position, slide the heater
unit into the plinth cut out ensuring the power cable is not snagged. Push the unit
fully in until the grill touches the plinth ensuring the heater is centralised in the cut
out and that the unit is sitting flat on the floor.
Securing the Grill
Once the heater is in the correct position secure the grill to the plinth using the 2
screws provided at point “A”
Grill securing point “A”
OPERATION
- Switch the unit on at the wall socket.
- Select the heat setting (lower switch) to Low “ I “
- Switch the power switch (upper switch) to ON “I”
- If you require more heat move the bottom switch to Boost “ II ”
- To switch off move the power switch to OFF “0”
“0” OFF
“I” ON
“I” Low (950w)
“II” Boost (1900w)
