INSTRUCTION MANUAL

This product is offered in two versions, WFT-E3 and WFT-E3A. Each version operates on a

different number of wireless LAN channels. The WFT-E3 can transmit on 13 channels, and the

WFT-E3A, on 11 channels. This difference in the number of channels available is due to

varying radio regulations in areas of use.

In other respects, the WFT-E3 and WFT-E3A are identical. They are operated in the same

way. This instruction manual describes operation using the WFT-E3 as an example.

Wireless File Transmitter

WFT-E3

WFT-E3A

Instruction Manual for Use With EOS 40D

To EOS 50D Users

This instruction manual describes use of the transmitter when connected to the EOS 40D.

When using the transmitter with the EOS 50D, refer to the PDF manual in the EOS_50D folder.

COPY

Thank you for purchasing a Canon product.

The Wireless File Transmitter WFT-E3 is an accessory for EOS 40D/EOS 50D cameras. It

gives the camera wireless and wired LAN functionality and adds a USB port, enabling the

following operations. The WFT-E3 is compatible with IEEE 802.11b and IEEE 802.11g wireless

LANs as well as 100 Base-TX Ethernet wired LANs.

It also includes a vertical-grip shutter button for convenience in vertical shooting.

Wireless and Wired LAN Functions

Functions When Connected via USB

FTP

PTP

External Media GPS

HTTP

Transfer images to an FTP server

Use a web browser to capture, view,

and download images remotely

Use EOS Utility to capture, view, and

download images remotely

Record or backup images onto external media Add the latitude, longitude, altitude, date and

time, and other shooting information to images

COPY

Introduction

These instructions should be followed only after your wireless or wired LAN and FTP server

settings are complete. For details on configuring these settings, refer to the documentation

provided with the respective equipment.

Terms in brackets [ ] indicate button or icon names or other software elements. Brackets

also denote camera menu items.

Page numbers in parentheses indicate where you can find additional information.

Instructions on camera operations should be followed only after you have read the Camera

Instruction Manual and are familiar with operating the camera.

Sections of this manual labeled with the following symbols contain information of the

corresponding nature.

: Warnings to avoid potential problems are labeled with a caution symbol.

: Supplemental information is labeled with a note symbol.

Conventions Used in this Manual

Windows is a trademark or registered trademark of Microsoft Corporation in the United

States and other countries.

Macintosh is a registered trademark of Apple Corporation in the United States and other

countries.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

Wi-Fi Certified, WPA, WPA2, and the Wi-Fi Certified logo are trademarks of the Wi-Fi

Alliance.

UPnP is a trademark of the UPnP Implementers Corporation.

All other corporate and brand names in this manual are trademarks or registered

trademarks of their respective owners.

Using the transmitter for remote image transfer, capture, or viewing requires adequate knowledge of

configuring your wireless or wired LAN and FTP server.

Canon cannot provide support for configuring wireless or wired LANs or FTP servers.

Note that Canon cannot be held liable for any loss or damage to the transmitter from erroneous network

or FTP server settings. In addition, Canon cannot be held liable for any other loss or damage caused by

use of the transmitter.

COPY

Introduction

Conventions Used in this Manual ...................................................................................................... 3

Areas of Use and Restrictions ........................................................................................................... 6

Safety Warnings................................................................................................................................. 7

Nomenclature..................................................................................................................................... 8

Attaching to the Camera .................................................................................................................. 10

Vertical Shooting Controls ............................................................................................................... 11

Loading and Unloading the Battery.................................................................................................. 12

Using a Household Power Outlet..................................................................................................... 14

Subsequent Organization of This Manual........................................................................................ 15

1Basic Network Settings 17

Displaying the Connection Wizard ................................................................................................... 18

Following the Connection Wizard .................................................................................................... 19

2FTP Settings and Image Transfer 25

Configuring FTP Transfer Settings .................................................................................................. 26

Automatic Image Transfer After Each Shot ..................................................................................... 28

Transferring Images Individually ...................................................................................................... 30

Batch Transfer ................................................................................................................................. 32

Checking Image Transfer History .................................................................................................... 35

Viewing Transferred Images ............................................................................................................ 36

3PTP Settings and Remote Capture 37

Configuring PTP Transfer Settings .................................................................................................. 38

Using EOS Utility ............................................................................................................................. 41

4HTTP Settings and Remote Capture 43

Configuring HTTP Transfer Settings................................................................................................ 44

Displaying WFT Server .................................................................................................................... 46

Shooting Remotely........................................................................................................................... 47

Viewing Images................................................................................................................................ 49

5Managing Settings Information 51

Checking Settings ............................................................................................................................ 52

Changing Settings............................................................................................................................ 53

Saving and Loading Settings ........................................................................................................... 55

6Using External Media 57

Connecting External Media.............................................................................................................. 58

Choosing Recording Media When Shooting .................................................................................... 61

Using Together With a CF Card....................................................................................................... 63

Backing Up on External Media......................................................................................................... 64

Contents

COPY

7Using GPS Devices 69

Connecting GPS Devices ................................................................................................................ 70

8Troubleshooting 73

Responding to Error Messages ....................................................................................................... 74

Wireless LAN Notes......................................................................................................................... 87

Checking Network Settings.............................................................................................................. 88

9Reference 89

WFT Utility (Software)...................................................................................................................... 90

Creating and Registering Captions .................................................................................................. 92

Specifications................................................................................................................................... 93

Index ................................................................................................................................................ 99

Contents

COPY

The WFT-E3 can be used only in the following areas.

Japan, France, Italy, Germany, United Kingdom, Belgium, the Netherlands, Luxembourg,

Ireland, Denmark, Greece, Spain, Portugal, Austria, Finland, Sweden, Poland, Hungary,

Romania, Bulgaria, Czech Republic, Slovakia, Slovenia, Estonia, Latvia, Lithuania, Cyprus,

Malta, Iceland, Norway, Switzerland, Lichtenstein, Australia, New Zealand, Singapore,

Russia and China

The WFT-E3A can be used in the United States and Canada, in addition to the previous

areas.

For information on other areas where the transmitter can be used, contact the Canon

Service Center.

The WFT-E3, which operates on wireless LAN frequencies for 13 channels, cannot be used

in the United States or Canada. Instead, use the WFT-E3A, which operates on wireless LAN

frequencies for 11 channels.

In France, using the transmitter outdoors is prohibited.

In Italy, use outside of one’s own premises requires general authorization.

In Latvia, use outside of one’s own premises requires an individual radio license.

The following actions may be punishable under law. Disassembling or modifying the

transmitter, or removing the certification label on it.

Do not use the transmitter near other devices that emit radio waves, such as medical

equipment or electronic devices. The transmitter may interfere with operation of these

devices.

Use the transmitter only with a compatible EOS DIGITAL camera. Using it with incompatible

cameras may cause malfunction, accidents, and other problems not covered under

warranty.

Use the transmitter as a wireless or wired LAN device as described in this instruction

manual. If you use the transmitter for any other purpose, Canon cannot be held liable for

any loss or damage that may occur.

Areas of Use and Restrictions

COPY

Introduction

The following precautions are intended to prevent harm to you and others as well as damage to

equipment. Become familiar with the precautions before using the transmitter to ensure correct

and safe operation.

Be sure that you fully understand the safety precautions contained in the instruction manuals

for the battery, charger, and AC Adapter Kit before using them.

To prevent fire, excessive heat, chemical leakage, or explosion, follow these safety guidelines.

• Do not insert metallic objects between electrical contacts of the transmitter, accessories, or connecting cables.

Do not use the transmitter where there is flammable gas. There is a risk of explosion or fire.

If the transmitter is dropped and internal parts are exposed, do not touch the exposed parts. There is a risk of

electrical shock.

Do not disassemble or modify the transmitter. High-voltage internal parts may cause electrical shock.

Do not store the transmitter in dusty or humid places. There is a risk of fire or electrical shock.

Before using the transmitter on board airplanes or in hospitals, make sure use is permitted. Electromagnetic

waves emitted by the transmitter may interfere with instrumentation or medical equipment.

Do not leave the transmitter inside a vehicle in hot weather or near a heat source. The transmitter may become

hot and cause burns if touched.

Do not cover or wrap the transmitter with a cloth. This may trap heat inside, posing a risk of case deformation or

fire.

Do not use paint thinner, benzene, or other organic solvents to clean the transmitter. This poses a risk of fire and

may be hazardous to your health.

If the product malfunctions, becomes damaged, or requires repair, contact your dealer

or the nearest Canon Service Center.

The transmitter is a precision instrument. Do not drop it or subject it to shock.

The transmitter is not waterproof. Do not use it underwater.

Wipe off any moisture with a clean, dry cloth. If the transmitter has been exposed to salty air,

wipe it with a clean damp cloth after wringing it out to remove excess water.

Never leave the transmitter near any equipment that generates a strong magnetic field,

such as magnets or electric motors.

Do not leave the transmitter in excessive heat, such as in a vehicle in direct sunlight. High

temperature may damage the transmitter.

Do not wipe the transmitter using cleaners containing organic solvents. If the transmitter

becomes difficult to clean, take it to the nearest Canon Service Center.

To avoid corrosion, do not store the transmitter where there are strong chemicals, such as in

darkrooms or chemical labs.

Safety Warnings

Warning Preventing Serious Injury or Death

Caution Preventing Injury or Equipment Damage

Handling Precautions

COPY

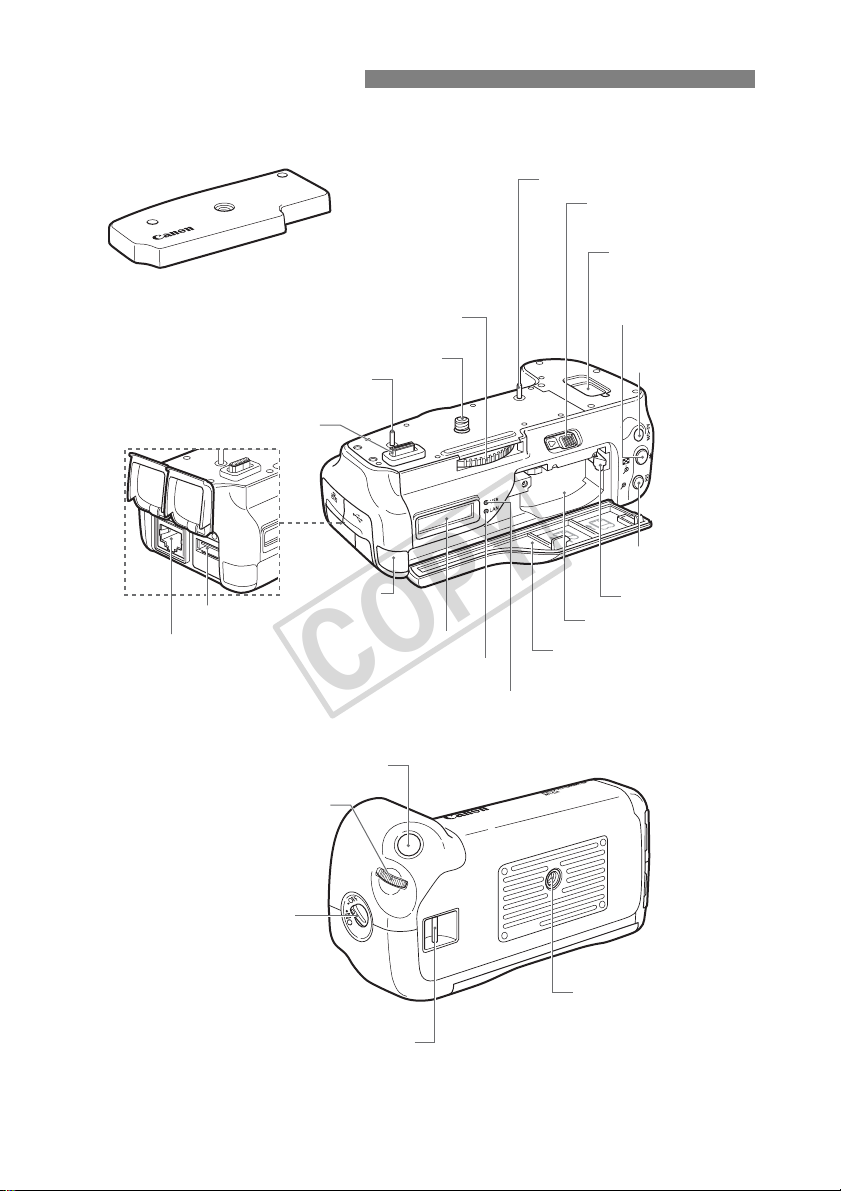

Nomenclature

Ethernet RJ-45 port

USB

> USB lamp

LAN

> Network lamp

LCD panel

USB port

DC coupler

cord notch

Positioning pin

Attachment knob

Terminal cap holder

Positioning pin

Battery compartment

cover release lever

AF point selection/

Enlarge button

Battery compartment

Battery lock lever

Tripod socket

Tripod screw AF start button

Battery compartment cover

Vertical-grip

OFF

> switch

Main dial

* Turn the attachment knob to remove.

Protective cover

AE lock/FE lock/

Index/Reduce button

Terminal

Shutter button

Hand strap mount

COPY

Nomenclature

Introduction

Recording quality at [Rec. separately] setting

External media selection mark

External media connection indicator

Wired LAN connection

Wireless LAN connection

Battery level indicator

CF card loading indicator

CF card selection mark

LCD panel

Transmitter Case

Waterproof/Dustproof USB Cap*2

*1: This can hold portable hard disks and other devices up to 120 x 75 x 15 mm / 4.72 x 2.95 x 0.59 in. in size.

*2: Attach this cap before connecting the USB cable in rainy weather or under other adverse conditions.

Accessories

External Media Case*1

COPY

Load a charged battery into the camera. Before attaching the transmitter to the camera, set the

camera’s power switch to <

OFF

>. The transmitter does not have a power switch. It is turned on

and off in conjunction with the camera’s power switch.

Before removing the transmitter, set the camera’s power switch to <

OFF

1Remove the terminal cap from the

camera.

Peel off the terminal cap on the camera bottom to

remove.

Attach the removed terminal cap to the

transmitter’s terminal cap holder.

2Attach the transmitter.

As shown in the figure, align the transmitter and

the camera, and turn the attachment knob to

attach to the camera.

Attaching to the Camera

COPY

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Transmisor de Canon

Canon

Canon WFT-E2 Manual de usuario

Canon

Canon Wireless File Transmitter WFT-E7A Manual de usuario

Canon

Canon Wireless Transmitter WFT-E6A Manual de usuario

Canon

Canon Wireless File Transmitter WFT-E2 II A Manual de usuario

Canon

Canon Wireless File Transmitter WFT-E4 II A Manual de usuario

Canon

Canon WFT-E7 Manual de usuario

Canon

Canon ST-E3-RT-V2 Manual de usuario

Canon

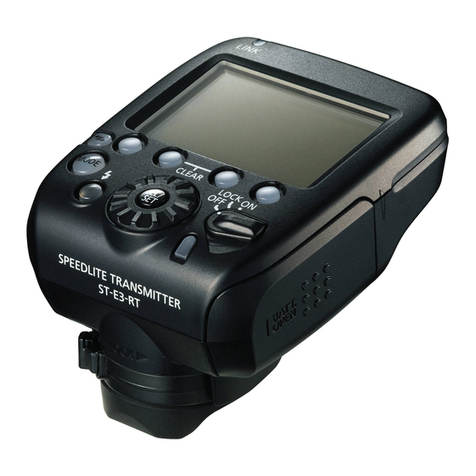

Canon ST-E3-RT Manual de usuario

Canon

Canon Wireless Transmitter WFT-E5A Manual de usuario

Canon

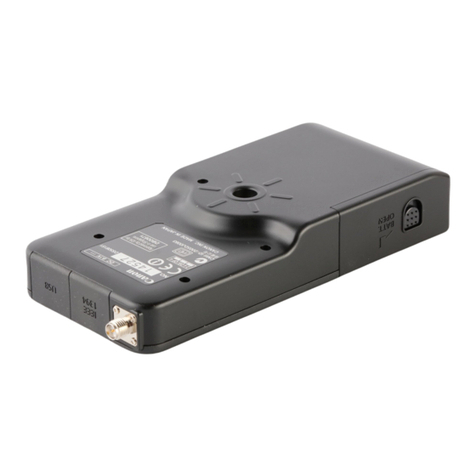

Canon WFT-E1 Manual de usuario

Canon

Canon WFT-E2 Manual de usuario

Canon

Canon WFT-E8A Manual de usuario

Canon

Canon WFT-E9 Instrucciones de montaje

Canon

Canon EOS 5D - Focusing Screen Ee-A Manual de usuario

Canon

Canon Wireless File Transmitter WFT-E4 II A Manual de usuario

Canon

Canon 5743B002 Manual de usuario

Canon

Canon WFT-E1 Manual de usuario

Canon

Canon WFT-E6 Manual de usuario

Canon

Canon ST-E3-RT Manual de usuario

Canon

Canon WFT-E6 Manual de usuario

Canon

Canon WFT-R10 Instrucciones de montaje

Canon

Canon WFT-E8 Manual de usuario

Canon

Canon WFT-E7 Ver.2 Manual de usuario

Canon

Canon Wireless File Transmitter WFT-E2 II A Manual de usuario

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
