Canon CREATIVE PARK (Moving) Performing white... Manual de usuario

Before starting assembly : Writing the number of each section on

its back side before cutting out the sections is highly recommended.

(* This way, you can be sure which section is which even after

cutting out the sections.)

Indicates where sections should be glued together.

Indicates the order for assembling parts.

Indicates where to insert sections.

Do not glue the sections together.

Round bar : Use to give parts a curved surface.

Tweezers : Useful in working with fine parts.

Cut along the line.

Be sure to build

this model carefully.

Caution : Performing horses' tricks require two pieces of thread, approximately 20cm long. Use silk or other durable thread.

* Turn the handle to make

the horses prance in time

with the trainer's baton.

Assembly Instructions

Mountain fold(dotted line)

Make a mountain fold.

Valley fold(dashed and dotted line)

Make a valley fold.

Scissors line(solid line)

Cut along the line.

Cut in line(solid line)

Cut along the line.

Glue spot(Red dot)

Glue parts with the same number together.

Glue spot(Green dot)

Glue within the same part.

Glue spot(Blue dot)

Glue to the rear of the other part.

Glue

The glue spot(colored dot)

shows where to apply the glue.

Tools and materials

Assembly tip

Caution

Scissors, set square, glue(We recommend stick glue), pencil, used

ballpoint pen, toothpicks, tweezers, (useful for handling small parts)

Before gluing, crease the paper along mountain fold and valley

fold lines and make sure rounded sections are nice and stiff.

Glue, scissors and other tools may be dangerous to young children

so be sure to keep them out of the reach of young children.

View of completed model

Assembly Instructions : Twelve A4 sheets (No. 1 to No. 12)

*Hint: Trace along the folds with a ruler

and an exhausted pen (no ink) to get a sharper, easier fold.

* Build the model by carefully reading the Assembly Instructions , in the parts sheet page order.

Caution : Spread glue in

a thin even layer,

then glue parts 7

and 8 to the base.

Glue parts 7, 8, and 10 to

the reverseside of part 1.

(Moving) Performing white horses : Assembly Instructions ©

Canon Inc. ©

Hideharu Naitoh & G&P

Caution : When viewed from

the side, parts 16

and 17 should be

aligned exactly.

(Moving) Performing white horses : Assembly Instructions ©

Canon Inc. ©

Hideharu Naitoh & G&P

(Moving) Performing white horses : Assembly Instructions ©

Canon Inc. ©

Hideharu Naitoh & G&P

Caution : Do not attach the front (part 3)

and back (part 6) to the base

at this stage.

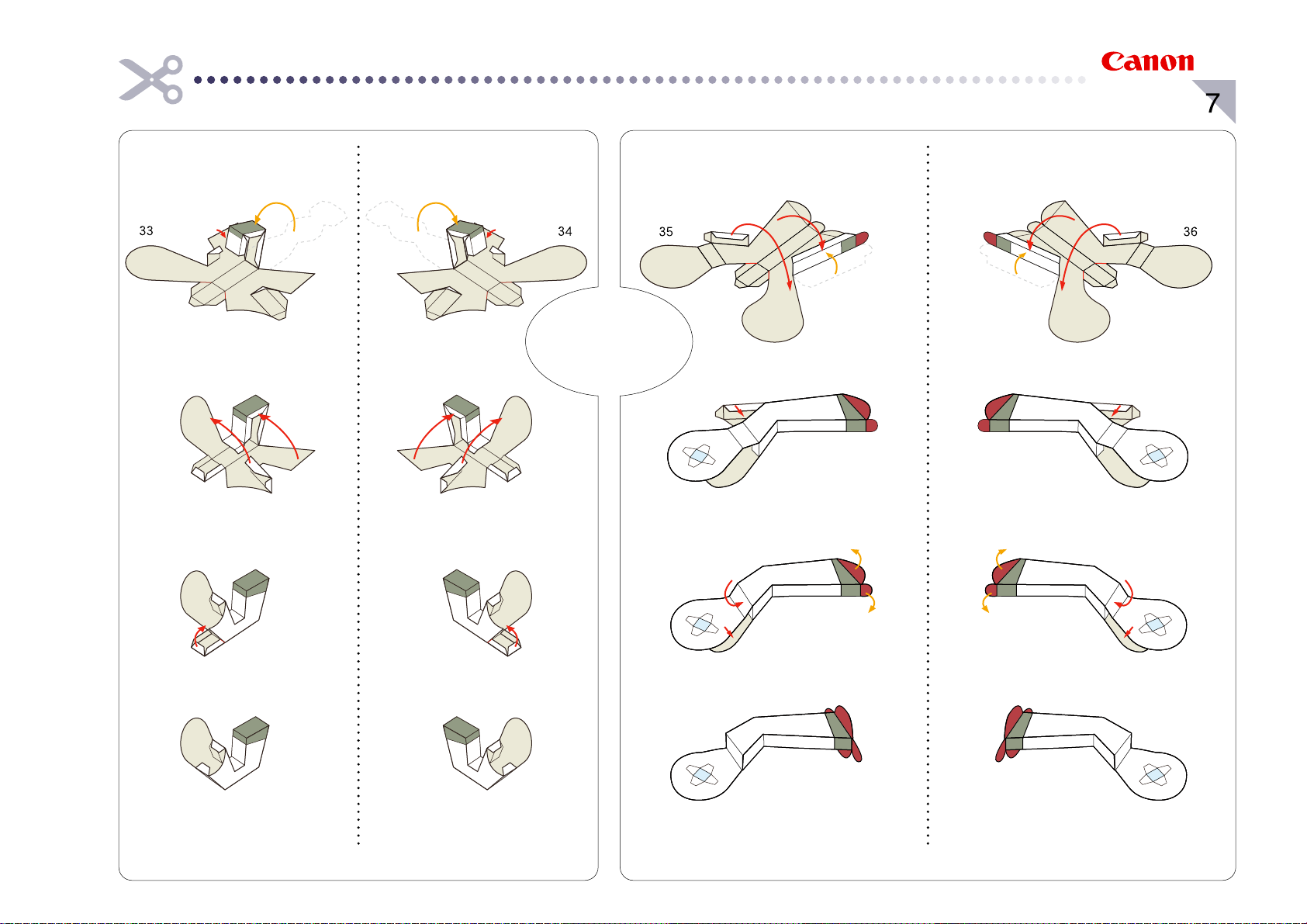

Align the star marks when

gluing part 14 to part 8.

Parts 16, 17, and 18

Caution : Align the colored flaps when

gluing parts 20 and 22.

Wrap the end of a 20cm

piece of thread around

the axle two or three times.

Glue the thread firmly

in place.

(Moving) Performing white horses : Assembly Instructions ©

Canon Inc. ©

Hideharu Naitoh & G&P

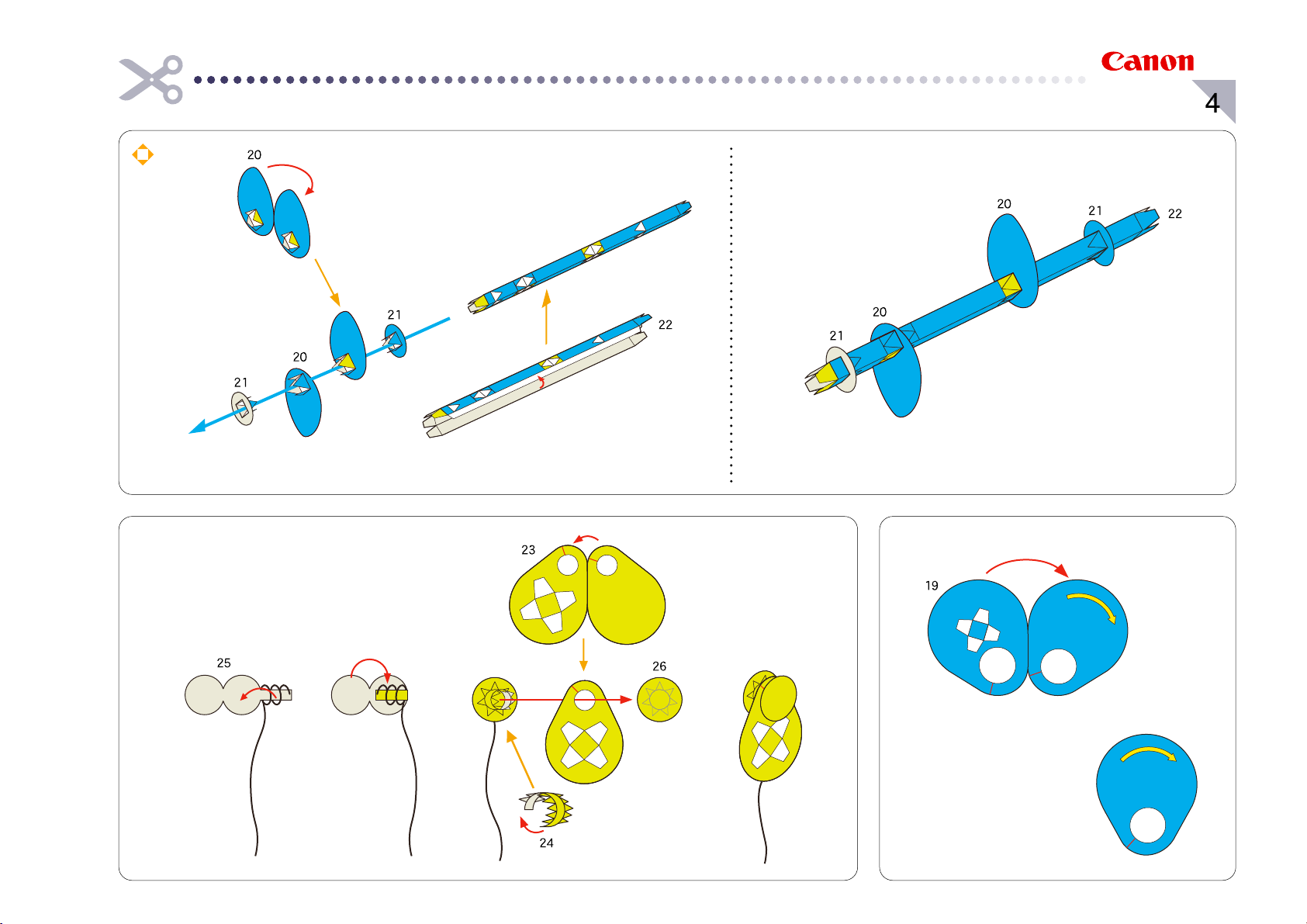

Parts 20 to 22

Make two sets. Make two sets.

Make two sets.

Parts 23 to 26

(Moving) Performing white horses : Assembly Instructions ©

Canon Inc. ©

Hideharu Naitoh & G&P

Caution : Hold the horses' bodies (part 30)

flat to prevent warping as you glue

on the other parts.

Make two sets.

Parts 40 and 41

Make two sets.

Confirm movement.

(Moving) Performing white horses : Assembly Instructions ©

Canon Inc. ©

Hideharu Naitoh & G&P

Caution :

Fold the legs carefully as

you glue them together

to prevent twisting.

Make two sets. Make two sets.

(Moving) Performing white horses : Assembly Instructions ©

Canon Inc. ©

Hideharu Naitoh & G&P

Caution : Do not attach part 28

and parts 42 through

44 at this stage.

Caution : Glue the legs so that they

are exactly aligned when

viewed from the side.

Make

two sets.

(Moving) Performing white horses : Assembly Instructions ©

Canon Inc. ©

Hideharu Naitoh & G&P

Caution : Do not attach the back

(part 6) at this stage.

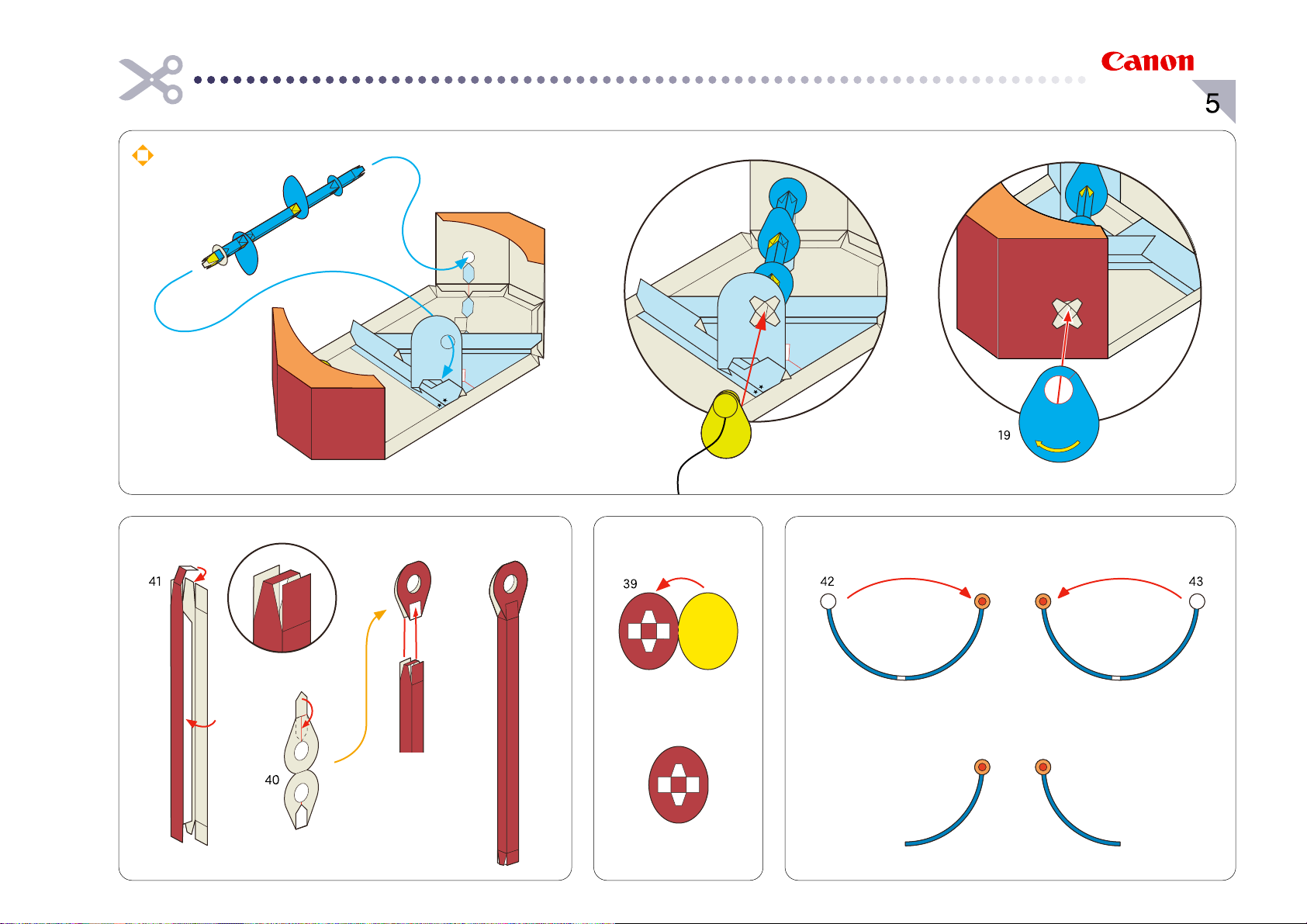

Insert the support under each horse

into the square hole in the base and

glue the hind legs in place.

From inside the base,

align part 39 with flaps

on part 41 and glue

firmly in place.

* Using an empty box or a

similar item for a base makes

it easier to work with this model

when it is upside down.

* Horses are easier to attach if you

glue one leg at a time.

Glue the front (part 3) to the base.

(Moving) Performing white horses : Assembly Instructions ©

Canon Inc. ©

Hideharu Naitoh & G&P

Caution : Take care when cutting

out the circular holes to

ensure that they are

smoothly rounded.

Caution : Position part 48 aligned with the upper

and lower inner wings on the right side

(marked with a star) and glue in place.

Insert the end of the

20cm thread into the

slot and glue it firmly

in place.

* The star indicates the left arm.

Confirm movement.

three

parts two

parts

(Moving) Performing white horses : Assembly Instructions ©

Canon Inc. ©

Hideharu Naitoh & G&P
