Mountain Gorilla : Assembly Instructions

Katsuyuki Shiga(PinoArt)

Canon Inc.

Page

Notation Key

Scissors

Paste, or woodwork glue

Stencil pen, or bodkin

Ruler A1, B1

Tools

Scissors line

Mountain fold

Valley fold

Glue spot

Parts No.

The Assembly instructions are divided into three blocks:

A (head), B (arms, body, and thigh), and C (hands and legs).

Follow the instructions for each block to assemble your

mountain gorilla.

mark is a basic assembly technique that remains the same

regardless of the part. Instructions are printed only for the first

instance.

Keep scissors and glue away from small children.

Be careful not to cut your fingers when using scissors.

Assemble the head

AUse pattern: Page2.

Cut out A1 by cutting along the lines.

Cut along the line marked .

Cut a slot right

into the apex of

the triangular

glue tab.

Make a mountain fold and valley fold on A1.

Trace along the mountain fold line and valley fold line with

a stencil pen, scoring it to make it easier to fold.

Using the photo as a guide, apply pressure with the palm of

your hand, gradually curling the paper in the direction of the arrow.

The parts will be easier to assemble if curled.

Attach the triangular glue tabs so that the front side becomes convex.

Add a slight curl to A1 when attaching it.

Using the photo as a guide, attach in the direction of the arrow.

Mountain Gorilla : Assembly Instructions

Katsuyuki Shiga(PinoArt)

Canon Inc.

Page

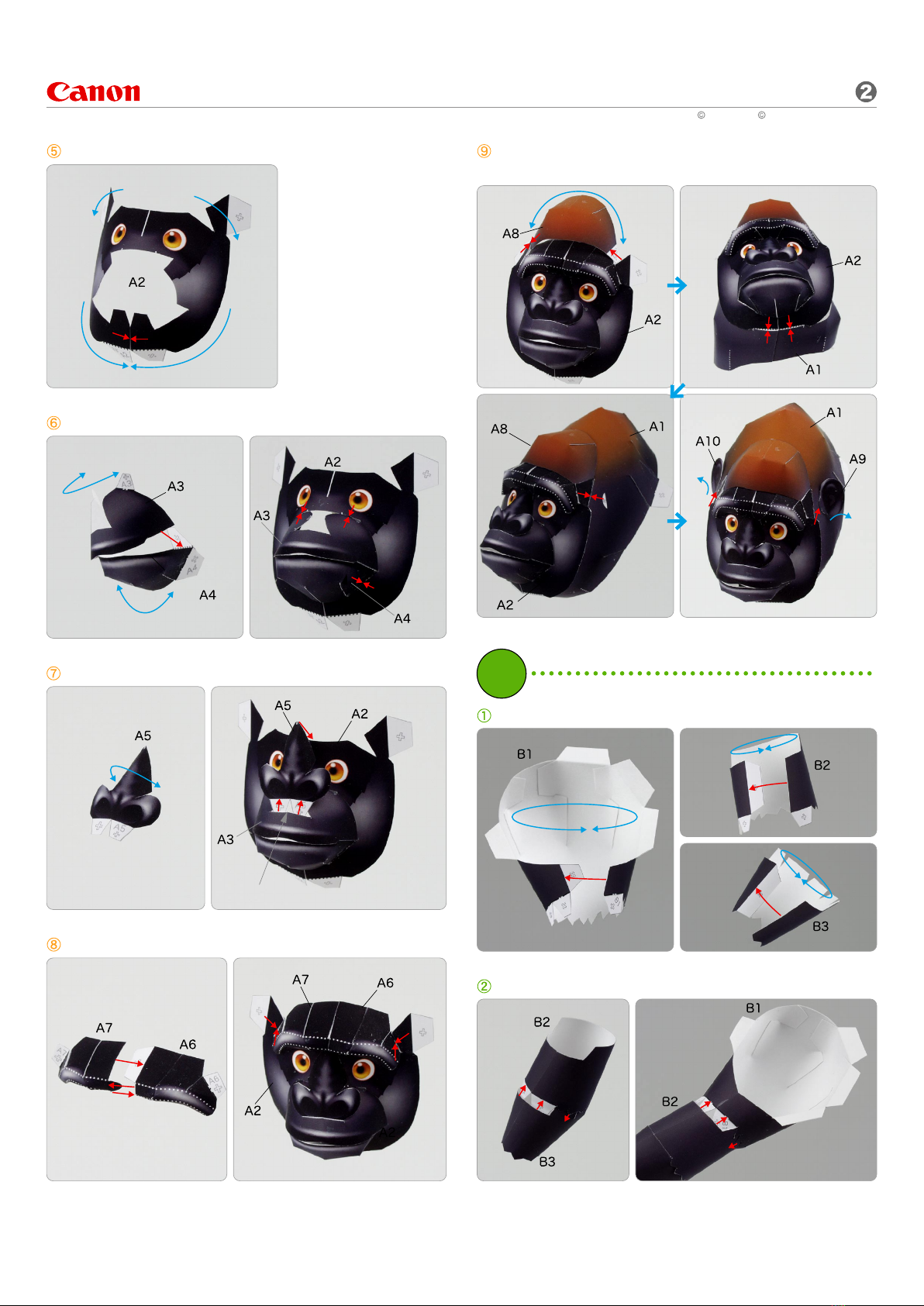

Assemble A2.

Attach A3 and A4, and attach them to A2.

Curl A5 and add it to the face.

Insert here.

Attach A6 and A7, and attach them to the face.

Attach A8 to the face, and attach them to A1.

Attach A9 and A10, and the head is complete.

Use pattern: Page3 to Page5.

Assemble B1, B2 and B3.

Attach B2 and B3, and attach them to B1.

Assemble the arms, the body and the thigh

Mountain Gorilla : Assembly Instructions

Katsuyuki Shiga(PinoArt)

Canon Inc.

Page

In the same way, attach B4, B5 and B6.

Attach the left arm and the right arm to B7.

Attach B8 and B9, and attach them to the arms.

Attach the head and the arms.

Assemble B12 and B13, and attach them to the body .

Assemble B14 and B15, and attach them to the body .

Assemble B10 and B11, and attach them to the arms.

Glue them as you insert.

Align the seams on each part.

Mountain Gorilla : Assembly Instructions

Katsuyuki Shiga(PinoArt)

Canon Inc.

Page

Assemble B16 and B17, and attach them to the body to

complete the body.

Assemble the hands and the legs

Use pattern: Page6.

Assemble C1, C2 and C3, and attach them.

In the same way, assemble C4, C5 and C6.

Assemble C7 and C8, and attach them.

In the same way, attach C9 and C10.

Ensure that all four hands and feet touch the ground before

adding glue to the parts. Once you have glued them, your

mountain gorilla is complete!

Put glue on the back of

the tabs, and glue together.
