WebCAM
User Manual
Version 2.3
For models:
IP100, IP200, IP300
i
CONTENTS
Chapter 1: Introduction ________________________________________1
Section 1. Features ___________________________________________1
Section 2. WebCAM as a Remote Surveillance System _______________1
Section 3. Package Contents ___________________________________2
Chapter 2: Installation Procedure ________________________________4
Chapter 3: WebCAM, USB Camera and the Network _________________5
Section 1. Installation Procedure_________________________________5
Chapter 4: Using Utility to Setup IP & Update Firmware _________________7
Section 1. Installing Utility ______________________________________7
Section 2. Using Utility ________________________________________8
2.1 Setup Wizard_____________________________________________9
2.2 Launch WebCAM ________________________________________15
2.3 IP Configuration__________________________________________16
2.3.1 IP Address ____________________________________________17
2.3.2 Advanced _____________________________________________17
2.5 About __________________________________________________20
2.6 Refresh ________________________________________________20
Chapter 5: WebCAM Web Manager ______________________________21
Section 1. Introduction________________________________________21
Section 2. WebCAM Web Manager Interface ______________________22
2.1 Web-Camera Selection ____________________________________23
2.2 Information _____________________________________________24
2.2.1 System Status _________________________________________24
2.2.2 Current Connections ____________________________________25
2.2.3 Event Log _____________________________________________26
2.3 Basic Settings ___________________________________________26
2.3.1 Camera Settings________________________________________27
2.3.2 Network ______________________________________________28
2.3.3 Account Settings________________________________________30
2.4 Advanced Settings________________________________________32
2.4.1 Event Notification _______________________________________32
2.4.2 Motion Detection _______________________________________36
2.4.3 Image Recording _______________________________________39
2.4.4 E-mail / FTP ___________________________________________40
ii
2.4.5 System Settings ________________________________________43
2.4.6 Image Server __________________________________________45
2.4.7 Language _____________________________________________46
2.4.8 About ________________________________________________47
2.5 Viewing images using PDA / Web enabled mobile phone __________48
Chapter 6: MultiMonitor _______________________________________50
Section 1. Installing MultiMonitor________________________________50
Section 2. Using MultiMonitor __________________________________50
2.1 Device _________________________________________________53
2.2 View___________________________________________________63
2.3 System ________________________________________________63
2.4 User___________________________________________________64
2.5 Help ___________________________________________________65
2.6 Drag-and-Drop Feature ____________________________________66
Appendix A: Router Configuration ______________________________68
Appendix B: Methods to Update WebCAM Firmware _______________86
Appendix C: IP Address, Subnet and Gateway ____________________87
Appendix D: Glossary ________________________________________89
WebCAM user manual -1-
Chapter 1: Introduction
Chapter 1: Introduction
Section 1. Features
WebCAM is a compact stand-alone web-server capable of remote video
surveillance. It can be accessed from anywhere in the world via a standard browser
by entering the IP, account and password. Each system can simultaneously support
any two combinations of USB PC cameras be it regular, infrared or pan-tilt. With its
built-in web-server, WebCAM can stream video images directly to the Internet without
have to go through a computer. WebCAM features a Windows-based software that
allows the user to archive streaming video directly into the hard-drive. The same
software also allows the user to monitor multiple cameras on one screen.
Features:
•Built-in Web Server
•10/100Mbps Fast Ethernet Network Access
•Support Any Java-Enabled Web Browser
•LCD display shows the IP address, Subnet Mask and Gateway
•32-Bit RISC CPU
•1MB Flash Memory
•8MB Dynamic Memory
•Support Up to 30 Remote Viewers for each camera
•Allow Up to 8 User Accounts and Passwords
•5.3VDC 1A Maximum
•Operating Temperature: 0°C ~ 60°C
•Operating Humidity: 10% ~ 90%
•Dimensions: 48mm x 63mm x 21m
•Weight: 75g
•For Indoor Use. Protective housing required for outdoor use.
•Network Protocol: HTTP, TCP/IP, UDP, SMTP, PPPoE, Dynamic DNS, DNS
Client, SNTP, BOOTP, DHCP, FTP, SNMP
•Support All USB PC Camera with VIMICRO ZC0301 Plus processor built-in
•Resolution available: 640x480 (VGA), 352x288 (CIF), 320x240 (QVGA),
176x144 (QCIF), 160x120 (QQVGA).
•Frame Rate: Up to 15fps in 640x480, Up to 20fps in 320 x 240.
•Motion JPEG streaming video
•2 USB Ports for PC Cameras
•USB 1.1 & 2.0 compliant
•Can combine with two different PC cameras
•Support Pan/Tilt and Infrared USB PC Camera
Section 2. WebCAM as a Remote Surveillance System
Once WebCAM is installed, the user can check any of the connected PC cameras
using a standard web browser. The user can monitor and control these cameras
simply by entering the IP address of the WebCAM into a Web Browser from
WebCAM user manual -2-
Chapter 1: Introduction
anywhere in the world. For instance, the user can be in Australia but is able to
monitor his factory production in China, and if he likes, check on his branch office
located in Singapore, all simultaneously.

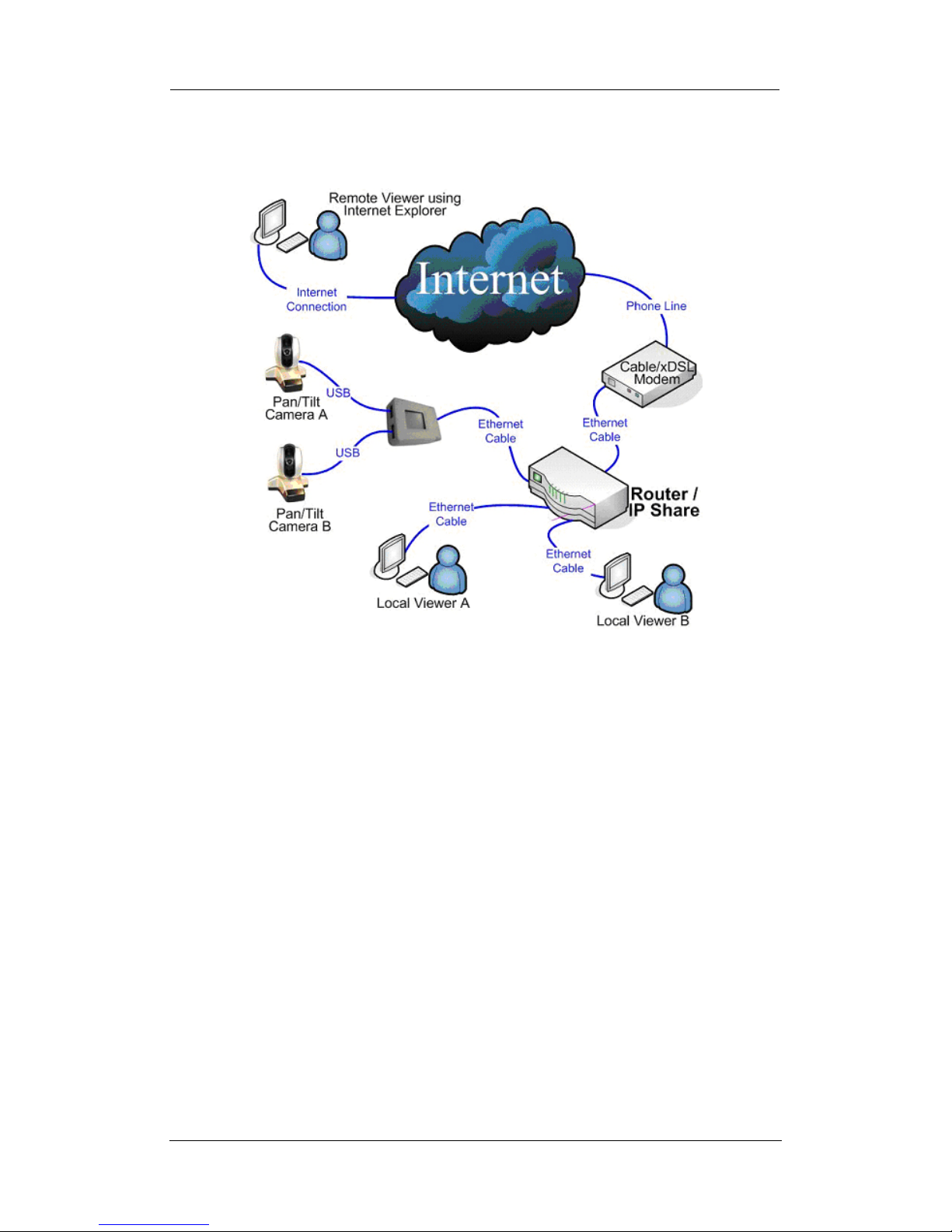

Fig.1. WebCAM Network Diagram
Section 3. Package Contents
Your WebCAM package should contain the following items;
1. WebCAM,
2. Quick Installation Guide
3. WebCAM Utility CD, which contains;
a. Utility: to configure IP address, update the firmware, etc.
b. iMultiMonitor: Windows platform to monitor multiple WebCAM.
c. Time Server: Time adjustment utility.
d. Adobe Acrobat 5.0 Reader.
e. WebCAM user manual, and
f. Camera Windows Driver
4. 5.3V DC Adapter
5. USB Camera
WebCAM user manual -3-
Chapter 1: Introduction
Fig.2. WebCAM Front View
Fig.3. WebCAM Back View
LED Status Indicators on WebCAM
Light color Signal definition Condition description
Green Power state On: Normal power
Red Error Condition On: Error condition occurred
Orange Logon state On: When there is user logon and
receive the image.
Yellow USB data activity Flash when there is data
transmit/receive on the USB.
Fig.4. WebCAM Status LED Indicator
Light indicators on WebCAM LAN Port LED
Light color Condition description
Green On: Internet correspond speed is 100M
Flash: Data transmitting/receiving
Yellow On: Internet correspond speed is 10M
Flash: Data transmitting/receiving
Fig.5. WebCAM LAN LED Indicators
WebCAM user manual -4-
Chapter 2: Installation Procedure
Chapter 2: Installation Procedure
Before you start using WebCAM, you will need to set-up both the hardware and
software. The following is a flow chart on the installation procedure:
Fig.6. WebCAM installation flowchart
Connect WebCAM,
USB Camera and the Network cable
(Chapter 3)
Connect Network cable to ROUTER
/ HUB / xDSL modem
Install Utility (Chapter 4) and
MultiMonitor (Chapter 6)
Use Internet Explorer (>5.0) to
access WebCAM Web Manager
(Chapter 5).
WebCAM set-up completed
1
2
3
4
5
WebCAM user manual -5-
Chapter 3: WebCAM, USB Camera and the Network
Chapter 3: WebCAM, USB Camera and the Network
The following details the installation procedure for WebCAM.
Section 1. Installation Procedure
Step 1:
Connect the PC camera
into the USB port of
WebCAM.
Step 2:
Connect the WebCAM to
LAN by using the
Ethernet UTP port.
Step 3:
Connect DC power
adapter output into
WebCAM socket, and
plug the DC power input
into the wall socket
WebCAM user manual -6-
Chapter 3: WebCAM, USB Camera and the Network

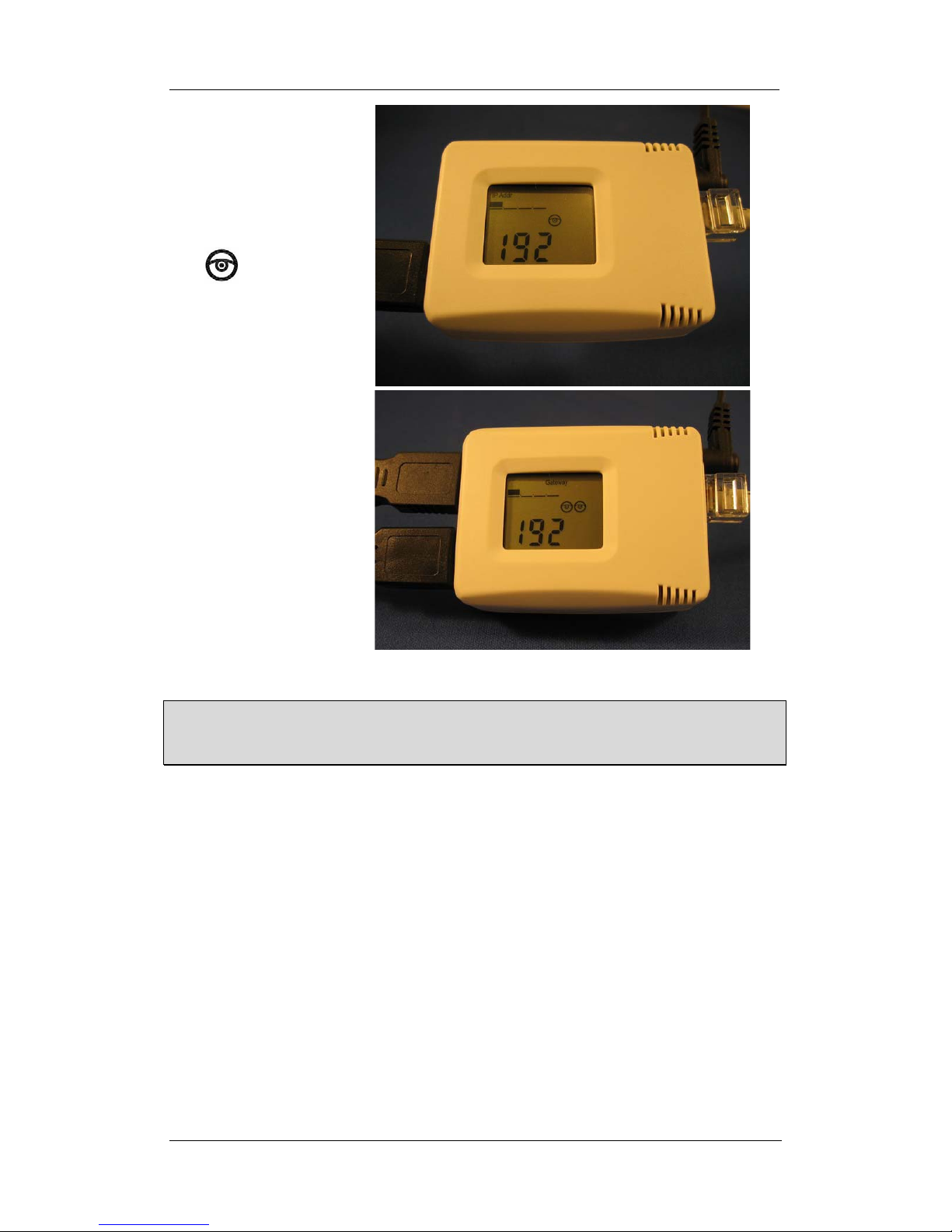

Step 4:
The LCD will display the
IP, Subnet Mask and
Gateway IP. Use a WEB
browser to login into the
WebCAM IP address.
The icon on the
LCD shows that a USB
camera is connected.
The LCD display shows
that two USB cameras
are attached to the
WebCAM.
Warning:
Please make sure the input Voltage and Frequency of the DC power adapter (DC
5.3V) is correct before plugging into the power outlet!
WebCAM user manual -7-
Chapter 4: Using Utility to Setup IP & Update Firmware
Chapter 4: Using Utility to Setup IP & Update Firmware
Section 1. Installing Utility

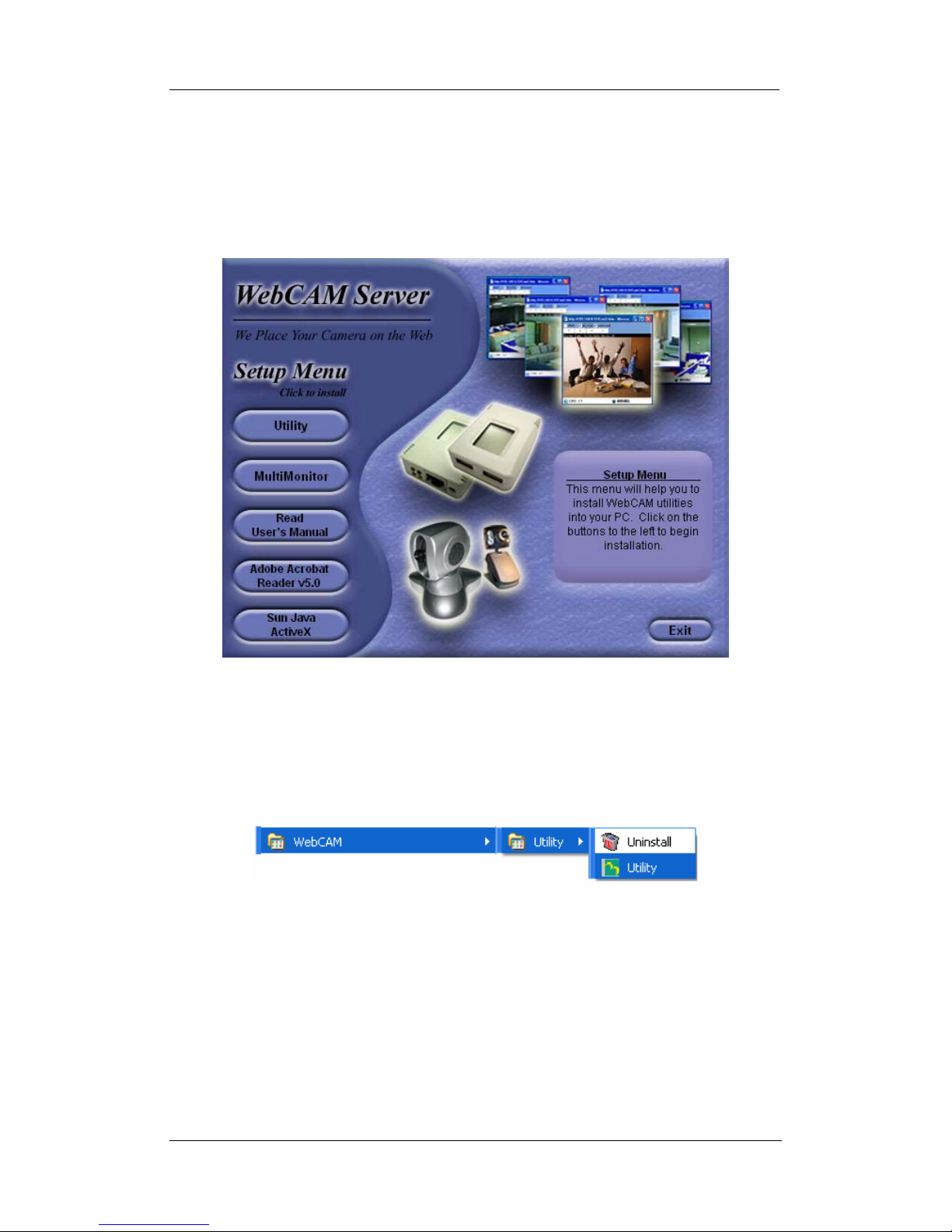

1. Insert the enclosed Utility CD into the CD-ROM drive. Utility CD setup will auto
run. The following menu will show up. Click on the buttons on the left to install
the programs you want.
"Utility - This is a program that helps the user perform quick installation. It will
detect the current configuration and take the user through the necessary
network setup.
a. Click the ‘Utility’ button to commence installation.
b. After the step by step installation is completed, the Utility group will
appear in Windows ’Start’ ÆUtility ‘Program Group’. Click this to
start the program.
Fig.7. Utility Group
"MultiMonitor - This is a windows based program designed to allow user to
control a large number of WebCAM websites located either in a LAN or on a
WAN.
"Read User’s Manual - Click to read WebCAM's User Manual. You will need
Adobe Acrobat Reader v5.0 or higher.
"Adobe Acrobat Reader v5.0 - This will install Acrobat Reader v5.0 on your
local hard drive.
"Sun Jave / ActiveX - Install Sun Java for viewing the video image by Java, or
install the OCX for viewing by ActiveX.
