Getting Started

Read Safety and Important Information

(addendum) rst.

Tulostimen asennus ......................................................................................... sivu 1

Yhdistäminen tietokoneeseen ja älypuhelimeen/tablet-tietokoneeseen........... sivu 4

Tulostimen pitäminen

Havainnollistavat videot

Installation af printeren .....................................................................................side 1

Tilslutning med computer og smartphone/tablet...............................................side 4

Sådan holder du printeren

Forklarende lm

Installere skriveren ...........................................................................................side 1

Koble til datamaskin og smarttelefon/nettbrett .................................................side 4

Hvordan holde skriveren

Forklarende lmer

Installera skrivaren ...........................................................................................sida 1

Ansluta med dator och smarttelefon/surfplatta.................................................sida 4

Hur du håller skrivaren

Förklarande lmer

Εγκατάσταση του εκτυπωτή .........................................................................σελίδα 1

Σύνδεση με υπολογιστή και Smartphone/Tablet........................................... σελίδα 4

Πώς να κρατάτε τον εκτυπωτή

Επεξηγηματικές ταινίες

Instalación de la impresora...........................................................................página 1

Conexión con el ordenador y con el teléfono inteligente o la tableta ...........página 4

Cómo sujetar la impresora

Películas explicativas

Instalando a impressora ...............................................................................página 1

Conectando a um computador e smartphone/tablet ....................................página 4

Como segurar a impressora

Filmes explicativos

Installazione della stampante .......................................................................pagina 1

Connessione con computer e smartphone/tablet.........................................pagina 4

Come sospendere la stampante

Filmati esplicativi

De printer installeren ....................................................................................pagina 1

Verbinden met een computer en smartphone/tablet.....................................pagina 4

De printer vasthouden

Films met uitleg

Installation des Druckers ................................................................................ Seite 1

Herstellen einer Verbindung mit einem Computer und Smartphone/Tablet....... Seite 4

Halten des Druckers

Anleitungsvideos

Installation de l'imprimante ..............................................................................page 1

Connexion avec un ordinateur et un smartphone ou une tablette...................page 4

Manipulation de l'imprimante

Vidéos explicatives

Installing the Printer.........................................................................................page 1

Connecting with Computer and Smartphone/Tablet........................................page 4

How to Hold Printer

Explanatory Movies

ENGLISH

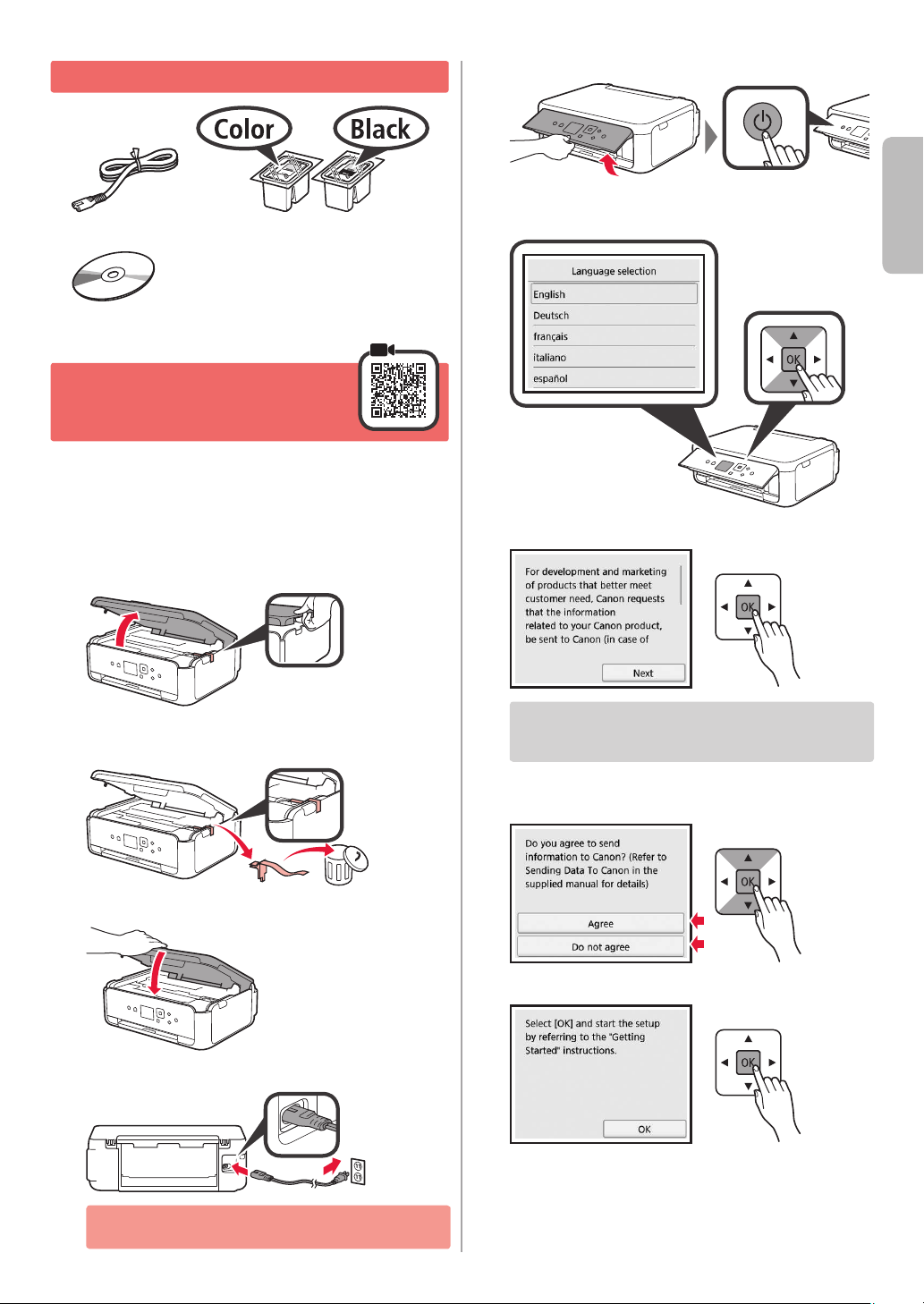

1. Checking Included Items

□ Power cord □ FINE cartridge

□ Safety and Important Information

□ Getting Started (this manual)□ Setup CD-ROM for

Windows PC

2. Removing Packing

Materials / Turning on

Printer

1 Remove the packing materials (such as orange

tape and protective lm on the LCD) from outside

the printer.

2 Hook the hollows on the both sides of the printer

with your ngers and open the scanning unit /

cover.

3 Remove the orange tape and the protective

material and discard them.

4 Close the scanning unit / cover.

5 Connect the power cord diagonally from the back.

Back

Do not connect any cables except the power cord

yet.

6 Lift the operation panel and press the ON button.

7 Use the {or }button to select a language, and

then press the OK button.

8 Press the OK button.

For details about information that is sent to Canon,

refer to "Sending Data To Canon" in Safety and

Important Information.

9 Use the {or }button to select Agree or Do not

agree, and then press the OK button.

Read the messages and press the OK button.

3. Installing FINE Cartridge

1 Open the scanning unit / cover.

Do not touch the FINE cartridge holder (A) until it

stops.

(A)

2 Pinch and open the ink cartridge locking cover on

the left side .

Install the Color FINE cartridge on the left side

and the Black FINE cartridge on the right side.

3 aTake out the Color FINE cartridge from the

package.

bRemove the protective tape.

Do not touch.

Be careful of ink on the protective tape.

4 Set the Color FINE cartridge on the FINE cartridge

holder on the left side .

Do not bump it against the

surrounding parts.

5 Push down in the ink cartridge locking cover

rmly until it snaps into place to close it completely.

6 Repeat steps 2 to 5 and install the Black FINE

cartridge as well, on the right.

7 Close the scanning unit / cover.

If an error message appears on the screen, make

sure the FINE Cartridges are installed correctly.

ENGLISH

4. Loading Paper

1 aPull out the cassette.

bRemove the cassette cover.

2 Open the paper guides, and then align the guide in

front with the mark of LTR or A4.

3 aLoad plain LTR or A4 size paper with the print

side facing down.

bSlide the right paper guide to align it with the

side of the paper stack.

cAlign the paper stack with the paper guide in

front.

4 Attach the cassette cover and insert the cassette.

The following gure shows the state after the

cassette is inserted.

Side

5 aPull out the paper output tray.

bOpen the output tray extension.

6 If the following screen appears, select OK with the

[or ]button, and then press the OK button.

6-A. Connecting to Computer

Mac OS

Windows

You need a connection setup for each computer. Proceed with the setup from step 1 for each computer.

1 Start the setup le for either method or method .

5. Preparing for Connection

In the following description, smartphones and tablet

devices are collectively described as smartphone.

1 Press the OK button.

2 Make sure that the following screen appears.

From here on, proceed to a step according to how you use

the printer.

Use Only Printer

aPress the Stop button on the printer.

bSelect Do not connect > Yes in this order with

the {, }, [, or ]button, and then press the OK

button.

The setup is now complete.

aOpen a web browser ( etc.) on your computer.

bInput the following URL and access the Canon

website.

cSelect Set Up.

dInput the model name of your printer and click OK.

You can select a model name from the list.

eClick Setup.

The procedures for Windows and Mac OS are shown

below. If you are using a computer with an OS other

than Windows or Mac OS, such as a Chrome OS, do

the setup according to the on-screen instructions.

fClick Download and download the setup le.

gExecute the downloaded le.

Proceed to step on the next page to

continue.

Downloading from the Internet

• To use the printer by connecting only to a computer or both to a computer and smartphone

"6-A. Connecting to Computer"

• To use the printer by connecting only to a smartphone

"6-B. Connecting to Smartphone" on page 6

• To use the printer without connecting to a computer or smartphone

"Use Only Printer"

ENGLISH

Using Setup CD-ROM (Windows Only)

aLoad the Setup CD-ROM in your computer.

■When using Windows 10 or Windows 8.1:

bWhen the following message appears on the right

side of your computer screen, click it.

cIf the following screen appears, click Run

Msetup4.exe.

dIf the User Account Control dialog box appears,

click Yes.

When This Message Does Not Appear (or Has

Disappeared)

1. Click File Explorer on the taskbar.

2. Click This PC on the left side of the opened window.

3. Double-click the CD-ROM icon on the right side of

the window.

If the contents of the CD-ROM appear, double-click

Msetup4.exe.

4. Proceed to step d.

■When using Windows 7:

bWhen the AutoPlay screen appears, click Run

Msetup4.exe.

cIf the User Account Control dialog box appears,

click Continue.

When AutoPlay Screen Does Not Appear

1. Click Computer from the start menu.

2. Double-click the CD-ROM icon on the right side of

the opened window.

If the contents of the CD-ROM appear, double-click

Msetup4.exe.

Proceed to step to continue.

2 Click Start Setup.

The connection with your computer is now complete. You can print from your

computer.

If the following screen appears, click Exit.

Follow the on-screen

instructions to proceed

with the setup.

6-B. Connecting to Smartphone

Android

iOS

You need a connection setup for each smartphone. Proceed with the setup from step 1 for each smartphone.

Preparation

• Turn on Wi-Fi on your smartphone.

• If you have a wireless router, connect your smartphone to the wireless router you want to connect to the printer.

* For operations, refer to manuals of your smartphone and the wireless router or contact those manufacturers.

1 Install the application software Canon PRINT Inkjet/SELPHY in your smartphone.

: Search "Canon PRINT" in App Store.

: Search "Canon PRINT" in Google Play.

Or access the Canon website by scanning the QR code.

* You may not connect your smartphone to the Internet wirelessly during connecting the printer to the smartphone directly.

In that case, you may be charged depending on the contract with your service provider.

* Up to 5 devices can be connected to the printer via wireless LAN connection directly.

2 Check the display on the printer.

The screen turns off when no operation is made for about 10 minutes. Press one of the buttons on the operation

panel (except for the ON button) to display the screen.

■If the following screen appears:

Check the icon on the lower left, and then proceed

to or .

If appears, the printer cannot communicate

by wireless LAN connection. For details, access

"http://ij.start.canon" to see Frequently Asked Questions.

■If the following screen appears:

Proceed to .

No (Proceed to .)

YES

aTap the installed application software.

bFollow the on-screen instructions to register the

printer.

cMake sure that the following screen appears.

The connection with your smartphone is

now complete. You can print from your

smartphone.

To print photos, load photo paper. Proceed to "Loading

Photo Paper" on page 8.

The following icon appears.

(The printer is connected to a network.)

ENGLISH

Procedures below vary depending on iOS or Android. Select your operating system and proceed to its

procedure.

aTap Settings on your smartphone's home screen,

and tap Canon_ij_XXXX in the Wi-Fi settings.

If Canon_ij_XXXX does not appear on the list,

see "Preparation for Printer" below to operate the

printer, and then repeat step a.

bTap the installed application software.

cFollow the on-screen instructions to register the

printer.

Follow the on-screen instructions to proceed

with the setup.

If you select Auto Select Conn. Method

(recommended) on the connection method

selecting screen, the appropriate connection

method is selected automatically depending on

your environment.

dMake sure that the right

screen appears.

aTap the installed application software.

bFollow the on-screen instructions to register the

printer.

If a message saying "Printer is not registered.

Perform printer setup?" does not appear, see

"Preparation for Printer" below to operate the

printer, and then wait for a while until the message

appears.

Follow the on-screen instructions to proceed

with the setup.

• The appropriate connection method is selected

depending on your environment.

• If two printer names appear on the Register

Printer screen as shown below, select A.

A) TS5100 series (xxx.xxx.xxx.xxx)

B) Direct-xxxx-TS5100series

cMake sure that the right

screen appears.

The connection with your smartphone is now complete. You can print from your

smartphone.

To print photos, load photo paper. Proceed to "Loading Photo Paper" on page 8.

aPress the HOME button on the printer.

bUse the {, }, [, or ]button to select the icon

on the lower left of the Home screen, and then

press the OK button.

cIf the following screen appears, select No with the

[or ]button, and then press the OK button.

dUse the {, }, [, or ]button to select LAN

settings > Wireless LAN > Wireless LAN setup

> Easy wireless connect in order, and then press

the OK button.

eUse the [or ]button to select Yes, and then

press the OK button.

fReturn to the operation of your smartphone.

Preparation for Printer

Load photo paper in the rear tray.

1 Open the rear tray cover and pull out the paper

support.

2 aOpen the feed slot cover.

bSlide the right paper guide to the end.

1 Make sure the printer is turned on.

2 Load several sheets of photo paper.

3 Use the {, }, [, or ]button to select Copy

on the Home screen, and then press the OK

button.

4 Use the {or }button to select Photo copy,

and then press the OK button.

5 Read the messages and then press the OK

button.

6 Follow the on-screen instructions to load the

printed photo on the platen glass, and then

press the OK button.

3 aLoad several sheets of photo paper with the

print side facing up.

bSlide the right paper guide to align it with the

side of the paper stack.

4 Close the feed slot cover.

Read the message on the printer's screen and

5 aPull out the paper output tray.

bOpen the output tray extension.

7 Specify the print settings as necessary.

8 Press the Color button for color copying.

Press the Black button for black & white

copying.

The printer starts printing.

Loading Photo Paper

Copying Photos

You can scan the printed photo and print it. You can also scan several photos and print them at once.

Otros manuales para TS5100 series

Tabla de contenidos

Idiomas:

Otros manuales de Impresora de Canon

Canon

Canon W8200 Instrucciones de instalación y mantenimiento

Canon

Canon iR C6800 Series Manual de servicio

Canon

Canon imageClass LBP6030w Manual de usuario

Canon

Canon iP100 - PIXMA Color Inkjet Printer Manual de usuario

Canon

Canon imagePROGRAF SD-21 Manual de usuario

Canon

Canon imageRUNNER ADVANCE 715 series Manual de usuario

Canon

Canon imagePROGRAF iPF810 Manual de usuario

Canon

Canon imageCLASS X LBP1238 Manual de usuario

Canon

Canon iPF720 - imagePROGRAF Color Inkjet Printer Manual de usuario

Canon

Canon iPF650 - imagePROGRAF Color Inkjet Printer Manual de usuario

Canon

Canon CP-300 Manual de usuario

Canon

Canon imagePROGRAF iPF6400SE Manual de usuario

Canon

Canon LBP654C Series Manual de usuario

Canon

Canon iPF6100 - imagePROGRAF Color Inkjet Printer Manual de usuario

Canon

Canon TS700 Series Guía de configuración

Canon

Canon S820D Manual de usuario

Canon

Canon Business Inkjet WG7450Z Manual de usuario

Canon

Canon imageRUNNER 1019j Manual de usuario

Canon

Canon MG6600 Series Manual de usuario

Canon

Canon MG6800 Series Manual de usuario

Canon

Canon imagePRESS C7000VP Series Manual técnico

Canon

Canon Color imageRUNNER LBP5960 Manual de usuario

Canon

Canon i455 Series Manual

Canon

Canon FAX L160 Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

IRA3D

IRA3D POETRY4 Manual de usuario

Ricoh

Ricoh Aficio AP400 Manual de usuario

BIXOLON

BIXOLON SRP-352plusV Manual de usuario

Epson

Epson Stylus Photo PX700W Instrucciones de montaje

Ricoh

Ricoh SP204SF Manual de usuario

Star Micronics

Star Micronics futurePRNT TSP100 Manual de usuario

Epson

Epson TM-TM88V-i Manual de uso y cuidado
