Canon SELPHY SQUARE QX10 Manual de usuario

Getting Started

• Make sure you read this guide, including the “Safety

Instructions” (=

2) section, before using the printer.

• Reading this guide will help you learn to use the printer properly.

• Store this guide safely so that you can use it in the future.

ENGLISH

Safety Instructions

• Be sure to read these instructions in order to operate the product safely.

• Follow these instructions to prevent injury or harm to the operator of the

product or others.

WARNING Denotes the risk of serious injury or death.

• Use only power sources speciﬁed in this instruction manual for use

with the product.

• Do not disassemble or modify the product.

• Do not expose the product to strong shocks or vibration.

• Do not touch any exposed internal parts.

• Stop using the product in any case of unusual circumstances such

as the presence of smoke or a strange smell.

• Do not use organic solvents such as alcohol, benzine or paint

thinner to clean the product.

• Do not get the product wet. Do not insert foreign objects or liquids

into the product.

• Do not use the product where ﬂammable gases may be present.

This may cause electric shock, explosion or ﬁre.

• Do not touch the product connected to a power outlet during

lightning storms.

This may cause electric shock.

• Periodically remove any dust buildup from the power plug and power

outlet using a dry cloth.

• Do not plug in or unplug the product with wet hands.

• Do not use the product if the power plug is not fully inserted into the

power outlet.

• Do not expose the power plug and terminals to dirt or let them come

into contact with metallic pins or other metal objects.

• Do not place heavy objects on the power cord. Do not damage, break

or modify the power cord.

• Do not wrap the product in cloth or other materials when in use or

shortly after use when the product is still warm in temperature.

• Do not leave the product connected to a power source for long

periods of time.

• Do not charge the product at temperatures outside the range of 5 –

40 °C (41 – 104 °F).

This may cause electric shock, explosion or ﬁre.

• Follow any indications to turn oﬀthe product in places where its use

is forbidden.

Not doing so may cause other equipment to malfunction due to the eﬀect of

electromagnetic waves and even result in accidents.

CAUTION Denotes the risk of injury.

• Do not touch any parts inside the product.

This may cause injury.

Before Use

• Images printed with this product are to be used for personal enjoyment.

Unauthorized printing of copyrighted material is prohibited.

• The printer warranty is valid only in the country or area of purchase. In

case of printer problems while abroad, return to the area of purchase

before contacting a Customer Support Help Desk.

Package Contents

□SELPHY SQUARE QX10 □Charging Cable

□Sample Ink Casette □Sample Sticker Paper

• Printed matter is also included.

• Purchase a Color Ink / Label Set (XS-20L) separately.

• The accessory charging cable is a charging only cable, and cannot be

used for communication.

Names of Parts

(1)

(3)

(4)

(6)

(7) (10)

(8)

(5)

(11)

(2)

(9)

(1) CHARGE lamp

(2) STATUS lamp

(3) Power button

(4) Charging terminal

(5) Forced shutdown switch

(6) Eject lever

(7) QR code label

(8) Ink cassette compartment

cover

(9) Delivery outlet

(10) Paper compartment cover

(11) Open button

• Place the printer on a table or other ﬂat, stable surface. Never place

the printer on an unstable or tilted surface.

• Do not place objects in front of the delivery outlet that may interfere

with the paper during printing.

• The QR code label is needed when you register the printer again,

such as when you change your model of smartphone. Take a photo

of the QR code with the camera function of your smartphone, etc.

and store it carefully.

• If the ink sheet is loose, turn the sprocket gently to tighten it.

Do not touch the ink sheet.

Ink sheet

Lamp indications

STATUS lamp CHARGE lamp Status

OﬀOﬀPower oﬀ(Not charged)

Blinks slowly

green

Charging in progress (Power oﬀ)

Lights green Charging complete (Power oﬀ)*1

Blinks slowly

white

OﬀPrinter start-up in progress

Blinks white OﬀProcessing...

Blinks quickly

white

OﬀRemove the printed paper.

Lights white OﬀStanding by to print (Not charged)*2

Blinks green Standing by to print (Battery level low)

Blinks slowly

green

Standing by to print (Charging in progress)

Lights green Standing by to print (Charging complete)

Blinks slowly red Blinks slowly

green

Outside the operating temperature range so

charging has paused.

Blinks red OﬀAn error occurred. Check the app message.

Blinks green The battery level is low so printing is not

possible. Charge the battery.

Blinks quickly red OﬀAn error occurred. Turn the power oﬀand

then on again.

Blinks quickly

green

A battery error occurred.

*1 After a while, the CHARGE lamp turns oﬀ.

*2 You can check the battery level by pressing the Power button in the Standing by to

print (Not charged) status.

• CHARGE lamp blinks two times:

The battery level is low, but the printer can still be used.

• CHARGE lamp blinks three times:

The battery level is suﬃcient.

Preparations

Charging the battery

1Connect the printer and the

charging USB AC adapter (sold

separately) with the accessory

charging cable.

 The CHARGE lamp begins to blink

green and charging starts. When the

CHARGE lamp lights up green, charging

is complete.

Installing the app

The smartphone application SELPHY Photo Layout is needed to print with

this product.

1Download and install the latest version of SELPHY

Photo Layout.

 Search for “SELPHY Photo Layout” from the App Store (in case of an

iPhone, iPad) or Google Play (in case of an Android smartphone), and

install SELPHY Photo Layout.

2Start SELPHY Photo Layout.

 Turn on location services on the smartphone.

 Turn oﬀpower saving mode and other functions that reduce

smartphone battery consumption.

 Follow the on-screen instructions.

• For information on how to operate the printer, such as loading the paper or

replacing the ink cassette, refer to [Printer Manual] of SELPHY Photo Layout.

Preparing the printer and printing

This section describes how to turn on the power, load the paper, load the

ink cassette, register the printer (QR code), print, and turn oﬀthe power.

Turn on the power.

 Hold down the Power button until the

STATUS lamp begins to blink white, then

wait until the STATUS lamp lights up.

2Load the paper.

 Press the Open button to release the

lock, and open the paper compartment

cover.

 Set the paper (up to 10 sheets) with the

printing surface (the surface without the

Canon logo) facing downward, being

careful not to touch the printing surface.

 Align the edge of the paper with the

circled parts. Do not push the paper to

the back of the compartment.

 Close the paper compartment cover.

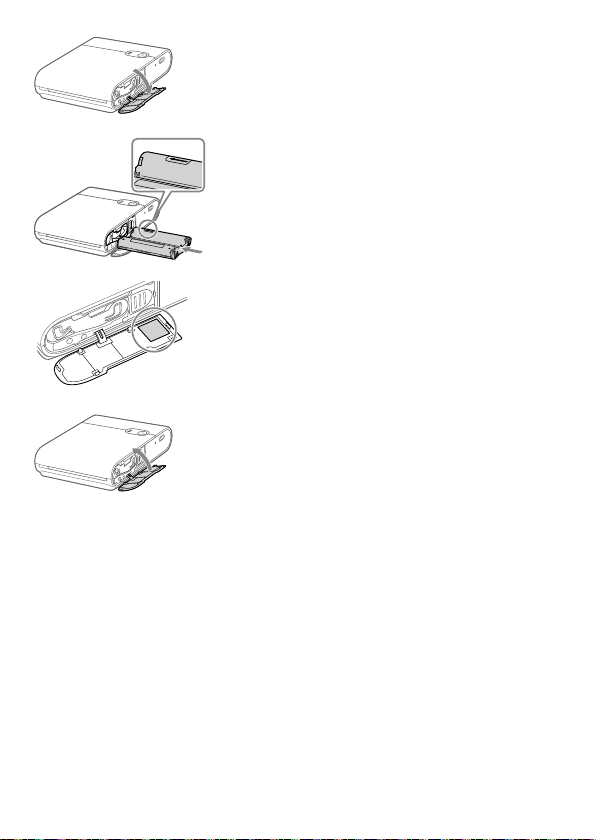

Load the ink cassette.

 Open the ink cassette compartment

cover.

 Insert the correctly oriented new ink

cassette into the printer until it clicks into

place.

Connect and register the printer

using the QR code.

 Follow the instructions displayed on the

smartphone screen and connect and

 Close the ink cassette compartment

cover.

Print.

 Print the images with SELPHY Photo

Layout.

 When printing is ﬁnished, remove the

paper from the printer.

Turn oﬀthe power.

 After use, hold down the Power button

until the STATUS lamp turns oﬀ.

Printing Precautions

• Set the paper with the printing surface (the surface without the Canon

logo) facing downward, being careful not to touch the printing surface.

• Do not use paper that has already been printed on or that has written text

or other markings.

• The paper extends from the delivery outlet multiple times during printing.

Do not pull on the paper until the message indicating to remove the paper

is displayed on the smartphone.

• Do not interrupt communication until printing is ﬁnished. If communication

is interrupted, printing may be performed only partway.

• Do not open the ink cassette compartment cover or the paper

compartment cover while the printer is operating.

• If the Standing by to print status continues for approximately 10 minutes,

the power will automatically turn oﬀ. To resume printing, press the Power

button.
