Canon PIXMA TS702a Manual de usuario

Guía de inicio

Lea primero Información de seguridad e

información importante (apéndice).

Conguración en línea

Hay vídeos e instrucciones detalladas en

el sitio web de Canon.

Congurar un ordenador

Congurar un teléfono inteligente

Getting Started

Read Safety and Important Information

(addendum) rst.

Online Setup

Detailed instructions and videos are

available on the Canon website.

Setup a Computer

Setup a Smartphone

Instalación de la impresora ...............................................................................................página 1

Conexión con un ordenador, teléfono inteligente o tableta.......................página 4

Vídeos instructivos

Cómo sujetar la impresora

Installing the Printer................................................................................................................... page 1

Connecting to a Computer, Smartphone or Tablet............................................... page 4

Holding the Printer

Instructional Videos

ENGLISH

1. Box Contents

•

Power cord •

Multi-purpose tray

(Attached to the underside of the

cassette.)

Pull out the

cassette.

Turn it over.

Multi-purpose tray

•

Ink tanks for setup

•

Setup CD-ROM

•

Safety and Important Information

•

Getting Started (this manual)

2. Removing Packing Materials

1 Remove and dispose of any packing materials

from the printer.

• Be sure to remove any orange tape.

2 Open the top cover and remove the orange tape

inside.

3 Close the top cover.

3. Turning on the Printer

1 Connect the power cord.

Back

Important

At this time, do not connect any other cables.

2 Press the ON button.

Important

If the following screen appears, press the ON button to turn o

the power, and redo the procedure from step 2 in "2. Removing

Packing Materials".

3 When the following screen appears, use the [

and ]buttons to select a language, and then

press the OK button.

Setting Up the Printer

Online Setup

Setting Up the Printer

4. Installing the Ink Tanks

1 Open the top cover.

Caution

Do not touch the print head holder until it stops moving.

2 Remove the tape and lm on the ink tanks.

• Check that no tape is left over.

3 Slowly remove the orange cap.

Important

• Do not squeeze the ink tank with the

Y-shaped air hole blocked.

• Do not touch the areas shown in red.

4 Install the ink tanks.

• Matching the color of the ink tank to the label on the

print head, insert the ink tank into the print head, and

press down until it clicks.

5 Check that the mark appears on the screen.

Important

If the mark is not displayed on the screen even though

you have installed the ink tank, the color of the ink tank may

be wrong or you may have installed an ink tank, such as one

with a dierent model number, that is not supported by this

printer. Either install an ink tank for the correct color or use the

provided ink tank for setup.

6 Repeat steps 2 through 5 to install all the ink

tanks.

• Check that a mark is displayed on the screen for

each color.

7 Close the top cover.

• The printer will start initializing.

8 When the following screen appears, press the

OK button.

5. Loading Paper

1 When the following screen appears, use the [

and ]buttons to select Yes , and then press the

OK button.

• The following screen appears.

ENGLISH

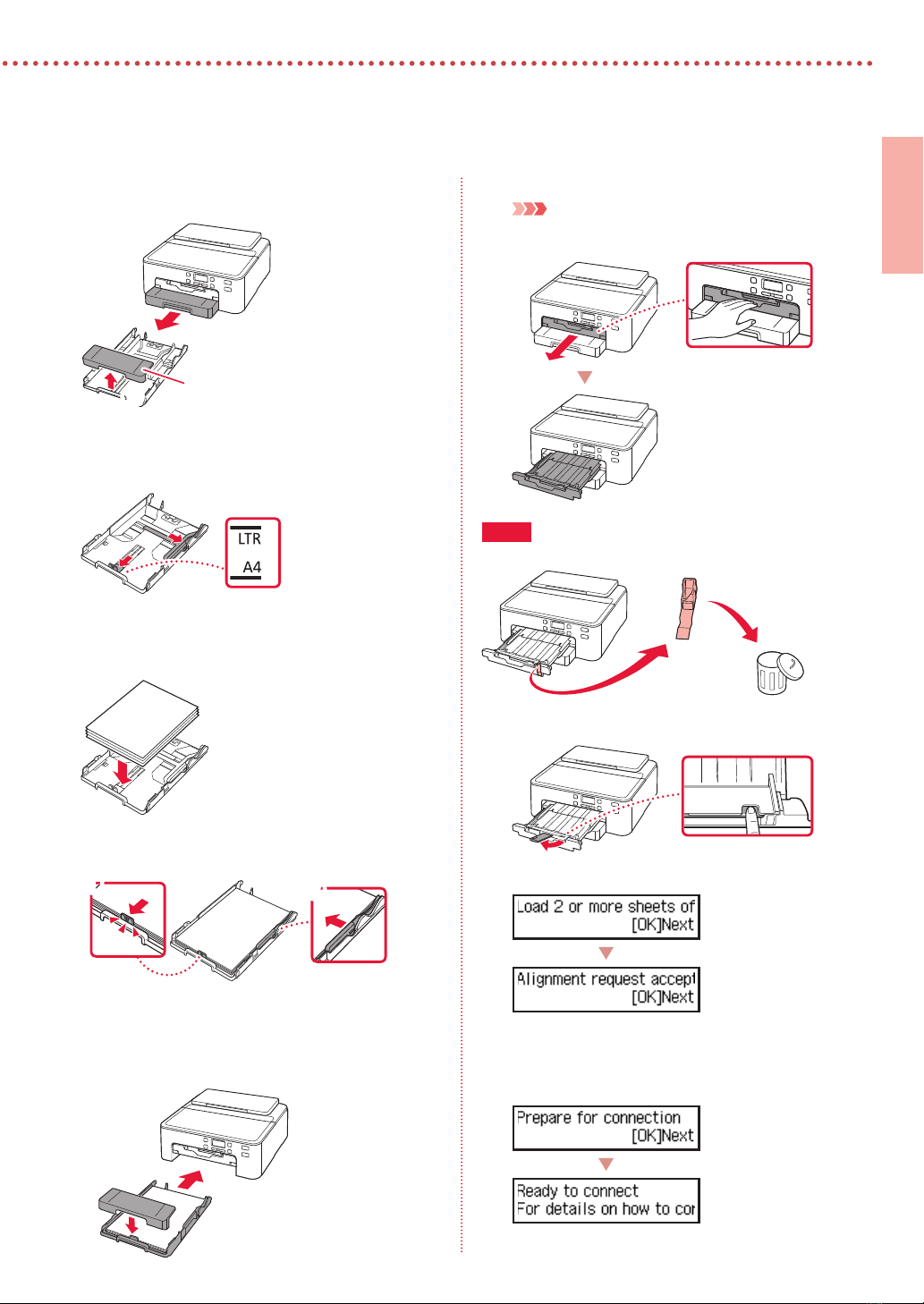

2 Remove the cassette from the printer and

remove the cassette cover.

Cassette cover

3 Slide apart the paper guides.

• Slide the right paper guide to the right edge. Align

the front paper guide with the LTR or A4 mark.

4 Load paper.

• Load 2 or more sheets of LTR or A4 sized plain paper

with the print side facing down.

• Place the paper against the front paper guide, and

align the right paper guide to the width of the paper.

5 Attach the cassette cover and replace the

cassette.

• When attaching the cassette cover to the cassette, t the

cassette cover to the shape of the front of the cassette.

6 Pull out the paper output tray until it stops.

Important

If you do not pull out the paper output tray, an error will occur

when printing starts.

Check!

Remove and dispose of any orange protective material.

7 Pull out the paper output support.

8 Press the OK button.

9 Check that Prepare for connection appears

on the printer's screen, and then press the OK

button.

6-b

page 6

6-a

Setting Up the Printer

Press the Stop button,

and then select Do not

connect > Yes, in this

order.

Computer Computer and

smartphone

Smartphone

No device

Connecting to a Computer

If you are using multiple computers, perform these steps on each computer. There are

two methods, " Online Setup" and " Using the Setup CD-ROM (Windows Only)

Provided".

1 Access the Canon website from a

computer.

2 Select Set Up.

3 Enter your printer's model name and click

Go.

4 Click Start.

5 Click If you have already prepared your

printer, go to Connect.

Note

The following steps are for Windows (except Windows

10 in S mode) and macOS users. For other operating

systems, continue setup by following the on-screen

instructions instead.

6 Click Download.

• The setup le is downloaded to your

computer.

7 Run the downloaded le.

8 Proceed to step 9 on page 5.

Online Setup

What device are you connecting?

Select a device and follow the instructions in the relevant section.

ENGLISH

1 Insert the Setup CD-ROM

into your computer.

2 Follow the instructions for your version of

Windows.

Windows 10/Windows 8.1

aClick on the following message when it

appears on the right-hand side of your

computer screen.

Note

If the message does not appear (or is no longer

visible), click the File Explorer icon in the

taskbar. On the left-hand side of the window, click

This PC. Double click the CD icon that is

displayed on the right-hand side. When the

content of the CD is displayed, double click

Msetup4.exe. Proceed to c.

bClick Run

Msetup4.exe.

cIf the User Account Control dialog box

appears, click Yes .

Windows 7

aClick Run Msetup4.exe.

• When the AutoPlay screen appears, click

Run Msetup4.exe.

Note

If the AutoPlay screen does not appear, in the

Start menu, click Computer. On the right-hand

side of the window, double click the CD icon.

When the content of the CD is displayed, double

click Msetup4.exe.

bIf the User Account Control dialog box

appears, click Continue.

3 Proceed to step 9 below.

Using the Setup CD-ROM (Windows Only) Provided

9 Click Start Setup.

10 Follow the on-screen instructions.

• These operations may take some time.

11 When the following screen appears, click

Exit.

Your printer is now connected to your computer.

To connect a smartphone as well, see "6-b.

Connecting to a Smartphone" on page 6.

6-b

Setting Up the Printer

1 Install the "Canon PRINT Inkjet/SELPHY" app on your smartphone.

• Scan the QR code shown on the right to access the Canon website, and then download

the app.

2 Check the printer's screen and proceed to each step.

If the following screen is displayed,

Ready to connect

For details on how to continue, refer to

"Getting Started"

If the following screen is displayed

• If or is displayed,

• If or is not displayed,

Note

• The printer's screen turns o when the printer is idle for 10 minutes. Press a button (except the ON button) on the operation

panel to turn on the screen.

• If appears, the printer cannot communicate by Wi-Fi connection. For details, see "Frequently Asked Questions" at

"http://ij.start.canon".

Connecting to a Smartphone

If you are using multiple smartphones, perform these steps on each smartphone.

Prepare the following before starting.

aEnable the Wi-Fi setting on your smartphone.

bConnect your smartphone to the wireless router (if you have a wireless router).

See your smartphone and wireless router manuals for more details.

3 Open the installed app. 4 Follow the on-screen instructions to add

your printer.

Once you have added your printer, you can

print from the smartphone. To print photos, see

"Loading Photo Paper" on page 8.

ENGLISH

3 Tap Settings on your smartphone's home

screen, and tap Canon_ij_XXXX in the

Wi-Fi settings.

Note

If Canon_ij_XXXX does not appear, follow the

procedure in , and then search for Canon_ij_XXXX

again.

4 Tap the installed app, and

then follow the on-screen

instructions to add your

printer.

• The printer is added with the

most appropriate connection

method for the environment

you are using.

3 Tap the installed app, and

then follow the on-screen

instructions to add your

printer.

• The printer is added with the

most appropriate connection

method for the environment

you are using.

Note

If a message saying "No printer has been added.

Perform printer setup?" does not readily appear

after starting the application, follow the procedure in

, and then return to smartphone operations.

Procedures vary for iOS and Android. Follow the instructions for your operating system.

3 Press and hold the Wireless connect

button for about 3 seconds. 4 When Follow the instructions on the

PC or smartphone, etc. appears on the

printer's screen, proceed to .

Once you have added your printer, you can print from the smartphone. To print photos, see "Loading Photo

Paper" on page 8.

Loading Photo Paper

1 Open the paper support and the paper support

extension.

2 Open the feed slot cover and slide the right-

hand side paper guide to the far right.

3 Load several sheets of photo paper with the

print side facing up and slide the side paper

guide against the edge of the paper stack.

4 Close the feed slot cover.

5 When the following screen appears, press the

OK button.

6 Select the paper size and type, and press the OK

button.

7 Pull out the paper output tray and the paper

output support.

Printing a Disc Label Using the Multi-Purpose Tray

Photo paper can only be loaded in the rear tray.

You can print a label on a printable disc using the multi-purpose tray.

For details, open the Online Manual and click Basic Operation>Printing a Disc Label from a Computer.

Note

• The multi-purpose tray is attached to the underside of the cassette. "1. Box Contents" on page 1

• Refer to the back cover of this manual for how to open the Online Manual.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Impresora de Canon

Canon

Canon iP2600 - PIXMA Color Inkjet Printer Manual de usuario

Canon

Canon imageRUNNER 1643iF Manual de usuario

Canon

Canon MAXIFY GX3070 Manual de instrucciones

Canon

Canon PIXMA iP7200 Series Manual de usuario

Canon

Canon Laser Shot LBP6750dn Manual de usuario

Canon

Canon BJC-85 Manual de usuario

Canon

Canon imagePROGRAF TA-30 Guía de configuración

Canon

Canon Pixma Pro9500 Series Manual de usuario

Canon

Canon PIXMA MG8250 Manual de usuario

Canon

Canon TS700 Series Manual de usuario

Canon

Canon Laser Shot LBP3360 Manual de usuario

Canon

Canon GM2000 Series Manual de usuario

Canon

Canon BJC-50 Manual de usuario

Canon

Canon PIXMA GM4010 Manual de usuario

Canon

Canon MP490 series Manual de usuario

Canon

Canon PIXMA mini260 Manual

Canon

Canon MX920 series Manual de usuario

Canon

Canon Selphy CP800 Manual de usuario

Canon

Canon MG2900 Series Manual de usuario

Canon

Canon imagePROGRAF SD-33 Manual de usuario

Canon

Canon iPF655 - imagePROGRAF Color Inkjet Printer Manual de usuario

Canon

Canon MultiPASS C2500 Manual de usuario

Canon

Canon imagePROGRAF iPF765 Manual de usuario

Canon

Canon imageRUNNER ADVANCE C5560i III Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

IRA3D

IRA3D POETRY4 Manual de usuario

Ricoh

Ricoh Aficio AP400 Manual de usuario

BIXOLON

BIXOLON SRP-352plusV Manual de usuario

Epson

Epson Stylus Photo PX700W Instrucciones de montaje

Ricoh

Ricoh SP204SF Manual de usuario

Star Micronics

Star Micronics futurePRNT TSP100 Manual de usuario

Epson

Epson TM-TM88V-i Manual de uso y cuidado
