Contents > Overview of the Printer

Overview of the Printer

This section shows the component names of the printer and describes their functions.

Main Components

Front View

Rear View

Inside View

Page top

Стр. 3 из 342 стр.Overview of the Printer

Advanced Guide Troubleshooting

Contents > Overview of the Printer > Main Components

Main Components

Front View

(1) Paper Guide

Pinch and slide it to align with the left side of the paper stack.

(2) Paper Support

Open to load paper in the Rear Tray.

(3) Rear Tray

Load various sizes or types of paper which you can use on the printer.

Two or more sheets of the same size and type of paper can be loaded at the same time, and fed

automatically one sheet at a time.

See Loading Paper.

(4) Front Cover

Open it when replacing the FINE Cartridges or removing jammed paper inside the printer.

(5) Paper Thickness Lever

Switches the clearance between the Print Head and the loaded paper to match the media type.

Note

Position of the Paper Thickness Lever

Set to the right when printing on envelopes or T-shirt transfers.

Set to the left when printing on paper other than envelopes or T-shirt transfers.

For details on the media types and the position of the Paper Thickness Lever, see Media

Types You can Use.

(6) Paper Output Slot

Printouts are output.

(7) Power Button

Turns the power on or off.

Important

Disconnecting the Power Plug

When disconnecting the power plug after turning off the power, be sure to confirm that

the Power lamp is not lit. If the power plug is disconnected from the wall outlet while the

Power lamp is lit or flashing, the printer may become unable to print since the Print Head is

not protected.

(8) RESUME/CANCEL Button

Press to cancel a print job in progress. You can also press this button after resolving a printer error to

Стр. 4 из 342 стр.Main Components

dismiss an error message and resume printing.

(9) Alarm Lamp

Lights or flashes orange when an error, such as paper-out or ink-out, occurs.

(10) Power Lamp

Lights green after flashing when the power is turned on.

Note

Power and Alarm lamps

You can check the status of the printer by the Power and Alarm lamps.

- Power lamp Off: The power is off.

- Power lamp lit green: The printer is ready to print.

- Power lamp flashing green: The printer is getting ready to print, or printing is in progress.

- Alarm lamp flashing orange: An error has occurred and the printer is not ready to print. For

details, refer to the "Troubleshooting"in the on-screen manual:

dvanced Guide.

- Power lamp flashes green once and Alarm lamp flashes orange once alternately: An error

that requires contacting your Canon service representative may have occurred. For details,

refer to the "Troubleshooting" in the on-screen manual:

dvanced Guide.

Rear View

(11) Power Cord Connector

Plug in the supplied power cord.

(12) USB Port

Plug in the USB cable to connect with a computer.

Caution

Do not touch the metal casing.

Inside View

(13) FINE Cartridge Holder

Install the FINE Cartridges.

Стр. 5 из 342 стр.Main Components

The Black FINE Cartridge should be installed into the left slot (B) and the Color FINE Cartridge should be

installed into the right slot (C).

(14) FINE Cartridges (Ink Cartridges)

replaceable cartridge that is integrated with Print Head and ink tank.

Note

For details on installing the FINE Cartridges, refer to the printed manual: Getting Started.

Important

The area (A) indicated in the figure below may be splattered with ink. It does not affect the

performance of the printer.

Do not touch the area (A). The printer may not print out properly if you touch it.

Page top

Стр. 6 из 342 стр.Main Components

Advanced Guide Troubleshooting

Contents > Printing

Printing

This section describes how to print documents or photos.

You can easily print photos taken with your digital camera by using Easy-PhotoPrint EX supplied with

your printer.

Printing Photos (Easy-PhotoPrint EX)

Using Various Functions of Easy-PhotoPrint EX

Printing Documents (Windows)

Printing Documents (Macintosh)

For Mac OS X v.10.5.x

For Mac OS X v.10.4.x or Mac OS X v.10.3.9

Page top

Стр. 7 из 342 стр.Printing

Advanced Guide Troubleshooting

Contents > Printing > Printing Photos (Easy-PhotoPrint EX)

Printing Photos (Easy-PhotoPrint EX)

Print image data saved on your computer by using Easy-PhotoPrint EX supplied with your printer.

This section describes the procedure, using print setting for borderless photo print on 4" x 6" / 10 x 15 cm

photo paper as a sample.

For details on Easy-PhotoPrint EX, refer to the on-screen manual:

dvanced Guide.

Note

The screens used in this section are for printing with Windows. The operations are also the same

for printing with Macintosh.

Install Easy-PhotoPrint EX from the Setup CD-ROM when it has not been installed or has been

uninstalled. To install Easy-PhotoPrint EX, select Easy-PhotoPrint EX in Custom Install.

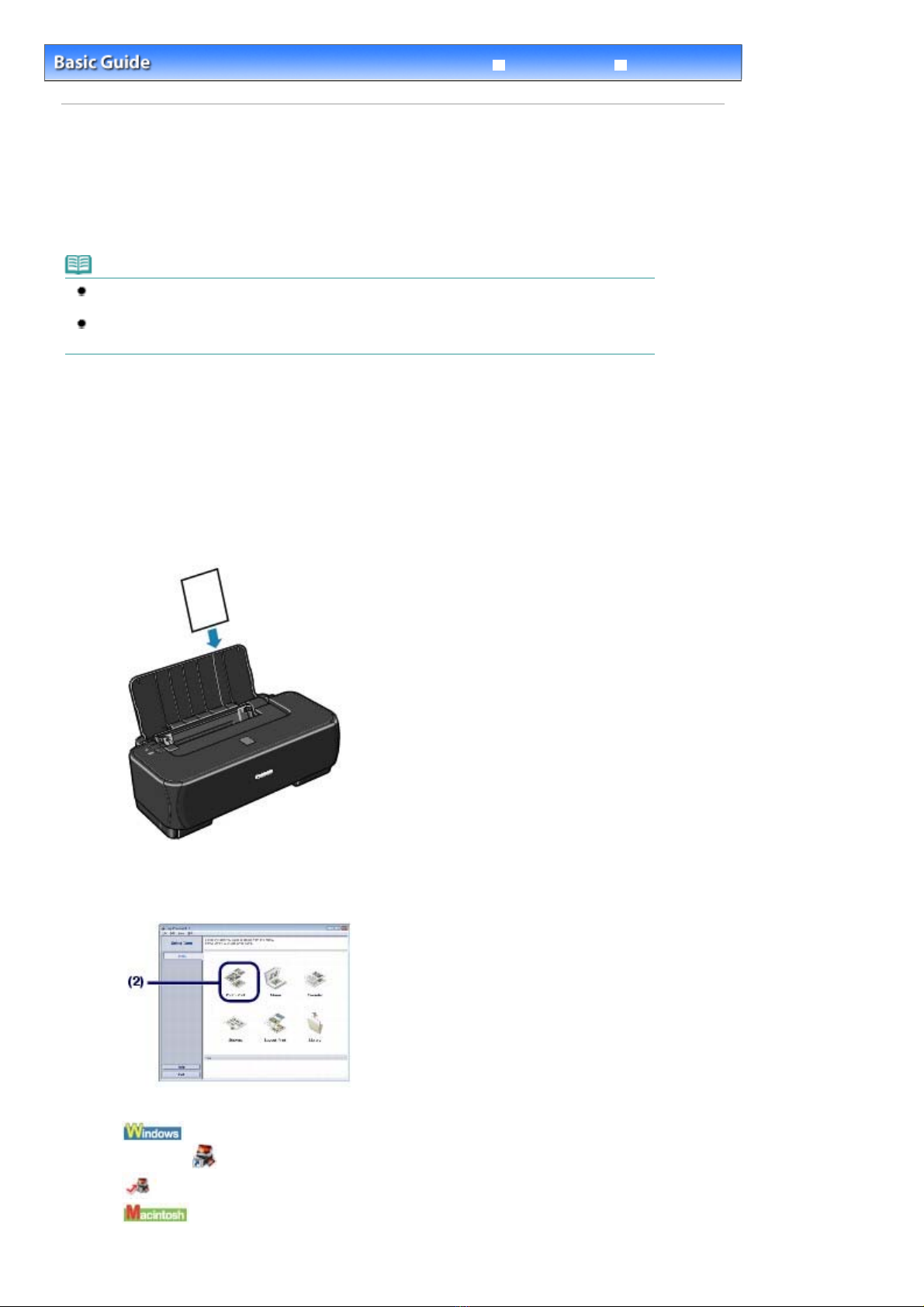

1. Prepare for printing.

(1) Make sure that the printer is turned on.

See Front View.

(2) Load paper.

See Loading Paper.

Here we load 4" x 6" / 10 x 15 cm photo paper.

2. Start Easy-PhotoPrint EX, and select Photo Print.

(1) Start Easy-PhotoPrint EX.

Double-click (Easy-PhotoPrint EX) on the desktop.

Click Here: Easy-PhotoPrint EX

Select the Go menu, Applications, Canon Utilities, Easy-PhotoPrint EX, then double-click Easy-

PhotoPrint EX.

Стр. 8 из 342 стр.Printing Photos (Easy-PhotoPrint EX)

Note

To start Easy-PhotoPrint EX from Solution Menu, double-click (Solution Menu) on the

desktop and click (Print photos or albums, etc.).

See To Start Solution Menu.

To start Easy-PhotoPrint EX from the Start menu, select All Programs (Programs in

Windows 2000), Canon Utilities, Easy-PhotoPrint EX, then Easy-PhotoPrint EX.

To start Easy-PhotoPrint EX from Solution Menu, click (Solution Menu) in the Dock and

click (Print photos or albums, etc.).

See To Start Solution Menu.

(2) Click Photo Print.

Note

You can select Album, Calender, Stickers, etc., besides Photo Print.

See Using Various Functions of Easy-PhotoPrint EX .

3. Select a photo to print.

(1) Select the folder in which images are saved.

(2) Click the image to print.

The number of copies appears as "1", and the image you selected appears in the selected image area (A).

You can select two or more images at the same time.

Note

To print two or more copies, click (Up arrow) to change the number of copies.

To cancel the selection, click the image to cancel in the selected image area and click

(Delete Imported Image) . You can also use (Down arrow) to change the number of

copies to zero.

You can also correct or enhance the selected image.

See Using Various Functions of Easy-PhotoPrint EX .

(3) Select Select Paper.

4. Select the loaded paper.

Стр. 9 из 342 стр.Printing Photos (Easy-PhotoPrint EX)

(1) Make sure that your printer's name is selected in Printer.

(2) Select the loaded paper in Paper Size and Media Type.

Here we select 4"x6" 10x15cm in Paper Size and the type of loaded photo paper in Media Type.

Note

If you select the wrong media type, the printer may not print with the proper print quality.

(3) Click Layout/Print.

5. Select a layout and start printing.

(1) Select the layout of the photo.

Here we select Borderless [full].

The preview appears in the selected layout for confirmation of the required print result.

Note

You can change the direction of a photo or crop a part of photo (trimming) to print.

For details on the operation, refer to the on-screen manual:

dvanced Guide.

(2) Click Print.

Note

To cancel a print job in progress, press the RESUME/CANCEL button on the printer or click

Cancel Printing on the printer status monitor. To display the printer status monitor, click

Canon XXX (where "XXX" is your printer's name) on the taskbar.

Click the printer icon in the Dock to display the list of print jobs in progress.

To cancel a print job in progress, select the desired job in the Name list and click Delete.

Page top
