Printer Relocation

Printer Driver Installation

Preparing to Transfer the Printer ......................2

Reinstalling the Printer .....................................8

Installing the Printer Driver (Windows) ...........12

Installing the Printer Driver (Mac OS X) .........14

Convenient Printer Driver Features................16

Troubleshooting................................................2

If Roll Paper Jams ..........................................18

If a Sheet Jams...............................................21

If Paper is Soiled ............................................23

If Printing is Faint............................................25

If Vertical Lines are Warped or Colors are

Misaligned ..................................................26

If Banding Occurs...........................................28

If Line Length Does Not Match.......................30

Error Messages ..............................................32

Safety Precautions........................................2

Types of Manuals .............................................5

Documentation Conventions ............................6

Parts .................................................................8

Attaching the Roll Holder to Rolls...................12

Loading Rolls in the Printer ............................14

Removing the Roll from the Printer ................18

Loading Sheets in the Printer .........................22

Removing Sheets ...........................................24

Consumables..................................................25

Replacing Ink Tanks .......................................26

Replacing the Maintenance Cartridge ............32

Replacing the Printhead .................................37

Menu Map.......................................................42

It is not possible to prepare the printer for transfer if the Display Screen requests Maintenance Cartridge

replacement or checking of the remaining capacity. Replace the Maintenance Cartridge before transfer

preparations. (→, Replacing the Maintenance Cartridge)

•

Be sure to contact your Canon dealer before transferring the printer to a new location. Ink may leak and damage

the printer if you do not prepare the printer correctly and it is tipped or stood on end in transit.

•

Ink must be drained before Level 2 or Level 3 printer transfer, as described in the following table. Prepare a

Maintenance Cartridge in advance.

•

Depending on the state of the printer, part replacement may be necessary when preparing to transfer the printer

(that is, when you execute the printer menu item to prepare for transfer).

•

Always follow the instructions of the service representative when transferring the printer under Level 3 conditions.•

To protect the internal parts in transit, always follow the steps below before transferring the printer to a new

location. Refer to the Setup Guide for details on packing the printer and installing it after transfer.

Level Permitted Angle of Inclination

Required

Maintenance

Cartridges(*1)

Shipping Method

(Example)

Amount of Ink

to Dispose of

1 By truck Lengthwise: 0°–30° 0 0 or 1

3 Tipping the printer or

holding it upright for

elevators or stairs

Lengthwise: 0°–90°

2 By plane All directions: 0°–30°

Approx. 700 ml

Approx. 200 ml

2 or 3

1 or 2

Rotation: 0°–10°

Rotation: 0°–30°

*1: The quantity of maintenance cartridges required depends on the capacity of the Maintenance Cartridge in use.

Preparing to Transfer the Printer

Prepare to transfer the printer as follows.

Preparing to Transfer the Printer

If consumables must be replaced, the message Consumables must be replaced. Call for service. is

shown on the Display Screen and preparation is not possible. If this message is displayed, press the

OK button and contact your Canon dealer for assistance.

•

Remove the Wheeled Output Stacker from the printer

(iPF825 only).

Remove the paper.

Press ▲or ▼to select Maintenance, and then press the

►button.

Press ▲or ▼to select Move Printer, and then press the

►button.

Press ▲or ▼to select the level of transfer, and then

press the OK button.

Press the Menu button to display MAIN MENU.

After the message Always contact service before

preparing to move the printer. is shown on the Display

Screen, press the OK button.

If you have selected Level 1, after processing in

preparation to move the printer is ﬁnished, the

message Finished preparing to move printer. Turn

off printer. is shown on the Display Screen. In this

case, follow the instructions in "Pack the printer."

•

When you are ﬁnished preparing to transfer the printer

after selecting Level 2 or Level 3 conditions, the

Display Screen requests you to open the Ink Tank

Cover. In this case, follow the instructions in "Remove

the ink tanks."

•

Remove paper

Access the menu for moving the printer

Rolls: (→, Removing the Roll from the Printer)

Sheets: (→, Removing Sheets)

Preparing to Transfer the Printer

Store the Ink Tank you removed in the box with the ink

holes (a) facing up. Otherwise, ink may leak and cause

stains.

•

Open the Ink Tank Cover.

Lift the stopper (a) of the Ink Tank Lock Lever (a). Lift the

Ink Tank Lock Lever until it stops, and then push it down

to the front.

Remove the Ink Tank.

Repeat steps 2 and 3 to remove all ink tanks.

Remove the ink tanks

MBK

Preparing to Transfer the Printer

Do not remove the Maintenance Cartridge during this process.•

Push down the release lever (a) as shown as you gently

return all ink tank lock levers to the original position.

Close the Ink Tank Cover.

At this point, ink is drawn out from inside the tubes.

When the process is ﬁnished, Finished preparing to

move printer. Turn off printer. is displayed.

MBK

Preparing to Transfer the Printer

Turn off the printer before you unplug it. It may damage the printer if you unplug it before it is off and

transfer it in that state. If you accidentally unplug the printer, plug it in again, reinstall the Ink Tank, wait

until the printer comes online, and follow this procedure again.

•

Here, the Belt Stopper is the one that was removed and stored after initial installation. Neglecting to

attach the Belt Stopper may damage the printer.

•

Open the Top Cover, grasp the Belt, insert it between the

Belt Stopper, and afﬁx the Belt Stopper with a hex screw

at the position indicated.

Disconnect the power cord and interface cable. Also

disconnect the power cord of the Roll Unit and Media

Take-up Unit, if your model is equipped with these units.

Close the Top Cover.

Press the Power button and turn off the printer.

Pack the printer

Preparing to Transfer the Printer

Tape down printer covers to secure them, in the reverse

order of tape removal during installation.

Remove the Stand by reversing the installation procedure,

when it was attached to the printer.

Disassemble and repackage the Stand by following the

installation procedure in reverse.

Repack the Roll Holder, Holder Stopper, and printer in

shipping materials, and then package them in a shipping

box.

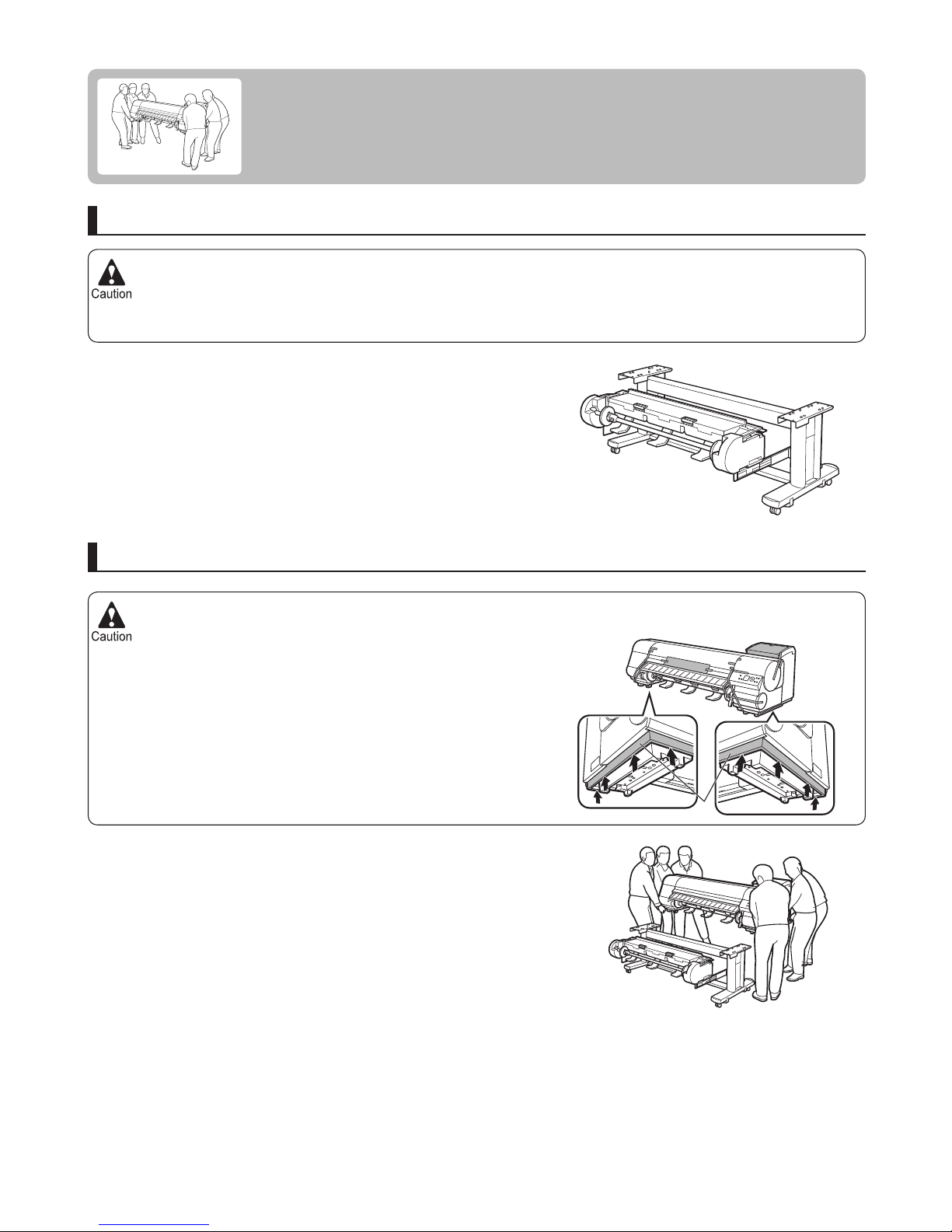

The Stand must be assembled by at least two people on a ﬂat surface. Attempting assembly by yourself poses a

risk of injury or bending the Stand.

•

The iPF815 or iPF825 alone weighs approximately 112 kg. Moving the printer requires at least six people, holding it

on both sides. Be careful to avoid back strain and other injuries.

•

When moving the printer, ﬁrmly grasp the Carrying Handles (a)

under each side. The printer may be unsteady if you hold it at other

positions, which poses a risk of injury from dropping the printer.

•

When assembling the Stand, lock the casters. In addition, always unlock the casters before moving the assembled

Stand. Attempting to move the stand when the casters are locked poses a risk of injury or damage to the location

site.

•

Reinstalling the Printer

The basic workﬂow for reinstalling the printer is as follows.

For detailed instructions, see the Setup Guide.

Install the printer

Referring to the Printer Stand Setup Guide, assemble the Stand.

Mount the printer on the assembled Stand and tighten the screws

ﬁrmly.

For the iPF825, mount the Roll Unit on the Stand.

Assemble the stand

Reinstalling the Printer

Attach the media take-up unit (iPF815: optional)

Referring to the Setup Guide included with the Media Take-up

Unit, attach the Media Take-up Unit.

Install the output stacker

Remove the packaging material

Remove tape and packaging material attached to the printer. Also

open the Top Cover and remove stoppers and spacers inside the

printer.

When installing the Stationary Output Stacker, refer to the

Printer Stand Setup Guide.

When installing the Wheeled Output Stacker, refer to the

Wheeled Output Stacker Setup Guide.

Reinstalling the Printer

Connect the power cord

Connect the power cord to the Power Supply Connector on the

back of the printer.

Plug the power cord into the outlet.

Install the ink tanks

Open the Ink Tank Cover and install the ink tanks.

Turn the printer on

Press the power button to turn the printer on.

When the message Has printer been reinstalled? (Do not load

ink tanks yet.) is displayed, select Yes and press the OK button. OK
