imagePRESS C700 &

imagePRESS Server G100

January 2017 Update Guide

2 imagePRESS C700 & imagePRESS Server G100 January 2017 Update Guide

Performing the January 2017 FedEx Office C700 Update

Please review this entire document before you go onsite.

Important Notes:

Prior to installing the New Clone Image and Paper Catalog upgrade the imagePRESS

C700 Firmware to V36.01.02 by performing the following steps.

1) Download the Firmware using the link below

http://downloads.canon.com/bisg2016/syssoft/USB_iPRC800_iPRC700_iPRC60_v36.01.02.zip

2) Extract the contents of the file and copy the entire iPRC800 Directory to the root of

a USB Drive

3) Follow the instructions in the Service Manual to upgrade the Firmware of the

imagePRESS C700

The paper catalog in this document (FXO_C700_PaperCatalog_11_14_2016.zip)

can only be used with this clone image. This clone image uses new color output

profiles and the paper catalog has been modified for the use of these output

profiles. Do not use this catalog with any other clone images.

Before you begin, please make sure you have the following items:

USB Drive (Minimum 8 GB) – not provided

Fiery USB Setup tool for System Software

(FieryUSBSetupTool_v2.0.21.zip) – Available from support.cusa.canon.com -

the FXO Portal

Fiery Clone Tool v2.3 for FXO

(FCTe-2.3.iso.zip) – Available from support.cusa.canon.com - the FXO Portal



FXO G100 Clone Image

(Canon_Bath_L30B_201701041753.zip) - provided

Updated paper catalog

(FXO_C700_PaperCatalog_11_14_2016.z

ip) - provided

Print a Fiery Configuration page as you will need to reconfigure some of

the settings when have completed the new clone image

**It is strongly recommended that you prepare the USB drive before going on site

to do the installation.

**After the installation has been completed please make sure that the Fiery has

the correct Subnet mask and DNS addresses as indicated on page 14 of this

document. These addresses may be new and not appear on the original

configuration page.

January 17, 2017

**After all processes outlined in this document have been completed; a COM Test

must be performed to ensure the engine is communicating with the UGW.

4 imagePRESS C700 & imagePRESS Server G100 January 2017 Update Guide

Unregister all Custom Media from Auto Adjust Gradation and

Auto Correct Color Tone.

Note: This process is done at the C700

1. Assign Plain Media to the Drawers

Select Settings/Registration Login as System Manager

Select Preferences Paper Settings Paper Settings

Register 11 x 17 Plain 2 to any Drawer from the standard Media list

Register 8 ½ x 11 Plain 2 to any other Drawer

January 17, 2017

2. Unregister LZX Laser 24 - 11 x 17 for Auto Gradation

Settings/Registration Adjustment/Maintenance Adjust Image Quality 

Auto Adjust Gradation

Register Paper to Adjust (LZX Lazer 24 – 11 x 17)

Next

Standard

Select Drawer with 11 x 17 Plain 2

Next

Start Printing

Select Drawer with 11 x 17 Plain 2

Next

Start Printing

OK

6 imagePRESS C700 & imagePRESS Server G100 January 2017 Update Guide

Note: Please confirm that there are no other custom Media registered for Auto

Gradation

3. Unregister Custom Media for Auto Correct Color Tone

Settings/Registration Adjustment/Maintenance Adjust Image Quality 

Auto Correct Color Tone Settings

Register Correction Pattern

Yes

Choose the Pattern with the Custom Media

Next

Standard Type from the drop down menu

Plain 2

Next

Choose a drawer with plain 2

Ok

Start Printing

Place the page on the scanner

Start Scanning

Close

Note: Please confirm that there are no other custom Media’s are registered for Auto

Correct Color Tone

4. Launch Command Workstation by clicking the icon in the taskbar or by

clicking the Windows Start button and selecting Fiery Command Workstation.

January 17, 2017

5. Log into the C700 by select Administrator from the User drop down list and enter

Fiery.1 as the password (the password is case-sensitive and includes a period in

between the word Fiery and the number 1). Click Login.

6. Un-assign all media in all of the drawers by clicking on each Drawer and selecting

Remove Association as indicated in the image.

8 imagePRESS C700 & imagePRESS Server G100 January 2017 Update Guide

7. Once all of the Drawers are Unassigned then proceed to Delete all Jobs in Held,

Printed and Archived Queues.

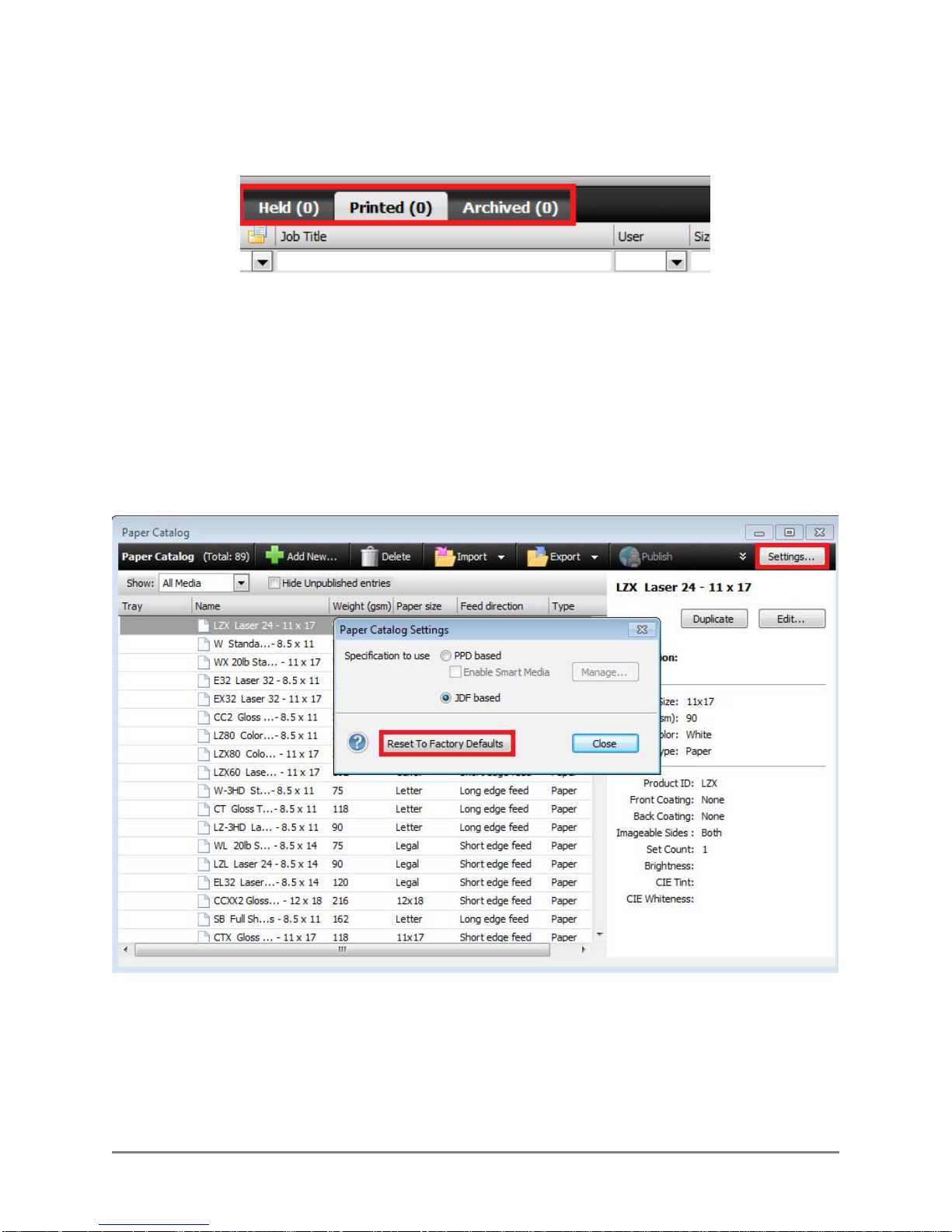

8. Delete the Paper Catalog

Select the Settings button to the right

Select Reset To Factory Defaults

Then Close

Please ensure if all of the custom media has been deleted from the Engine and the

Fiery. If not then see step 9 and 10 below:

January 17, 2017

9. Optional step if Step 8 did not remove all of the Custom media

From Job Center open the Paper Catalog

Highlight all of the Media

Delete

Note: In the event there is a locked media it cannot be deleted. This media will be

deleted in step 9.

10 imagePRESS C700 & imagePRESS Server G100 January 2017 Update Guide

10.Remove all Custom media from the C700 from the RUI

Login to the RUI of the print engine

Browse to Settings/Registration Preferences Paper Settings Paper Type

Management Settings

Select Type to display Custom then select Display

Delete any Custom Media located here.

Preparing the USB drive for the FedEx Office Clone image

Preparing the USB drive

Install the Fiery USB Setup tool onto your laptop computer.

1. Locate the file FieryUSBSetupTool_v2.0.21.zip

2. Extract the file to a folder on your Windows computer

3. Double click on the file FieryUSBSetupTool_v2.0.21.exe

4. Select Run

5. Click Next
