Canon ImagePASS-G1 Manual de operación y mantenimiento

imagePASS-G1/

Network Multi-PDL Printer Unit-G1

INSTALLATION PROCEDURE

PSプリントサーバユニット・G1

設置手順書

ENGLISH

日本語

DEUTSCH

ITALIAN

PUB No. F-IM-6545-000 PRINTED IN USA OR JAPAN

1.1 Checking components

1.1.1 Checking the Contents

Follow the instructions herein when installing the image PASS-G1/Color Network Printer Unit-G1 to its host ma-

chine.

[1] Unit 1pc.

[2] Open I/F PCB 1pc.

[3] Communications cable 1pc.

[4] Power cable 1pc.

[5] Cross Ethernet cable 1pc.

[6] Cable clamp 4pc.

[7] Stepped screw 2pc.

[8] RS tightening screw(w/washer) 4pc.

[5] [6] [7] [8]

[1] [2] [3] [4]

1.2 Installation procedure

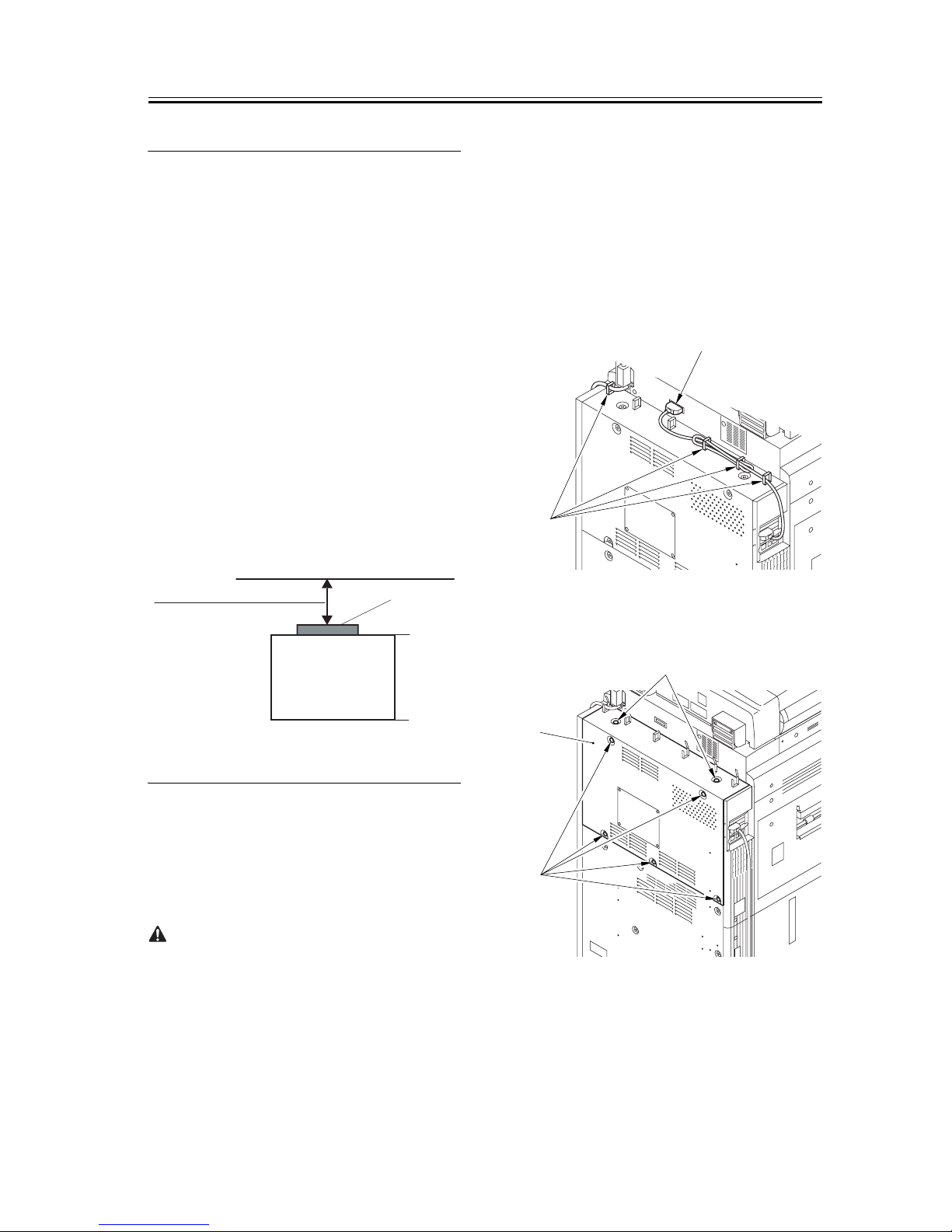

1.2.1 Before Starting the Work

Make sure the memory is added to 1024 MB in the iR

C6870/C5870.

RAM capacity can be checked with the procedure,

Service Mode > COPIER > Display > ACC-STS >

RAM.

Note: E604 will be displayed if the memory is not

added.

- Make the following selections in the host machine's

service mode, and set '3':COPIER>OPTION>

INT-FACE>IMG-CONT. (This way, the appropriate IP

address will automatically be setup for communica-

tion between the machine and its host machine.)

- Be sure that the back of the machine is at least 20cm

away from any wall as shown.

1.2.2 Installing to the

Host Machine

1. Turning Off the Main Power

Turning Off the Main Power

When turning off the main power, be sure to go

through the following in strict sequence to protect the

machine's hard disk:

[1] Hold down on the power switch on the control

panel for 3 sec or more.

[2] Operate on the touch panel according to the shut-

down sequence indicated so that the main power

switch may be turned off.

[3] Turn off the main power switch.

[4] Disconnect the power cable (for the power outlet).

2. Setup procedure

1) Removed the cable from clamping.

- Clamp[1] 4 places.

- Connector[2] 1 piece.

2) Remove the rear cover(upper) [1].

-7 screws [2].

3) Remove the controller box cover [1].

-16 screws [2].

20 cm min.

(rear)

Machine

(front)

Host machine

[1]

[2]

[1]

4) Prepare for the mounting of the open I/F PCB.

- Unscrew two screws [1] and remove the Main Con-

troller PCB (sub 0-A) [2].(Keep the removed screws

[1] for later.)

Ask the user to store the Main Controller PCB(sub 0-

A) in an appropriate location.

5) Using the screws you removed previously, mount

the included Open I/F PCB [2].

6) Mount the control box cover.

Before you removed at step 3.

7) Mount the rear cover(upper).

Before you removed at step 2.

8) Mount the cable.

Before you removed at step 1.

9) Fit the 2 included stepped screws [1] to the mount-

ing rear cover(lower), and hook the unit [2].

10) Using 4 RS tightening screws (w/washer) [1], at-

tach the Unit[2] to the rear cover(lower).

[1]

[2] [2]

[2]

[1]

[2]

[1]

[2]

[1]

[2]

11) Mount a cable clamp [1] 4 pieces packaged with

the product.

12) Using the communications cable [1], connect the

open I/F PCB and the unit.

13) Using the cross Ethernet cable [1], connect the

unit and the host machine.

Note:

When the cross Ethernet cable [1] is connected, the

position of connected port is noted.

For the unit, there are two connected connectors for

Ethernet.

The connector for the cross Ethernet cable [1] is at a

position far from the USB port.

The connector that becomes it next to the USB port is

for the network.

Do not connect connector the cross Ethernet cable [1]

that becomes it next to the USB port.

[1]

[2]

[1]

14) Using the cable clamp [1], bundle the cross Ether-

net cable and the communications cable together.

15) Connect one end of the power cable (for the power

outlet) [1] to the unit and the other end to the power

outlet.

16) Connect the host machine's power cable (for the

power outlet).

17) Turn on the host machine.

[Press the [Shutdown]key, After the machine has

been shutdown] is displayed on the LCD. Push the

button of [Shutdown].

[Turn off the main power switch(on the main unit's

right side)] is displayed on the LCD. Turn off the

power supply. Turn on the power supply in ten sec-

onds.

Host Machine

interface connector

Print Engine interface connector

DIAG 2-digit LEDs

10BaseT/100BaseTX/1000BaseT

connector for twisted pair Ethernet

USB-A ports (2)

(Print)

(Status/Control)

[1]

1.2.3 Setting Up the Machine

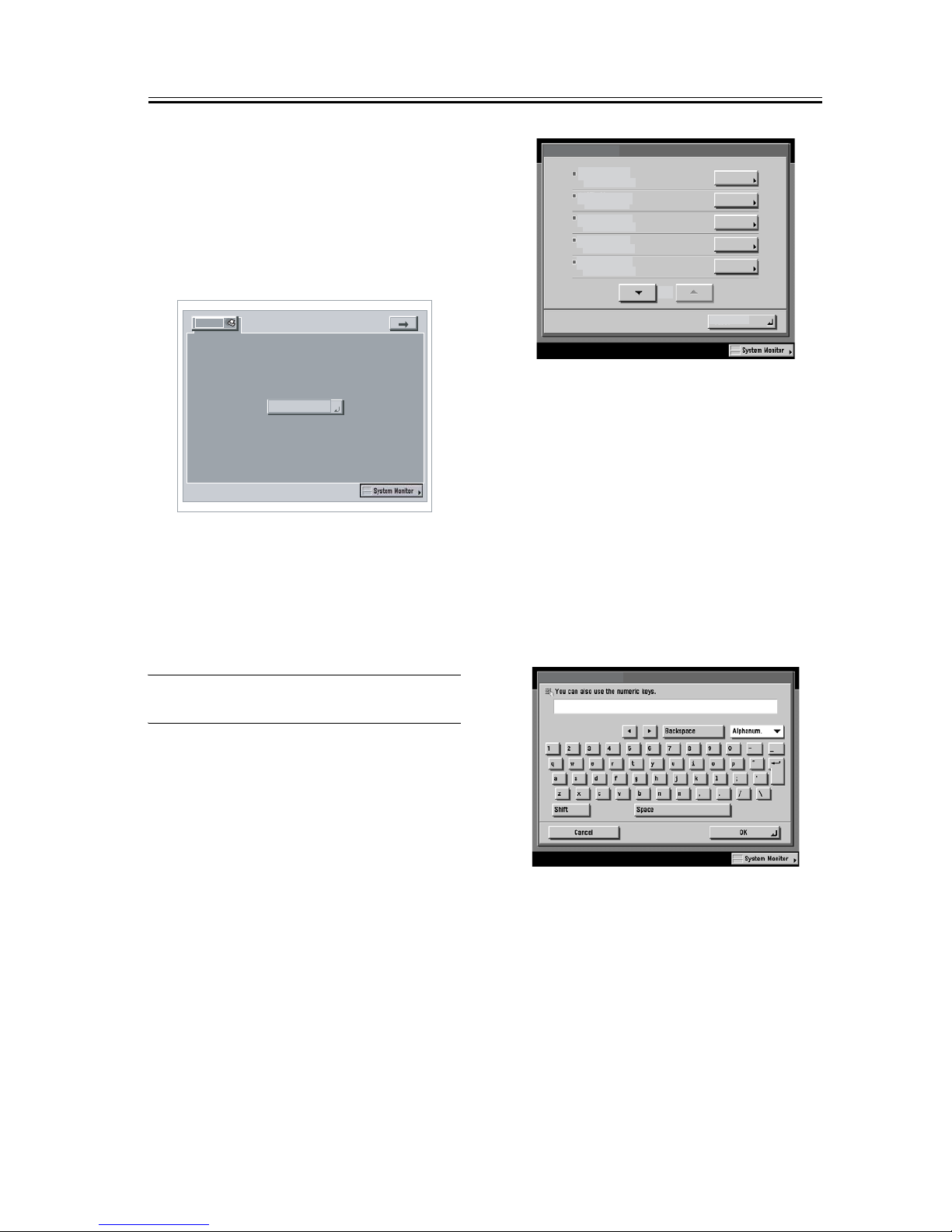

1) Press (=>) displayed at upper right on the LCD of

the connecting device.

2) At the Control Panel, press [Printer]tab.

3) Press [Printer Status/Settings].

Input of password

When setting it up, the password input screen is dis-

played.

When the following password is input, you can enter

a setup screen.

Fiery.1

In response, the machine will automatically show the

Settings menu. Be sure to at least select the following

and make the appropriate settings in the indicated or-

der: [Server Setup], [Network Setup], and [Printer

Setup]. For more information, see Configuration and

Setup on the User Documentation.

For instance, once you have made the various settings

under [Server Setup], you will be shown a screen ask-

ing you if you want to store the settings. Select [yes]

so that the system will be stored in memory. Unless

you have made appropriate settings in the correct or-

der and saved them, you will not be able to go on to

the next item.

Making Server Settings:

Make the appropriate settings including the name

of the server.

Making Network Settings:

Make the appropriate settings including port,

protocol, and service.

Printer

Printer Status/

Settings

Done

erver S e tup

etwork Setup

rinter S e tup

S Setup

Run Setup

CL Setup

En te r S e rver Na me

PS_Server

Making Printer Settings:

Make the appropriate settings including print

queue.

4) Select [close] on the Settings menu. In response, the

system will restart automatically.

1.2.4 Checking the Operation

After Making the Settings

Print out a test page and a settings page as follows to

make sure that all settings have correctly been made

on the machine and its host machine and that all con-

nections are normal:

1) Press (=>) displayed at upper right on the LCD of

the connecting device.

2) At the Control Panel, press [Print].

3) Press [Printer Status/Settings].

4) Make the following selections on the LCD:func-

tion>print page>test page/configuration.

Done

etwork Setup

ort Setup

rotocol Setup

ervice Setup

ublis h Direct Connection

Cancel

Printer

Printer Status/

Settings

PS Server-XX

Idle

FunctionsDone

Info

x.x

16936MB

Functions

Shut Down

Sus

end

Scan Job

Print Pages

Resume Printing

Print Pages

PS Font List

Job Lo

Configuration

PS Test Page

Color Charts

1.3 Checking the Operation

1.3.1 Network connection

Ask the network administrator for network connec-

tion, settings and test print.

For more information, see Configuration and Setup on

the User Documentation.
