Starter Guide

Please read this guide before operating this equipment.

After you finish reading this guide, store it in a safe place for future reference.

Set Up the Machine

Do You Have Everything?

Before Setting Up the Machine Manuals for the Machine

●Remove all shipping tape on the machine.

●Always hold the bottom when you lift the

machine.

●The machine illustration may differ slightly

from your machine.

●Starter Guide (This Document): Machine set-up and software installation

●Basic Guide: Basic features

●Advanced Guide: Advanced fax features, status monitor, and reports and lists

●Software Guide (L120 only): Driver set-up and printing from a computer

●Machine ●Cartridge ●Power Cord ●Telephone Cable

●Destination Labels ●Starter Guide

●Basic Guide

●Manual CD (L100 only)

●User Software CD (L120 only)

●Handset (optional) ●Plugs with Pins (optional)●Handset Cradle (optional)

1 2

Install Cartridge

Remove the cartridge from the bag.

Keep the bag for future use. CAUTION

Do not open the drum protective shutter (A).

Gently rock the cartridge several times to

distribute toner inside.

Pull out the seal completely.

NOTE

Do not pull out the seal at an angle.

Open the document feeder tray.

Open the cartridge cover by the notch (A).

Hold the cartridge by its handle (A).

Insert the cartridge in the machine as far as it will

go. The arrow (A) on the cartridge should be

facing away from you and pointing down.

Push down the cartridge to make sure it is

properly set in the machine.

Close the cartridge cover.

NOTE

Be careful not to get your fingers caught.

Open the paper delivery tray (A) and the

extension (B).

Load Paper

Lift the paper stack cover and pull it out

completely.

NOTE

Make sure the back end of the cover does not catch

the front paper guide.

Pinch and slide the side paper guides to the size

of paper.

Pull out the paper guide rail as far as it will go.

Fan the paper stack and even the edges.

Insert the paper stack print side up.

NOTE

Make sure the stack height does not exceed the limit

mark (A).

Push back the paper guide rail to the front edge

of paper. NOTE

– If loading paper shorter than A4, pinch and slide the

front paper guide (A) to match the paper size.

– If loading paper other than A4, make sure to set the

correct paper size in the machine. (See Chapter 3,

“Print Media,” in the Basic Guide.)

Insert the paper stack cover.

NOTE

Make sure the back end of the cover does not catch

and lower the scanning platform (A).

Pull out the document delivery tray (A) and the

extension (B).

Do not open or close the document delivery tray

extension without extending the document

delivery tray first.

A5 B5

EXEC LTR

LGL

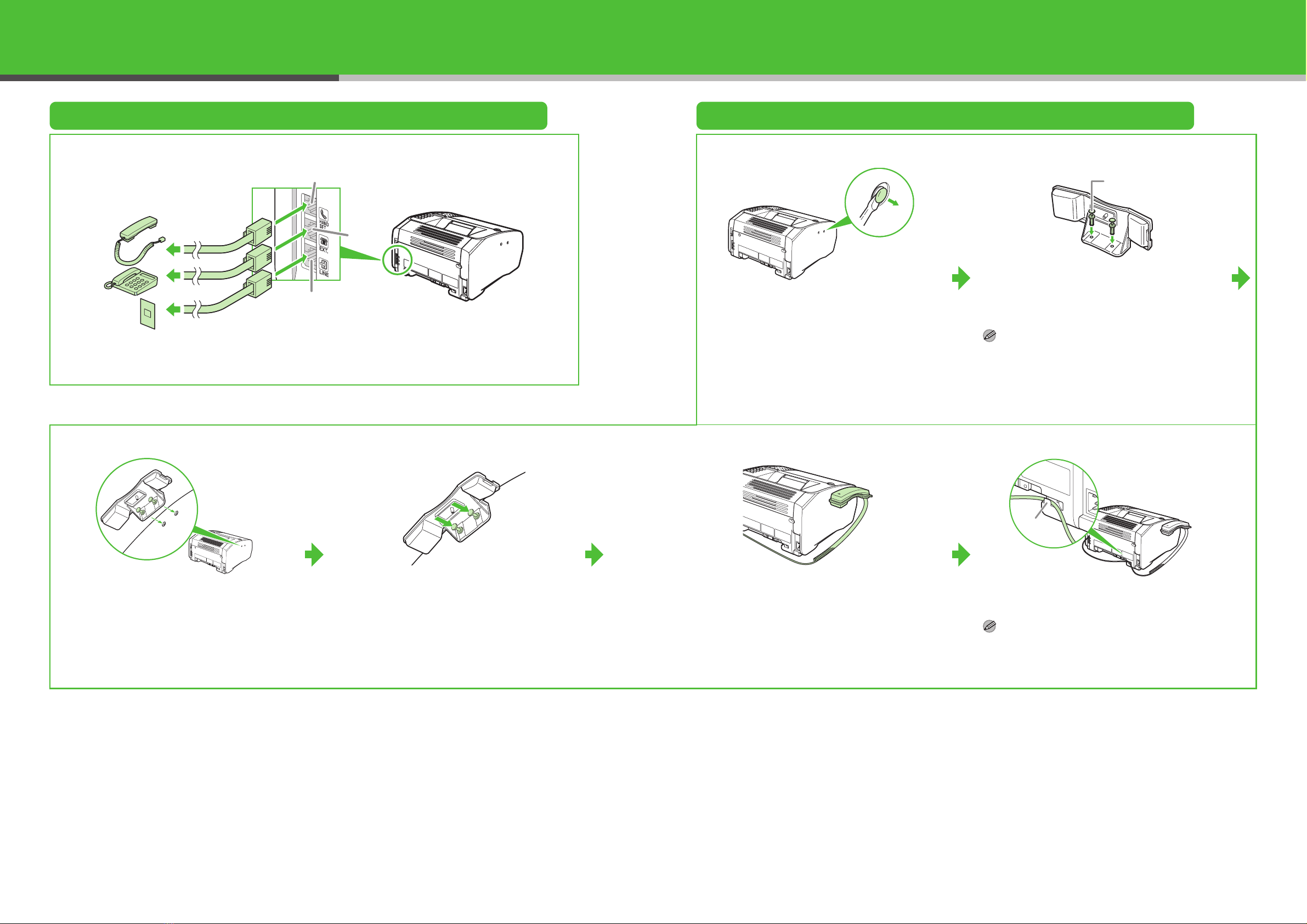

Connect Telephone Cables and Install Handset

Connect Telephone Cables Install Handset (Optional)

Connect the supplied telephone cable to the line jack (A) and the wall jack.

Connect any external device to the external device jack (B) if required.

If you have the optional handset, connect the cable to the handset jack (C).

Use a screwdriver to remove the covers on the

left side of the machine.

Insert the plugs with pins (A) into the holes on

the handset cradle.

NOTE

Do not insert the pins all the way into the plugs at this

point.

Insert the plugs (with the cradle) into the holes

on the machine.

Carefully push the pins into the plugs as far as

they will go.

Place the handset on the cradle.

Hook the handset cable on the retainer (A) at the

back of the machine to retain the slack.

NOTE

If using the handset or an external telephone, make

sure to set the fax receive mode to <FAX/TEL> or

<MANUAL>. For how to set the receive mode, see

“Set the Receive Mode,” on p. 16.

Connect Power Cord

Connect the power cord into the rear socket and

the wall outlet to turn on the machine.

The machine enters the standby mode.

What if...

●<CARTRIDGE COVER OPEN> is displayed:

Make sure that the cartridge cover is closed properly.

(See “Install Cartridge,” on p. 3.)

●<NO TONER CARTRIDGE> is displayed:

Make sure that the cartridge is installed properly.

(See “Install Cartridge,” on p. 3.)

●<PAPER SIZE ERROR> is displayed:

Make sure that A4-size paper is loaded in the machine. (See “Load Paper,” on p. 5.)

If you loaded paper other than A4, make sure to set the correct paper size in the machine.

(See Chapter 3, “Print Media,” in the Basic Guide.)

WARNING

This product emits low level magnetic flux. If you use a

cardiac pacemaker and feel abnormalities, please move

away from this product and consult your doctor.

NOTE

– During electrical storms, disconnect the power cord

from the power outlet. (Please note that received

documents stored in the machine’s memory may be

lost when you unplug the machine.)

– Whenever you unplug the machine, wait at least five

seconds before you plug it in again.

– Do not plug the machine into an uninterruptible power

supply (UPS).

16:00 STD 100%

-SET DOC.- FAX ONLY

Set the Machine for Sending Faxes

The sender information you register in the machine appears in the header of each page received by

your recipient.

Entering Information

Use the following buttons to enter information in the machine.

You can enter the following characters in each input mode:

●Use the numeric buttons to enter characters.

Press the numeric button repeatedly until the

required character appears.

●Press [#] to enter symbols.

●Press [ ] to switch between input modes:

– [A]: Letter mode

– [1]: Number mode

●Press [Left/Right] to move the cursor.

●Press [Clear] to delete the character at the

cursor position. Hold [Clear] to delete the

entire entry.

●Press [OK] to confirm the entry.

06.MAY.2005 P.001/003

THE SLEREXE COMPANY LIMITED

SAPORS LANE•BOOLE•DORSET•BH25 8ER

TELEPHONE BOOLE (945 13) 51617 – FAX 1234567

Our Ref. 350/PJC/EAC

#0001YOUR NAME012345678917:30

Date Time User

Fax Number

User Name Session

Number

Page Number

213

546

879

[OK]

Numeric Buttons

[Left/Right]

[Clear]

[] [#]

●Entering Information

– Numeric buttons: Enters letters and numbers.

– [ ]: Switches letter and number input modes.

– [Left/Right]: Move the cursor position.

– [Clear]: Deletes the character at the cursor position, or the

entire entry if held for more than one second.

1Press [Menu]. 2Use [Up/Down] to select

<USER SETTING?>,

then press [OK].

3Use [Up/Down] to select

<1 DATE&TIME?>, then

press [OK].

4Use the numeric buttons

to enter hour (in 24-hour

format), minute, year,

month, and day, and

press [OK] twice.

5Use [Up/Down] to select

<2 USER FAX NO.?>,

then press [OK].

6Use the numeric buttons

to enter your fax number

(up to 20 digits), then

press [OK] twice.

7Use [Up/Down] to select

<3 USER NAME?>, then

press [OK].

8Use the numeric buttons

to enter the user name

(up to 32 characters),

then press [OK].

9Press [Stop/Reset] to

return to standby mode.

Set the Telephone Line Type

1Press [Menu]. 2Use [Up/Down] to select

<COMM.SETTING?>,

then press [OK].

3Use [Up/Down] to select

<1 TEL LINE TYPE?>,

then press [OK].

4Use [Left/Right] to select

the telephone line type,

then press [OK].

<TONE>: Tone dialing

<PULSE>: Pulse dialing

– The selected item is preceded

by an asterisk ( ).

5Press [Stop/Reset] to

return to standby mode.

213

546

879

[Menu]

[Up/Down]

[Left/Right]

[OK]

[Stop/Reset]

Numeric

Buttons

[]

[Clear]

17:01 ’05 05 06

SET HOUR (YES=OK)

Ex.

=0123_

YES=OK

Ex.

NAME=CAN

OK= [A]

Ex.

Set the Machine for Receiving Faxes

Select the Receive Mode that Suits Your Needs

Follow the chart below to determine the right receive mode for your needs.

NOTE

The <NET SW.> mode is available for certain countries only and requires subscription to a network switch service. Contact

your telephone company for availability.

Do you intend to connect a third-party

external telephone to the machine?

No <FAX ONLY>

Answers all calls as faxes and

disconnects voice calls.

Do you intend to use an answering

machine with the machine?

Yes <AnsMode>

Receives faxes automatically

and records voice messages.

Do you intend to receive faxes

automatically?

No <MANUAL>

Does not answer any call. You

have to manually receive faxes.

Switches between fax and

voice calls automatically.

Yes

Do you subscribe to a network switch

service?

Yes

Distinguishes between fax and

voice calls.

Set the Receive Mode

1Press [Menu]. 2Use [Up/Down] to select

<RX SETTING?>, then

press [OK].

3Use [Up/Down] to select

<5 RX MODE?>, then

press [OK].

4Use [Left/Right] to select

the receive mode, then

press [OK].

The selected item is preceded by

an asterisk ( ).

NOTE

For <AnsMode>, make sure

an answering machine is

connected to the machine.

5Press [Stop/Reset] to

return to standby mode.

NOTE

For details on setting the

receive mode, see Chapter 1,

“Advanced Fax Features,” in the

Advanced Guide.

Install the Printer Driver (L120 only)

Installation Procedure

Before Installation: System Requirements

Microsoft Windows 98/98SE

CPU: Intel 80486DX/66 MHz or faster

Memory: 24 MB or more

Available Hard Disk Space: 355 MB or more

Microsoft Windows Me

CPU: Intel Pentium/150 MHz or faster

Memory: 32 MB or more

Available Hard Disk Space: 295 MB or more

Microsoft Windows 2000 Professional

CPU: Intel Pentium/133 MHz or faster

Memory: 64 MB or more

Available Hard Disk Space: 655 MB or more

Microsoft Windows XP (32-bit version)

CPU: Intel Pentium/Celeron series 300 MHz or

faster

Memory: 128 MB or more

Available Hard Disk Space: 1.5 GB or more

123

• Do not connect the USB cable before installing the

software. If you connect the USB cable before

installing the software and the Found New Hardware

Wizard screen appears, click [Cancel].

• For Windows 2000/XP, log on as Administrator to

install the software.

• Make sure the machine is turned on before

connecting the USB cable.

• On the screen shown at each step, click on the

circled button to proceed. If the L120 CD-ROM Setup

screen is not displayed, on the

Windows desktop, double-click

[My Computer]. Open the CD-

ROM icon, then double-click

[Setup (Setup.exe)].

456 789

Connect the machine and your

computer with a USB cable

(A).

11 12 13 14

You have now completed

machine set-up.

Otros manuales para FAX-L120

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Impresora de Canon

Canon

Canon iPF8400SE imagePROGRAF Manual de usuario

Canon

Canon BJC 6000 - Color Inkjet Printer Manual de usuario

Canon

Canon DS700 - Selphy Compact Photo Printer Manual de usuario

Canon

Canon iP90 - PIXMA Color Inkjet Printer Manual de usuario

Canon

Canon TS3500 Series Manual de usuario

Canon

Canon BJC-600 Manual de usuario

Canon

Canon imagePROGRAF W8400D Manual de usuario

Canon

Canon iPF8400S Series Manual de usuario

Canon

Canon iP90 - PIXMA Color Inkjet Printer Manual de instrucciones

Canon

Canon LBP-3200 Manual de usuario

Canon

Canon imagePROGRAF iPF780 Manual de usuario

Canon

Canon IR Advance 400I Guía del administrador

Canon

Canon BJC-55 Series Manual de usuario

Canon

Canon imageClass LBP8780x Manual de usuario

Canon

Canon S200SP Manual de usuario

Canon

Canon PIXMA G7040 Guía de configuración

Canon

Canon LBP674Cx Manual de usuario

Canon

Canon MG3600 series Manual de usuario

Canon

Canon PIXMA MP568 Manual de usuario

Canon

Canon DS700 - Selphy Compact Photo Printer Manual de usuario

Canon

Canon CLC 2620 Manual de usuario

Canon

Canon imagePROGRAF iPF6400S Series Manual de usuario

Canon

Canon pixma mg3620 Guía de instalación y uso

Canon

Canon iP1800 - PIXMA Color Inkjet Printer Manual

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

IRA3D

IRA3D POETRY4 Manual de usuario

Ricoh

Ricoh Aficio AP400 Manual de usuario

BIXOLON

BIXOLON SRP-352plusV Manual de usuario

Epson

Epson Stylus Photo PX700W Instrucciones de montaje

Ricoh

Ricoh SP204SF Manual de usuario

Star Micronics

Star Micronics futurePRNT TSP100 Manual de usuario

Epson

Epson TM-TM88V-i Manual de uso y cuidado
