Preface

Shipping Materials

Thank you for purchasing a Canon Bubble Jet Printer.

Check that all the following items are in the box. If anything is missing or is damaged, contact your Canon

Authorized Dealer or Sales Representative.



Printer



Setup Software & User’s Guide CD-ROM



Quick Start Guide



Print Head



4 Ink Tanks

* Cables should be purchased separately according to your computer. For details on cable

specifications, refer to page 2.

Introduction

For information about printing when you connect a PictBridge-compliant digital camera, refer to

“

Direct

Printing for PictBridge-compliant Digital Cameras

”.

This Quick Start Guide uses the following symbols to indicate important information. Always observe the

instructions indicated by these symbols.

Instructions that, if ignored, could result in death or serious personal injury caused by incorrect

operation of the equipment. These must be observed for safe operation.

Instructions that, if ignored, could result in personal injury or material damage caused by incorrect

operation of the equipment. These must be observed for safe operation.

Also read the Safety Precautions in the User’s Guide. Observe the warnings and cautions to avoid

personal injury or damage to the printer.

Trademark Notices

• Canon

is a registered trademark of Canon Inc.

•BJ

™

is a trademark of Canon Inc.

• Microsoft

and Windows

are registered trademarks of Microsoft Corporation in the U.S. and other

countries.

• Apple, Mac, Macintosh are trademarks of Apple Computer, Inc., registered in the U.S. and other

countries.

• All other trademarks and registered trademarks appearing in this Quick Start Guide are the property of

their respective owners.

without the express written permission.

Setting Up

1 Preparing the Printer

Place the printer on a flat surface.

Remove the tape from the printer as

shown.

The tape position is subject to change.

2 Connecting the Printer to the Computer

Use either a USB cable or parallel printer cable. You cannot connect the computer to the printer using both

the parallel cable AND the USB cable.

USB cable

• Windows XP, Windows Me,

Windows 2000, Windows 98

• Mac OS 8.6 or later

Recommended: Canon or other computer

manufacturer cable, up to 5 meters in length.

Printer cable (parallel)

• Windows NT 4.0, Windows 95

(Can also be used with Windows XP,

Windows Me, Windows 2000 and

Windows 98.)

Should conform with Centronics IEEE 1284 and

support bi-directionalcommunication.

Recommended: Canon or other computer

manufacturer cable, up to 2 meters in length.

• The USB cable delivers relatively faster printing speeds and is recommended for use with

Windows XP, Windows Me, Windows 2000 and Windows 98.

• If your computer has an earth connection, make sure that this is attached.

• If you do not intend to use the printer for a long period of time, unplug the power cord from the

power outlet after turning off the printer.

Follow the steps below to install the printer driver

correctly.

Ensure the printer and the computer are

switched off.

Connect the cable.

Figure A shows the USB cable connection and Figure B

shows the printer cable (parallel) connection.

Figure A

Figure B

If the Add New Hardware Wizard or Found New Hardware Wizard

screen appears when carrying out the following operations, click

Cancel and turn off the computer.

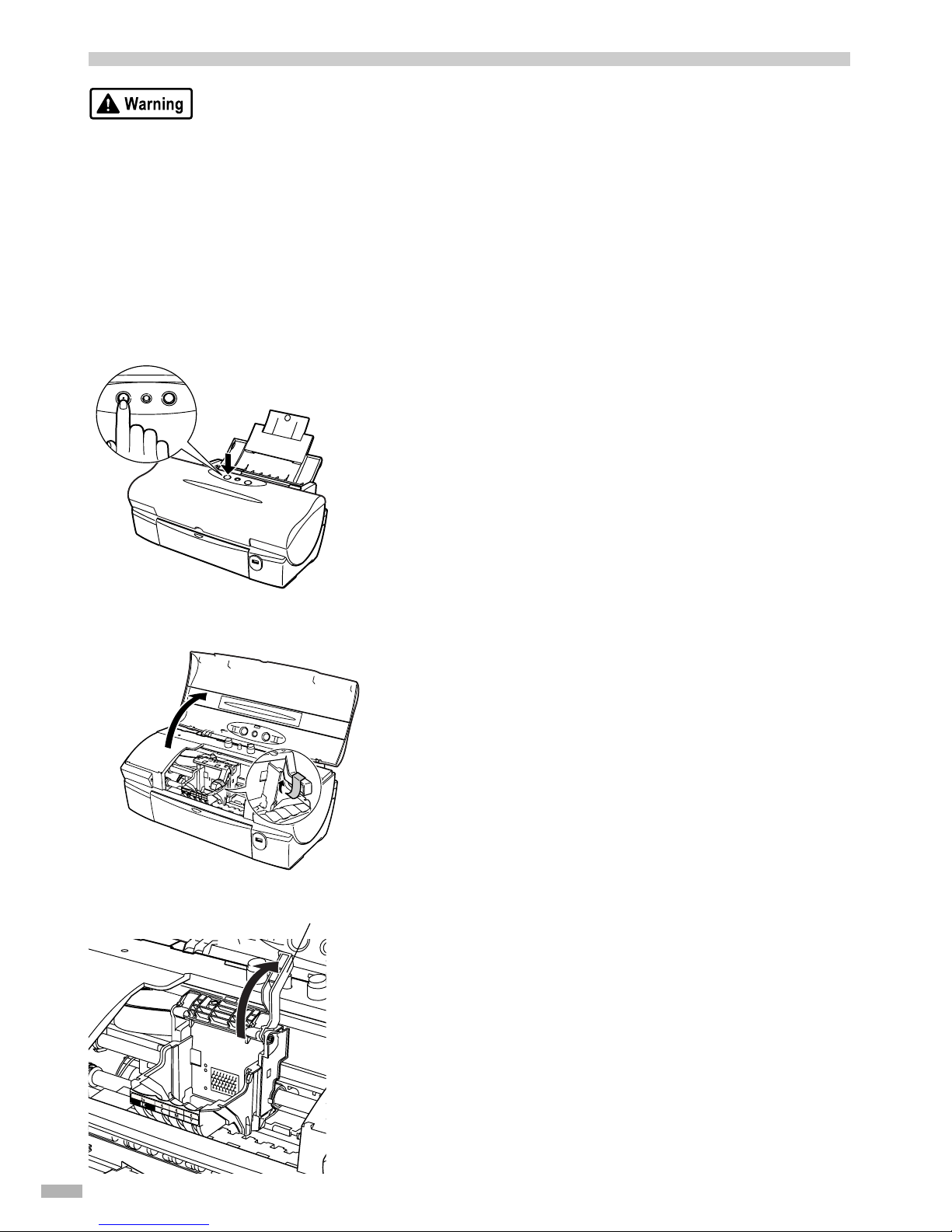

3 Installing the Print Head

• Never attempt to plug the power cord into the power outlet or unplug the power cord when your

hands are wet.

• Never damage, modify, stretch, or excessively bend or twist the power cord. Do not place heavy

objects on the power cord.

• Never use any power supply other than the standard power supply available in the country of

purchase. Using the incorrect voltage and frequency could cause a fire or electric shock.

• Always push the plug all the way into the power outlet.





Installing the Print Head

Plug the printer in.

Turn on the printer. Do NOT turn on the

computer yet.

The POWER lamp flashes and the printer begins to

operate. Wait until the POWER lamp remains fully lit.

Open the front cover.

Remove the tape.

Raise the lock lever.

Do not touch internal parts other than the lock lever.

lock lever

Remove the protective cap from the

print head.

Place the print head in the holder.

Lock the print head into place by

lowering the lever.

Do not touch the lock lever once the print head has been

installed.





Installing the Ink Tanks

• For safety reasons, store ink tanks out of the reach of small children.

• Do not drop or shake ink tanks.

Take out the yellow ink tank.

Pull the orange tape in the direction of

the arrow and remove the clear film.

• Do not touch the print

head nozzles or

electrical contacts.

• Do not attempt to

reattach the protective

cap once it has been

removed.

Be careful not to touch any parts inside the printer.

electrical

contacts

print head nozzles

print head

print head holder

Hold the ink tank as shown in the

diagram and remove the protective cap.

Insert the yellow ink tank into the right-

hand slot. Press the top until it clicks

into place.

Use the same procedure to install the

other ink tanks in their appropriate slots.

Check the labels to make sure that each tank is in the

correct position.

Close the front cover.

Wait until the POWER lamp remains fully lit (about 60

seconds).

• Do not squeeze the sides of

the ink tanks as this may

cause the ink to leak out and

stain your clothes and hands.

• Do not touch the ink port.

• Do not attempt to reattach the

protective cap once it has

been removed.

• Only install the ink tanks in the positions specified

by the labels.

• If ink tanks are not installed in the right position,

colors will not be printed correctly. Immediately

reinstall the tank in the correct position and carry

out print head cleaning. For details, refer to the

User’s Guide.

Protective cap

ink port

Black

(BCI-3eBK)

Cyan

(BCI-6C)

Magenta

(BCI-6M)

Yellow

(BCI-6Y)

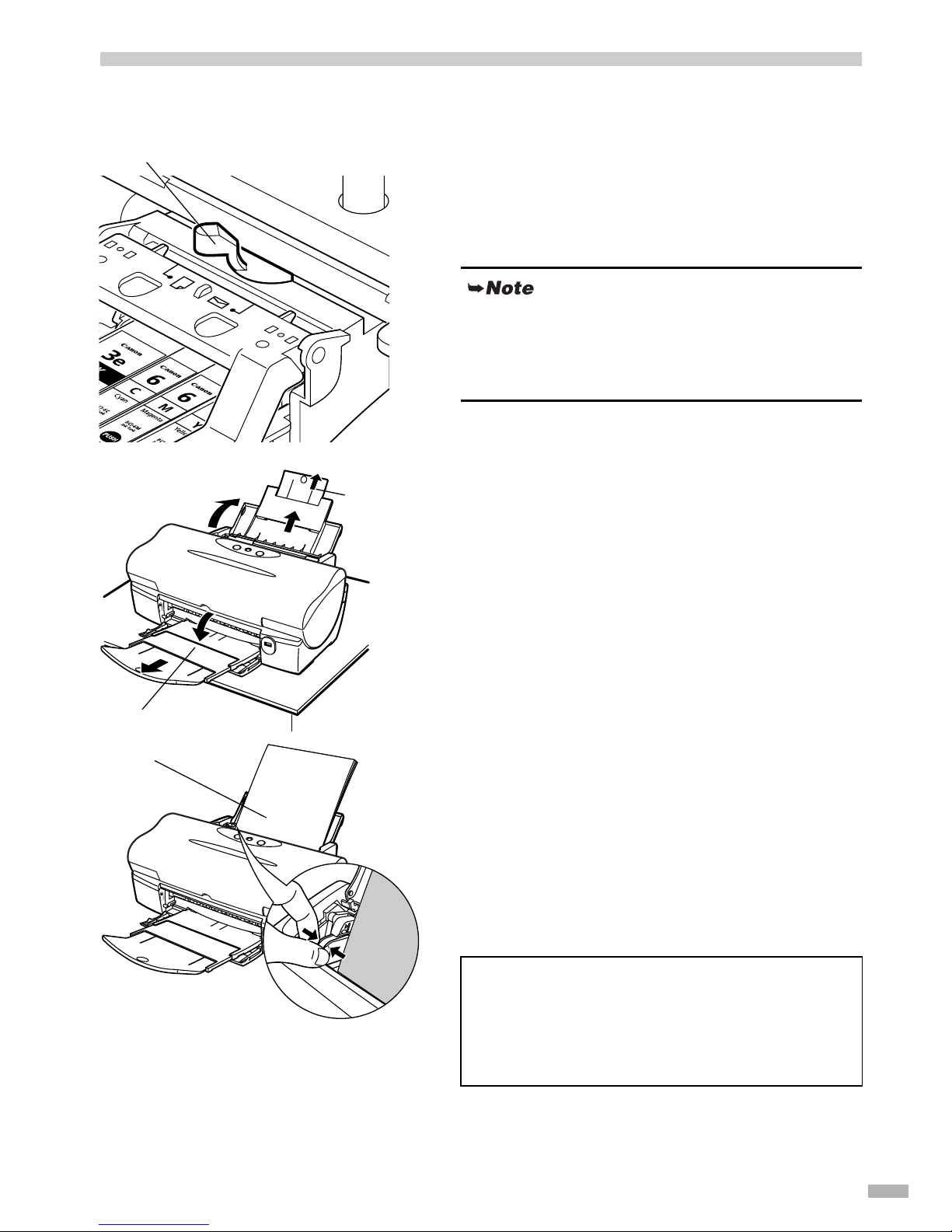

4 Loading Paper





Loading A4 (Letter) Size Plain Paper

Open the front cover.

Move the paper thickness lever at the

top of the print head holder to the left

position. Close the front cover.

Pull out the paper rest and the output

tray completely as shown.

Load the paper, aligning it with the right

side of the sheet feeder.

You can load up to 150 sheets of plain paper (64 gsm).

Do not exceed this limit.

Press the paper guide and slide it

against the left side of the stack of

paper.

Set the paper thickness lever to the left when using

plain paper, to the right when using thick paper.

Refer to the User’s Guide for information on loading

envelopes and other media.

You now need to install the printer driver:

Windows: Go to page 8

Mac OS 8.6-9.x: Go to page 10

Mac OS X: Go to page 11

paper thickness lever

output tray

paper res

print side

5 Installing the Printer Driver





Installing the Printer Driver – Windows

Ensure the printer and computer are

switched off.

Turn on the computer and start

Windows. If any applications

automatically run, quit them.

Disable any virus detection programs.

Do NOT turn the printer on at this stage.

• Do not disconnect the cable or remove the CD-ROM during the installation. The driver cannot be

correctly installed.

• The screens below refer to Windows XP installation. Screen may differ depending on the operating

system you are using.

• When installing the printer driver in Windows XP, Windows 2000 or Windows NT 4.0, log on to

the system as a member of the Administrators group.

• The Setup Software & User’s Guide CD-ROM contains the application software. If you want to

install the application software, click Install on step 7. For details on the applications, refer to the

section “Applications Included in the CD-ROM Package” on page 24.

If the following screen appears automatically, click

Cancel

and follow steps 1 to 8 to install the printer

driver.

Special Notes for Windows 98 or Windows Me USB Users

Click

Cancel

to quit the screen and turn off the printer. Next, remove and replace the USB cable

connected to your computer.

OFF

Otros manuales para i560 Series

Tabla de contenidos

Otros manuales de Impresora de Canon

Canon

Canon C3226i Manual de usuario

Canon

Canon PIXMA G6070 Guía de configuración

Canon

Canon PIXMA G7000 Series Manual de usuario

Canon

Canon PIXMA MX432 Manual de instrucciones

Canon

Canon pixma ix6800 series Guía de configuración

Canon

Canon TR7500 Series Guía de configuración

Canon

Canon LBP-2000 Manual de usuario

Canon

Canon BJC-8500 Manual de usuario

Canon

Canon pixma ix6800 series Instrucciones de funcionamiento originales

Canon

Canon PIXMA TS6160 Manual de usuario

Canon

Canon i-SENSYS LBP5300 Series Manual de usuario

Canon

Canon BJ330 - BJ 330 B/W Inkjet Printer Manual de usuario

Canon

Canon BJC-S530D Manual de instrucciones

Canon

Canon MP480 series Manual de usuario

Canon

Canon iPF610 - imagePROGRAF Color Inkjet Printer Manual de usuario

Canon

Canon imageRUNNER 2545i Instrucciones de instalación y funcionamiento

Canon

Canon i860 Series Manual de usuario

Canon

Canon TR7022a Manual de usuario

Canon

Canon PIXMA MP180 Manual de usuario

Canon

Canon 3433B010 Guía del usuario

Canon

Canon iPF650 - imagePROGRAF Color Inkjet Printer Manual de usuario

Canon

Canon iPF610 - imagePROGRAF Color Inkjet Printer Manual de usuario

Canon

Canon imageRUNNER 2745i Manual de usuario

Canon

Canon MB2100 Series Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

IRA3D

IRA3D POETRY4 Manual de usuario

Ricoh

Ricoh Aficio AP400 Manual de usuario

BIXOLON

BIXOLON SRP-352plusV Manual de usuario

Epson

Epson Stylus Photo PX700W Instrucciones de montaje

Ricoh

Ricoh SP204SF Manual de usuario

Star Micronics

Star Micronics futurePRNT TSP100 Manual de usuario

Epson

Epson TM-TM88V-i Manual de uso y cuidado

Canon i560 Series Manual de usuario

Manuales populares de Impresora de otras marcas
