Installation
1How to Check this Installation Procedure..................................3
Pre-checks................................................................................ 4
Unpacking................................................................................. 5
Installation Procedure................................................................7
Connection Check................................................................... 17
1. Installation
2
閲 FT2-0208-030_20160510.pdf 2 2016/05/10 14:39:51
How to Check this Installation Procedure

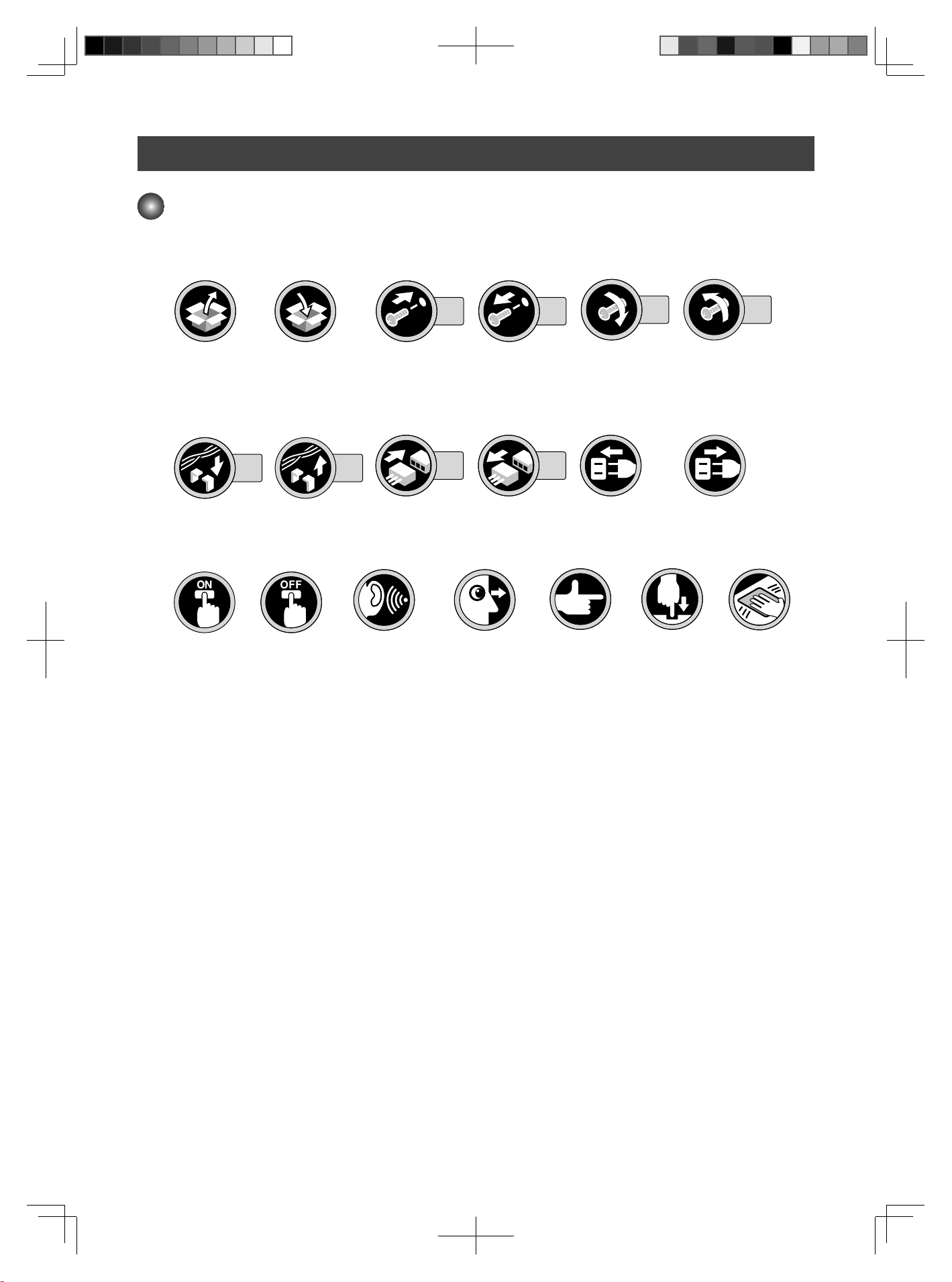

Symbols in the Illustration
The frequently-performed operations are described with symbols in this procedure.
1x 1x 1x
Install
Screw
Packaged Item Remove Tighten Loosen
1x
Connect
Connector
Disconnect
Install
Harness
(Common for Guides
and Clamps)
Remove
1x 1x
Connect
Power Cord
Disconnect
Check visuallyCheck the sound Check
OFF Cleaning
ON Push
Power
Unused Parts
1x 1x
1. Installation
3
閲 FT2-0208-030_20160510.pdf 3 2016/05/10 14:39:51
Pre-checks
Name of This Product
Safety regulations require the product's name to be
registered. In some regions where this product is sold, the
following name may be registered instead.
•F713300
Checking before Installation
• Install this equipment after installing the MF Professional
Puncher Attachment to the host machine
(iR-ADV 8505/8595/8585 series only).
•Illustrations of imagePRESS C10000VP/8000VP series
are used in this procedure, but the contents and
procedure are the same.
• When installing a Professional Puncher, purchase a
Punch Die which is sold separately in advance.
• Prepare two wrenches (10mm and 24mm) to be used for
height adjustment. Or, the wrench included in the
package of the Finisher can be used.
• Before installing this equipment, check the firmware
version of the host machine.If the version is old, upgrade
the version using the service support tool( imagePRESS
C10000VP/8000VP series only).
• Do not connect the customer's Network Cable to the port
where the connection prohibition label is affixed.
Check When Connecting the
Power Plug to an Outlet
1. When connecting the power plug of this equipment
to an outlet, be sure to use an outlet of a system
different from that of the host machine.
2. Be sure to install this equipment near an outlet so
that the power plug can be disconnected right away
in case of emergency, and do not put anything
around the power plug.
Points to Note When Moving
This Equipment
When moving this equipment after having unpacked it, be
careful by placing a plate, etc. on areas with steps to prevent
the casters from hitting those steps. If the casters hit a step,
the casters or the base plate may be deformed.
Checking the Contents
NOTE:
• [4] ：Not used when connecting a LAN
communication model. (the installation procedure is
described in the Installation Procedure for the
downstream equipment.)
• [7] ：Use the appropriate Power Cord according to
the country/region, and bring back the remaining
Power Cords.
[9] Screw
(Binding; M4x10) X 8
[5] Shunt Cable X 1
[8] LAN Cable X 1
[10] Wire Saddle X 2
[6] Power Cord
(For USA model only) X 1
[7] Power Cord (For
Europe, Asia/Oceania
models only) X 3
[4] Interface Cable X 1
[1] Professional
Puncher X 1
[2] Latch Plate X 2
[3] Positioning Pin X 1
1. Installation
4
閲 FT2-0208-030_20160510.pdf 4 2016/05/10 14:39:52
Unpacking
CAUTION:
When installing this equipment, note the following
points.
The weight of this equipment is approx. 103 kg. It is
recommended to lift it with 4 or more people. If the sales
company has established a standard to handle a heavy
load, perform the work in accordance with the
standard.
1. Cut the tapes, and remove the lid of the packaging
box.
2. Remove the box containing the parts that come with
the product.
3. Remove the packaging box.
4. Lifting the side having casters, tuck the plastic bag
to the center, and shift this equipment as shown in
the figure below.
5. Make this equipment stand on its bottom, and
remove the plastic bag.
CAUTION:
Do not lift this equipment too high.
6. Remove the packing tapes.
1. Installation
5
閲 FT2-0208-030_20160510.pdf 5 2016/05/10 14:39:52
7. Open the Front Cover and remove the tapes and
packaging materials.
CAUTION:
• When delivering the pre-installed machine to the
user site by a truck or other means, do not remove
the tape shown below in order to keep the handle
of the waste box unscratched.
• Do not forget to remove the 2 tapes securing the
waste box each at the bottom on the left and at
the bottom on the right.
1. Installation
6
閲 FT2-0208-030_20160510.pdf 6 2016/05/10 14:39:52
Installation Procedure
Check Items When Turning
OFF the Main Power
Check that the main power of the host machine is OFF.
1. Turn OFF the main power switch of the host
machine.
2. Check that the display in the Control Panel and the
lamp of the main power are turned off, then
disconnect the power plug.
Installing the Fixation
Members
■ In the case of host machine or
Buffer Pass Unit
NOTE:
• Install this equipment after installing the MF
Professional Puncher Attachment to the host
machine(iR-ADV 8505/8595/8585 series only).
•Illustrations of imagePRESS C10000VP/8000VP
series are used in this procedure, but the
contents and procedure are the same.
1. Remove the Face Plate of the host machine or Buffer
Pass Unit. (The removed Face Plate will not be used.)
• Excludes imagePRESS C10000VP/8000VP series
2. Install the 2 Latch Plates of the host machine or
Buffer Pass Unit.
• 4 Screws (Binding; M4x10)
4x
3. Install the Positioning Pin.
• 2 Screws (Binding; M4x10)
2x
1. Installation
7
閲 FT2-0208-030_20160510.pdf 7 2016/05/10 14:39:52
■ In the Case of Document Insertion
Unit
1. Install the 2 Latch Plates to the Document Insertion
Unit.
• 4 Screws (Binding; M4 x10)
4x
2. Install the Positioning Pin.
• 2 Screws (Binding; M4 x10)
2x
■ Connection with the Upstream
Equipment
NOTE:
Although the host machine is used in the following
illustrations, the procedure is the same.
1. Open the Front Cover of this equipment.
2. Loosen the screw, and turn the connection lever to
raise the hook.
1x
Loosen
1. Installation
8
閲 FT2-0208-030_20160510.pdf 8 2016/05/10 14:39:52
3. Fit the positioning pin hole of this equipment onto
the Positioning Pin of the host machine.
4. Turn the Connection Lever in the direction of the
arrow to hook the hook on the screw.
NOTE:
Do not tighten the loosened screw in this step because the
height will be checked later.
Adjusting the Height
■ Checking the Height with Respect to
the Host Machine
1. Adjusting the Height Check that the height
difference between the top of this equipment and the
left side top of the host machine is within +/-2.0 mm.
NOTE:
Illustrations of imagePRESS C10000VP/8000VP series
are used in this procedure, but the contents and procedure
are the same.
• iR-ADV 8505/8595/8585 series
• imagePRESS C10000VP/8000VP series
+/-2.0mm
• iR-ADV C7580/7570/7565 Series
• imagePRESS C850/750/650 Series
+/-2.0 mm
1. Installation
9
閲 FT2-0208-030_20160510.pdf 9 2016/05/10 14:39:52
2. If the difference in height is within +/-2.0 mm, fully
tighten the screw of the Connection Lever, and then
close the Front Cover.
3. If the height difference is more than +/-2.0 mm,
adjust the height as described in "Adjusting the
Casters".
■ Checking the Height with Respect to
the Document Insertion Unit
1. Check that the height difference between the top of
this Equipment and the left side top of the Document
Insertion Unit is within +/-2.0mm.
Document Insertion
Unit -Upper Surface
Professional Puncher
-Upper Surface
2. If the difference in height is within +/-2.0 mm, fully
ighten the screw of the Connection Lever, and the
close the Front Cover.
3. If the height difference is more than +/-2.0
mm ,adjust the height as described in "Adjusting the
Casters".
■ Adjusting the Casters
NOTE:
• Depending on the condition of the floor surface of the
installation site, it may be necessary to adjust the
height of this equipment. If the height is not correctly
adjusted, errors such as jams may occur. If the height
needs to be adjusted, perform the following
procedure to adjust the height.
• When adjusting the height, prepare two wrenches (10
mm and 24 mm) in advance. Or, the wrench of the
Finisher can also be used.
● Adjusting the Front Casters
1. Open the Front Cover of this equipment, and loosen
the lock nut with a 24-mm wrench.
1x
2. Using a 10-mm wrench, turn the end of the caster
stud to adjust the difference in height to be within
+/-2.0 mm.
NOTE:
•Turn clockwise to raise the height.
•Turn counterclockwise to lower the height.
3. Check the height, and if the difference in height is
within +/-2.0mm, adjust the rear casters.
1. Installation
10
閲 FT2-0208-030_20160510.pdf 10 2016/05/10 14:39:52
