GUIDE

IP Streaming With XF705

XF705 IP STREAMING GUIDE

(VLC VERSION)

For more info:

pro.usa.canon.com

These materials explain the procedure for receiving XF705’s IP streaming with the “VLC” application installed on a PC.

(Please refer to www.videolan.org for system requirements)

１． IP streaming (“VLC” application) set up

1-1 Things to prepare

1-2 Connection diagram

２． Set the PC’s IP address in advance

３． XF705 camcorder settings

3-1 Select Ethernet

3-2 Make preparations to receive streaming

3-2-1 Set the recording format and system frequency

3-2-2 Select bit rate and resolution

3-2-3 Select audio output channel

3-2-4 Input streaming destination IP address and port number

3-2-5 Select the transport protocol

４． Streaming transmission

4-1 Select XF705’s network connection settings

4-2 Perform VLC settings on the PC

１．IP streaming (“VLC” application) set up

1-1 Things to prepare

①XF705

②PC (with VLC application installed from www.videolan.org)

*Operation checks have been performed with Ver. 3.0.12.

③Ethernet cable ×1

1-2 Connection diagram

Assumed connection format: XF705 ⇔Ethernet cable ⇔PC

Connect (1) XF705 and (2) PC with an Ethernet cable.

2. Set the PC’s IP address in advance

PC settings:

①Start the PC connected to the network, and go to [Control Panel] ⇒[Network and Internet] ⇒[Network and

Sharing Center]. On the network settings screen, open Properties from the [Local area connection] state. Select

Internet protocol 4 (TCP/IPv4), and open Properties. Do not select [Obtain an IP address automatically]. Instead,

select [Use the following IP address] and set the settings shown below.

(1) XF705

③Ethernet cable

・We recommend using a category 5e (CAT5c) or higher Ethernet cable that supports gigabit.

*When using a category 5 (CAT5) cable, IP streaming was not possible in some cases.

(2) PC

・For the IP address, input [192.168.0.xxx]

For example: [192.168.000.002]

・For the subnet mask, input [255.255.255.0]

*Generally, the subnet mask values will be entered

automatically once you input the IP address.

3．Next, perform the XF705’s network settings

3-1 Select Ethernet

①From MENU, go to [Network settings menu] ⇒[Connection settings] ⇒Press SET.

②Select connection destination ⇒Press SET.

・Four connection settings can be registered. Push the joystick up and down to change screens.

③Select [Edit] ⇒Press SET.

④Select [Ethernet] ⇒Press SET.

⑤For the method to obtain IP address, select [Manual] ⇒Press SET.

⑥Input [192.168.0.xxx] as the IP address. Example: [192.168.0.3]

*These values are the address the XF705 itself has. Set the values at the end so that they are not the same as those

of the device you are connecting to (the values set on the PC).

⑦Input [255.255.255.0] for subnet mask ⇒Press SET.

⑧[Default Gateway], [Primary DNS Server], and [Secondary DNS Server] are not necessary for the assumed

connection format of these materials, so you can ⇒Press SET.

⑨Confirm the network settings ⇒Press OK.

3-2 Make preparations for streaming transmission

3-2-1 Set the recording format and system frequency

①From MENU, select [Recording/Media Setup] ⇒and for [Recording Format], select [XF-HEVC / XF-AVC].

②From MENU, select [Recording/Media Setup] ⇒and for [System Frequency], select [59.94 Hz / 50.00 Hz].

→With the two settings above, the details of the [Streaming Output Signal] list displayed will change.

3-2-2 Select bit rate and resolution.

①Select [Network Settings] ⇒[IP Streaming Settings] ⇒[Streaming Output Signal].

②Select any option ⇒Press SET.

(For recording format, we recommend XF-AVC rather than XF-HEVC for IP streaming with VLC)

3-2-3 Select the audio output channel

①Select [Network Settings] ⇒[IP Streaming Settings] ⇒[Audio Output Channel].

②Select any option ⇒Press SET.

(*For the audio to record, from MENU [ Audio settings] ⇒[Select CH1/CH2 Input] and [Select CH3/CH4

Input], you can select any of [INPUT terminal / MIC terminal / Internal mic.])

3-2-4 Input streaming destination IP address and port number

①Select [Network Settings] ⇒[IP Streaming Settings] ⇒[Dest. IP address].

②Input the IP address of the device you are connecting to (PC) ⇒Press SET.

Example: [192.168.0.2] (The PC’s IP address set in advance.)

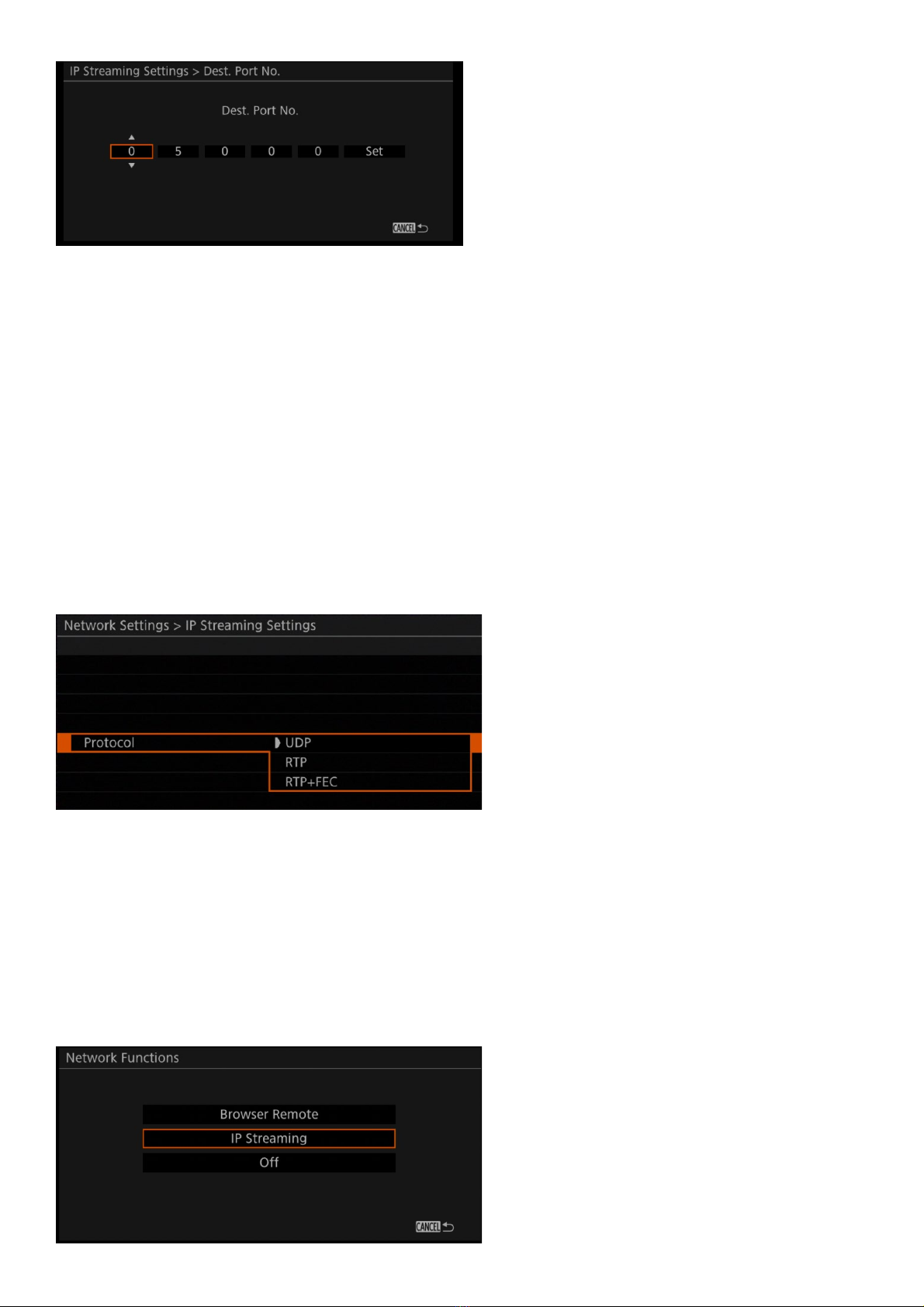

③If necessary, input the [Dest. Port No.] in the same way ⇒Press SET.

●Normally, the port number initially set is used (it is normally 5000).

3-2-5 Select the transport protocol

①Select [Network Settings] ⇒[IP Streaming Settings] ⇒[Protocol].

②Select any one of UDP or RTP or RTP+FEC ⇒Press SET

(The [UDP] protocol will be selected for this example).

UDP: Prioritizes high-speed transmission; reliability/order not guaranteed. Ignores lost/delayed packets.

RTP: Standard format for video/audio distribution on Internet. Ignores lost/delayed packets.

RTP+FEC: Through transmission via RTP and forward error correction (FEC*) control, lost/delayed packets

are recovered on the receiver side.

*A decoder or PC software that supports FEC control is required.

4．Streaming transmission

XF705:

4-1 Select XF705’s network connection settings.

①Select [Network Settings] ⇒[Network Functions] ⇒[IP Streaming].

②⇒Press SET.

●Camcorder will connect to network and icon showing the connection method will be shown.

●On the screen [ ] (yellow) will be shown, and when transmission preparation are complete, the icon will

change to white, and video/audio streaming transmission will start.

●When [Off] is selected for [Network Functions], transmission will terminate, and the [ ] icon will disappear.

PC:

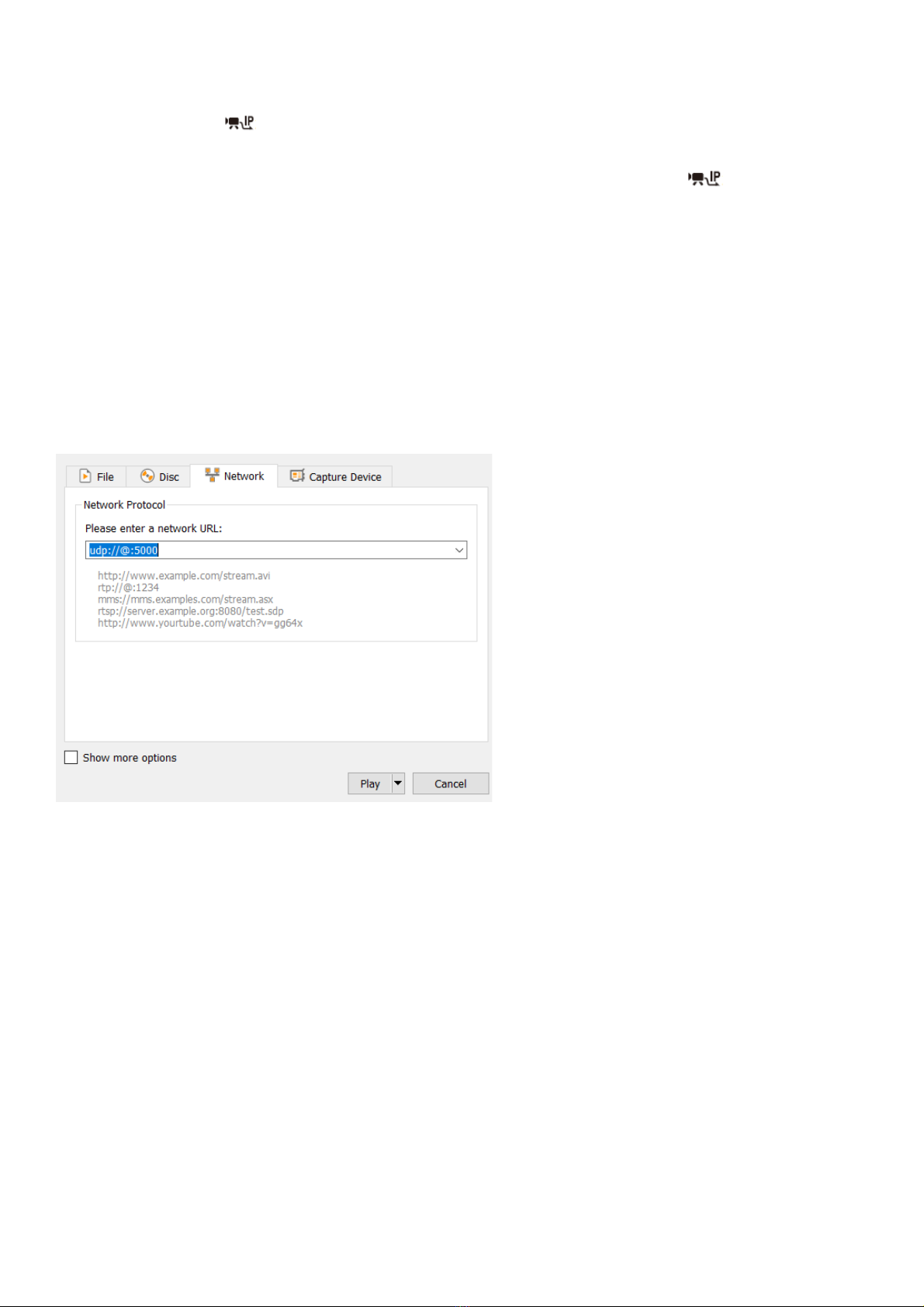

4-2 Perform VLC settings on the PC

・Open the VLC Media Player, and select [Media] ⇒[Open Network Stream] ⇒[Network (N) tab].

⇒In the [Please enter a network URL] cell, input the network URL that matches the protocol that

was selected under the IP Streaming Settings earlier (under 3-2-5 in the guide).

For this example, input 【udp://@:5000】and click [Play (P)▼].

⇒If successful, the images will appear on the screen.

*Notes:

・Recording to the SD card during IP streaming is not possible.

・The specification is for the IP streaming function to remain engaged, and not be turned off when a media mode is

switched or the camcorder power is turned off, and for IP streaming to start (restart) when the camcorder recovers,

or the camcorder’s power is turned back on.
