Canon PIXMA MP620 series Manual de usuario

Make sure to read this manual before using the machine. Please keep it in hand for future reference.

MP620

Getting Started

=Read Me First=

series

Photo All-In-One

Symbols■

The following symbols are used to mark important instructions. Observe these instructions.

Instructions that, if ignored, could result in personal injury or material damage.

Instructions that must be observed for safe operation.

Additional explanations.

Descriptions for operations that take some time to complete.

Model Number: K10325(MP620)

Microsoft is a registered trademark of Microsoft Corporation.

Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.

Windows Vista is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.

Macintosh, Mac, and AirPort are trademarks of Apple Inc., registered in the U.S. and other countries.

Wi-Fi is a registered trademark of the Wi-Fi Alliance.

The Wi-Fi CERTIFIED logo is a certication mark of the Wi-Fi Alliance.

•

Contents

Check the Included Items

Turn the Power On

Install the Print Head

Install the Ink Tanks

Setup the Machine and the Computer

Loading Paper

Conrming the Setup Flow

After Installing the Machine

(A)

Manuals

Setup CD-ROM (containing the drivers, applications and on-screen manuals)

Warranty

•

Check the Included Items

Before turning on the machine, remove all the orange tapes and the protective sheets.•

Open the Paper Output Tray with your hands, and take out the Print Head.

The Print Head is placed inside of the Paper Output Tray (A).

ink tank

Print Head

power cord USB cable

The USB cable is used during the

network setup procedure.

(A)

(B)

(C)

(D)

(1)

(2)

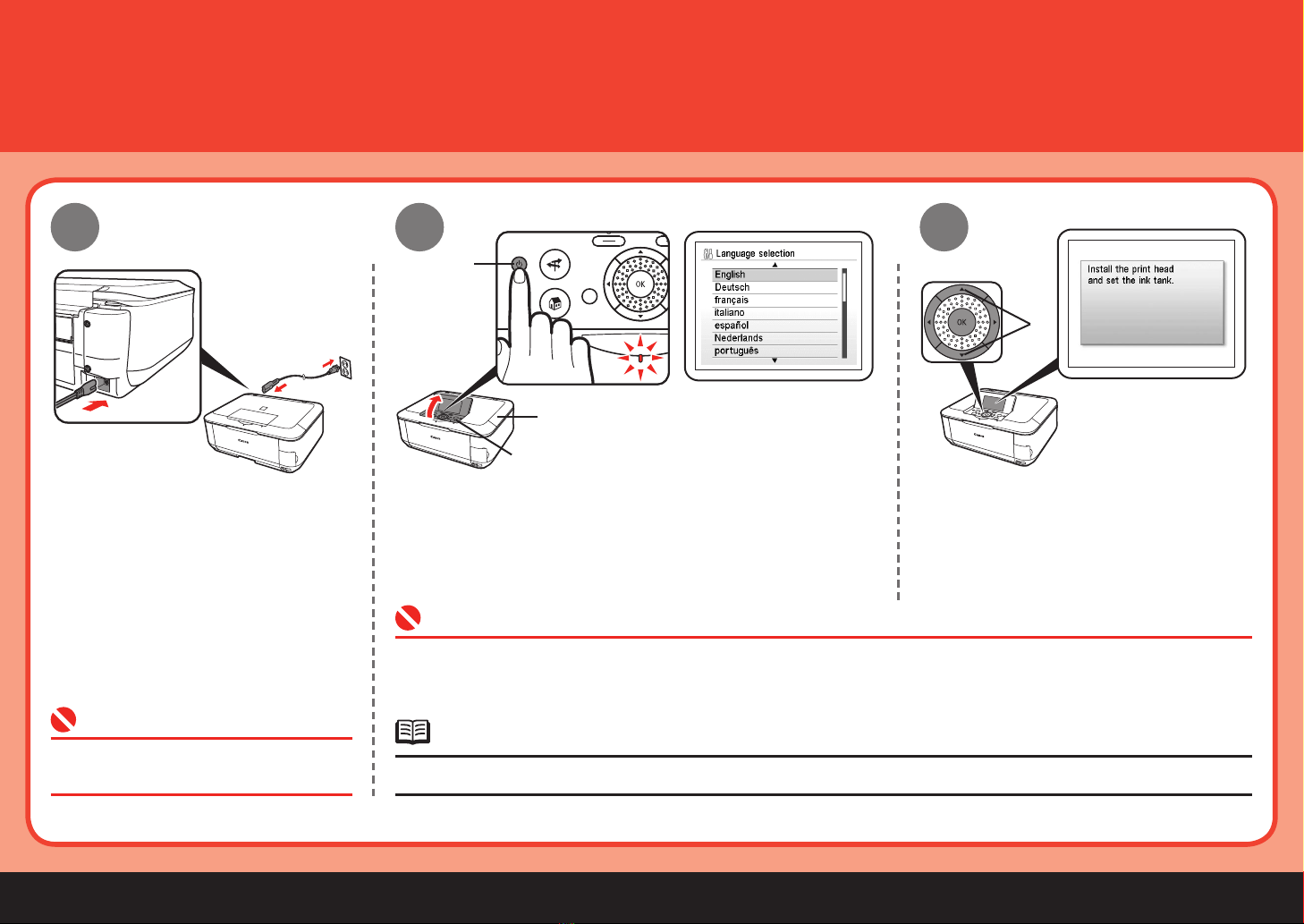

Turn the Power On

Do NOT connect the USB cable at this

stage.

•

Plug in the power cord on the left

side at the back of the machine and

connect the other end to the wall

outlet.

Open the Operation Panel (A), then press the ON button (B)

to turn on the machine.

Make sure that the Document Cover (C) is closed.

If an unintended language is displayed on the LCD, press the Back button on the Operation Panel to return to the

Language selection screen.

•

Use the { or } button (D) on the

Operation Panel to select the language

for the LCD, then press the OK button.

The standby screen is displayed.

The machine may make some operating noises. This is normal operation.•

(E)

(A)

(B)

(C)

(D)

Install the Print Head

Close the Document Cover (D) and lift it with the

Scanning Unit (Cover).

• Firmly raise the Print Head Lock Lever until it stops. (The

Print Head Lock Lever may feel heavy.)

•

If the Print Head Holder does not move, make sure that the

machine is turned on.

•

Open the Paper Output Tray (A), then lift the

Scanning Unit (Cover) (B) until it locks into place.

Raise the Print Head Lock Lever (E).

Do not handle the Print Head

roughly such as applying them

excessive pressure or dropping

them.

•

The Print Head Holder makes a noise as it moves.

This is normal operation.

•

The Scanning Unit (Cover) (B) is fixed automatically.

The Print Head Holder (C) comes out. (This is where

you install the Print Head.)

(E)

Remove the Print Head from the

silver package.

Remove and discard the orange

protective cap.

Tilt the Print Head and set it in place. Lower the Print Head Lock Lever

(E) completely.

There may be some transparent or light blue ink on the inside of the bag the Print

Head comes in, or the inside of the protective cap - this has no effect on print

quality. Be careful not to get ink on yourself when handling these items. Be careful

not to stain your hands.

•

Do not knock the Print Head against the sides of the Holder.

Be sure to install it in a well-lit environment.

Pinch the Print Head Lock Lever rmly and lower it gently.

Once you have installed the Print Head, do not remove it unnecessarily.

•

(A)

(1)

(2)

Install the Ink Tanks

Do not hold the sides of the ink tank; ink may splash.•

Pull the orange tape (1) in the direction of the

arrow to peel off the protective film and remove

the film (2) completely.

If the Print Head Holder moves

to the right, close and reopen

the Scanning Unit (Cover).

Be sure to use the supplied ink

tanks.

•

Do not handle the ink tanks

roughly such as applying them

excessive pressure or dropping

them.

•

While pressing down with your left thumb, twist off the

orange protective cap (A) located on the bottom of the

ink tank.

(B)

453

Wait until the screen above appears (about 4

minutes) and go to the next step.

The machine may make some operating noises

when preparing to print. This is normal operation.

•

If an error message is displayed on the LCD, make

sure that the Print Head and the ink tanks are correctly

installed.

•

Install all the other ink tanks in the

same way.

Install all the ink tanks.

Make sure all the Ink lamp lights red.•

Once you have installed the ink tanks,

do not remove them unnecessarily.

•

Close the Scanning Unit (Cover) (B).Press the PUSH mark on the ink

tank until it clicks into place.

Make sure the Ink lamp lights red.

Install the Ink Tank

Be sure to install it in a well-lit

environment.

•

Match the labels when installing.•

(C)

Press the OK button.

For details, refer to "21 Loading Paper" on page 56.

Close the Paper Output Tray to make it easier to pull out the

Cassette.

•

For better print results, it is recommended that you align the Print Head before printing photos. To

align the Print Head, use the {or }button to select Perform head alignment, then press the OK

button. Follow the steps in "Align the Print Head" on page 67 for alignment.

You can perform Print Head Alignment at any time. For details, refer to the on-screen manual: Basic

Guide.

•

Load three or more sheets of A4 or Letter-sized plain

paper into the Cassette (C), then press the OK button.

Confirm that the above screen appears.
