Canon ImageCLASS D320 Manual

Thank you for purchasing the Canon imageCLASS D320.

To get your machine ready for use, please follow the instructions in this Set-Up Sheet

before referring to any other documentation.

Set-Up Sheet

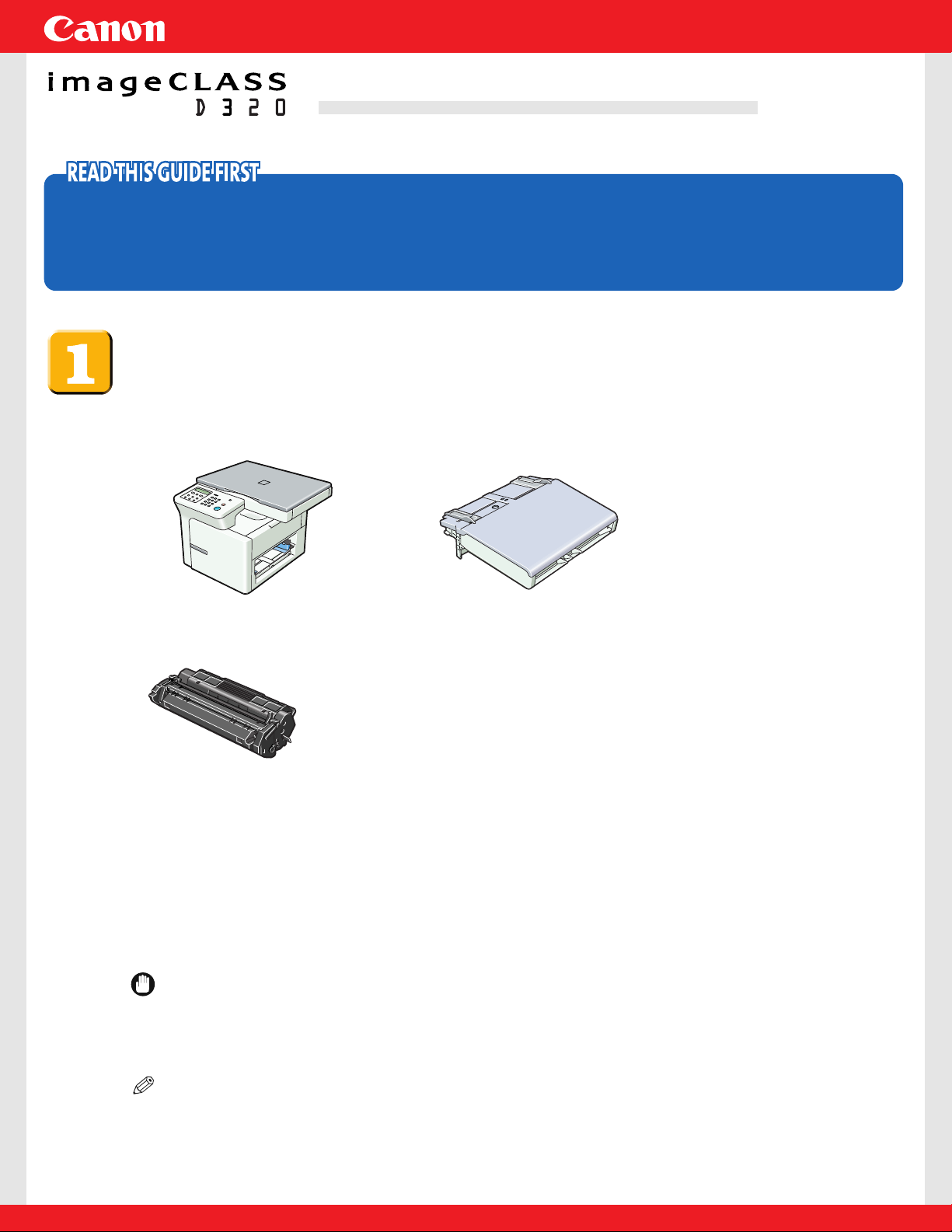

Unpack the machine and its components.

Check that you have the following:

IMPORTANT

•Save your sales receipt for proof of purchase in case your machine requires warranty

service.

NOTE

•Aprinter cable is not included. You need a USB cable (less than 16.4ft./5m) to connect your

machine to a computer.

● Machine

● Canon S35 Cartridge

● Cassette/Multi-purpose tray

●Power Cord

●Documentation

(Set-Up Sheet, Basic Guide, Registration Card, Limited Warranty Card)

●CD-ROM

Removing Shipping Materials

1Place the machine on a flat surface.

2Remove the shipping tapes on the machine and cassette/multi-purpose tray.

NOTE

•DO NOT remove the transparent USB

label Aat this stage.

3Open the platen glass cover Bto remove the inner protection sheet C.

Installing the Cassette

Raise the cassette slightly toward the machine, and align the hooks on both sides of

the cassette with the guides in the machine, then insert the cassette into the

machine as far as it will go 1.Then gently lower the cassette 2.

NOTE

•Install the cassette so that there is no space between the cassette and the feeding slot.

Transparent

USB label

Left side view

Loading Paper in the Cassette

1Load the paper stack in the cassette.

•Insert the paper stack into the cassette

as far as it will go.

2Slide the width guides Aand the length

guide Bto fit the size of the paper stack.

•Adjust the guides so that there is no space

between the guides and the paper.

NOTE

•Make sure the paper stack does not exceed the

width and length guides’ claws.

3Set the multi-purpose tray on top of the

cassette.

Connecting the Power Cord

When the power cord is plugged into the machine and into the wall outlet, the

machine is turned on. There is no separate ON/OFF power switch. Once connected, the

machine needs to warm up before you can use it.The LCD displays PLEASE WAIT, then

INSTALL CARTRIDGE. The LCD returns to the standby display when you install the

cartridge and load paper in the cassette or multi-purpose tray.

NOTE

•Insert the power cord straight into the power cord

connector on the left side of the machine.

Do not insert it at an angle. Otherwise, the machine

may not be properly connected to the power source

and may not turn on. If this happens, disconnect the

power cord, and reconnect it correctly after a minute

or more.

•When disconnecting or connecting the power cord, be

sure to unplug or plug the power cord from the wall

outlet, not from the power cord connector on the

machine.

Installing the Cartridge

1Remove the new cartridge from its protective bag.

NOTE

•Save the protective bag. You may need it later when you remove the cartridge.

2Rock the cartridge 5 or 6 times to distribute the toner evenly.

NOTE

•Always hold the cartridge as shown so that the side with the instructions are facing upward.

Do not forcefully move or push the protective shutter of the drum in any way.

3Place the cartridge on a flat and stable surface, grip the sealing tape tab and snap

it in the direction shown below. Make sure that the tab itself is detached from the

cartridge.

4While grasping the cartridge firmly, slowly pull the sealing tape tab straight out

with the other hand to remove the sealing tape completely. Discard the tape.

IMPORTANT

•Be sure to remove the sealing tape completely.

Otherwise, toner will not be supplied to the machine

and no image or text will be transferred to the page.

•To avoid breaking the sealing tape when removing,

pull the tab straight out. Do not pull it out at an

upward or downward angle.

5Open the right cover.

Right cover

Tab

Drum protective shutter

Instructions

Turn over to

continue

Turn over to

continue

6Hold the cartridge and position the arrow mark on the cartridge towards the inside

of the machine shown below.

7Align the projections Aon both sides of the cartridge to the guides Bin the

machine (location 1) and gently slide the cartridge into the machine until the

right cover slightly rises up (location 2).

IMPORTANT

•The right cover moves simultaneously with the action of the cartridge. Do not push

the cartridge farther than location 22.Doing so will result in catching your hand in

the right cover.

8Close the right cover, and the cartridge will be set in place (location 3).

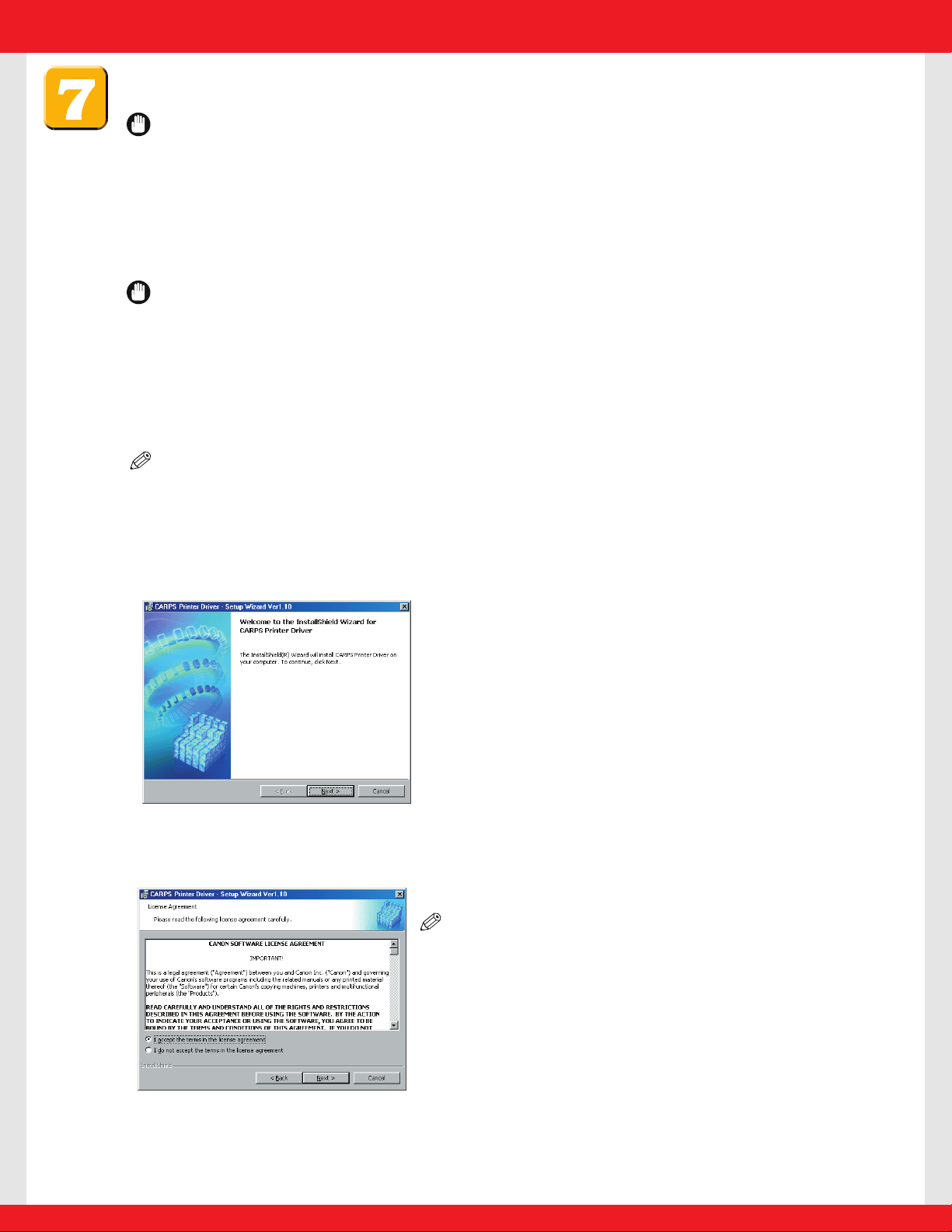

Installing User Software (Windows 98/Me/2000/XP)

IMPORTANT

•Before you can print, you must install the user software on your computer.

Screen shots in the following installation procedures are for Windows 98.

1Make sure the USB cable is NOT connected to your machine and computer at this

stage.

IMPORTANT

•If the Plug and Play is automatically carried out and the Found New Hardware

Wizard appears, click Cancel, and follow this procedure.

2Insert the CD-ROM into your CD-ROM drive.

3If AutoRun is enabled, the installation starts automatically.

NOTE

•If installation does not start automatically, choose Run... from the Start Menu,Type

D:\Drivers\us_eng\prnsetup\Setup.exe (if your CD-ROM drive is drive D:) in the

command line and click OK.

4Click Next> .

5When the License Agreement appears, check the contents. Select I accept the

terms in the license agreement,then click Next> .

NOTE

•The message recommending to restart your computer

may appear under some operating systems. In this case,

continue installing after restarting your computer.

6Check Install Printer Driver through a USB Connection,then click Next> .

When the screen (on the upper right) appears, follow the procedure below.

6-1 Remove the transparent USB label A.

6-2 Connect the USB cable Bto the machine and computer.

The program will start installing the Printer Driver automatically.

7When the following screen appears, select Yes, I want to restart my computer now.

Then click Exit.

USB interface connection

Reading Electronic Manuals

To see the guides, proceed as follows.

1Insert the CD-ROM into your CD-ROM drive.

2On the Windows desktop, click Start,and then Click Run...

3In the Run dialog box, type D:\Manuals and click OK (where D: is the CD-ROM

drive containing the installation disk).

The Printer Guide is available in the manuals folder.

NOTE

•If you do not have Adobe Acrobat Reader installed on your computer, follow the

procedure below to install it.

1Insert the CD-ROM into your CD-ROM drive.

2On the Windows desktop, click Start, and then Click Run...

3In the Run dialog box, type D:\Acread and click OK (where D: is the CD-ROM drive

containing the installation disk).

4Double-click the .exe file in the Acrobat folder.

Part no. HT3-2115-000-V.2.0

Canon is a registered trademark of Canon Inc.

All other products and brand names are registered

trademarks or trademarks of their respective owners.

Specifications subject to change without notice.

XXXXXX PRINTED IN CHINA
