Canon ImageRUNNER 1750iF Guía de seguridad

Starter Guide

Installation Space Requirements

Items Included with the Machine

Unpack the Machine

Install the Filters

Attach the Duplex Tray and the Tray Rib

Install the Drum Unit

Install the Toner Cartridge

Load Paper in the Paper Drawer

Attach the Precaution Label

Connect the Power Cord

This guide explains the procedures from unpacking

the machine through power cord connection.

Be sure to read the manual before using the

machine. The remarks for important safety

instructions are described in “User’s Guide.” Read the

manual also.

Keep the manual for future reference.

CONTENTS

01 Installation Space Requirements

02 Items Included with the Machine

03 Unpack the Machine

06 Install the Filters

07 Attach the Duplex Tray and the Tray Rib

08 Install the Drum Unit

12 Install the Toner Cartridge

14 Load Paper in the Paper Drawer

16 Attach the Precaution Label

17 Connect the Power Cord

Indicates a caution concerning operations that may lead to injury to persons if not

performed correctly. To use the machine safely, always pay attention to these

cautions.

Indicates operational requirements and restrictions. Be sure to read these items

carefully to operate the machine correctly, and avoid damage to the machine or

property.

Symbols Used in This Manual

The following symbols are used in this manual to explain procedures, restrictions, handling precautions, and

instructions that should be observed for safety.

Indicates an operation that must not be performed. Read these items carefully, and

make sure not to perform the described operations.

To ensure proper ventilation and easy operation, set up the machine in an area that meets the

minimum requirements for clearance, as illustrated below.

View from Above

(When the optional Staple Finisher-H1 is attached.)

*The width is 37 1/8" (941 mm) when no options are attached.

Installation Space Requirements

37 3/4" (960 mm)

21 1/4" (540 mm)

50 1/4" (1,276 mm)*

4" (100 mm)

In the next section “Unpack the Machine,” check each item against this list as you remove it from the

accessories box (except for the drum unit).

Power Cord

Drum Unit Paper Size Labels

CD-ROM × 5*3

Registration Card

Paper Manual × 3

Filters*1Duplex Tray Tray Rib

Precaution Labels

*1 These lters are not supplied with the imageRUNNER 1730iF/1730.

*2 Only for the imageRUNNER 1750iF/1740iF/1730iF. For instructions on how to connect the cable, see Chapter 2,“Before You Start Using

the Machine,” in the User’s Guide.

*3 The number of CD-ROMs may vary depending on the models you purchased.

Items Included with the Machine

Telephone Line Cable*2

0301

Pull out the paper drawer as far as it will go

and then remove the tape and the packing

material inside.

Lift the paper drawer and pull it out

completely.

Press the button on the paper drawer.

Remove the materials shown in blue and set

aside the machine’s accessories box on the

right side for later use.

Unpack the Machine

For Users with the Optional Cassette:

Go to the installation manual supplied with the

optional cassette to attach the cassette to the

machine, then continue from step 7 under “Unpack

the Machine”in this document.

04 Unpack the Machine Unpack the Machine 05

The machine weighs about 97.7 lb (44.3 kg).

Use two or more persons to lift the machine

and move it to the installation site.

Be sure to rmly hold the front of the

machine by the paper drawer slot and lifting

handles on the rear side of the machine.

Holding other than the specied parts

may result in damage to the machine

and/or personal injury.

Be careful not to slip on the

polyethylene bag for the

machine.

If you have a back problem, make sure to

check the weight of this machine before

lifting.

97.7

44.3

04 Unpack the Machine Unpack the Machine 05

Gently push the paper drawer back into the

machine until it clicks into place.

Remove all shipping tape from the ap side

edges.

Lift the feeder, remove the protective sheet,

and take out the drum unit.

Be careful not to get your ngers caught, as this

may result in personal injury.

Install the lters on the right side of the

machine.

For the imageRUNNER 1730iF/1730, the following steps are not necessary. Go to the next section,

“Attach the Duplex Tray and the Tray Rib.”

Install the Filters

If you are attaching the optional Staple Finisher-H1 to the machine, the following steps are not

necessary. Go to the next section, “Install the Drum Unit.”

Lift the control panel.

Attach the duplex tray by inserting its tabs

into the slots on the machine.

Insert the front tabs of the tray rib into the

slots rst and then press down on its left

end so that the rear tabs snap into the slots.

Lower the control panel back in place.

Attach the Duplex Tray

and the Tray Rib

Be careful not to accidentally insert the tabs into the slot

circled in the illustration.

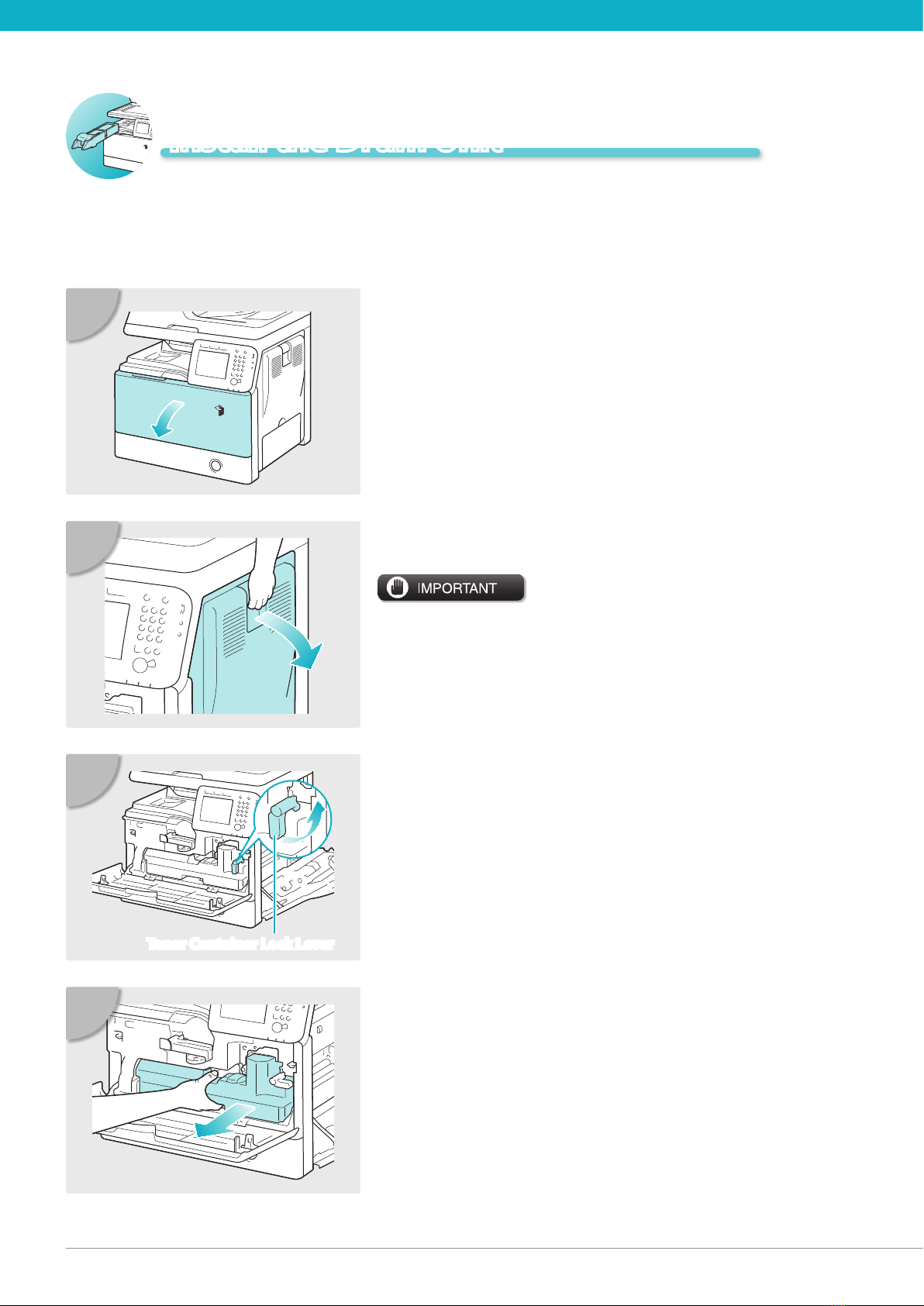

08 Install the Drum Unit 09

Remove the waste toner container.

Open the front cover.

Open the right cover.

Always open the right cover during installation to prevent

damage to the drum unit.

Turn the toner container lock lever

counterclockwise 90 degrees.

Toner Container Lock Lever

Install the Drum Unit
