Camsat CAM-9 Manual de usuario

-20ºC

+55ºC

9 V DC

14 V DC

SMA

ANTENNA

CONNECTOR

IP65

CHANNELS

BNC

VIDEO

BNC

VIDEO

UTP

VIDEO

5,8

GHz

PAL

NTSC

VIDEO:

CHANNELS

869

MHz

300

GFSK

RS-485

DATA:

Operating manual

Warranty Terms

CAM-9

Wireless system for simultaneous transmission of

video, audio and control for PTZ cameras

DECLARATION OF CONFORMITY

I, the undersigned, representing the following company:

CAMSAT Przemysław Gralak

ul. Ogrodowa 2a 86-050 Solec Kujawski

hereby declare, with full responsibility, that the following device: CAM-9

is approved for operation within the EU and conforms to the fundamental

requirements and other relevant provisions of Directive 1999/5/WE:

Video

Fundamental requirements:

- Article of Directive 1999/5/WE

Applied standards Assessment

Electromagnetic Compatibility – Art.3.1b ETSI EN 301 489-1 V1.6.1

ETSI EN 301 489-3 V1.4.1

Conformity

Eﬀ ective use of the frequency resourc-

es – Art.3.2

ETSI EN 300 440-1 V1.4.1

ETSI EN 300 440-2 V1.2.1

Conformity

Frequency range of the transmitter and receiver: 5725 MHz – 5875 MHz

Radiation power of the transmitter: ≤25,0 mW (14 dBm)

Dane

Wymagania zasadnicze:

- artykuł dyrektywy 1999/5/WE

Zastosowane normy Ocena

Electromagnetic Compatibility – Art.3.1b EN 301 489-1/-3 Conformity

Eﬀ ective use of the frequency resources

– Art.3.2

EN 300 220-1/-2 Conformity

Safety requirements

- art. 3.1a

EN 60950-1+A11+A1+A12

EN 62311

Conformity

Frequency range of the transmitter and receiver: 869,40 MHz – 869,65 MHz

Transmitter power (measured): 169,8 mW (22,3 dBm)

Notiﬁ ed body participating in the

conformity assessment:

EMCCert dr Rasek GmbH

Stoernhofer Berg 15

91364 Unterleinleiter,

Germany

Notiﬁ ed body number: 0678

Responsible person:

Przemysław Gralak

Position:

właściciel

Signature:

Solec Kujawski 01.07.2014

Table of contents

Product features..................................................... 4

Kit contents.......................................................... 4

Recommendations .................................................. 5

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Switch settings ...................................................... 8

Installation .......................................................... 8

Basic settings........................................................ 9

Operating the dip-switch............................................. 9

Video transmission settings ......................................... 9

Data transmission settings........................................... 9

Setting the data transmission operating channel ..................... 9

Advanced settings................................................... 11

Procedure for assigning transmitters to the receiver memory . . . . . . . . . 11

Setting the video operating channel remotely ........................ 12

Setting the data transmission parameters remotely .................. 12

Advanced settings................................................... 12

Testing the data link................................................. 12

Removing a transmitter from the CAM-9 Rx receiver memory ....... 13

Restoring the device to default settings............................ 13

General warranty terms............................................. 14

Device disposal ...................................................... 15

DECLARATION OF CONFORMITY

I, the undersigned, representing the following company:

CAMSAT Przemysław Gralak

ul. Ogrodowa 2a 86-050 Solec Kujawski

hereby declare, with full responsibility, that the following device: CAM-9

is approved for operation within the EU and conforms to the fundamental

requirements and other relevant provisions of Directive 1999/5/WE:

Video

Fundamental requirements:

- Article of Directive 1999/5/WE

Applied standards Assessment

Electromagnetic Compatibility – Art.3.1b ETSI EN 301 489-1 V1.6.1

ETSI EN 301 489-3 V1.4.1

Conformity

Eﬀ ective use of the frequency resourc-

es – Art.3.2

ETSI EN 300 440-1 V1.4.1

ETSI EN 300 440-2 V1.2.1

Conformity

Frequency range of the transmitter and receiver: 5725 MHz – 5875 MHz

Radiation power of the transmitter: ≤25,0 mW (14 dBm)

Dane

Wymagania zasadnicze:

- artykuł dyrektywy 1999/5/WE

Zastosowane normy Ocena

Electromagnetic Compatibility – Art.3.1b EN 301 489-1/-3 Conformity

Eﬀ ective use of the frequency resources

– Art.3.2

EN 300 220-1/-2 Conformity

Safety requirements

- art. 3.1a

EN 60950-1+A11+A1+A12

EN 62311

Conformity

Frequency range of the transmitter and receiver: 869,40 MHz – 869,65 MHz

Transmitter power (measured): 169,8 mW (22,3 dBm)

Notiﬁ ed body participating in the

conformity assessment:

EMCCert dr Rasek GmbH

Stoernhofer Berg 15

91364 Unterleinleiter,

Germany

Notiﬁ ed body number: 0678

Responsible person:

Przemysław Gralak

Position:

właściciel

Signature:

Solec Kujawski 01.07.2014

Product features

The CAM-9 kit is an integrated transmission system comprised of

a module for video transmission and data transmission to and from

industrial cameras in a single compact case.

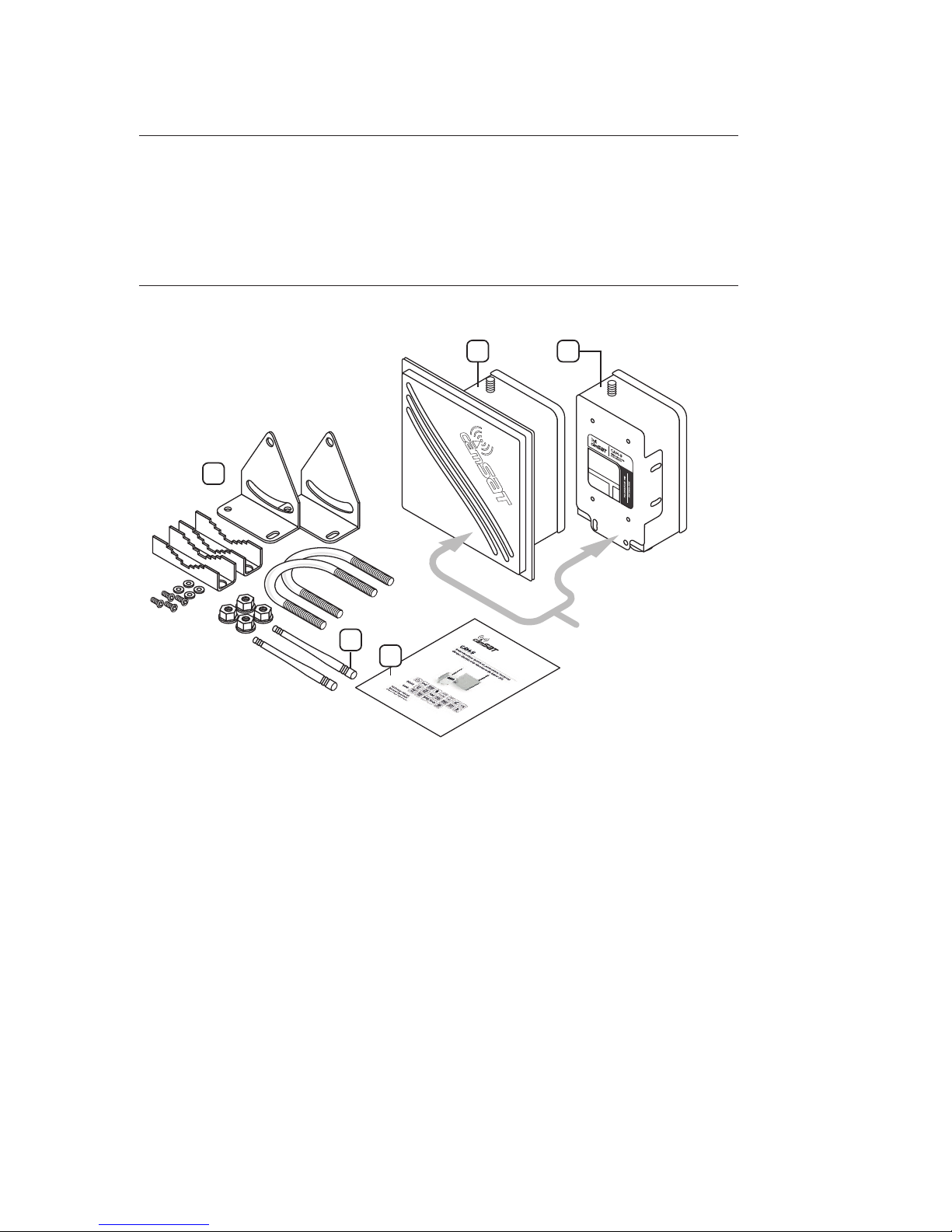

Kit contents

The kit includes:

ANTENNA SIDE

1. Video/audio transmitter (Tx) with an IP65 antenna x 1 pcs.

2. Video/audio receiver (Rx) with an IP65 antenna x 1 pcs.

3. 35-50mm pole mount x 2pcs.

4. 869 MHz antenna x 2 pcs.

5. Operating manual, warranty terms

Recommendations

1. Larger systems consisting of a few kits should be started up and set up

one after another, i.e. the power supply should be connected to the next

kit only after the previous kit has been set up precisely.

2. It is recommended to install CAM-9 receivers at least 7 m away from

digital receivers (CDS-5021, CDS-5IP and other).

3. It is not permitted to power devices without antenna cables screwed

into the SMA connectors.

In order to ensure a stable radio range, the antennas have to see

each other optically. One hundred percent optical visibility should be

provided in the rst Fresnel zone.

d - 7,2 m

D - 1 km

At the frequency of 5.8 GHz and the distance of 1 km, free space with the

diameter of at least 7.2 m should be provided for the radio beam.

A few ready-made calculations for CAM-9 are presented below

Distance [km] 0.4 0.8 1 1.2 1.6 2 2.5 3

Diameter [m] 4.5 6.4 7.2 7.9 9.1 10.2 11.4 12.5

Larger directional antennas can be plugged into the connectors (Rx)

in order to extend the ranges.

Technical data

DANE AUDIO-WIDEO

Frequency 869 MHz 5.8 GHz

Number of operating channels 10 8/16*

Radio link modulation GFSK FM

EIRP radiated power 300 mW 25 mW

Receiver sensitivity −118 dBm@1200 bps /

−114 dBm@9600 bps ≤ −85 dBm

Antenna connectors SMA-RP F 50 Ω SMA-RP F 50 Ω

Antenna characteristics omnidirectional

360°H/15°V

Tx: directional –

30°H/30°V

Rx: directional –

20°H/20°V

Antenna gain 2.15 dBi Tx: 5 dBi; Rx: 19 dBi

Device range 3 km (with the option to extend the range to 5 km)

Video interface BNC 1Vp-p (75 Ω) + screw terminal for UTP (100 Ω)

Video format PAL/NTSC

Audio interface Screw terminal, stereo audio in/out 2Vp-p (2 kΩ)

Audio frequency response 50–15000 Hz

Data interface RS-485 (A+, B−)

Supported protocols Alec, Aritech, Baxal, Bosch Biphase (with additional

converter), COP-1, COP-2, D-Max, Dynacolor, Ganz,

Kalatel, LG, Longcomity, Molynx, Multix, Panasonic,

Pelco D, Pelco P, Samsung, Santachi, Sensormatic,

Ultrak, VCL, Vicon and many other

Data format 8n1, 8o1, 8e1

Data transmission rate 1200, 2400, 4800, 9600, 19200 [bps]

Power supply voltage 9–14 V**

Maximum power consumption 310 mA**

Case protection class IP65 (external application)

Operating temperature from −20°C to +55°C

Warranty 2 years

Certicates CE

Device external dimensions Tx: 152 × 103 × 60 [mm]; Rx: 164 × 164 × 80 [mm]

*The number of usable channels depends on the regulations in the specic country. The

use of 8 channels is permitted in the European Union countries, while in many countries

outside of the Union 16 channels can be used.

**We recommend using high quality power supplies (high-eciency transformer-based

or impulse ones, with low current rippling), with current eciency of at least 400 mA

[A] - 869 MHz antenna

[B] - LED display

[C] - POWER diode

[D] - LINK diode

[E] - diode signalling data transmission

[F] - rotary switch for setting

video channels

[G] - rotary switch for setting data channels

[H] - SET button

[I] - ENTER button

[J] - on/o switch for the 120 Ω

terminator on the RS-485 line

[K] -

changing the operating frequency band

[L] - adjusting the video signal level

The video signal can be connected through:

[M] - video coaxial cable

[N] - UTP twisted pair cable

[O] - audio signals connector

[P] - RS-485 signals

connector

[R] - +12 V DC

power supply

1 2

VIDEO CH.

SET ENTER

BNC VIDEO

V-Reg

DATA CH.

CHANNELS

PWR

T×D

R×D

LINK

UTP VIDEO AUDIO RS485 SUPPLY

- AL B-RGND GND 12

WIRELESS VIDEO & TELEMETRY

BASIC: F1 - baud rate set | F2 - data format set

ADVANCED: F3 - pairing | F4 - video channel set

F5 - testing | F6 - remove TXs (RX only)

TERM 120Ω

ON/OFF

OFF - EU

ON - non EU

CAM-9

www.camsat.com

RX-M RX-S TX

N O P R

Switch settings

Installation

1. Fasten the transmitter and receiver to a stable pole with the mounts.

2. Screw the 869 MHz [A] antennas into SMA antenna connectors at the

top of the case.

3. Connect the video cables with the coaxial cable [M], or the UTP twisted

pair cable [N].

4. Connect the audio cables [O] (right channel, left channel,

signal ground).

5. Connect the RS-485 cables [P] (A+, B-).

6. Connect the 9-14V DC power supply [R].

Basic settings

Operating the dip-switch

SWITCH 1 [J] – enables / disables the 120 Ω resistor (terminator) in

parallel with the RS-485 interface terminals. This resistor should always

be added at the end of every RS-485 line to avoid interference. In order

to enable the resistor (RS-485 line terminator), it should be set to the

ON position; in order to disable it, it should be set to the OFF position.

SWITCH 2 [K] – changes the frequency band for video signal

transmission. The device can operate in two frequency ranges:

5.733 – 5.866 GHz (8 operating channels – ISM band, permitted within the

European Union) and 5.705 – 5.945 GHz (16 operating channels – can be

used only in selected countries outside of the European Union).

In order to change the frequency band for video transmission, use switch

no. 2: OFF position – 8 operating channels, ON position – 16 operating

channels (permitted only in selected countries outside of the EU).

Video transmission settings

Setting the video transmission operating channel

1. In order to set the video transmission operating channel, turn the rotary

switch, labelled “VIDEO CH.” [F], to the desired position.

2. The display will show the number of the currently selected channel.

3. After selecting the proper channel, the display will start blinking,

indicating that the settings are being saved to the device memory. Then,

the display will turn o by itself.

Data transmission settings

Setting the data transmission operating channel

1. In order to set the data transmission operating channel, turn the rotary

switch, labelled “DATA CH.” [G], to the desired position.

2. The display will show the number of the currently selected channel.

3. After selecting the proper channel, the display will start blinking, indicating that the

settings are being saved to the device memory. Then, the display will turn o by itself.

Method for setting the transmission rate and data format

1. In order to get to the settings, enter the device menu by holding the

ENTER button [I] for three seconds (until appears on the display).

2. You can switch between the menu options ( , , ) by pressing the

ENTER button [I] shortly.

3. To enter a specic submenu, press the SET button [H].

4. To exit a menu (return to the main menu), hold the ENTER button [I]

again for 3 seconds (until the display turns o).

Setting the transmission rate

In order to set the transmission rate, select the ,

option from the menu. The display will show the currently set transmission

rate in the following format: - 1200 bps; - 2400 bps; - 4800 bps;

- 9600 bps; - 19 200 bps

Select the proper option with a short press of the ENTER button

[I]

. To

conrm the selection, hold the SET button [H] for 3 seconds; the display

will start blinking, indicating that the settings are being saved to the

device memory. Then, the device will return to the main MENU.

Setting the data format

In order to set the data format, select the option from the menu. The

display will show the currently set data format:

- 8n1; - 8o1; - 8e1

Select the proper option with a short press of the ENTER button [I]. To

conrm the selection, hold the SET button [H] for 3 seconds; the display

will start blinking, indicating that the settings are being saved to the

device memory. Then, the device will return to the main MENU.

Tabla de contenidos

Otros manuales de Transmisor de Camsat

Camsat

Camsat CAM8h-Multi2/AHD Manual de usuario

Camsat

Camsat TCO 5807m Manual de usuario

Camsat

Camsat VueNet EasyLink Manual de usuario

Camsat

Camsat CDS-6IP MULTI POE Manual de usuario

Camsat

Camsat CAM-Analog2.0 Manual de usuario

Camsat

Camsat GlobalCAM-LTE Manual de usuario

Camsat

Camsat CAM8h-AHD Manual de usuario

Camsat

Camsat CDS-LIFT IP Manual de usuario

Camsat

Camsat CDS-6IP 3PoE Manual de usuario

Camsat

Camsat CDS-6IPeco Manual del operador

Camsat

Camsat TCO-7h Plus Manual de usuario

Camsat

Camsat CDS-6IP SMA Manual de usuario

Camsat

Camsat CDS-5IPmini Manual del operador

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
