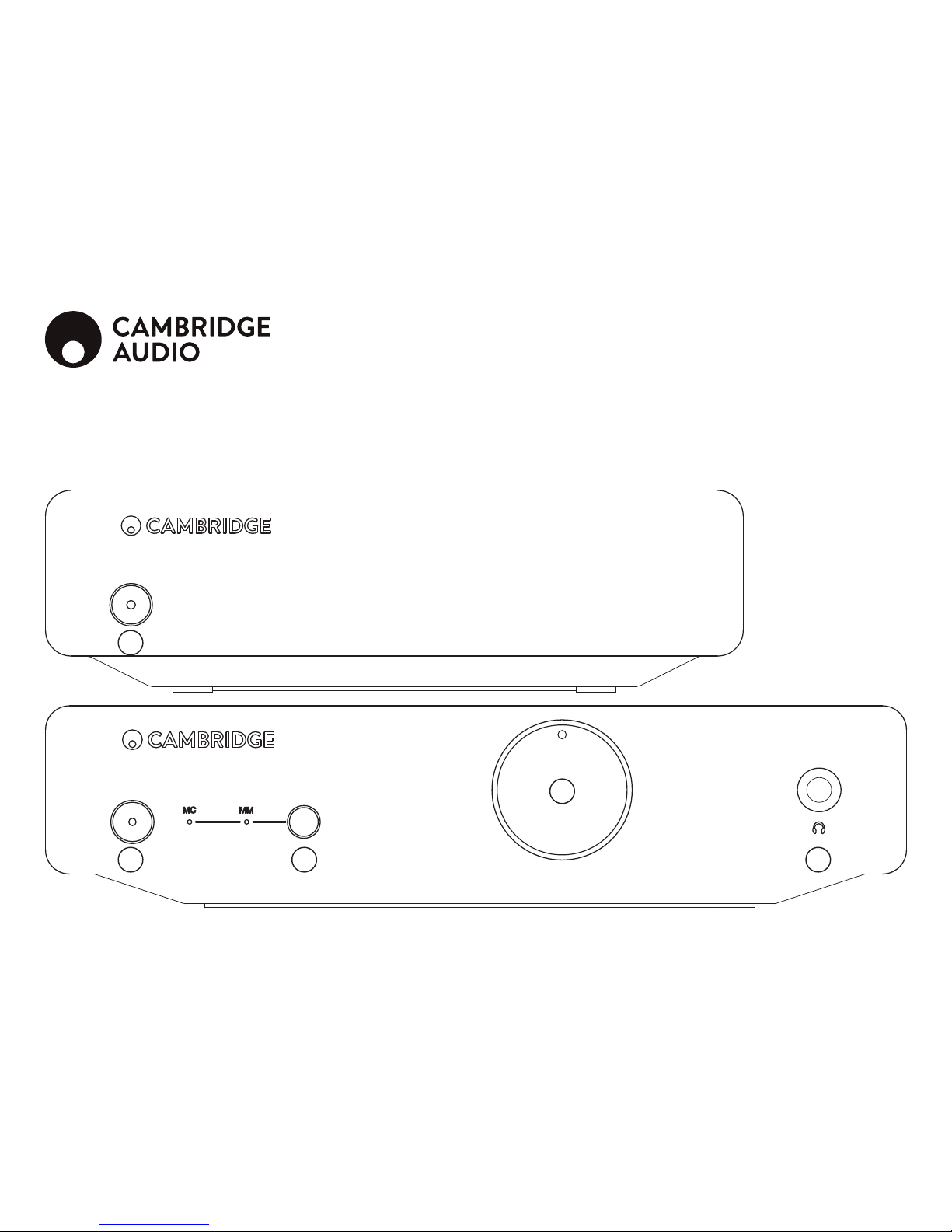

Cambridge Audio Solo Manual de usuario
Solo/ Duo
Phono Preamplier
ENGLISH
2
Contents Make sure you register your purchase.
Visit: www.cambridgeaudio.com/register
By registering, you'll be the rst to know about:
• Future product releases
• Software updates
• News, events and exclusive oers plus competitions!
This guide is designed to make installing and using
this product as easy as possible. Information in this
document has been carefully checked for accuracy at the
time of printing; however, Cambridge Audio’s policy is
one of continuous improvement, therefore design and
specications are subject to change without prior notice.
This document contains proprietary information protected
by copyright. All rights are reserved. No part of this manual
may be reproduced by any mechanical, electronic or other
means, in any form, without prior written permission of the
manufacturer. All trademarks and registered trademarks
are the property of their respective owners.
© Copyright Cambridge Audio Ltd 2018.
AUTO POWER DOWN (APD) ...................................3
FRONT PANEL CONTROLS .......................................4
REAR PANEL CONNECTIONS ...................................6
TROUBLESHOOTING...............................................8
TECHNICAL SPECIFICATIONS ...................................9
3
Solo/ Duo
ENGLISH
AUTO POWER DOWN (APD)
This unit has an Auto Power Down function. The product will
automatically switch to standby mode after inactivity of 20
minutes.
DISABLING THE AUTO POWER DOWN
If you wish to disable the APD function, then press and hold
the power button for 5 seconds when in standby. This can then
be reset to factory defaults by plugging in the mains lead with
the standby button held down.
For more frequently asked questions (FAQs), technical advice
and information on getting the most out of your Solo/Duo,
please visit the Support section on Cambridge Audio’s website:
https://techsupport.cambridgeaudio.com
For all servicing, in or out of warranty, please contact your
dealer.
4
Front panel controls
1 2
3
4
1
5
Solo/ Duo
ENGLISH
1. STANDBY/ON
Switches the unit between Standby mode (indicated by dim
LED) and On (indicated by bright LED). Standby mode is a low
power mode where the power consumption is less than 0.5
Watts.
The following functions are for Duo only
2. CARTRIDGE TYPE SELECTOR SWITCH
Match this switch to the cartridge type that your turntable
uses. MM for a moving magnet cartridge or MC for a moving
coil cartridge.
3. HEADPHONE VOLUME
4. HEADPHONES
Allows for the connection of stereo headphones with a ¼” Jack
plug. Headphones with an impedance of between 32 and 600
ohms are recommended.
6
1 2 3 4 5 6
1 2 3 4 5
Rear panel connections
7
Solo/ Duo
ENGLISH
1. AC POWER SOCKET
2. OUTPUT SOCKETS
Use phono cables to connect to any line level input on your
amplier, such as Aux. NB. Do not connect to a phono input.
3. BALANCE
This control allows you to make ne adjustments to the
relative output levels of the left and right channels. In the
central position the output from each channel is equal.
4. MM INPUT SOCKETS
If your turntable uses a moving magnet cartridge, connect
outputs here (3-5mV, with 47k ohm, 100pF loading).
5. TURNTABLE GROUND
If your turntable has a separate grounding lead then connect
here. This provides shielding to the arm and the sensitive
circuitry in the turntable.
6. MC INPUT SOCKETS (DUO ONLY)
If your turntable uses a moving coil cartridge, connect outputs
here (0.3-1mV, with 100 ohm, 100pF loading).
8
Troubleshooting
THERE IS NO POWER
Ensure the AC power cord is connected securely.
Ensure the plug is fully inserted into the wall socket and is
switched on.
Check fuse in the mains plug or adaptor.
THERE IS NO SOUND
Make sure the unit is not in Standby mode.
Check that source component is properly connected.
Check that your speakers are properly connected.
Ensure correct cartridge type has been selected (MM or MC).
THERE IS NO SOUND ON ONE
CHANNEL
Check speaker connections.
Check interconnects.
THERE IS A LOUD BUZZ OR HUM
Check turntable or tone arm for ground and connection lead
fault.
Ensure no interconnects are loose or defective.
Ensure that your turntable is not too close to the amplier.
THERE IS WEAK BASS OR DIFFUSED
STEREO IMAGING
Ensure that speakers are not wired out of phase.
VOLUME IS TOO LOUD/QUIET
Check cartridge type matches input type. If a MC cartridge is
connected through the MM inputs, volume will be very quiet
(and vice versa). Note that it is possible to obtain high level
MC cartridges which are designed for an MM input.
9
Solo/ Duo
ENGLISH
Technical specications
Max Power Consumption
Standby Consumption
Mains Inlet Voltage
Gain @ 1kHz
Nominal Output
Sensitivity for Nominal Output
Equivalent Input Noise (A-Weighted)
RIAA Curve Accuracy
Signal to Noise Ratio Grounded Inputs
ref. 1V output (20Hz-20kHz BW)
THD+N 1kHz (20-20kHz BW)
Input Impedance
Input Capacitance
Overload Margin
Crosstalk @ 20kHz
Subsonic Filter Characteristics
Dimensions (HxWxD)
Weight
SOLO
10W
<0.5W
100-240V AC
39dB
300mV
3.35mV
~0.09uV
+/- 0.65dB 30Hz-20kHz
>90dB
<0.0025%
47k Ohm
100pF
>30dB
>85dB
-3dB @ 15Hz 12dB/Octave
48 x 176 x 132 mm (1.9 x 6.9 x 5.2”)
1.5lbs/0.68kg
DUO
10W
<0.5W
100-240V AC
MM Input MC Input
39dB 60dB
300mV
3.35mV 305uV
~0.09uV ~0.08uV
+/- 0.3dB 30Hz-50kHz
>90dB >70dB
<0.0025% <0.020%
47k Ohm 100 Ohm
100pF
>30dB
>85dB >75dB
-3dB @ 12Hz 6dB/Octave
48 x 215 x 159 mm (1.9 x 8.5 x 6.2”)
2.1lbs/0.95kg
Cambridge Audio is a brand of Audio Partnership Plc
Registered Oce: Gallery Court, Hankey Place
London SE1 4BB, United Kingdom
Registered in England No. 2953313
www.cambridgeaudio.com
AP35768/2
