(Version 2.0)

Ultrasonic Tapeless Measure & Calculator

Off

–

8VHU·V*XLGH

³'

,0(16,21

$67(5

/86



7DEOH RI &RQWHQWV

INTRODUCING THE DIMENSION MASTER PLUS...3

Background..........................................................4

Key Functions......................................................7

New and Improved Features..............................11

HOW TO USE THE DIMENSION MASTER PLUS.....16

Taking Accurate Measurements........................16

Taking a Linear Measurement...........................16

Taking an Area Measurement............................18

Volume Measurements......................................18

Large Room Measurements...............................19

Entering Dimensioned Values...........................20

Spacing Calculation – Linear Division Using

the Manual Entry Method .................................21

Converting Feet-Inch- Fractions to Decimal

Feet ....................................................................22

Square Conversions...........................................22

Area Calculation – Known Dimension .............22

Volume Calculation – Concrete........................23

Memory Functions.............................................24

APPENDIX.................................................................25

Troubleshooting.................................................25

Environmental Conditions.................................26

GERMAN (DEUTCH) ADDENDUM............................28

WARRANTY...............................................................35

8VHU·V *XLGH ³ 

Introducing the

Dimension Master Plus



The Dimension Master Plus (v2.0) is a high-tech

measuring tool that uses the latest in ultrasonic

technology. This tapeless measure and calculator

allows you to take quick and accurate measure-

ments with the touch of a button. You can measure

a single room in seconds or a whole building in

minutes. The Dimension Master Plus features in-

clude:

•A special Aim Assist™pointer lamp simplifying

ultrasonic beam alignment,

•A built-in dimensional calculator that allows

calculations and storage of measured values,

•Easy dimensional conversions using the “Con-

vert” function key,

Off

–

³'

,0(16,21

$67(5

/86



Background

How It Works

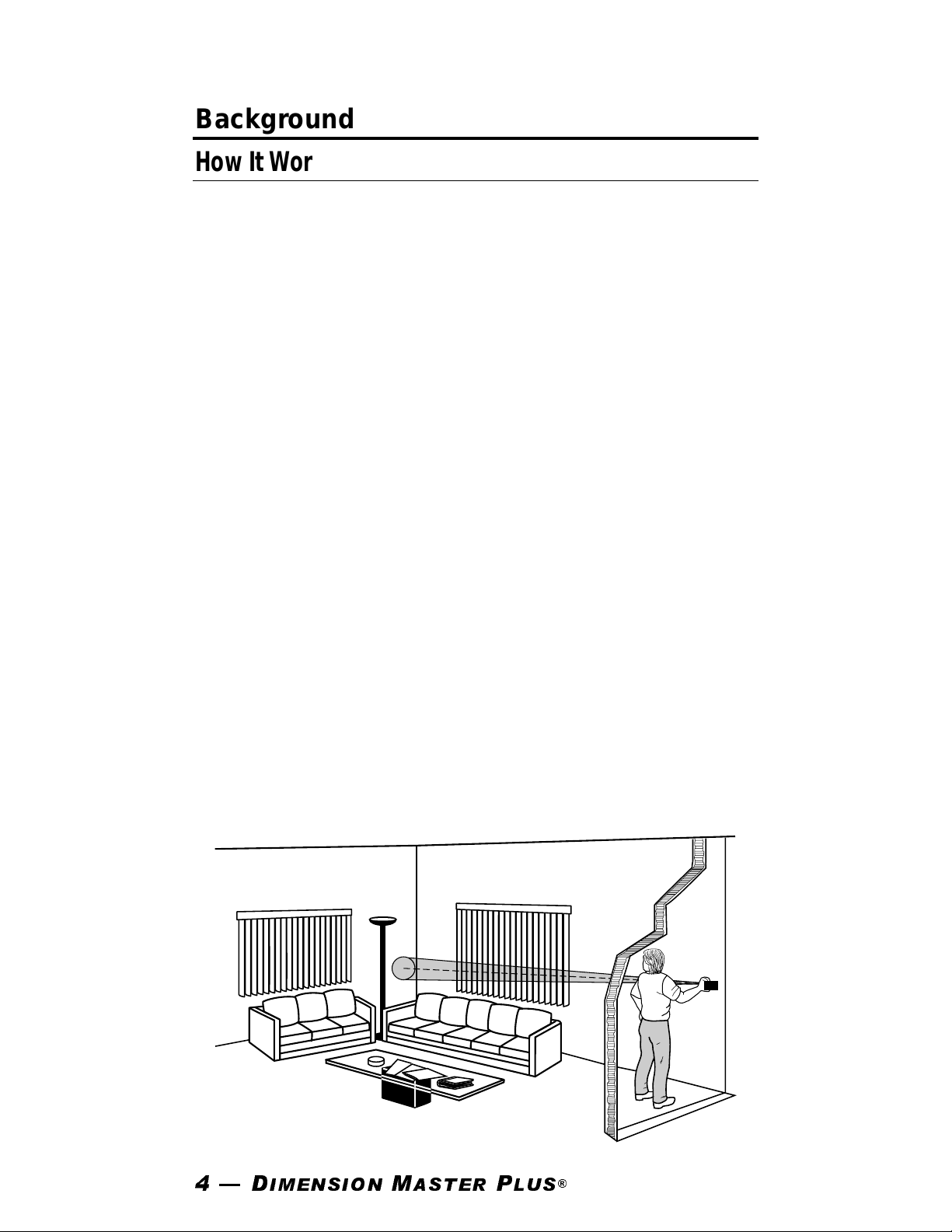

Using a patented TriSensor Technology™, the Di-

mension Master Plus sends out an inaudible, nar-

row ultrasonic beam of sound that bounces off the

“target” surface and returns to the unit as an echo.

The Dimension Master Plus then determines how

long the echo took to return and calculates a linear

distance reading, while internally compensating for

variables such as temperature. Unlike other ultra-

sonic measuring devices, the beam stays extremely

narrow as it travels from the Dimension Master

Plus. This exceptionally narrow beam allows you

to measure through doorways, down corridors and

in crowded rooms or offices for room-to-room

measurements.

To aid in accurate measuring, the Aim Assist™

pointer lamp enables you to pinpoint the center of

the ultrasonic beam, thus avoiding interference

from obstacles or clutter in your path.

8VHU·V *XLGH ³ 

Specifications

Power Source

6 Volts - 4 AAA Alkaline

(MN2400) 1.5 volt batteries

Range

18 inches – 60 feet

(0.5m – 18m)

Accuracy

99.5% or better over entire

range

Displayed

Measurement

Resolution

1/4 inch up to 10 feet; 1 inch

beyond 10 feet (6mm up to

3m; 25mm beyond 3m)

Beam Angle

2°

Operating

Temperature

32°F – 100°F

(0°C – 38°C)

Size

5.6 x 3.25 x 0.9 inches

(143 x 84 x 23mm)

Weight

6 ounces (170 grams)

Battery Information

When you first receive your Dimension Master

Plus, you will need to remove the plastic tab stick-

ing out of the battery compartment before you use

it. 4 AAA Alkaline batteries are used to power the

Dimension Master Plus. If a “lo batt” reading ap-

pears on the display, the batteries need to be re-

placed by removing the door on the back of the

unit. The unit will continue to operate for approxi-

mately 2 hours after the low battery indication. For

best results, use DURACELL®AAA (MN2400)

batteries.



³'

,0(16,21

$67(5

/86



Feet/Inch or Metric Switch

For your convenience, a switch on the left side of

the unit allows you to set the measurement mode to

either the English/Imperial Feet-Inch (F/I) system

or to the Metric (Met) system.

Aim Assist™Pointer Lamp

The Aim Assist™pointer lamp is designed for

many years of service under normal operation.

Should the bulb burn out, please contact the manu-

facturer for replacement details.

Display Accuracy

The Dimension Master Plus has an eleven-digit

display. This is made up of seven digits for the

normal display and four digits for the fractional

display. In a standard calculation, the calculation is

carried out to a 10-digit internal accuracy, and then

rounded to a 7-digit standard display using a 5/4

rounding.

Automatic Shutoff

The Dimension Master Plus is designed to shut it-

self off after approximately 7 minutes of non-use.

Any value shown on the display is cleared at this

point. All values stored in the memory registers re-

main unchanged.

None/Error Messages

If the Dimension Master Plus is unable to measure

a distance, two beeps sound and either the word

8VHU·V *XLGH ³ 

“none” or “Error” is displayed, depending on the

measurement situation. The unit will also display

“Error” if you make an incorrect entry, try to per-

form invalid dimensional calculations (i.e., adding

areas and volumes together) or the resulting answer

is beyond the range of the calculator. “Error” will

also appear if you enter a mathematical impossibil-

ity, such as division by zero.

There is no need to clear the “none” or “Error”

message. The next valid measurement or keystroke

automatically clears the display. The “none” or

“Error” message will not clear previously stored

values from memory.

Key Functions

[On]

On/Clear Entry Key — Turns power on. Pressed

once clears the last entry and display. Pressing

the measurement button will also turn the unit

on.

[Off]

Off Key — Turns all power off. Clears the dis-

play and all values stored in memory (M+).

[÷] [x] [+] [−] [=]

Math Operator Keys — Used for basic math

operations.

[0]-[9] & [•]

Digit Keys — Used for keying in numbers.



³'

,0(16,21

$67(5

/86



[Sq]

Square Key — Used with a dimension key (feet,

inches, yards, meters) to label entry as an area or

“square” value (e.g., 10 Square Feet).

[ / ]Fraction Bar Key — Used to separate the nu-

merator and denominator when entering frac-

tions. [Rcl] [/] shows current fraction setting

(Default is 1/8”).

[Length]

Length Key — Labels, stores or recalls a dimen-

sioned value or measurement as Length. Enter-

ing a non-dimensioned value can result in an er-

ror when computing Areas or Widths.

[Width]

Width Key — Labels, stores or recalls a dimen-

sioned value or measurement as Width. Entering

a non-dimensioned value can result in an error

when computing Areas or Widths.

[Height]

Height Key — Labels, stores or recalls a dimen-

sioned value or measurement as Height. Enter-

ing a non-dimensioned value can result in an er-

ror when computing Areas or Widths.

[LxW]

Area Key — Calculates or recalls area based on

Length and Width. If one of these values is not

entered, “None” displays. Repeated presses tog-

gle through the available units of measure.

8VHU·V *XLGH ³ 

[LxWxH]

Volume Key — Calculates or recalls volume

based on Length, Width and Height. If one of

these values is not entered, “None” displays.

Repeated presses toggle through the available

units of measure.

[Yards]

Yards Key — Labels a value as Yards. [Con-

vert] [Yards] converts whole or decimal num-

bers of a different unit of measure to Yards.

[Feet]

Feet Key — Labels a value as Feet. [Convert]

[Feet] converts whole or decimal numbers of a

different unit of measure to Feet. Successive

presses of [Feet] toggle between Feet-Inch and

Decimal Feet.

[Inch]

Inch Key — Labels a value as Inches. [Convert]

[Inch] converts whole or decimal numbers of a

different unit of measure to Inches. Successive

presses of [Inch] toggle between Decimal and

Fractional Inches.

[Meter]

Meter Key — Labels a value as Meters. [Con-

vert] [Meter] converts whole or decimal num-

bers of a different unit of measure to Meters.

[Rcl]

Recall Key — Used with other keys to recall

and display stored values or settings.



³'

,0(16,21

$67(5

/86



[Convert]

Conversion Key — Converts between units of

measure and accesses secondary functions. Re-

peated presses scroll through available units of

measure:

Linear: Feet-Inch-Fraction, Decimal Feet, Inch-

Fraction, Decimal Inch, Yards and Meters

Square: Square Feet, Square Yards and Square

Meters

Cubic: Cubic Feet, Cubic Yards and Cubic Meters

Additional Functions Using [Convert]

[Convert] used with . . .

[÷] {Square Root} Calculates the square root of

a displayed value.

[x] {AC} Clears and resets all registers to default

values.

[+] {

}Displays Pi (π= 3.141593).

[−]{+/–} Toggles displayed value’s sign (+/–).

[=] {Mode} Changes and displays Measuring

Beam Mode setting.

[•]{°F/°C} Displays the ambient temperature. If

the unit is set to English/Imperial (F/I), the

temperature is displayed as °F. If the unit is

set to Metric (Met), the temperature is dis-

played as °C.

Tabla de contenidos

Otros manuales de Instrumento de medición de Calculated Industries

Calculated Industries

Calculated Industries SCALE MASTER PRO 6028 Manual de usuario

Calculated Industries

Calculated Industries 6425 Manual de usuario

Calculated Industries

Calculated Industries Scale Master Classic Manual de usuario

Calculated Industries

Calculated Industries Scale Master Classic Manual de usuario

Calculated Industries

Calculated Industries Scale Master Classic Manual de usuario

Calculated Industries

Calculated Industries Laser Dimension Master Manual de usuario

Calculated Industries

Calculated Industries Scale Master Classic Manual de usuario

Calculated Industries

Calculated Industries Laser Dimension Master 165-BT Manual de usuario

Calculated Industries

Calculated Industries SCALE MASTER PRO 6028 Manual de usuario

Calculated Industries

Calculated Industries 4090 Manual de usuario

Calculated Industries

Calculated Industries PREXISO X2 Manual de usuario

Calculated Industries

Calculated Industries Scale Master Pro XE 6135 Manual de usuario

Calculated Industries

Calculated Industries DigiRoller Manual de usuario

Calculated Industries

Calculated Industries Scale Master Pro XE 6135 Manual de usuario

Calculated Industries

Calculated Industries AccuMaster XT 7440 Manual de usuario

Calculated Industries

Calculated Industries Scale Master Classic Manual de usuario

Calculated Industries

Calculated Industries Scale Master Pro XE Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
