Cabletron Systems CyberSWITCH CSX150 Manual de usuario

SMALL OFFICE

REMOTE ACCESS SWITCH

QUICK START

Release 7.2

Cabletron Systems

(603) 332-9400 phone

(603) 337-3075 fax

support@ctron.com

150

REMOTE ACCESS SWITCH

Small Offic

QUICK START

2 CyberSWITCH

NOTICE

You may post this document on a network server for public use as long as no

modifications are made to the document.

Cabletron Systems reserves the right to make changes in specifications and other

information contained in this document without prior notice. The reader should in

all cases consult Cabletron Systems to determine whether any such changes have

been made.

The hardware, firmware, or software described in this manual is subject to change

without notice.

IN NO EVENT SHALL CABLETRON SYSTEMS BE LIABLE FOR ANY

INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES

WHATSOEVER (INCLUDING BUT NOT LIMITED TO LOST PROFITS) ARISING

OUT OF OR RELATED TO THIS MANUAL OR THE INFORMATION

CONTAINED IN IT, EVEN IF CABLETRON SYSTEMS HAS BEEN ADVISED OF,

KNOWN, OR SHOULD HAVE KNOWN, THE POSSIBILITY OF SUCH

DAMAGES.

Cabletron Systems, Inc.

P.O. Box 5005

Rochester, NH 03866-5005

Order Number: 9032449

VIRUS DISCLAIMER

Cabletron Systems has tested its software with current virus checking

technologies. However, because no anti-virus system is 100% reliable, we strongly

caution you to write protect and then verify that the Licensed Software, prior to

installing it, is virus-free with an anti-virus system in which you have confidence.

Cabletron Systems makes no representations or warranties to the effect that the

Licensed Software is virus-free.

Only qualified personnel should perform installation

procedures.

CAUTION

CyberSWITCH 3

TRADEMARKS

Cabletron Systems, CyberSWITCH, MMAC-Plus, SmartSWITCH, SPECTRUM,

and SecureFast Virtual Remote Access Manager are trademarks of Cabletron

Systems, Inc.

All other product names mentioned in this manual are trademarks or registered

trademarks of their respective companies.

COPYRIGHTS

All of the code for this product is copyrighted by Cabletron Systems, Inc.

United States of America.

Portionsofthecodeforthisproductarecopyrightedbythefollowingcorporations:

Epilogue Technology Corporation

Livingston Enterprises, Inc.

Security Dynamics Technologies Inc.

Stac Electronics

Stac Electronics 1993, including one or more U.S. Patents No. 4701745, 5016009,

5126739 and 5146221 and other pending patents.

Telenetworks

FCC NOTICE

This device complies with Part 15 of the FCC rules. Operation is subject to the

following two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful interference when the

equipment is operated in a commercial environment. This equipment uses,

generates, and can radiate radio frequency energy and if not installed in

accordance with the operator’s manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is likely to cause

interference in which case the user will be required to correct the interference at his

own expense.

QUICK START

4 CyberSWITCH

WARNING: Changes or modifications made to this device which are not expressly

approved by the party responsible for compliance could void the user’s authority

to operate the equipment.

DOC NOTICE

This digital apparatus does not exceed the Class A limits for radio noise emissions

from digital apparatus set out in the Radio Interference Regulations of the

Canadian Department of Communications.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les

limites applicables aux appareils numériques de la class A prescrites dans le

Règlement sur le brouillage radioélectrique édicté par le ministère des

Communications du Canada.

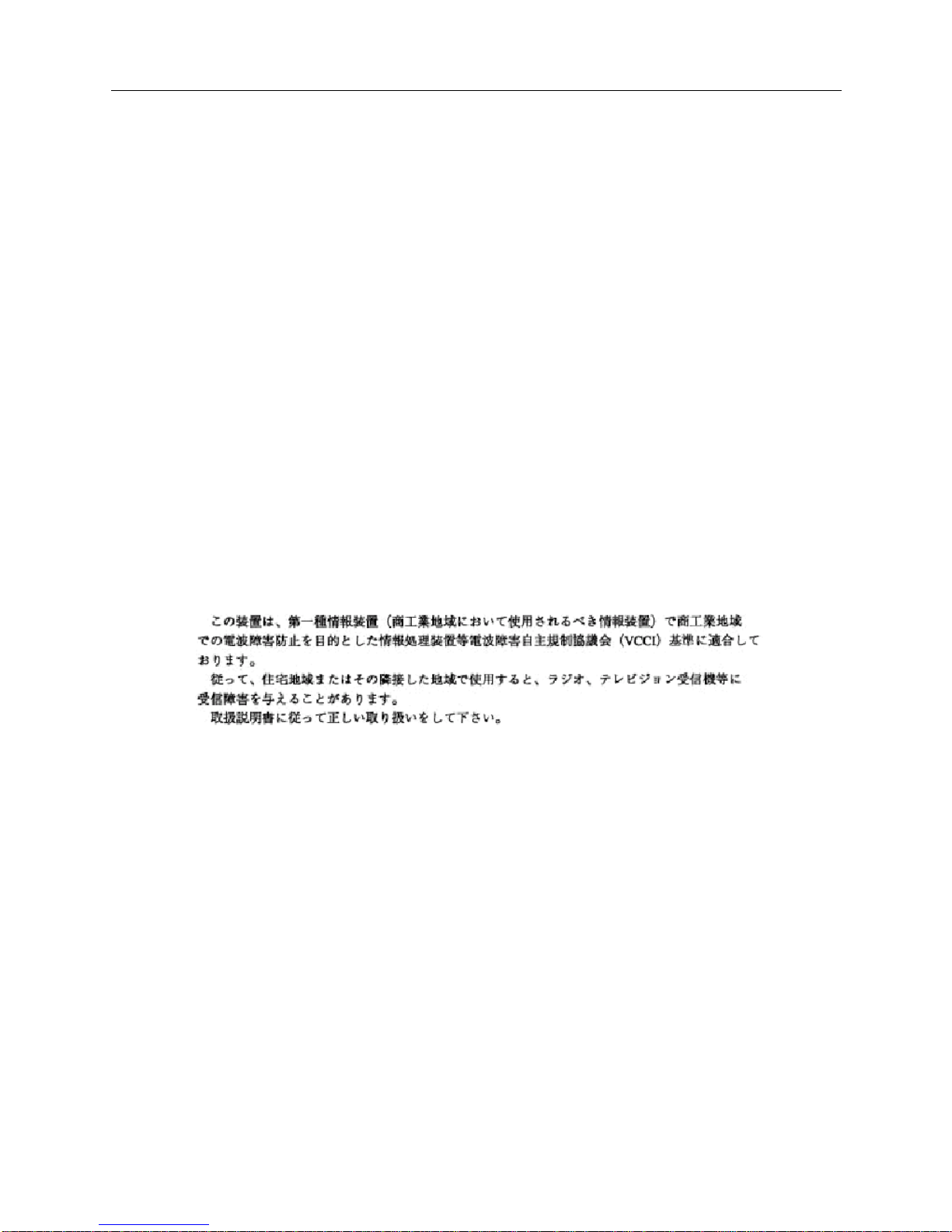

VCCI NOTICE

This is a Class 1 product based on the standard of the Voluntary Control Council

for Interference by Information Technology Equipment (VCCI). If this equipment

is used in a domestic environment, radio disturbance may arise. When such

trouble occurs, the user may be required to take corrective actions.

CABLETRON SYSTEMS, INC. PROGRAM LICENSE AGREEMENT

IMPORTANT: Before utilizing this product, carefully read this License Agreement.

This document is an agreement between you, the end user, and Cabletron Systems,

Inc. ("Cabletron") that sets forth your rights and obligations with respect to the

Cabletron software program (the "Program") contained in this package. The

Program may be contained in firmware, chips or othermedia.BY UTILIZING THE

ENCLOSED PRODUCT, YOU ARE AGREEING TO BECOME BOUND BY THE

TERMS OF THIS AGREEMENT, WHICH INCLUDES THE LICENSE AND THE

LIMITATION OF WARRANTY AND DISCLAIMER OF LIABILITY. IF YOU DO

NOT AGREE TO THE TERMS OF THIS AGREEMENT, PROMPTLY RETURN

THE UNUSED PRODUCT TO THE PLACE OF PURCHASE FOR A FULL

REFUND.

CyberSWITCH 5

CONTENTS

Using Quick Start 7

Cabling 8

The PC to CyberSWITCH Connection 8

Using a10BaseT Hub LAN Connection 9

Using a10BaseT Direct LAN Connection 10

Using a 10Base2 (BNC) LAN Connection 12

Using an AMP Connection 13

For Out-of-Band Management 13

For LAN Replacement 13

For Local Console Access 13

Using an AMP Connection for LAN Replacement or Local Console Access 14

The ISDN Connection 15

CyberSWITCHs with Internal NT-1s 15

CyberSWITCHs without Internal NT-1s 16

CyberSWITCHs Requiring DSUs 17

Connection Instructions 17

Termination Switches 17

The POTS Connection 18

The Power Connection 19

Basics 20

Reading the LED Indicators 20

Accessing the Release Notes 20

Safety Considerations 21

Accessing the CyberSWITCH 21

Connecting an Administration Console 21

Changing the Baud Rate 22

Telnet Connection 22

AMP Connection 23

Making Configuration Changes 23

Upgrading Software 24

Local Software Upgrade 25

Local Upgrade of the Second Stage Boot (SSB) 26

Local Upgrade of the Operational Software (OSW) 26

Remote Software Upgrade 27

Remote Upgrade of the Second Stage Boot (SSB) 27

Remote Upgrade of the Operational Software (OSW) 28

Change Defaults to Secure System 29

Return Configuration to Factory Defaults 30

Initial Installation Steps 30

Beginning the Configuration Process 30

Physical Resource Configuration 31

QUICK START

6 CyberSWITCH

Connectivity 32

Overview 32

Connecting One Cabletron Product to another via PPP 32

Bridge to Bridge Configuration 32

Configuration for Site "Central" 32

Configuration for Site "Remote" 33

IP Router to IP Router Configuration 34

Configuration for Site "Central" 34

Configuration for Site "Remote" 35

IPX Router to IPX Router Configuration 36

Configuration for Site "Central" 36

Configuration for Site "Remote" 37

AppleTalk Router to AppleTalk Router Configuration 38

Configuration for Site "Central" 38

Configuration for Site "Remote" 39

Special Features 41

Configuring the POTS Option 41

Configuring the Encoding Standard 41

Configuring POTS Line Information 42

Configuring POTS Information Per Device 42

Configuring Hardware Filters 43

Troubleshooting 45

Local Area Network LED Indicators 45

Wide Area Network LED Indicators 45

Service Indicator 46

Service Indicator Remains Lit 46

Service Indicator Blinks 47

Index 48

SING

UICK

TART

This guide is for the CSX154 and the CSX155; collectively known as the CSX150 Series. To simplify

the documentation, throughout this guide we will refer to these products as CSX150.

Follow the instructions in this guide for installing the CyberSWITCH, powering it up, and making

any necessary changes to the default configuration values. Perform the steps in order; skipping the

sections that pertain to options you will not use.

We include the following chapters:

•Cabling

Provides you with instructions for connecting the CyberSWITCH to your PC, several methods

for ISDN connections, and completing a POTS connection.

•Basics

This chapter gives detailed instructions on the initial installation steps that are required for all

CyberSWITCH configurations.

• Connectivity

This chapter gives instructions for connecting two of our products together via PPP. Separate

instructions are provided for bridging, IP, IPX, and AppleTalk configurations.

• Special Features

The Special Features sections discusses two features, POTS and Hardware Filtering, that are

unique to the CSX150.

• Troubleshooting

Provides an explanation of the CSX150 LED indicators: how to interpret them and corrective

actions to take.

ABLING

CyberSWITCH cabling includes the following:

• connecting your PC to the CyberSWITCH

• providing an ISDN connection for the CyberSWITCH

• optional: connecting telephone devices to the CyberSWITCH using a POTS connection

• connecting the CyberSWITCH to the provided power supply

This chapter describes each of the cabling processes.

Note: If a cable you need is not among the cables included with your CyberSWITCH shipment,

order the cable separately through Cabletron or your distributor.

THE PC TO CYBERSWITCH CONNECTION

There are several options available for connecting your PC to the CyberSWITCH. There are three

LAN connection methods (using a 10BaseT Hub, 10BaseT Direct, or 10Base2 connection), or you

can use an AMP connection. Referto the sectionthatdescribes the PC to CyberSWITCH connection

you will use.

CyberSWITCH 9

ABLING

The PC to CyberSWITCH Connection

USING A10BASET HUB LAN CONNECTION

If you plan on using a 10BaseT Hub to connect one or more PCs to the CyberSWITCH, this is the

type of connection you will use.

Use the following graphic and instructions to complete the connection.

1. Connect your PC to the Hub using the supplied straight through cable (RJ-45 connectors with

twisted pair).

2. Connect the Hub to the CyberSWITCH, also using straight through cable.

BRI Term 10BT 10B2 Console DCPower Reset

1 2

BRI Term 10BT

RJ-45 Connector

Twisted Pair

To Hub

Hub

RJ-45 RJ-45

Twisted Pair

QUICK START

10 CyberSWITCH

USING A10BASET DIRECT LAN CONNECTION

If you plan on connecting your PC directly to an CyberSWITCH, this is the type of connection you

will use.

Use the following graphic and instructions to complete the connection.

1. Connect your PC to the CyberSWITCH using a crossover cable. This cable is a custom made

cable using RJ-45 connectors and twisted pair. Order this cable through Cabletron or your

Distributor.

The crossover cable allows your PC and the CyberSWITCH to communicate directly, without

a Hub between them.

BRI Term 10BT 10B2 Console DCPower Reset

1 2

BRI Term 10BT

RJ-45 Connector

Twisted Pair

To PC

RJ-45 RJ-45

Twisted Pair

Crossover Cable

Otros manuales para CyberSWITCH CSX150

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Cambiar de Cabletron Systems

Cabletron Systems

Cabletron Systems SmartSwitch 8H02-16 Manual de usuario

Cabletron Systems

Cabletron Systems SmartSTACK ELS100-24TXG Manual de instrucciones

Cabletron Systems

Cabletron Systems MRXI-22 Manual de usuario

Cabletron Systems

Cabletron Systems MMAC-Plus 9T125-24 Manual

Cabletron Systems

Cabletron Systems 3T02-04 Manual de usuario

Cabletron Systems

Cabletron Systems TSX-1620 Manual de usuario

Cabletron Systems

Cabletron Systems SmartCell 6A000 Manual de usuario

Cabletron Systems

Cabletron Systems 6H122-08 Manual de usuario

Cabletron Systems

Cabletron Systems 9E106-06 Manual de usuario

Cabletron Systems

Cabletron Systems MMAC-Plus 9H423-28 Manual

Cabletron Systems

Cabletron Systems MMAC-Plus 9T122-24 Manual de usuario

Cabletron Systems

Cabletron Systems MMAC-Plus SFCS-1000 Hoja de instrucciones

Cabletron Systems

Cabletron Systems Cabletron CyberSWITCH CSX5500 Manual de instrucciones

Cabletron Systems

Cabletron Systems MicroMMAC-24E Manual de usuario

Cabletron Systems

Cabletron Systems CyberSwitch CSX7000 Manual de usuario

Cabletron Systems

Cabletron Systems FN10 Manual de usuario

Cabletron Systems

Cabletron Systems MMAC-Plus 9F310-02 Manual de usuario

Cabletron Systems

Cabletron Systems SmartStack STS16-20R Manual de usuario

Cabletron Systems

Cabletron Systems SmartSTACK ELS10-27MDU Instrucciones de instalación y funcionamiento

Cabletron Systems

Cabletron Systems HubSTACK SEHI-34 Manual de usuario

Cabletron Systems

Cabletron Systems MICROMMAC-22T Manual de usuario

Cabletron Systems

Cabletron Systems KBU 64 Manual de usuario

Cabletron Systems

Cabletron Systems 7C03 MMAC SmartSWITCH Manual de usuario

Cabletron Systems

Cabletron Systems DLEHF-MA Manual de usuario

Manuales populares de Cambiar de otras marcas

URC

URC Total Control MFS-8 Manual de usuario

Azbil

Azbil HPQ-D11 Manual de usuario

Sony

Sony DFS-900M Manual de usuario

SICK

SICK i17S Manual de usuario

F&F

F&F SZR-277 Manual de usuario

Shure

Shure UAMS/BK Manual de usuario

Dräger

Dräger X-zone Switch Off Manual de usuario

Asco

Asco Joucomatic 349 Series Manual de usuario

BT Mini Hub Manual de usuario

D-Link

D-Link DES-1226G Manual de usuario

Johnson Controls

Johnson Controls FS80-C Manual de usuario

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manual de usuario

MicroNet

MicroNet SP1200A Manual de usuario

Ruijie

Ruijie RG-PF2920 Series Manual de instalación y funcionamiento

Altinex

Altinex DA1914SX Manual de usuario

MiLAN

MiLAN MIL-SM2401M Manual de usuario

RJM

RJM MASTERMIND PBC/6X Manual de usuario

Atlas

Atlas MMK-KVM8 Manual de usuario
