USB-C™ Docking Station with

Dual 4K Displays 80W PD

for Windows computers

Model 201053

User Manual

• Locate instructions and driver information at:

www.cablematters.com/dl/201053

• Locate troubleshooting information at:

kb.cablematters.com (search for 201053)

Table of Contents

1. INTRODUCTION .................................................................... 1

1.1 Introduction

1.2 Copyright and Trademarks

1.3 FCC Compliance Statement

2. PRODUCT OVERVIEW

2.1 Package Contents

2.2 USB-C Docking Features ..........................................2

2.3 System Requirements

3. CONNECTION AND OPERATING INSTRUCTIONS ............ 3

3.1 Installation Checklist

3.2 Panel Diagrams .........................................................4

3.3 Connecting the USB-C Docking Station ....................5

3.4 Dynamic Bandwidth Switch ....................................... 6

3.5 Connecting Dual HDMI Displays ...............................7

3.6 Connecting to an Ethernet Network...........................8

3.7 Connecting a USB-A Peripheral Device

3.8 Connecting a USB-C Peripheral Device....................9

3.9 Connecting an SD Memory Card

3.10 Connecting Audio Devices.....................................10

3.11 Troubleshooting Tips .............................................11

4. TECHNICAL SPECIFICATIONS..........................................12

5. WARRANTY AND SUPPORT

5.1 Customer Support and Contact Information

5.2 Warranty Information

5.3 Limitations of Liability

www.cablematters.com

USB-C™ Docking Station with Dual 4K Displays & 80W PD

www.cablematters.com

USB-C™ Docking Station with Dual 4K Displays & 80W PD

1. INTRODUCTION

1.1 Introduction

Thank you for your purchase from Cable Matters® Inc., the ‘Reliable Connectivity’

company. This User Manual provides an overview of the features and installation of the

USB-C™ Docking Station with Dual 4K Displays & 80W PD

Please read these instructions carefully before connecting, operating or configuring this

product. Keep this user manual for future reference.

Contact support@cablematters.com for product support.

1.2 Copyright and Trademarks

trademarks are the property of their respective owners.

Chrome OS is a trademark of Google LLC.

Thunderbolt and the Thunderbolt Logo are trademarks of Intel Corporation in the U.S. and/or other countries.

USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum

SD is a trademark or registered trademark of SD-3C, LLC in the United States, other counties or both. SD, SDHC, miniSDHD,

microSDHC, SDXC and microSDXC Logos are trademarks of SD-3C, LLC.

HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing,

LLC in the United States and/or other countries.

Windows is a registered trademark of Microsoft Corporation in the U.S. and other countries.

1.3 FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device must not cause harmful interference, and 2) this device must accept any interference

received, including interference that may cause undesired operation.

2. PRODUCT OVERVIEW

2.1 Package Contents

Please check that the following items are contained in the package:

• USB-C Docking Station with Dual 4K Displays & 80W PD

• Docking Station Stand

• USB-C 3.1 Gen 2 Host Cable

• AC Power Adapter

• User Manual

www.cablematters.com

USB-C™ Docking Station with Dual 4K Displays & 80W PD

2.2 USB-C Docking Station Features

• Add video, data, and charging functions over a single USB-C or Thunderbolt 3 port

• Connect 4K displays with HDMI input

• Dynamically configure the bandwidth to connect 4K displays with the 4K/HD switch

• Charge a notebook up to 80 watts with a power delivery equipped USB-C port

• Connect to a wired Ethernet network

• Transfer files and charge a USB-A or USB-C peripheral with USB-C 3.1 (up to 10 Gbps)

• Connect a USB 3.0 or USB 2.0 peripheral device

• Add a 2.4 GHz mouse/keyboard combo to the dedicated USB 2.0 port

• Transfer files from a UHS-I microSD card or a UHS-II SD card

• Audio support for a microphone and a headset or speaker

• Heat dissipating metallic housing with a power-saving On/Off switch

• Optional stand to place the Dock in a vertical orientation

2.3 System Requirements

Computer: USB-C or Thunderbolt™ 3 equipped port

DP Alternate Mode support for video over USB-C

Supported Systems/OS: Windows 10, Linux, select Chromebook models with Skylake

(6th gen), Kaby Lake (7th gen) or newer

External Display: HDMI input ports and HDMI cables

microSD: UHS-I microSD, SDHC or SDXC card

UHS-II SD: UHS-I or UHS-II SD, SDHC or SDXC card

Ethernet Network: Active LAN or router with an available RJ45 Port

Cat 6 Ethernet patch cable (recommended for Gigabit)

USB-A 2.0: Recommended for a 2.4 GHz wireless mouse/keyboard

USB-A 3.0: USB 2.0 or 3.0 cable to connect a peripheral device

USB-A 3.1: USB 3.1 data and charging cable (backwards compatible)

USB-C 3.1: USB-C data and charging cable to connect a USB-C device

Audio Ports: Mic, speaker, or combo headset cables

Power: AC outlet

Note: All cables to connect devices to the Dock are sold separately.

www.cablematters.com

USB-C™ Docking Station with Dual 4K Displays & 80W PD

3. Connection and Operating Instructions

3.1 Installation Checklist

Driver Requirements

• A PC with Thunderbolt 3 may need an update for Thunderbolt 3 to function properly

For more information go to kb.cablematters.com and search for 201053)

• Be prepared to reboot your computer after the driver installation

Power Requirements

• The Docking Station must be connected to AC power in order to operate

• Your computer must support power delivery over USB-C for charging up to 80 watts

External Display Requirements

• Check if your computer supports DP Alternate Mode over USB-C

• Check if your computer supports one or more external displays over USB-C

• Bandwidth configuration switch must be set to 4K to connect dual 4K displays

(resolution is dependent on the available Dock bandwidth)

# Displays Max Resolution Mode

2 3840x2160@30Hz 4K

2 3840x2160@30Hz

2560x1440@60Hz

1 3840x2160@60Hz 4K

2 1920x1200@60Hz HD

1 3840x2160@30Hz HD

www.cablematters.com

USB-C™ Docking Station with Dual 4K Displays & 80W PD

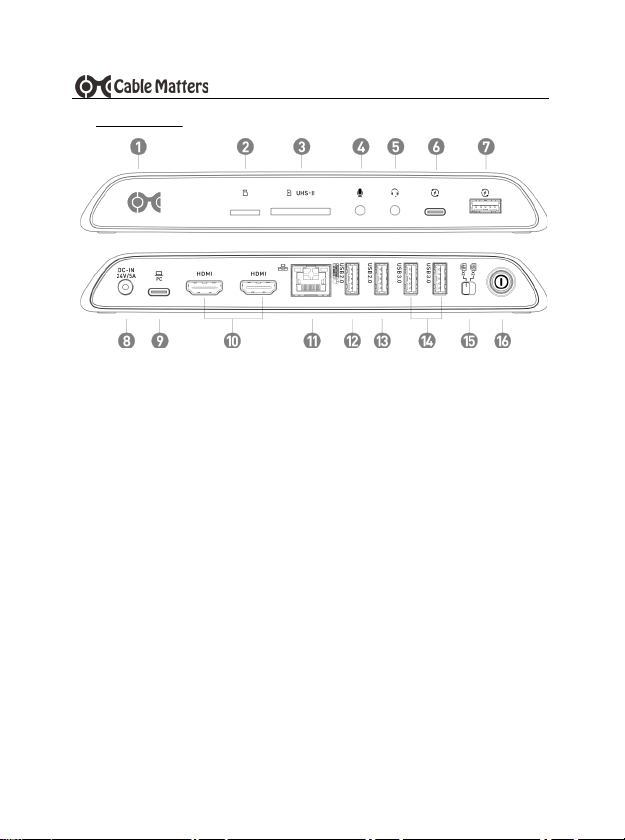

3.2 Panel Diagrams

1) Power (blue) and host connection (white) status LED

2) microSD UHS-I memory card slot

3) SD UHS-II memory card slot

4) Mono microphone line-in port

5) Combo audio headset port

6) USB-C 3.1 Gen 2 (10 Gbps) downstream data transfer and charging port supports

power profiles for 5V/3A, 9V/2A, and 15V/1.2A

7) USB 3.1 Standard-A Gen 2 (10 Gbps) data transfer and charging port up to 5V/2.1A

8) Power-in port (24VDC/5A)

9) Host computer USB-C port with charging up to 80W

10) 2x HDMI video ports

11) Ethernet port - 1000 Mbps Gigabit (HD mode) or 100-480 Mbps (4K mode)

12) USB 2.0 port for a 2.4 GHz wireless mouse/keyboard

13) USB 2.0 port

14) 2x USB 3.0 (5 Gbps) data transfer ports

15) Bandwidth configuration switch for 4K or HD

16) On/Off switch

Note: All cables to connect devices to the USB-C Docking Station are sold separately

www.cablematters.com

USB-C™ Docking Station with Dual 4K Displays & 80W PD

3.3 Connecting the USB-C Docking Station

1) Connect the Dock to an AC power outlet or the Dock will not operate

2) Connect the included USB-C cable to the USB-C or Thunderbolt 3 port

on the host computer (Do not substitute with a different USB-C cable)

3) Depress the On/Off button to turn on the Dock

4) Wait while any additional drivers are automatically installed

Notes:

• Charge a laptop up to 80 watts while in use with a power delivery equipped USB-C or

Thunderbolt 3 port

• Computers requiring more than 80 watts will charge at a slower rate. Some computer

models may not charge over USB-C and require an AC power adapter.

Troubleshooting Tips

• Unplug and re-plug the USB-C host cable to the Dock

• Reboot the computer and check that the Dock has AC power

• Check that the power status LED is lit on the front of the Dock

• Test the USB-C cable with a different device

• Locate troubleshooting information at: kb.cablematters.com and search for 201053)

www.cablematters.com

USB-C™ Docking Station with Dual 4K Displays & 80W PD

3.4 Dynamic Bandwidth Switch

This USB-C Docking Station supports the full USB-C Gen 2 10 Gbps

bandwidth. This bandwidth is shared by all connected devices. The 4K or

HD switch allows the Dock to be configured to support dual 4K displays.

Dynamically adjust the bandwidth allocation on the Dock by clicking the

switch.

4K Setting

Use this setting for connecting dual 4K displays.

• Ethernet speed is limited to 100-480 Mbps Ethernet

• USB 3.0 or USB 3.1 transfer speed is reduced to USB 2.0 speed

• UHS-I or UHS-II SD card R/W speed is reduced to 480 Mbps (USB 2.0 speed)

HD Setting

Use this setting for connecting dual HD/QHD displays or one 4K UHD display.

• Gigabit Ethernet 1000 Mbps speed is supported

• USB 3.1 Gen 2 10 Gbps data transfer rate is supported on the USB-C and USB-A

ports (front panel)

• USB 3.0 5 Gbps data transfer rate is supported on the rear ports

• UHS-II SD card data transfer rate is supported

www.cablematters.com

USB-C™ Docking Station with Dual 4K Displays & 80W PD

3.5 Connecting Dual HDMI Monitors

1) Connect an HDMI cable (sold separately)

2) Set the bandwidth switch to 4K or HD (see below)

3) Select the HDMI video input from the monitor menu

4) Select the audio output from the computer and input from the monitor menu:

Windows (Duplicate or Extend the Display)

Video: Press Windows Logo + P

or search Display >Click Adjust Resolution

Audio: Search Sound > Click on the display name > Set Default > OK

Troubleshooting Tips

• Check that your computer supports DisplayPort Alternate Mode over USB-C

• Check that your computer supports two external displays

• 4K UHD video resolution requires a 4K video card source, cable, and output display

# Displays Max Resolution Mode

2 3840x2160@30Hz 4K

2 3840x2160@30Hz

2560x1440@60Hz

1 3840x2160@60Hz 4K

2 1920x1200@60Hz HD

1 3840x2160@30Hz HD

www.cablematters.com

USB-C™ Docking Station with Dual 4K Displays & 80W PD

3.6 Connecting to an Ethernet Network

1) Connect an RJ45 patch cable to the Dock (Cat 6 recommended for

Gigabit Ethernet)

2) Connect the patch cable to an active LAN or router port

3) Check the documentation of your LAN or router to configure network access

4) Link and Status LEDs should blink to indicate a live connection

Troubleshooting Tips

• Ethernet network speed is limited to 100-480 Mbps Ethernet when in 4K mode

• Reboot the computer and check that the Link and Status LEDs are lit

• Test the patch cable with a different device or try another USB port

Check if your computer recognizes the Dock:

Windows: Search Device Manager > Click on Universal Serial Bus devices > USB-C

Computer Docking Station

1) Connect a USB 2.0 or 3.0 device to the Dock

2) Wait while any needed device drivers are downloaded

3) Use Safely Remove or Eject to remove the device before unplugging, if needed

Notes:

• Front Panel USB 3.1 port supports the USB Gen 2 data transfer rate up to 10 Gbps

and provides fast charging up to 5V/2.1A

• Rear Panel USB 2.0 ports are designed for 2.4 GHz devices such as a mouse/

keyboard. USB 2.0 offers less interference for wireless connections.

• Maximum data transfer rate is limited to 480 Mbps (USB 2.0 speed) when the Dock is

switched to 4K mode

3.7 Connecting a USB-A Peripheral Device

REAR PANEL

data only

FRONT PANEL

2.1A charging+10Gbps

REAR PANEL

data only

Tabla de contenidos

Otros manuales de Estación de acoplamiento de cable matters

cable matters

cable matters 202019 Manual de usuario

cable matters

cable matters 107014 Manual de usuario

cable matters

cable matters 201054 Manual de usuario

cable matters

cable matters cDock USB-C Docking Station Manual de usuario

cable matters

cable matters 201075 Manual de usuario

cable matters

cable matters 107044 Manual de usuario

cable matters

cable matters 107024 Manual de usuario

cable matters

cable matters 202014 Manual de usuario

cable matters

cable matters 107054 Manual de usuario

cable matters

cable matters USB-C 201024 Manual de usuario

cable matters

cable matters USB-C 201031 Manual de usuario

cable matters

cable matters 107008 Manual de usuario

cable matters

cable matters 202014 Manual de usuario

cable matters

cable matters 107004 Manual de usuario

cable matters

cable matters 201350 Manual de usuario

cable matters

cable matters 202019 Manual de usuario

cable matters

cable matters 201073 Manual de usuario

cable matters

cable matters 107007 Manual de usuario

cable matters

cable matters 202034 Manual de usuario

cable matters

cable matters USB-C 201055 Manual de usuario

Manuales populares de Estación de acoplamiento de otras marcas

Sony

Sony Dream Machine XDR-DS12iP Manual de usuario

Acer

Acer USB Type-C Dock II Manual de usuario

ATEN

ATEN UC-2000 Manual de usuario

Xcellon

Xcellon HDD-202 Manual de usuario

Dok

Dok CR09 Manual de usuario

Philips

Philips BTM630/12 Manual de usuario

IOGear

IOGear Travel Pro GUD3C09 Manual de usuario

RKI

RKI SDM-E2 Manual de usuario

iHome

iHome iP15 Manual de usuario

VITURE ONE

VITURE ONE MOBILE DOCK Manual de usuario

Lindy

Lindy 42984 Manual de usuario

CipherLab

CipherLab 8001 Manual de usuario

Pyle

Pyle PIPDSP2 Manual de usuario

Avol

Avol AS2350 Manual de usuario

Datalogic

Datalogic JoyaTouch Manual de usuario

Philips

Philips DC190/79 Manual de usuario

Targus

Targus DOCK315EUZ Manual de usuario

Akasa

Akasa DuoDockX3 AK-DK08U3-BK Manual de usuario

cable matters 201053 Manual de usuario

Manuales populares de Estación de acoplamiento de otras marcas
