8045
p. 1/6www.burkert.com
Technical data
General data
Compatibility with fittings S020 (see corresponding data sheet)
Materials
Housing, cover, nut
PVDF sensor version
St.St. sensor version
Front panel foil
Protection lid
Screws / Seal / Cable glands
Wetted parts materials
Sensor armature
Electrodes
Gaskets
Earth ring
(PVDF sensor version)
Electrode holder (St.St. sensor version)
PC (glass fibre reinforced for housing)
PPA (glass fibre reinforced)
Polyester
PSU
Stainless steel / EPDM / PA
PVDF or Stainless steel 1.4404/316L
Stainless steel 1.4404/316L or Alloy C22
FKM (FDA agreements)
Stainless steel 1.4404/316L or Alloy C22
PEEK (FDA agreements)
Electrical connections Cable glands M20 x 1.5 (for max. 1.5 mm2cross-section, shielded)
Complete device data (Fitting S020 + transmitter)
Pipe diameter DN 06 to 400
Measuring range 0.2 to 10 m/s
Sensor element Electrodes
Fluid temperature
PVDF sensor version
St.St. sensor version
0 up to 80°C (32 to 176°F) (depends on fitting)
-15 up to 110°C (5 to 230°F) (depends on fitting)
Fluid pressure max.
PVDF sensor version
St.St. sensor version
see pressure/temperature diagram
PN10 (145.1 PSI)
PN10 (145.1 PSI) (with plastic fitting) - PN16 (232.16 PSI) (with metal fitting)
Conductivity min. 20 μS/cm
Accuracy
Teach-In
Standard K-factor
(for measured value from 1 to 10 m/s)
≤±2% of Reading1)
≤±4% of Reading1)
Linearity ≤±( 1% of Reading + 0.1% of F.S.*)1)
Repeatability ≤0.25% of Reading1)
Electromagnetic Flow Transmitter
The electromagnetic flow meter Type 8045
has been designed for pipes with diameters
ranging from DN 06 to DN 400 and liquids
having a conductivity > 20 µS/cm.
The transmitter has a display, a keyboard and
provides 4-20 mA, relay and pulse outputs;
The version with a stainless steel sensor has
been designed for applications with high
pressures (PN16) and high temperatures (up to
110°C).
The version with Alloy C22 electrodes has
been designed for applications with aggressive
fluids (chemicals) and especially sea water ap-
plications.
Type S020
INSERTION
T-fitting
Type S020
Spigot
Type 2030
Diaphragm valve
• Sensor in solid state technology
• Shows both flow rate and volume
• Simulation: all output signals provided without the
need for real flow
• Clean in place (CIP), FDA approved
• Version with Alloy C22 electrodes
PLC
Type 8045 can be combined with...
Type 2712
Globe control valve
with TopControl
Type 8644
Valve islands with
electronic I/O
1) Under reference conditions i.e. measuring fluid=water,
ambient and water temperature=20°C (68°F), applying
the minimum inlet and outlet pipe straights, matched in-
side pipe dimensions.
* F.S.= of Full scale (10 m/s)
8045
p. 2/6
Electrical data
Power supply 18-36 V DC filtered and regulated (3 wires)
Reversed polarity of DC protected
Current consumption ≤300 mA
Output
Pulse
Relay (programmable) (option)
Process value
NPN and PNP, open collector, galvanic insulation,
max. 250 Hz, up to 36 V DC, 100 mA max.,
protected against short-circuits and polarity reversals.
2 normally open relays, freely adjustable, 250 V AC, 3 A
or 30 V DC, 3 A (resistive load), max. cutting power of
750 VA (resistive load); Hysteresis thresholds.
Relay 2 programmable for a flow direction detection
4-20 mA, max. loop impedance: 1300 Ωat 30 V DC,
1000 Ωat 24 V DC, 700 Ωat 18 V DC
Environment
Ambient temperature -10 up to +60°C (14 to 140°F) (operating)
-20 up to +60°C (-4 to 140°F) (storage)
Relative humidity < 80%, without condensation
Altitude max. for operating 2000 m
Standards, directives and approvals
Protection class IP65
Standards and directives
EMC
Low voltage
Pressure
Vibration
Shock
Approvals
EN 50081-1, EN 50081-2
EN 61010-1
Complying with article 3 of §3 from 97/23/CE directive.*
EN 60068-2-6
EN 60068-2-27
FDA

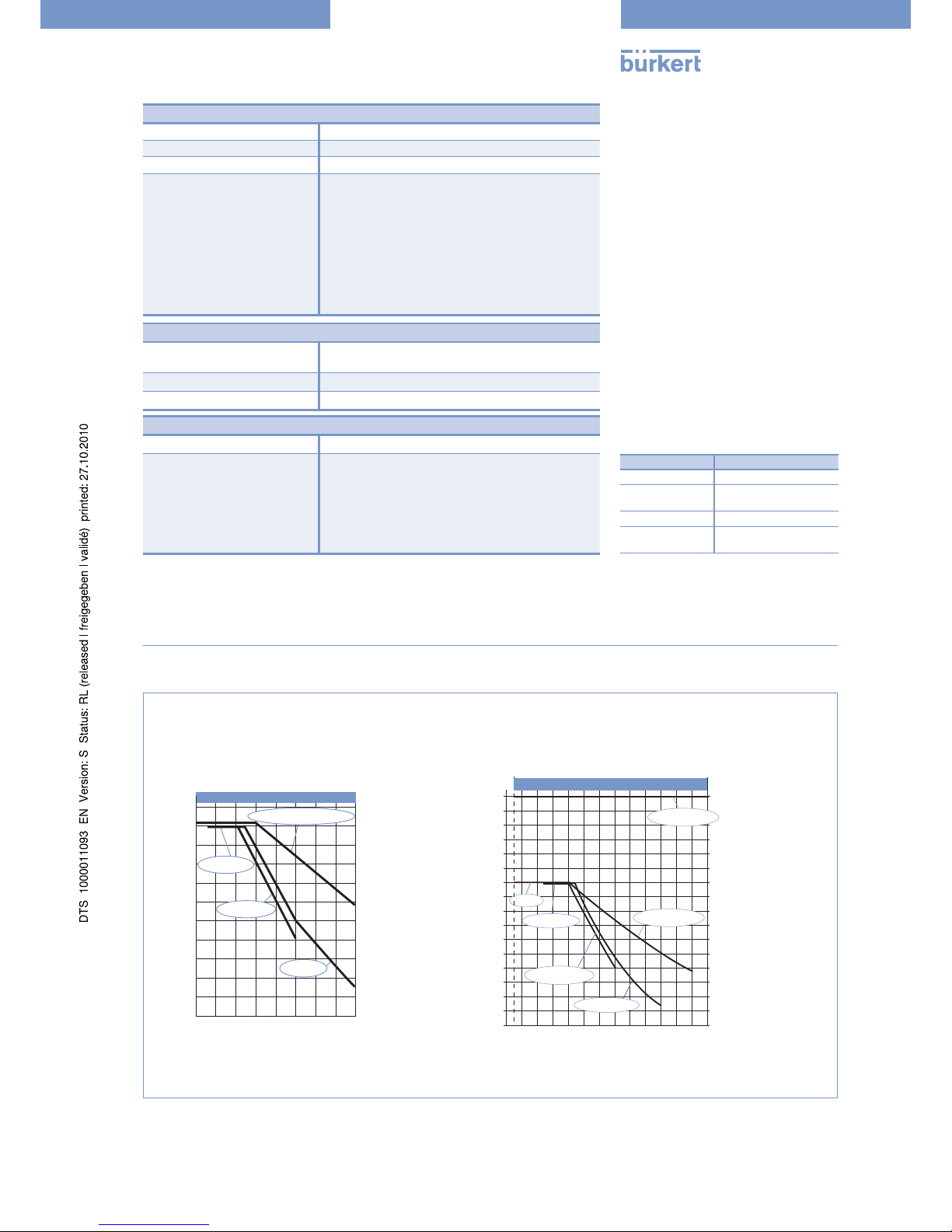

Pressure / Temperature diagram
Please be aware of the fluid pressure-temperature dependence according to the respective fitting+transmitter material as shown in the diagrams.
8045 with a PVDF sensor
(depending on the fitting material)
8045 with a stainless steel sensor
(depending on the fitting material)
A: Application range for complete device (fitting + transmitter)
Ö
06$&
06$&Ö0.
06#Ö0.
00Ö0.
06#ÖÖ00
-ETALÖ0.
!
Ö
4EMPERATURE
Ê#
0RESSURE
"AR
06#Ö0.Ö
00Ö0.Ö
06$&Ö0.ÖÖ-ETAL
!
0RESSUREÖ
"AR
4EMPERATURE
Ê#
06#ÖÖ00
* For the 97/23/CE pressure directive, the device can
only be used under following conditions (depend on max.
pressure, pipe diameter and fluid).
Type of fluid Conditions
Fluid group 1, §1.3.a Forbidden
Fluid group 2, §1.3.a DN ≤ 32, or
DN > 32 and PN*DN ≤ 1000
Fluid group 1, §1.3.b PN*DN ≤ 2000
Fluid group 2, §1.3.b DN ≤ 200 or
DN ≤ 10 or PN*DN ≤ 5000
8045
p. 3/6
Possible applications
Flow control of fluids, contaminated or not:
Waste water treatment
Flow control of drinking water (FDA approval)
Laundries: measurement and control of the water consumption
Swimming pools: pump protection and flow control
Food-processing industry: monitoring of the cleaning cycles (FDA approval)
Irrigation
Application with sea water: desalination, fish farms
Design
The E-shaped magnetic system inside the sensor induces a magnetic field into the fluid, which is perpendicular to the
direction of flow. Two electrodes are in galvanic contact with the liquid. Based on the Faraday law a voltage can be
measured between these electrodes once a liquid (min. conductivity of 20 µS/cm) flows along the pipe.
This voltage is proportional to the flow velocity.
Using the K-factor for the individual pipe diameter the speed of flow is converted into volume per time.
Sofware main features
• International measuring units
• Choice of the display language
• Teach-In for a better accuracy, or K-factor
• 4-20 mA current output
• Pulse output
• 2 relays
(option)
• Detection of flow direction possible with the relay 2
• Filter function
• Reset of the main totalizer
• Simulation mode to adjust Zero and Span and simulate flow in dry-run
condition
Display
To scroll-up the menu or
increase a value
To scroll-down the menu
or select a digit to be
modified
Confirm input and
menu points
Relay 1 LED
Relay 2 LED
Large digital display with 8 characters
(4 digital characters and 4 alphanumeric characters)
indicating:
- the measured flow
- the value of the current output
- the value of the main totalizer
- the value of the daily totalizer
8045
p. 4/6
Installation
The 8045 transmitter can easily be installed into any Bürkert
INSERTION fitting system (S020) by just fixing the main nut.
Minimum straight upstream and downstream distances must be
observed. According to the pipe’s design, necessary distances
can be bigger or use a flow conditioner to obtain the best accu-
racy. For more information, please refer to EN ISO 5167-1.
EN ISO 5167-1 prescribes the straight inlet and outlet distances
that must be complied with when installing fittings in pipe lines
in order to achieve calm flow conditions. The most important
layouts that could lead to turbulence in the flow are shown be-
low, together with the associated prescribed minimum inlet and
outlet distances. These ensure calm, problem-free measurement
conditions at the measurement point.
It is advisable to mount the transmitter
at a 45° angle to the horizontal centre
of the pipe to avoid having deposits
on the electrodes and false measure-
ments due to air bubbles.
The flow rate transmitter can be installed into either horizontal or
vertical pipes. Mount the 8045 transmitter in these correct ways
to obtain an accurate flow measurement.

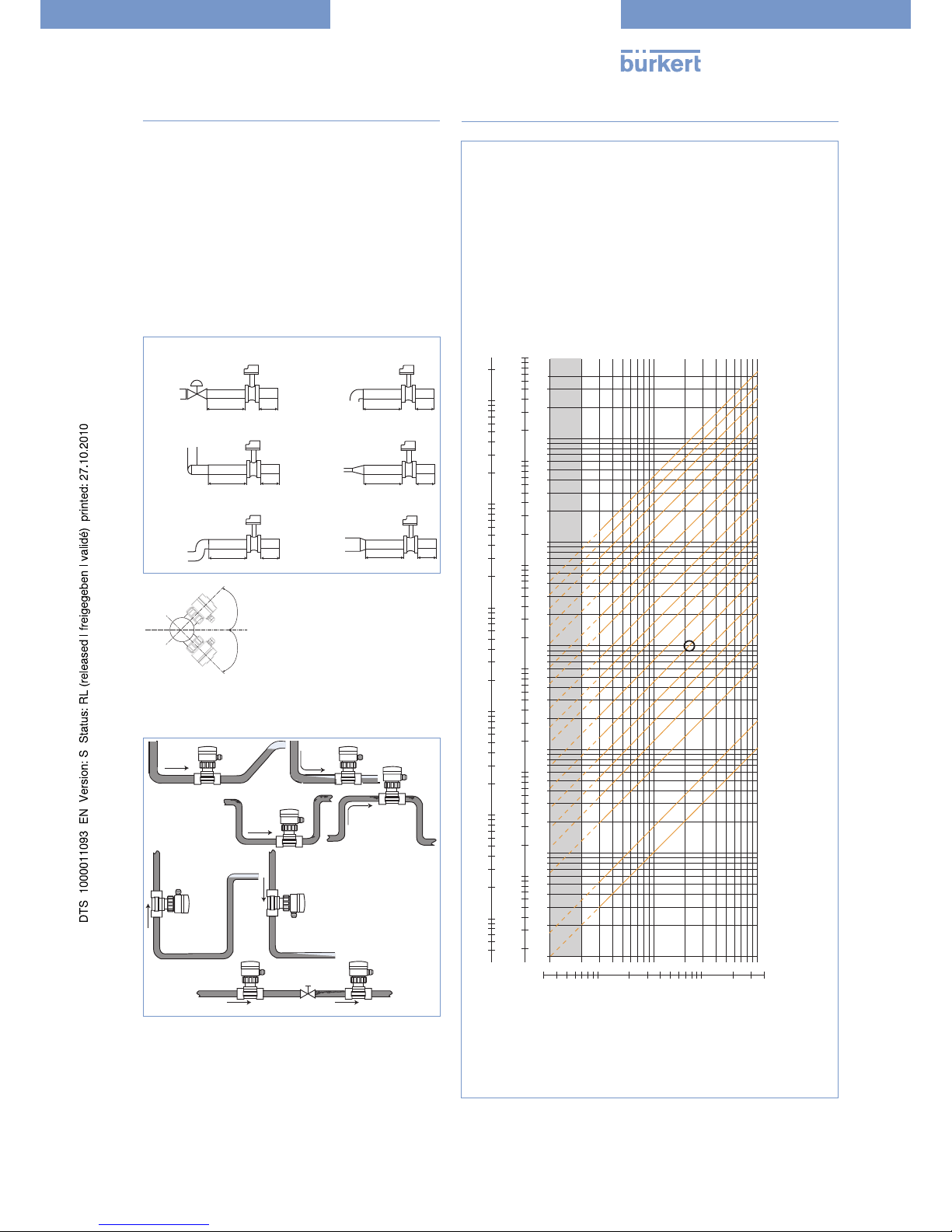

Selection of fitting / pipe size
Flow rate
Flow velocity
Ê
Ê
ÖXÖ$. ÖXÖ$.
ÖXÖ$. ÖXÖ$.
ÖXÖ$. ÖXÖ$.
ÖXÖ$. ÖXÖ$.
ÖXÖ$. ÖXÖ$.
ÖXÖ$. ÖXÖ$.
Regulating valve 90° elbow joint
or T-piece
DN = orifice Fluid direction -->
MH
LMIN
MS
FPS
53ÖGPM
$.Ö
$.ÖÖ$.
$.ÖÖ$.
$.ÖÖ$.
$.ÖÖ$.
$.ÖÖ$.
$.Ö
Ö
$.Ö
ORÖ$.
$.Ö
$.Ö
$.Ö
$.Ö
$.Ö
$.Ö
$.Ö
$.Ö
$.Ö
$.Ö
$.Ö
2 x 90° elbow joint -
3 dimensional
2 x 90° elbow joint
Extension
Reduction
Pressure and temperature ratings must be respected according
to the selected fitting material.
The suitable pipe size is selected using the diagram Flow / Ve-
locity / DN.
The flow transmitter is not designed for gas flow measurement.
Example:
- Specification of nominal flow: 10 m3/h
- Ideal flow velocity: 2...3 m/s
- For these specifications, the diagram indicates a pipe size of DN40
[or DN50 for (*) mentioned fittings]
* for following fittings:
- with external threads acc. to SMS 1145
- with weld-ends acc. to SMS 3008, BS 4825 / ASME BPE or DIN 11850 Series 2
- Clamp acc. to SMS 3017 / ISO 2852, BS 4825 / ASME BPE or DIN 32676
Correct
Correct
Correct
Correct
Incorrect
Incorrect
Incorrect
Incorrect
8045
p. 5/6
Dimensions [mm]
Note: The length of the sensor finger depends on the fitting used.
See data sheet Type S020 or available fitting DN diagram on next page.
Ordering chart for transmitter Type 8045 - for fitting S020 (see corresp. data sheet)
Voltage
supply
Output
Relays
Housing
material
Gaskets
Sensor
version
Electrode
material
Electrical
connection
Item no.
18-36 V DC 4-20 mA,
pulse
No PC FKM Short, PVDF Stainless steel 2 cable glands M20 x 1.5 426 498
Long, PVDF Stainless steel 2 cable glands M20 x 1.5 426 499
2 PC FKM Short, PVDF Stainless steel 2 cable glands M20 x 1.5 426 506
Long, PVDF Stainless steel 2 cable glands M20 x 1.5 426 507
No PPA FKM Short, st. steel (FDA) Stainless steel 2 cable glands M20 x 1.5 449 670
Long, st. steel (FDA) Stainless steel 2 cable glands M20 x 1.5 449 672
2 PPA FKM Short, st. steel (FDA) Stainless steel 2 cable glands M20 x 1.5 449 671
Long, st. steel (FDA) Stainless steel 2 cable glands M20 x 1.5 449 673
No PC FKM Short, PVDF Alloy C22 2 cable glands M20 x 1.5 558 675
Long, PVDF Alloy C22 2 cable glands M20 x 1.5 558 676
Note: 1 Kit 558 102 and 1 EPDM gasket are supplied with each transmitter.
(
DN H
T-Fitting Saddle Plastic
spigot Metal
spigot
06 182
08 182
15 187
20 185
25 185
32 188
40 192 188
50 198 223 193
65 198 222 206 199
80 226 212 204
100 231 219 214
110 227
125 234 254 225
150 244 261 236
180 268
200 280 282 257
250 300 317
300 312 336
350 325 348
400 340
8045
p. 6/6
Available S020 Fitting DN
T-fitting S020
Welding tab S020
Fusion spigot S020
Screw-on S020
Saddle S020
DN200 DN350
DN65
DN50 DN200
DN100
DN50
DN100 DN400
DN400
DN65
Short sensor
Short sensor
Short sensor
Long sensor
Long sensor
Long sensor
Long sensor
DN 06
(1)
Interconnection possibilities with other Bürkert flow sensors
(1) DN 06 and DN 08 in stainless steel S020 only, 8045 with stainless steel sensor recommended
Type 5281 -
Solenoid valve
Type 2731 -
valve with
Type 1067 positioner SideControl
Type 6212 -
Solenoid valve
4-20 mA current
output Relay output
Type 8045 -
Electromagnetic
flow transmitter
Type S020 -
Insertion fitting
(see corresp.
data sheet)
Relay output
Ordering chart - accessories for transmitter Type 8045 (has to be ordered separately)
Specifica-
tions
Item no.
Set with 2 cable glands M20 x 1.5 + 2 neoprene flat seals for cable gland or plug + 2 screw-plugs M20 x 1.5 +
2 multiway seals 2 x 6 mm
449 755
Set with 2 reductions M20 x 1.5 /NPT1/2” + 2 neoprene flat seals for cable gland or plug + 2 screw-plugs M20 x 1.5 551 782
Set with 1 stopper for unused cable gland M20 x 1.5 +1 multiway seal 2 x 6 mm for cable gland + 1 green FKM gasket for the
sensor + 1 mounting instruction sheet
558 102
Ring 619 205
PC union nut 619 204
PPA union nut 440 229
Set with 1 green FKM + 1 black EPDM gasket 552 111
3 points calibration certificate (device combined with a S020 fitting, only for DN ≤200) 550 676
FDA - Approval (only stainless steel sensor version) 449 788
To find your nearest Bürkert facility, click on the orange box www.burkert.com
In case of special application conditions,
please consult for advice.
Subject to alteration.
© Christian Bürkert GmbH & Co. KG 1010/13_EU-en_00891790
Otros manuales para 8045
8
Tabla de contenidos
Otros manuales de Transmisor de Burkert
Burkert
Burkert SE56 Manual de usuario
Burkert
Burkert 8206 Manual de usuario
Burkert
Burkert SE58 L Manual de usuario
Burkert
Burkert 8045 Manual de usuario
Burkert
Burkert 8205 Manual de usuario
Burkert
Burkert 8619 multiCELL WM AC Manual de usuario
Burkert
Burkert 8225 Manual de usuario
Burkert
Burkert GENERIC 8400 Manual de usuario
Burkert
Burkert 8311 Manual de usuario
Burkert
Burkert 8326 Manual de usuario
Burkert
Burkert 8225 Manual de instrucciones
Burkert
Burkert SE58 L Manual de usuario
Burkert
Burkert SE56 Manual de usuario
Burkert
Burkert 8022 Series Manual de usuario
Burkert
Burkert 8175 Manual de usuario
Burkert
Burkert 8137 Manual de usuario
Burkert
Burkert 8225 Manual de usuario
Burkert
Burkert 8022 Series Manual de usuario
Burkert
Burkert 8026 Manual de usuario
Burkert
Burkert 8022 Series Manual de usuario
Manuales populares de Transmisor de otras marcas
Dejero
Dejero EnGo 3x Manual de usuario
Rosemount
Rosemount 4600 Manual de usuario
Speaka Professional
Speaka Professional 2342740 Manual de usuario
trubomat
trubomat GAB 1000 Manual de usuario
Teledyne Analytical Instruments
Teledyne Analytical Instruments LXT-380 Manual de usuario
Rondish
Rondish UT-11 Manual de usuario
