User Manual

Broadband ADSL2+ Modem Router

WBMR-HP-GNV2

www.bualotech.com

35011767 ver.01

WBMR-HP-GNV2 User Manual 1

Contents

Chapter 1 - Product Overview .........................................5

Features .................................................................................. 5

Air Navigator CD Requirements .............................................. 6

150 Mbps High Speed Mode ................................................... 6

Package Contents ................................................................... 6

Hardware Overview ................................................................. 7

Front Panel LEDs / Back Panel ..................................................... 7

Top ................................................................................................. 9

Bottom ............................................................................................ 10

Right Side ...................................................................................... 10

Chapter 2 - Placing Your AirStation ................................11

Vertical Placement .................................................................. 11

Horizontal Placement .............................................................. 12

Wall-Mounting ......................................................................... 13

Chapter 3 - Installation .....................................................14

Automatic Setup ...................................................................... 14

Manual Setup .......................................................................... 14

Gathering Information ............................................................. 17

Chapter 4 - Conguration ................................................19

How to Access the Web-Based Conguration Utility ............... 19

Conguration Utility Menus ..................................................... 21

Setup ....................................................................................... 23

Internet/LAN ............................................................................ 25

Internet ........................................................................................... 25

WBMR-HP-GNV2 User Manual 2

DDNS (Router Mode only) ............................................................. 29

Route ............................................................................................. 31

Wireless Cong ....................................................................... 32

WPS ............................................................................................... 32

AOSS ............................................................................................. 33

Basic .............................................................................................. 35

Advanced ....................................................................................... 39

WMM .............................................................................................. 40

MAC Filter ...................................................................................... 42

Security (Router Mode only) ................................................... 43

Firewall (Router Mode only) ........................................................... 43

IP Filter (Router Mode only) ........................................................... 44

VPN Pass Through (Router Mode only) ........................................ 45

LAN Cong .............................................................................. 46

Port Forwarding (Router Mode only) .............................................. 46

DMZ (Router Mode only) ............................................................... 48

UPnP (Router Mode only) .............................................................. 48

QoS (Router Mode only) ................................................................ 49

Admin Cong ........................................................................... 50

Name ............................................................................................. 50

Password ....................................................................................... 51

Time/Date ...................................................................................... 52

NTP ................................................................................................ 53

ECO ............................................................................................... 54

Access ........................................................................................... 56

Log ................................................................................................. 57

Save/Restore ................................................................................. 58

Initialize/Restart ............................................................................. 59

Update ........................................................................................... 60

Diagnostic ............................................................................... 61

System Info .................................................................................... 61

Logs ............................................................................................... 63

Packet Info ..................................................................................... 64

WBMR-HP-GNV2 User Manual 3

Client Monitor ................................................................................. 65

Ping ................................................................................................ 66

DSL Connection ............................................................................. 67

Chapter 5 - Connect to a Wireless Network ...................68

Automatic Secure Setup (AOSS/WPS) ................................... 68

Windows 7/Vista (Client Manager V) ............................................. 69

Windows XP (Client Manager 3) .................................................... 70

Other Devices (e.g. Game Console) .............................................. 70

Manual Setup .......................................................................... 71

Windows 7 (WLAN AutoCong) ..................................................... 71

Windows Vista (WLAN AutoCong) ............................................... 72

Windows XP (Wireless Zero Conguration) ................................... 75

Mac OS X (AirPort) ........................................................................ 76

Chapter 6 - Trouble Shooting ..........................................77

Cannot connect to the Internet over wired connection. ........... 77

Cannot access the web-based conguration utility. ................ 77

Cannot connect to the network wirelessly. .............................. 78

You forgot AirStation’s SSID, Encryption Key, or Password. ... 78

The link speed is slower than 150 Mbps (Maximum link speed is

only 65 Mbps). ......................................................................... 78

Other Tips ................................................................................ 79

Appendix A - Specications ............................................81

Appendix B - Default Conguration Settings ................ 82

WBMR-HP-GNV2 User Manual 4

Appendix C - TCP/IP Settings ..........................................87

Windows 7 ............................................................................... 87

Windows Vista ......................................................................... 88

Windows XP ............................................................................ 89

Mac OS X ................................................................................ 90

Appendix D - Restoring the Default Conguration .......91

Appendix E - Regulatory Compliance Information ........92

Appendix F - Environmental Information .......................96

Appendix G - GPL Information ........................................97

Appendix H - Warranty Information ................................98

WBMR-HP-GNV2 User Manual 5

Chapter 1 - Product Overview

Features

Supports IEEE802.11n and IEEE802.11b/g

With support for current Wireless-N, Wireless-G, and Wireless-B standards, the AirStation can transfer

data to and from all standard 2.4 GHz wireless clients.

Dual speed mode

Dual speed mode makes wireless transmission faster by using 2 channels, allowing 150 Mbps data

transmission.

Support AOSS and WPS

Both AOSS (AirStation One-touch Secure System) and WPS (Wi-Fi Protected Setup) are supported.

These automatic connection standards make connection with compatible wireless devices easier.

Security Features

The AirStation is equipped with following security features:

• AOSS

• WPS

• WPA-PSK (TKIP/AES)

• WPA2-PSK(TKIP/AES)

• WPA/WPA2 mixed PSK

• WEP(128-bit and 64-bit)

• Privacy Separator

• MAC address access restriction

• Deny Any Connection/SSID stealth feature

• Setting screen with password

• Firewall feature with easy rules

Automatic Channel Selection

Monitors wireless interference and automatically assigns the clearest, best channel.

Initialization

To restore settings back to the factory defaults, hold down the Reset button on the bottom of the

unit.

Browser Based Administration

This unit can be easily congured from a web browser on your computer.

WBMR-HP-GNV2 User Manual 6

Chapter 1 Product Overview

Air Navigator CD Requirements

The AirStation wireless router and access point works with most wired and wireless devices.

However, the automatic installation program on the CD requires a connected Windows 7, Vista or

XP computer to run. If you use the AirStation with a dierent operating system, you will have to

congure your network settings manually from a browser window.

150 Mbps High Speed Mode

150 Mbps is the link speed when using Wireless-N mode. It represents actual wireless data speeds,

including overhead. Because the overhead is not available for user data transfer, usable wireless

throughput will be substantially slower.

Package Contents

The following items are included in your AirStation package. If any of the items are missing, please

contact your vender.

• WBMR-HP-GNV2 ..........................................................................................................................1

• Detachable antenna...................................................................................................................1

• AC adapter .....................................................................................................................................1

• Stand for vertical/horizontal/wall-mounting ....................................................................1

• Screws for wall-mounting ........................................................................................................2

• LAN cable .......................................................................................................................................1

• DSL cable ........................................................................................................................................ 1

• Air Navigator CD .......................................................................................................................... 1

• Quick Setup Guide ...................................................................................................................... 1

Chapter 1 Product Overview

WBMR-HP-GNV2 User Manual 7

Hardware Overview

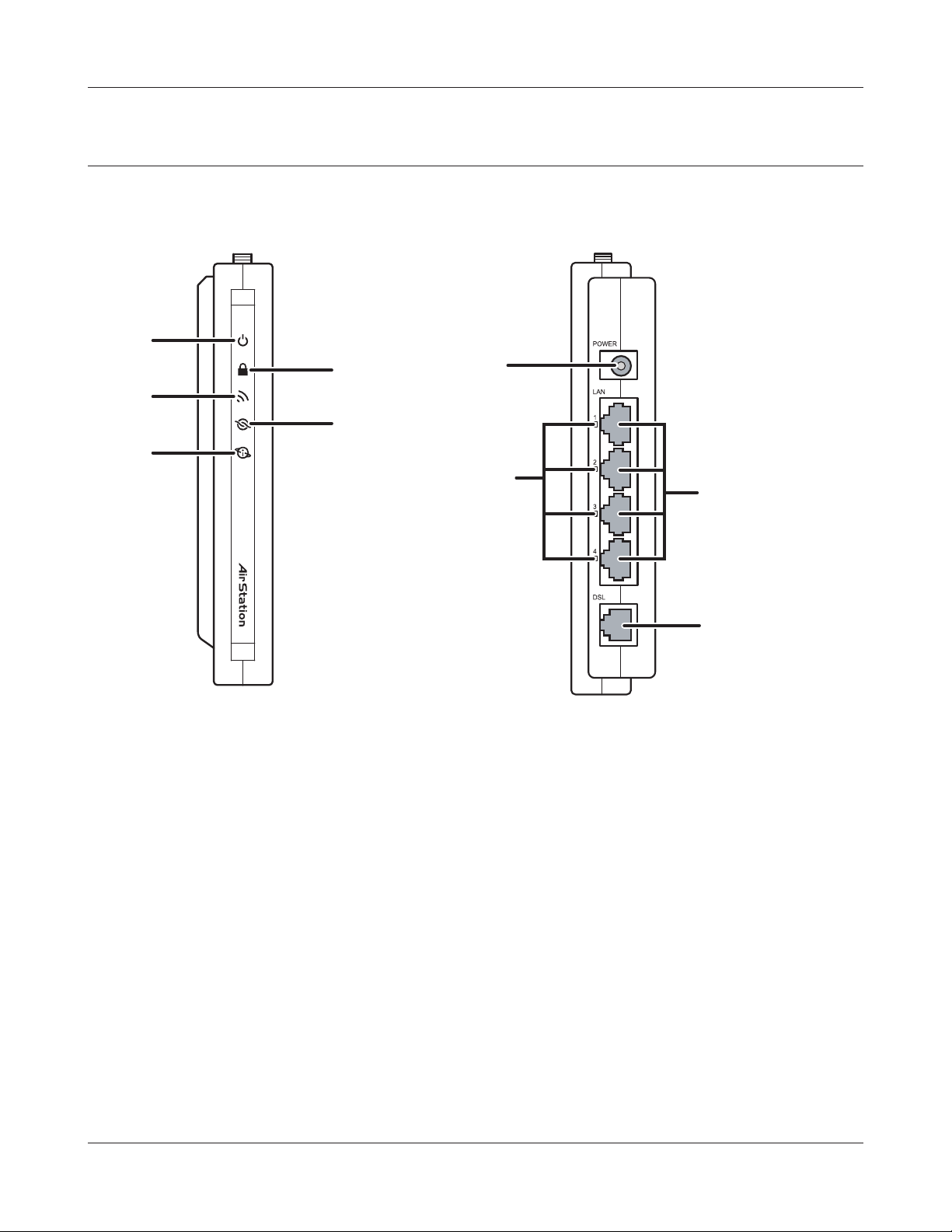

Front Panel LEDs / Back Panel

1Power LED

On (Green) : The AC adapter is connected.

O (Green) : The AC adapter is not connected.

Shows AirStation status.

2 blinks (Red) *1 : Flash ROM error.

3 blinks (Red) *1 : Wired Ethernet LAN error.

4 blinks (Red) *1 : Wireless LAN error.

5 blinks (Red) *1 : Network error.

9 blinks (Red) *1 : System error.

Continuously

blinking (Red) *2 :

Updating rmware, saving settings, or initializing settings.

WBMR-HP-GNV2 User Manual 8

Chapter 1 Product Overview

*1 Turn o AirStation rst, wait for a few seconds, then turn it back on.

*2 If the Power LED keeps blinking, do not turn o the AirStation nor unplug its power

cable.

2Security LED (Amber)

Indicates security status.

O : AOSS or Encryption is not set.

On : AOSS/WPS activated; accessed to exchange security keys.

Encryption has been set.

2 blinks : The unit is waiting for an AOSS or WPS security key.

Blinking : AOSS/WPS error; failed to exchange security keys.

Note : The Security LED is lit if an encryption key has been set.

3Wireless LED (Green)

Indicates wireless LAN status.

On : Wireless LAN is transmitting.

O : Wireless LAN is not active.

4DSL LED (Green)

Indicates DSL status.

On : The DSL port is connected.

5Internet LED

Indicates Internet status.

On (Green) : Connected to Internet

Blinking (Green) : Communicating over Internet

On (Red) : Not connected to Internet

O : Operating in bridge mode

6DC Connector

Connect the included AC adapter here.

7LAN LED (Green)

On : An Ethernet device is connected.

Blinking : An Ethernet device is communicating.

8LAN Port

Connect your computer, hub, or other Ethernet devices to these ports. This switching hub

supports 10 Mbps, 100 Mbps connections.

9DSL Port

Connect your ADSL line to this port.

Chapter 1 Product Overview

WBMR-HP-GNV2 User Manual 9

Top

10 AOSS Button To initiate AOSS, hold down this button until the Security LED ashes

(about 1 second). Then, push or click the AOSS button on your wireless

client device to complete the connection. Both devices must be powered

on for this to work.

11 Antenna connector Screw on the antenna here.

Tabla de contenidos

Otros manuales de Enrutador de red de Buffalo

Buffalo

Buffalo WCR-HP-GN Manual de usuario

Buffalo

Buffalo WCR-GN Manual de usuario

Buffalo

Buffalo AirStation WZR-RS-G54 Instrucciones de instalación y funcionamiento

Buffalo

Buffalo AirStation NFINITI WHR-HP-G300N Manual de usuario

Buffalo

Buffalo WZR-D1800H Manual de usuario

Buffalo

Buffalo AirStation WZR-600DHP Manual de usuario

Buffalo

Buffalo WMR-300 Manual de usuario

Buffalo

Buffalo AirStation Turbo G WHR-HP-G54 Manual de usuario

Buffalo

Buffalo AirStation WZR-600DHP2 Manual de usuario

Buffalo

Buffalo AirStation WHR-HP-G125 Manual de usuario

Buffalo

Buffalo AirStation WLAR-L11-L Manual de instrucciones

Buffalo

Buffalo AirStation HighPower WBMR-HP-GNV2 Manual de usuario

Buffalo

Buffalo AirStation Nfiniti WZR-HP-AG300H Manual de usuario

Buffalo

Buffalo AirStation NFINITI WHR-HP-G300N Manual

Buffalo

Buffalo AirStation WHR-G54S Manual de usuario

Buffalo

Buffalo AIRSTATION WHR-1166D Manual de servicio

Buffalo

Buffalo WBMR-HP-GN Manual de usuario

Buffalo

Buffalo AirStation WXR-1900DHP Manual de usuario

Buffalo

Buffalo AirStation NFINITI WHR-HP-G300N Manual de usuario

Buffalo

Buffalo AirStation WZR-600DHP2 Manual de usuario

Buffalo

Buffalo AirStation NFINITI High Power WHR-300HP Manual de usuario

Buffalo

Buffalo AirStation WZR-1750DHP Manual de usuario

Buffalo

Buffalo AirStation Manual de usuario

Buffalo

Buffalo AirStation WBR2-G54 Manual de usuario

Manuales populares de Enrutador de red de otras marcas

Allnet

Allnet ALL0333AU Manual de usuario

HomeSeer

HomeSeer HT-SEL Manual de usuario

Sercomm

Sercomm Genesis OC3505D Manual de usuario

Billion

Billion BIPAC 5102 Series Manual de usuario

TP-Link

TP-Link TD-8817 Manual de usuario

Motorola

Motorola MR1900 Manual de usuario

Digi

Digi IX14 Manual de usuario

Cisco

Cisco NCS 540 Manual

XAVi

XAVi X8821e Manual de usuario

BEC

BEC 6200WZL Manual de usuario

MikroTik

MikroTik hAP ac3 Series Manual de usuario

Korenix

Korenix JetNet 5428G Series Manual de usuario

NETGEAR

NETGEAR FS526T - Switch Manual de usuario

Korenix

Korenix JetNet 5710G Series Manual de usuario

Automated Logic

Automated Logic ZN551 Manual del propietario

Cisco

Cisco ASR 1000 Series Manual del operador

EnGenius

EnGenius ESR-9710 Manual de usuario

Cisco

Cisco 805 Series Instrucciones de funcionamiento y seguridad
