Buffalo WLI-U2-AG108HP Manual de usuario

www.buffalotech.com v1.2

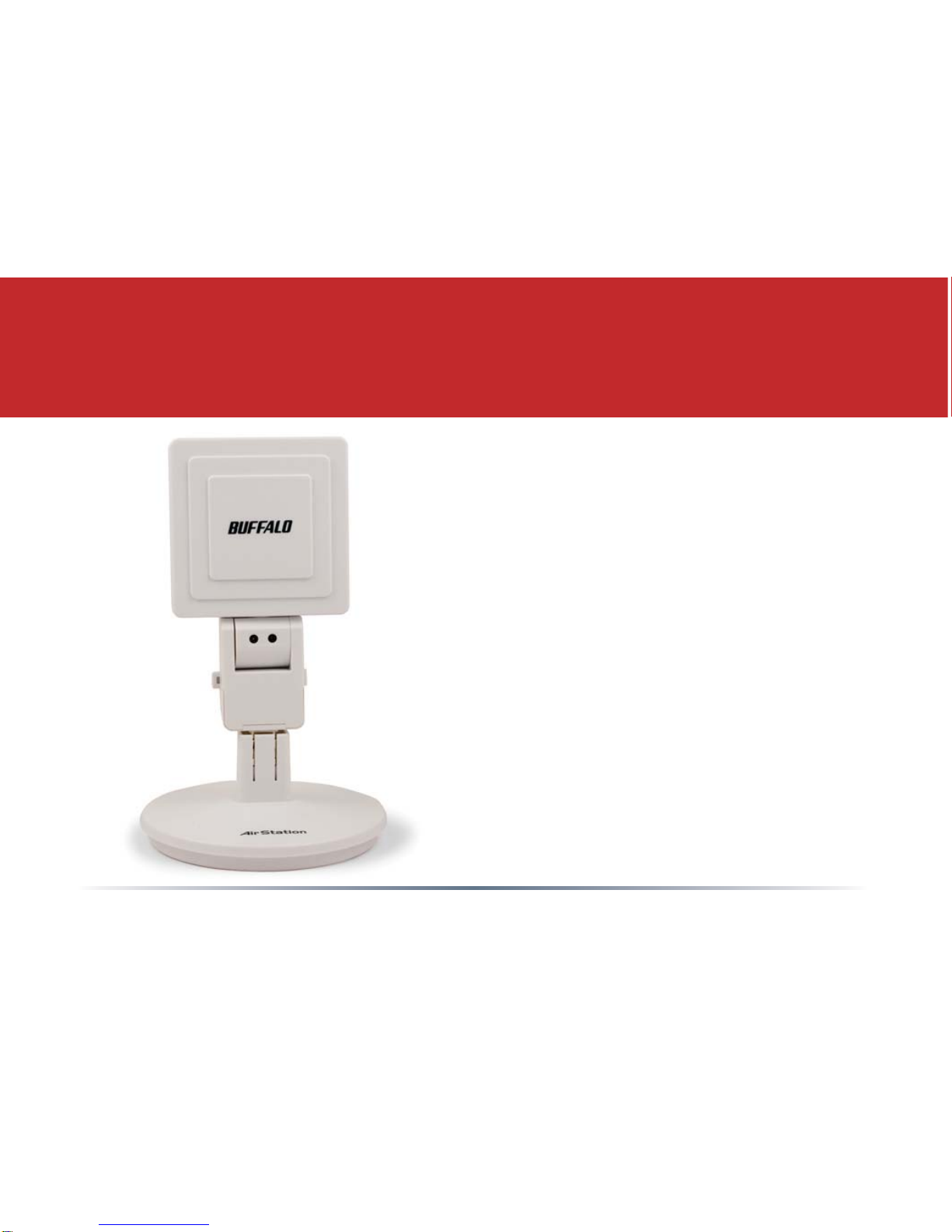

Quick Start Guide - AirStation WLI-U2-AG108HP

High Power Dual A+G Wireless USB 2.0 Adapter

Congratulations on your purchase! The AirStation WLI-U2-AG108HP High-Power Dual

A+G Wireless USB 2.0 Adapter connects to both 2.4ghz 802.11g and b networks as well as

5ghz 802.11a networks.

System Requirements

• A compatable A, B, or G band access point.

• A PC running Windows XP, 2000, ME, or 98se.

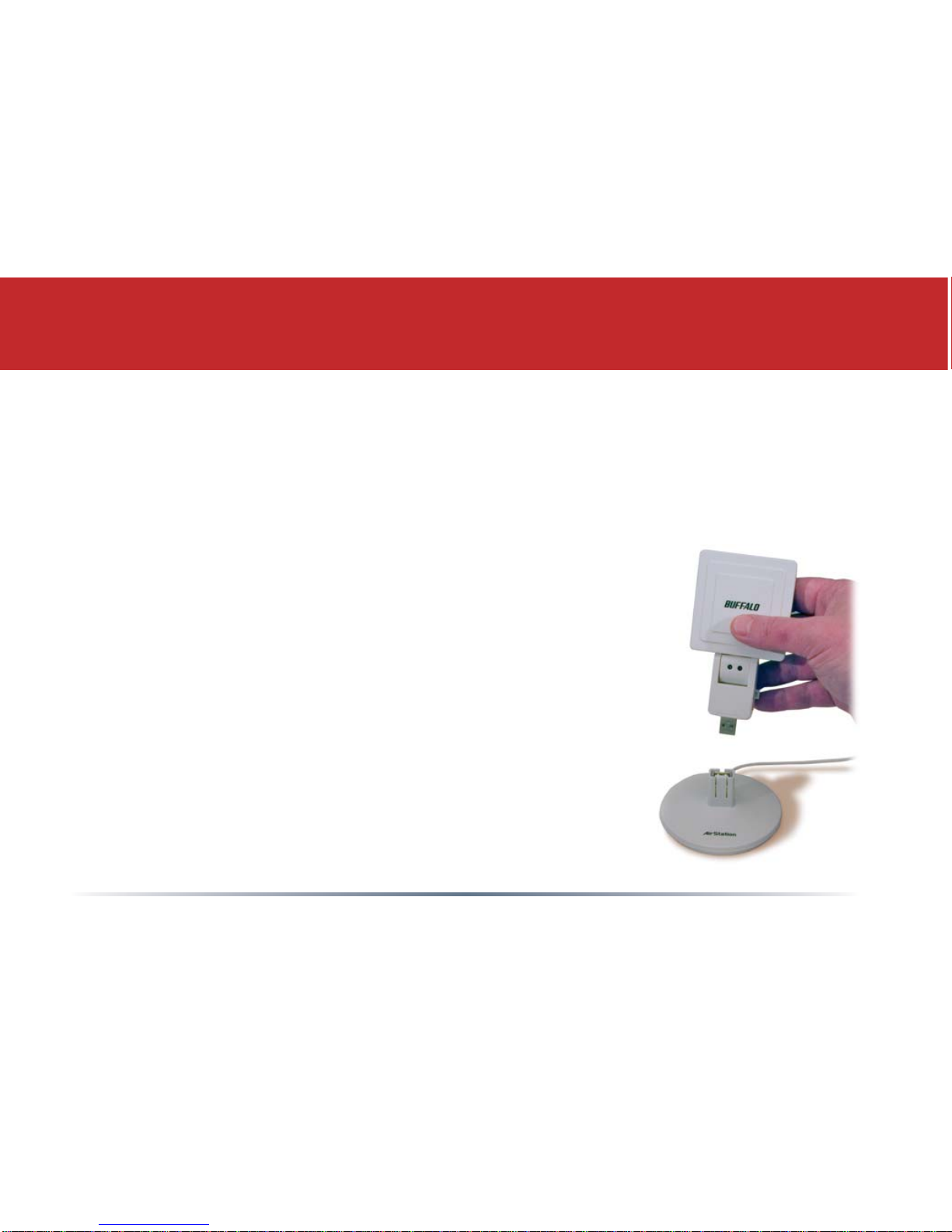

Package Contents

•WLI-U2-AG108HP USB Adapter

•Stand

•5 foot USB Cable

•Utility CD with Manual

•Quick Setup Guides

•Warranty Statement

Introduction

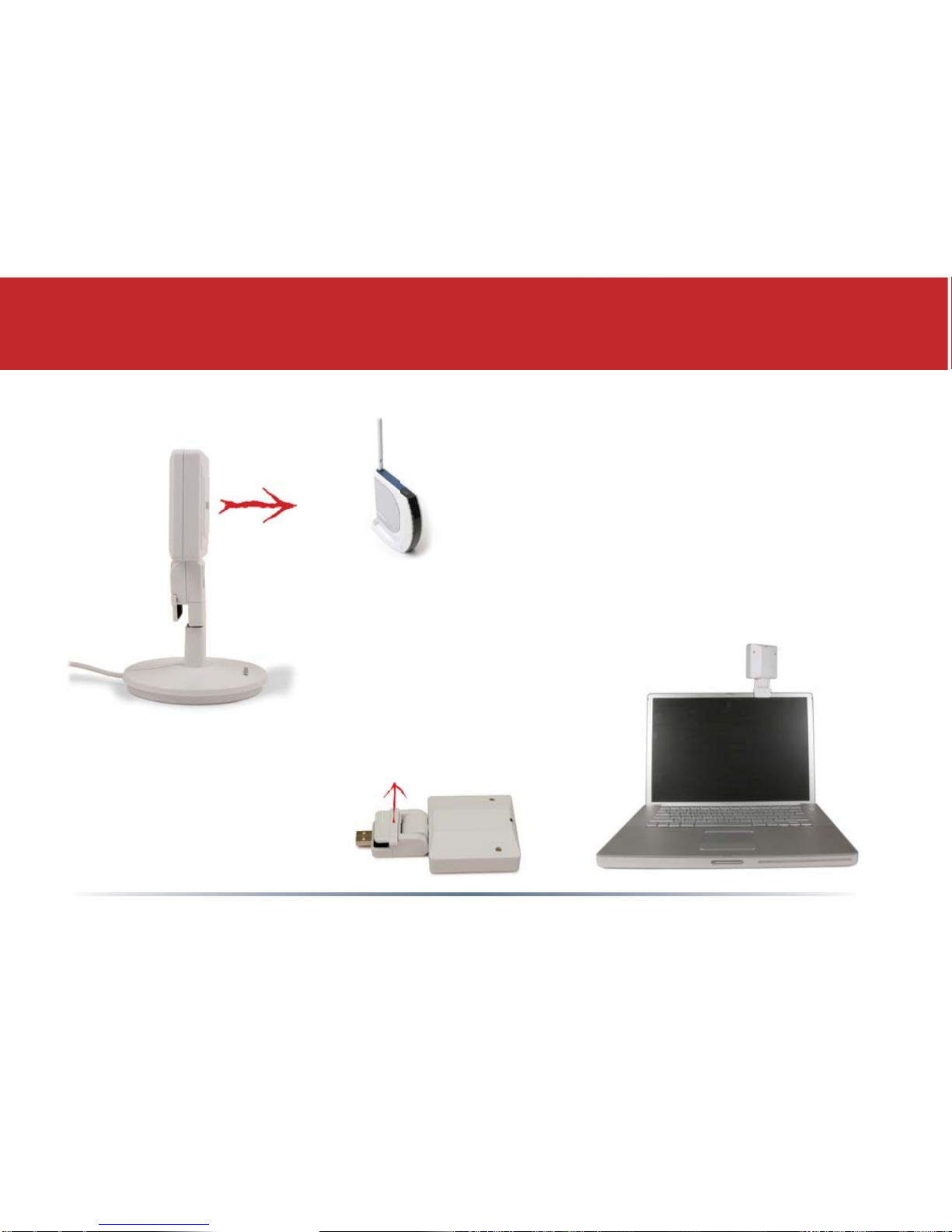

Antenna

The WLI-U2-AG108 includes a directional

antenna. For best performance, point the

antenna so that the word “BUFFALO” on the front

faces your access point.

The WLI-U2-AG108 may also be removed from

its stand and clipped to the top of your notebook

computer. Lift the tabs gently to open the clamp,

and slip the unit onto the edge of your computer

screen.

Getting Started

1. Installing Drivers:

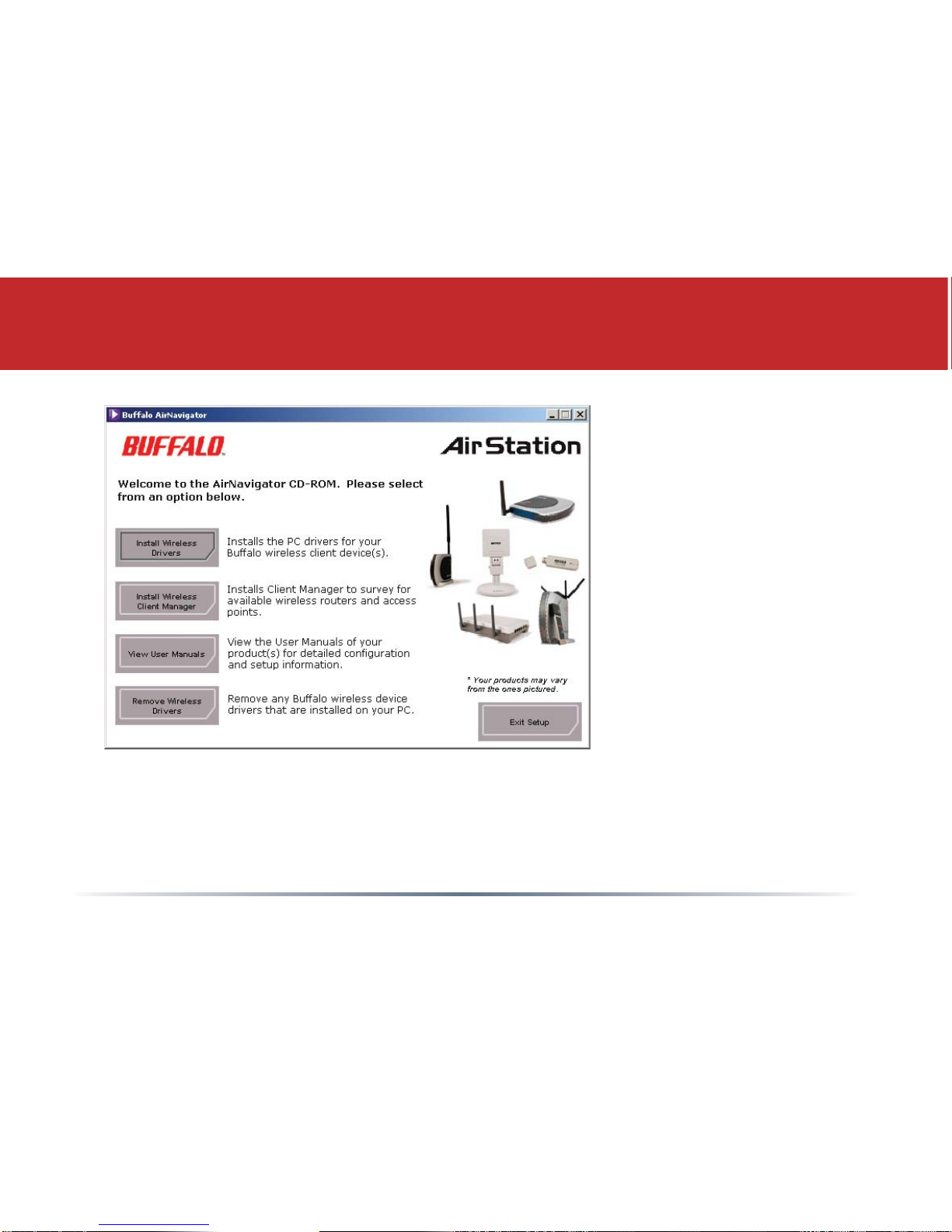

Insert the AirNavigator CD into the CD-ROM drive of the PC.

If setup.exe does not launch

automatically, click Start

and select Run. Enter

D:\Setup.exe in the Open

ﬁeld, where D: is the letter

assigned to your CD-ROM.

Click the OK button to

launch the wizard.

Select Install Wireless

Drivers. Click OK.

The wireless driver

installation program

will begin. Press NEXT

and follow the on screen

prompts.

AirNavigator

Installing Drivers

2. Installing the Wireless USB Adapter with Windows XP:

Once the driver ﬁles have been installed, your computer will prompt you to insert

your wireless adapters. At this point, please plug the Wireless USB Adapter into your

computer.

The setup should automatically complete. If it automatically ﬁnishes the install, then

skip to Page 8, otherwise, Select Install the software automatically. Click the Next button.

Installing Drivers

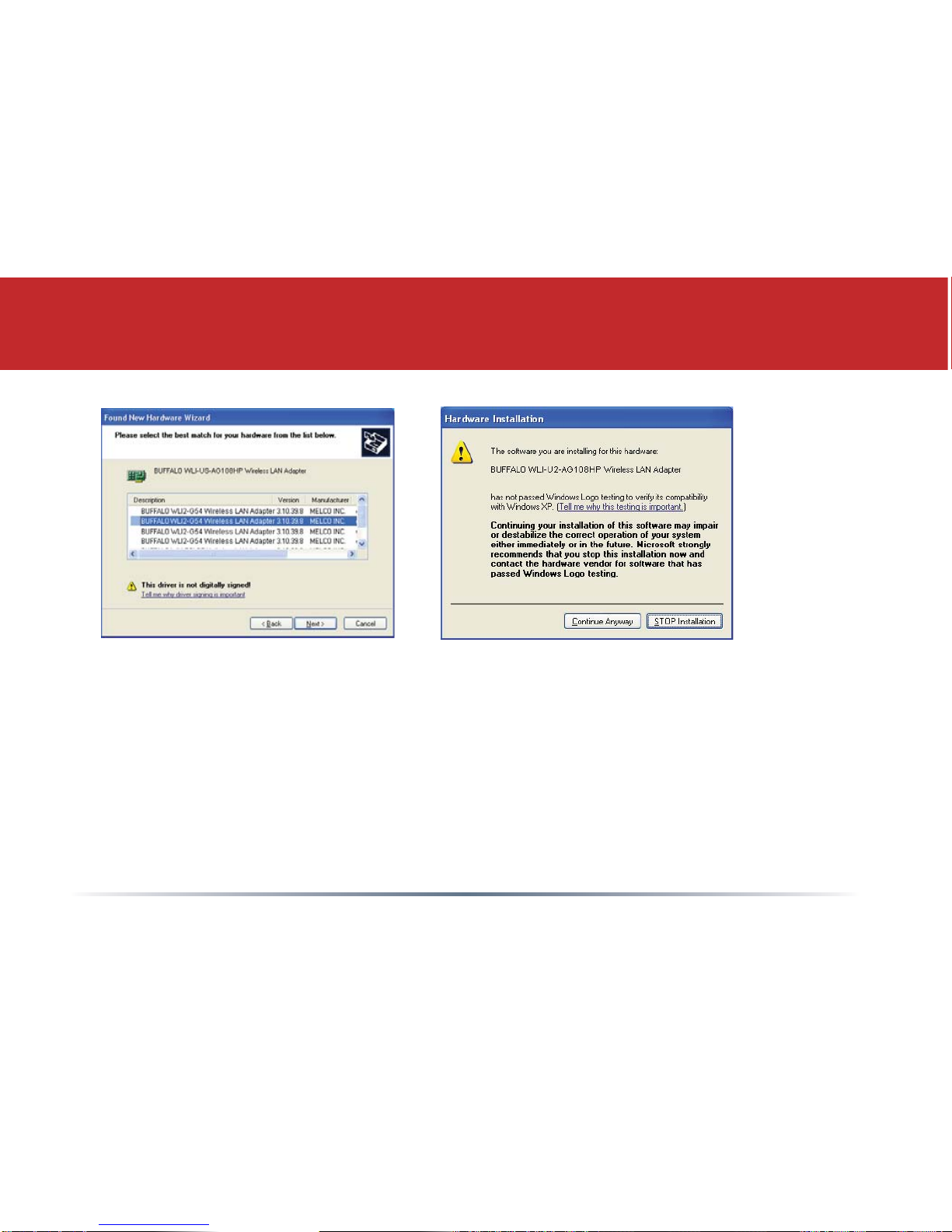

A list of drivers will appear. Choose WLI-U2-AG108HP from the list and click Next .

If Windows warns you that this driver does not pass Windows Logo testing, click Continue

Anyway. When installation is ﬁnished, click Finish. Restart your PC if prompted.

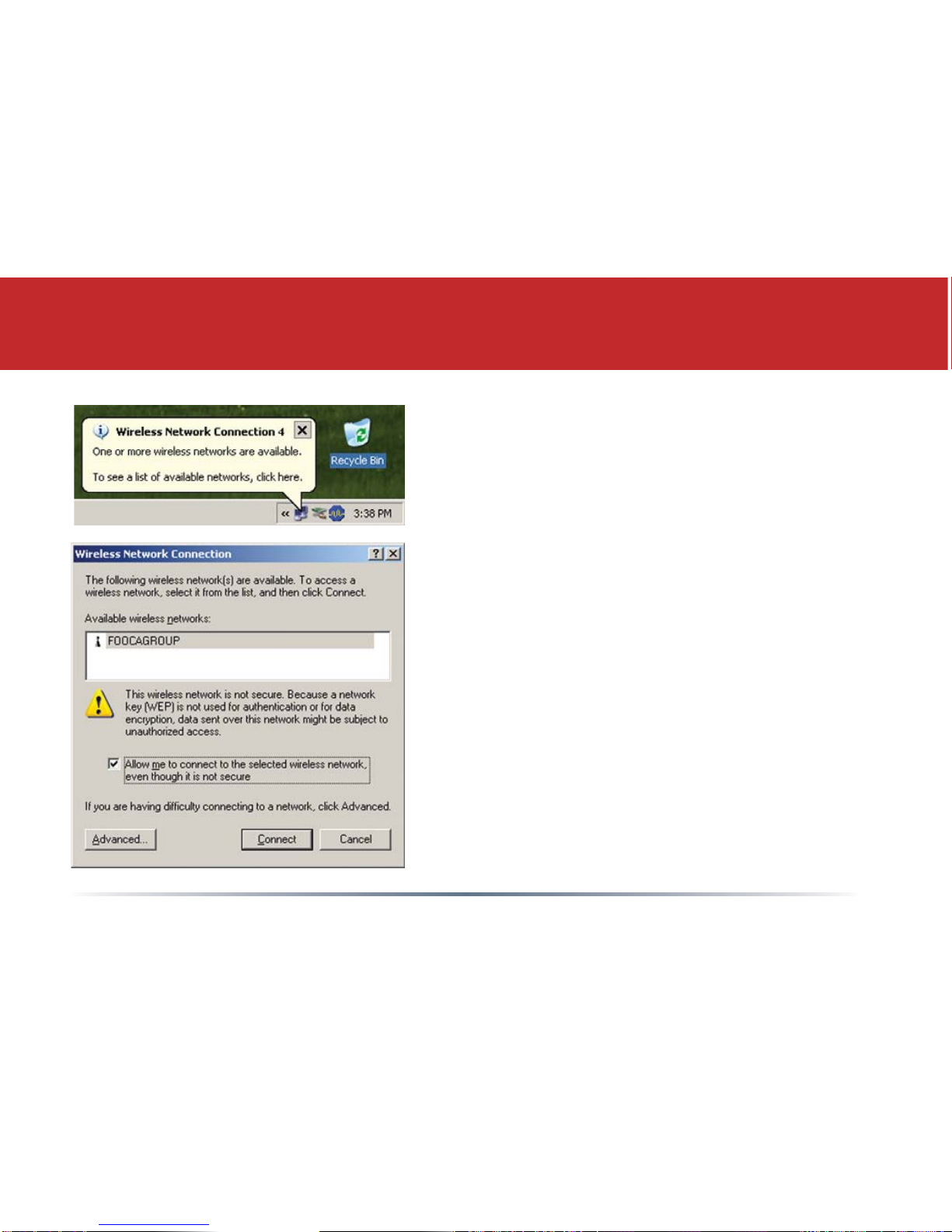

3. Using Wireless Zero Conﬁguration:

Normally, Windows XP will scan for available wireless

access points once the Wireless Notebook Adapter

is installed. If Windows detects an access point, a

networking icon appears on the task bar. One or more

wireless networks are available appears as a caption

accompanying the icon.

Notes: If Wireless Zero Conﬁguration is not running,

click Start>Control Panel>Administrative Tools>Services.

Select Automatic in the Startup Type ﬁeld of the Wireless

Zero Conﬁguration Service to start it.

If you don’t want to use Wireless Zero Conﬁg and

would rather use Buffalo’s client utility, or if you have a

Windows 98 or 2000 computer, turn to page 12.

Right click the networking icon in the taskbar and select

View Available Wireless Networks to display a list of

available wireless networks. Select a network and click

Connect.

If the network that you are connecting to is unsecured,

you may need to check the box allowing you to connect

to an unsecured network.

Wireless Zero Conﬁguration

Click the Advanced button to enter an SSID network name or WEP/WPA encryption key

manually. To add an SSID network name that is not listed, click the Add button.

Connecting

To enter an encryption key, select the appropriate

wireless network and click the Conﬁgure button.

From the pull down menu, select the appropriate type

of Data encryption for the wireless network. Enter

and conﬁrm the Network Key (encryption key). Click

the OK button when ﬁnished.
