1
®
Quick Setup Guide
54Mbps Wireless Notebook Adapter-g
WLI-CB-G54A
Use this guide to quickly and easily install your
Wireless Notebook Adapter-g.For
detailed setup and configuration information,
refer to the User Manual, located on the
AirNavigator Utility CD or the BuffaloWireless
SupportWeb Page.
Contents
◗ Wireless Notebook Adapter-g
◗AirNavigator CD
◗Quick Setup Guides
◗Warranty Statement
If any items are missing, please contact
the reseller from whom you purchased
this product.
System Requirements
◗Notebook PC with an available
32-bit CardBus slot
◗10 MB of available disk space
(with Client Manager)
◗802.11b or 802.11g access point
(Infrastructure Mode) OR a different
computer with an 802.11b or 802.11g
wireless adapter (Ad-hoc Mode).
◗Windows XP : Refer to the
Windows XP section of Installing
and Configuring the Wireless
Notebook Adapter-g to install your
Wireless Notebook Adapter-g.
◗Windows 98se/ ME/2000: Refer to
the Windows 98se/ME/2000
section of Installing and
Configuring the Wireless
Notebook Adapter-g to install your
Wireless Notebook Adapter. Once
you successfully install your
Wireless Notebook Adapter,
continue your setup by referring
to the Installing Client Manager
section of this guide.
www.buffalotech.com/wireless
PY00-29003-DM20 RevA
Step Installing the
Wireless Notebook Adapter
Insert the Wireless Notebook
Adapter, with the Buffalo logo
facing up, into an available
CardBus slot. CardBus slots are
usually located on the left or
right side of the notebook. Once
the Wireless Notebook Adapter
is installed correctly, the Found
New Hardware Wizard will
launch automatically. If the Found
New Hardware Wizard does not
launch, remove the Wireless
Notebook Adapter and restart
the notebook. Re-insert the
Wireless Notebook Adapter
once the notebook has rebooted.
Insert the AirNavigator CD
Select Install the software
automatically.
Click the Next button.
NOTE: If AutoRun is enabled,
exit out of the automatic
Software Installation.
2
Windows XP
Installation & Configuration
Select the driver you
want to install. If multiple
drivers are listed, select the
most recent driver version.
Click the Next button.
NOTE: If prompted to
select a search location, un-
select all checkboxes except
for the CD-ROM drive
If a window opens, stating
that your driver does not
pass Windows Logo testing,
click the Continue Anyway
button. When the Wireless
Notebook Adapter is
successfully installed, click
the Finish button. Restart
your notebook if prompted.
3
4
Step Configuring Wireless
Zero Configuration Service
If the Wireless Zero Config-
uration Service is activated,
Windows will scan for available
wireless access points once the
Wireless Notebook Adapter is
properly installed. If Windows
detects one or more access
points, a networking icon
appears in the taskbar. One or
more wireless networks are
available appears as a caption
accompanying the icon.
Right click the networking
icon in the taskbar and select
View Available Wireless
Networks to display a list of
available wireless networks.
(See step 2C if you need to
enter an ESS-ID network
name or WEP/WPA encryption
key.) Select an access point
network name or ESS-ID and
click the Connect button to
establish a connection.
Note: If the Wireless Zero Configuration Service is not functioning, select Start
» Control Panel » Administrative » Tools » Services. Select Automatic
in the Startup type field to enable the Wireless Zero Configuration Service.The
default value is Automatic.
5
Select a network name or access
point and click the Advanced button
to enter an SSID and/or
WEP/WPA/WPA-PSK encryption
key into the appropriate field, if
any is necessary and click the
Connect button.
WPA requirements
Windows XP users must use the
Wireless Zero Configuration Service
with Service Pack 1 (SP1) and the WPA
patch installed. This software can be
downloaded from:
http://www.microsoft.com.
WIndows 98SE/2000/ME users
require a third-party WPA supplicant
such as Odyssey by Funk Software. For
more information visit:
http://www.funk.com
You have finished installing your Wireless Notebook Adapter-g. See Installing
Client Manager to install Client Manager on your notebook. Client Manager will
not function properly if the Wireless Zero Configuration Service is activated. For
more information about configuring and operating your Wireless Notebook
Adapter-g and Client Manager, refer to the Buffalo Support Web Site:
http://www.buffalotech.com/wireless/support/index.php.
For more information about the Wireless Zero Configuration Service, refer to the
Microsoft Support Web Site: http://www.microsoft.com
NOTE: Buffalo Technology recommends that users of the Wireless Zero
Configuration Service upgrade to the latest version available free at
http://www.microsoft.com.
6

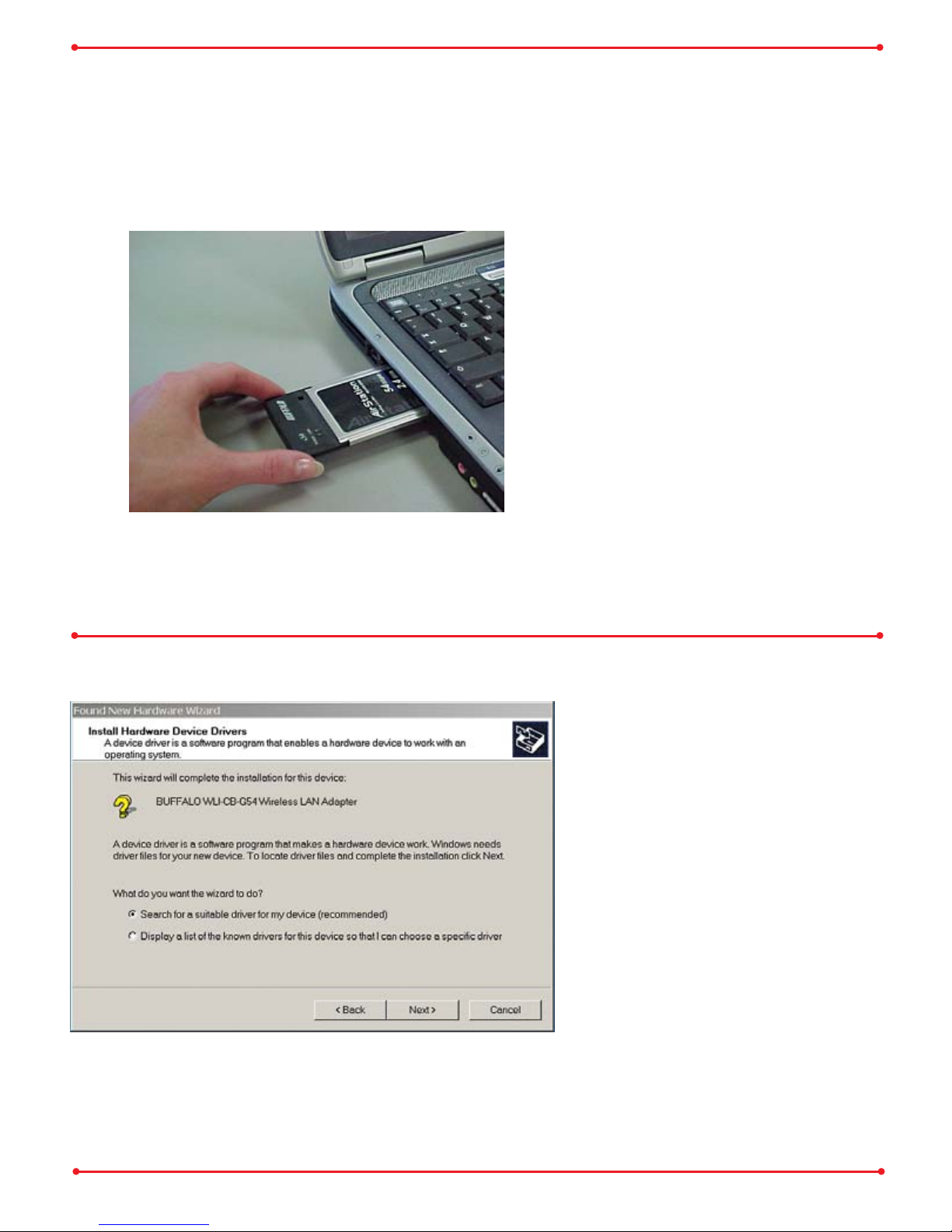

Step Installing theWireless
Notebook Adapter-g
Insert the Wireless Notebook
Adapter, with the Buffalo logo
facing up, into an available
CardBus slot. CardBus slots are
usually located on the left or right
side of the notebook. Once the
Wireless Notebook Adapter is
installed correctly, the Found
New Hardware Wizard will
launch automatically. If the Found
New Hardware Wizard does not
launch, remove the Wireless
Notebook Adapter and restart the
notebook. Re-insert the Wireless
Notebook Adapter once the
notebook has rebooted.
Insert the AirNavigator CD
Select Search for a suitable
driver for my device. Click the
Next button to continue to the
Locate Driver Files page.
NOTE: If AutoRun is enabled,
exit out of the automatic
Software Installation.
Windows 98SE/2000/ME
Installation & Configuration
7
Verify that no Optional
search locations are
selected. Clear any
checkboxes that are selected
except for the CD-ROM
drive. Click the Next button
to continue to the Driver
Files Search Results page.
Windows will display a
driver you can use with the
Wireless Notebook Adapter.
Click the Next button to
continue the installation
process.
Windows 2000: If the
Digital Signature Not
Found page opens, informing
you that no digital signature
exists for the driver you are
installing, click the Yes button
to continue the installation
process. When the Wireless
Notebook Adapter is
successfully installed, click the
You have finished installing your Wireless Notebook Adapter-g. See Installing
Client Manager to install Client Manager on your notebook.
8
Installing Client Manager
Insert AirNavigator CD-ROM
The AirNavigator dialog
box will open automatically. If
the AirNavigator dialog box
does not open automatically,
select Start»Run and enter
D:\Setup.exe in the Open field
to open the dialog box manually.
D: represents the letter assigned
to the CD-ROM drive. If another
letter is assigned to the CD-
ROM drive, your command
should reflect that difference.
Click the OK button. Select
Install Client Manager to
launch the InstallShield Wizard.
Once the InstallShield
Wizard launches, click the Next
button to begin the software
installation.
Client Manager is used to associate a Buffalo Wireless Client Card or
Adapter to an access point.
Note: Client Manager does not function properly if the Windows XP
Wireless Zero Configuration Service is enabled.
If you plan to use XP’s Wireless Zero Configuration Ser vice, do not install
Client Manager.
9
Confirm that the installation
location for the software is
acceptable. To select an alternate
installation location, click the
Browse button and select another
location. Click the Next button to
continue to the Select
Components page.
Select the components you
want to install and click the
Next button to continue to the
Start Copying Files page.
Click the Next button to begin
copying the necessary files to install
Client Manager.
10
Depending on the operating system, some screens may vary from those shown in
this guide. However, by accepting default installation settings, Client Manager should
properly install. For more information about configuring and operating your
Wireless Notebook Adapter-g and Client Manager, refer to the Buffalo Support
Web Site: http://www.buffalotech.com/wireless/support/index.php.
In order to utilize WPA, users currently require XP’s Wireless Zero Configuration
Service.
WIndows 98SE/2000/ME users require a third-party WPA supplicant such as
Odyssey by Funk Software. More information can be found at :
http://www.funk.com
Click the Yes button, when
prompted, to add a shortcut for
Client Manager to your Windows
Startup menu. If you click the Yes
button, Client Manager will run at
startup.
Click the Finish button to
complete the installation of Client
Manager. Restart your notebook.
Note: The Wireless Notebook
Adapter and Client Manager will not
function properly until you reboot
the system.
NOTE: Users who frequently change profiles should not add Client Manager
to the Start-up Group.
