BUDGIT®

INSTRUCTIONS AND PARTS LIST

BUDGIT®HEAVY DUTY RIGID MOUNT

I-BEAM AND PATENTED TRACK TROLLEYS

(PUSH & HAND GEARED - 1/2 THRU 6 TON RATED LOADS)

12689

Figure 1.

GENERAL

BUDGITHeavyDutyRigidMountTrolleysaredesignedespecially

for use with BUDGIT Coil Chain Model Electric Hoists, Series

2000 Air Hoists, Series 6000 Air Hoists, and USA Hand Chain

Hoists. They attach directly to suspension lugs of lug mounted

model hoists, or, are used in combination with special BUDGIT

Suspension Lugs to convert hook suspended model hoists for

rigid mount trolley suspension. Instructions for installing lugs are

not include herein. They are provided with suspension lug kits.

Trolleys are shipped partially disassembled to make it

unnecessary to take them apart before mounting on hoist. This

also makes it easier to properly adjust the trolleys to fit the

particular beams on which they are to operate. Trolleys must be

correctly fitted to properly support the rated load.

Your new BUDGIT Heavy Duty Rigid Mount Trolley can be

assembled to your BUDGIT Coil Chain Electric Hoist, Series

2000 Air Hoist, Series 6000 Air Hoist, or USA Hand Chain Hoist,

and the complete unit then installed on its monorail beam with a

minimum of effort by following the directions given herein.

Patentedtracktrolleys aredesignedto operateonpatentedtrack

with a 3-1/4" wide flange.

THE INFORMATION CONTAINED IN THIS MANUAL IS FOR

INFORMATIONAL PURPOSES ONLY AND LIFT TECH DOES

NOT WARRANT OR OTHERWISE GUARANTEE (IMPLIEDLY

OR EXPRESSLY) ANYTHING OTHER THAN THE

COMPONENTS THAT LIFT TECH MANUFACTURES AND

ASSUMES NO LEGAL RESPONSIBILITY (INCLUDING, BUT

NOT LIMITED TO CONSEQUENTIAL DAMAGES) FOR

INFORMATION CONTAINED IN THIS MANUAL.

For Coil Chain BUDGIT Electric Hoists, Series 2000 Air Hoists,

Series 6000 Air Hoists, And USA Hand Chain Hoists.

12688

ASSEMBLY OF TROLLEY TO HOIST

Placehoistonworkbench,suspensionlugfacingup,andproceed

as follows:

1.Iftrolleyisahandgearedtyperated2tonsorless,makecertain

that proper size anti-tilt roller is installed on inside of one side

plate before assembling trolley to hoist. Two rollers are provided

witheachhandgearedtrolleytoaccommodatefullrangeofbeam

sizesthattrolleyisdesignedfor.Asmallroller,suitableforI-beam

sizes of 10" up to largest specified for trolley, has been pre-

installed by the factory. If trolley is to operate on an I-beam

smaller than 10", substitute the larger roller, which is shipped

loose, by removing the outer “C” ring and replacing the smaller

roller. For other than standard I-beams, measure beam flange

thickness and allow not less than 1/16" clearance between roller

and bottom of beam flange.

2.Before attachingtrolley to hoist,first determineproper spacing

of trolley side plates to provide adequate wheel clearance

(approximately 1/8") on both sides of I-beam, between inside

faces of wheel flanges and edges of bottom beam flange. Proper

spacing is obtained by varying number of spacer washers

(furnished with trolley), which are installed on suspension cross

pins, between suspension lug and trolley side plates.

3. Due to manufacturing tolerances, I-beams having the same

size designation may vary in the width of their flanges. This

makes it impossible to prescribe the specific number of spacer

washers required between trolley side plates and lug for any

Notice: Since rigid mounting does not allow hoist to rotate

with pull of load, Heavy Duty Rigid Mount Trolleys must not

be used with hoists having roller type load chain.

1 TON RATED LOAD HAND GEARED TROLLEY

1 TON RATED LOAD PUSH TYPE TROLLEY

Page 2

The numbers assigned to the parts of our various

assemblies in our parts list are not the part numbers

used in manufacturing the part. They are identification

numbers,thatwhengivenwiththetrolleymodelnumber,

permitustoidentify,selectormanufactureandshipthe

correct part needed for any trolley.

particular beam size. As a result the following procedure should

be followed:

4.Measureexactwidthofbottombeamflangeandadd1/4"tothis

dimension. This is the required distance between inside faces of

wheel flanges to obtain proper operating clearance, as indicated

in Figure 2.

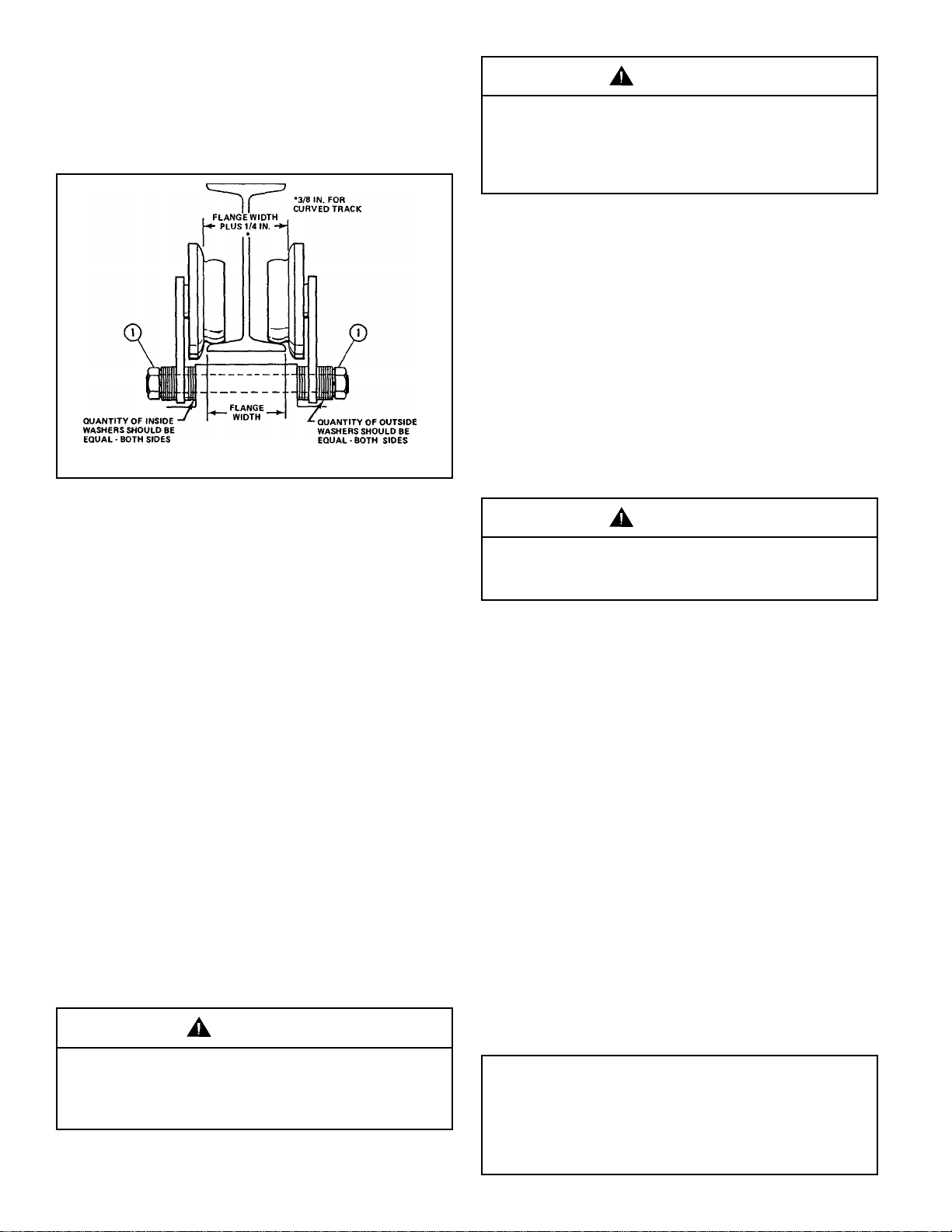

12207A

Figure 2. Sectional View of Trolley Showing

Proper Wheel and Washer Spacing.

5. An equal number of washers must be removed or added at

each end of lug (inside side plates) as required to obtain proper

wheel spacing determined in Step 4. When spacing is correct,

remaining spacer washers are to be installed in equal numbers

on outside ends of cross pins. Install lock-washers and tighten

hex nuts.

Note: It is important that all the spacer washers that come with

trolley be used.

SUSPENDING TROLLEY AND HOIST

1. On push type trolley models determine whether hoist is to be

suspendedwith frameparallel to runwaybeam orcross mounted

(90 degrees to beam). Refer to hoist manual for instructions on

suspension lug rotation.

2. On hand geared models the trolley is restricted to parallel

mounting on hoist frame because of the handwheel and chain.

Whenhoist chaincontainer isto beused, trolleyhand chainmust

be placed on side opposite tail chain of hoist (where chain

container is mounted).

3. Hoist and trolley may be installed on I-beam by one of two

methods. If trolley can be slipped directly over end of beam, it

need not be partially disassembled. If this is impossible, remove

hexnuts,lock-washers, outerspacerwashersandone sideplate

from one side of trolley and reassemble on beam.

OPERATING PRECAUTIONS

DO NOT load trolley beyond rated load.

DO NOT subject trolley to side loads. Always center trolley

over load when hoisting.

DO NOT ram trolley into end stops, other trolleys, or any

obstruction on beam. Improper and careless operation can

result in a hazardous condition for operator and load.

ALWAYSbesureloadisclearofobstructionbeforetraversing

load and trolley.

DONOT standand DONOT cause or allow others to standor

get under any load the trolley is supporting. DO keep clear,

and make sure others keep clear, of any load the trolley is

supporting.

MAINTENANCE AND LUBRICATION

1.BUDGITHeavyDuty RigidMountTrolleysare builttogivelong

service, but should be inspected periodically for evidence of

damage or wear, particularly when subjected to unusual severe

operating conditions.

2. Lubrication requirements:

a.Wheel bearings are permanently lubricated and require no

additional lubricant.

b.Drive wheel gears are to be lubricated with an open type

gear grease which is heavy, plastic, extreme pressure and

tacky; such as MOBILTAC 325 NC or equal.

REPLACEMENT PARTS

The following parts lists and illustrations cover standard model

BUDGITHeavyDutyRigidMountTrolleys.Typicalunitsareused

as the basis for the exploded parts illustrations; therefore certain

variations may occur from the parts information given. For this

reason always give the catalog number and model number .

Pins referred to in some column headings are trolley suspension

pins.

In all cases, after trolley and hoist have been installed on

I-beam, make sure a suitable stop is secured to each end of

beam to prevent trolley rolling off. Make certain lock-washers

are in place on cross pins and hex nuts are tight.

CAUTION

If trolley is mounted on an open-end beam, end stops

must be installed to prevent trolley from running off the

end of the beam,resulting in injury to operator and others,

including danger to life and limb and damages to load

and other property.

WARNING

These trolleys are not designed nor intended to be used

to support or transport people or for supporting or

transporting loads over people.

WARNING

Recheck clearance dimensions between wheel flanges and

beam flanges.

Page 3

3-1/8" c/c Pins 5" c/c Pins

Ref. Part Qty. Part Qty.

No. Description Number Req’d. Number Req’d.

1 Plate Assembly - Side

For 3" to 5" Flange Widths and Patented Track BT-1300 2 — —

For 5-1/8" to 7-1/4" Flange Widths BT-1301 2 — —

For 7-1/2" to 9-1/8" Flange Widths BT-1302 2 — —

For 3-5/8" to 6" Flange Widths and Patented Track — — BT-1303 2

For 6-1/4" to 8-5/8" Flange Widths — — BT-1304 2

For 8-7/8" to 11-1/4" Flange Widths — — BT-1305 2

2 Shaft-Wheel BT-1306 4 BT-1306 4

3 Bearing - Ball BT-1307 8 BT-1307 8

4 Ring - Retaining BT-1308 4 BT-1308 4

5 Wheel - Plain

Standard BT-1309 4 BT-1309 4

Patented Track BT-1310 4 BT-1310 4

Spark Resistant BT-1311 4 BT-1311 4

6 Ring - Retaining BT-1312 4 BT-1312 4

7 Lockwasher BT-1313 4 BT-1313 4

8 Nut - Hex Jam BT-1314 4 BT-1314 4

9 Nut - Hex Jam BT-1315 4 BT-1314 4

10 Lockwasher BT-1316 4 BT-1313 4

11 Washer-Spacer BT-1317 56 BT-1318 36

12 Pin - Suspension

For 3" to 5" Flange Widths and Patented Track BT-1319 2 — —

For 5-1/8" to 7-1/4" Flange Widths BT-1320 2 — —

For 7-1/2" to 9-1/8" Flange Widths BT-1321 2 — —

For 3-5/8" to 6" Flange Widths and Patented Track — — BT-1322 2

For 6-1/4" to 8-5/8" Flange Widths — — BT-1323 2

For 8-7/8" to 11-1/4" Flange Widths — — BT-1324 2

Figure 3. Push Type Rigid Mount Trolley Assembly.

(4" øWheels — 3-1/8" & 5" c/c Pins.)

12682

Page 4

Ref. Part Qty.

No. Number Description Req’d

1 Plate Assembly - Side

BT-1400 For 4" to 6" Flange Widths and Patented Track 2

BT-1401 For 6-3/8" to 8-5/8" Flange Widths 2

BT-1402 For 8-3/4" to 11" Flange Widths 2

2 BT-1403 Bearing - Ball 8

3 BT-1404 Ring - Retaining 4

4 Wheel - Plain

BT-1405 Standard 4

BT-1406 Patented Track 4

BT-1407 Spark Resistant 4

5 BT-1408 Ring - Retaining 4

6 BT-1409 Nut - Hex Jam 4

7 BT-1410 Lockwasher 4

8 BT-1411 Washer - Spacer 40

9 Pin - Suspension

BT-1412 For 4" to 6" Flange Widths and Patented Track 2

BT-1413 For 6-3/8" to 8-5/8" Flange Widths 2

BT-1414 For 8-3/4" to 11" Flange Widths 2

Figure 4. Push Type Rigid Mount Trolley Assembly.

(4" øWheels — 6" c/c Pins.)

12683

Notes

Page 5

Ref. Part Qty.

No. Number Description Req’d

1 Plate Assembly - Side

BT-2700 For 4" to 6-1/4" Flange Widths and Patented Track 2

BT-2701 For 6-3/8" to 8-5/8" Flange Widths 2

BT-2702 For 8-3/4" to 11" Flange Widths 2

2 BT-2703 Bearing - Ball 8

3 BT-2704 Ring - Retaining 4

4 Wheel - Plain

BT-2705 Standard 4

BT-2706 Patented Track 4

BT-2707 Spark Resistant 4

5 BT-2708 Ring - Retaining 4

6 BT-2709 Nut - Hex Jam 4

7 BT-2710 Lockwasher 4

8 BT-2711 Washer - Spacer 40

9 Pin - Suspension

BT-2712 For 4" to 6-1/4" Flange Widths and Patented Track 2

BT-2713 For 6-3/8" to 8-5/8" Flange Widths 2

BT-2714 For 8-3/4" to 11" Flange Widths 2

Figure 5. Push Type Rigid Mount Trolley Assembly.

(6½" øWheels.)

12684

Page 6

3-1/8" c/c Pins 5" c/c Pins

Ref. Part Qty. Part Qty.

No. Description Number Req’d. Number Req’d.

1 Plate Assembly - Side

For 3" to 5" Flange Widths and Patented Track BT-2500 2 — —

For 5-1/8" to 7-1/4" Flange Widths BT-2501 2 — —

For 7-1/2" to 9-1/8" Flange Widths BT-2502 2 — —

For 3-5/8" to 6" Flange Widths and Patented Track — — BT-2503 2

For 6-1/4" to 8-5/8" Flange Widths — — BT-2504 2

For 8-7/8" to 11-1 /4" Flange Widths — — BT-2505 2

2 Shaft - Wheel BT-2506 4 BT-2506 4

3 Bearing-Ball BT-2507 8 BT-2507 8

4 Ring - Retaining BT-2508 4 BT-2508 4

5 Wheel - Plain

Standard BT-2509 2 BT-2509 2

Patented Track BT-2510 2 BT-2510 2

Spark Resistant BT-2511 2 BT-2511 2

6 Wheel - Geared

Standard BT-2512 2 BT-2512 2

Patented Track BT-2513 2 BT-2513 2

Spark Resistant BT-2514 2 BT-2514 2

7 Ring - Retaining BT-2515 4 BT-2515 4

8 Lockwasher BT-2516 4 BT-2516 4

9 Nut - Hex Jam BT-2517 4 BT-2517 4

10 Nut - Hex Jam BT-2518 4 BT-2517 4

11 Lockwasher BT-2519 4 BT-2516 4

12 Washer - Spacer BT-2520 56 BT-2521 36

Figure 6. Hand Geared Rigid Mount Trolley Assembly.

(4" øWheels — 3-1/8" & 5" c/c Pins.)

12685

Page 7

3-1/8" c/c Pins 5" c/c Pins

Ref. Part Qty. Part Qty.

No. Description Number Req’d. Number Req’d.

13 Pin - Suspension

For 3" to 5" Flange Widths and Patented Track BT-2522 2 — —

For 5-1/8" to 7-1/4" Flange Widths BT-2523 2 — —

For 7-1/2" to 9-1/8" Flange Widths BT-2524 2 — —

For 3-5/8" to 6" Flange Widths and Patented Track — — BT-2525 2

For 6-1/4" to 8-5/8" Flange Widths — — BT-2526 2

For 8-7/8" to 11-1/4" Flange Widths — — BT-2527 2

14 Ring - Retaining BT-2528 1 BT-2528 1

15 Pinion BT-2529 1 BT-2530 1

16 Key - Pinion BT-2531 1 BT-2531 1

17 Screw - Hex Cap BT-2532 4 BT-2532 4

18 Ring - Retaining BT-2533 4 BT-2533 4

19 Bushing BT-2534 2 BT-2534 2

20 Plate and Tube Assembly BT-2535 1 BT-2535 1

21 Nut - Self-locking BT-2536 4 BT-2536 4

22 Shaft - Hand Chain Wheel BT-2537 1 BT-2537 1

23 Key - Hand Chain Wheel BT-2538 1 BT-2538 1

24 Washer BT-2539 2 BT-2539 2

25 Guide - Chain BT-2540 1 BT-2540 1

26 Wheel - Hand Chain BT-2541 1 BT-2541 1

27 Ring - Retaining BT-2542 2 BT-2542 2

28 Roller

1" Diameter BT-2543 1 BT-2543 1

1-1/4" Diameter BT-2544 1 BT-2544 1

* Chain - Hand (Not Shown)

Standard BT-2545 As Req’d. BT-2545 As Req’d.

Spark Resistant BT-2546 As Req’d. BT-2546 As Req’d.

Link - Open (Not Shown) BT-2547 1 BT-2547 1

Figure 6. Hand Geared Rigid Mount Trolley Assembly - (4" øWheels — 3-1/8" & 5" c/c Pins) (Continued).

*Specify length of hand chain required. Standard length equals two times hoist lift plus 2'-6".

Notes

Page 8

Ref. Part Qty.

No. Number Description Req’d

1 Plate Assembly - Side

BT-2600 For 4" to 6-1/4" Flange Widths and Patented Track 2

BT-2601 For 6-3/8" to 8-5/8" Flange Widths 2

BT-2602 For 8-3/4" to 11" Flange Widths 2

2 BT-2603 Bearing - Ball 8

3 BT-2604 Ring - Retaining 4

4 Wheel - Plain

BT-2605 Standard 2

BT-2606 Patented Track 2

BT-2607 Spark Resistant 2

5 Wheel - Geared

BT-2608 Standard 2

BT-2609 Patented Track 2

BT-2610 Spark Resistant 2

6 BT-2611 Ring - Retaining 4

7 BT-2612 Nut - Hex Jam 4

8 BT-2613 Lockwasher 4

9 BT-2614 Washer-Spacer 40

10 Pin - Suspension

BT-2615 For 4" to 6-1/4" Flange Widths and Patented Track 2

BT-2616 For 6-3/8" to 8-5/8" Flange Widths 2

BT-2617 For 8-3/4" to 11" Flange Widths 2

11 BT-2618 Ring - Retaining 1

12 BT-2619 Pinion 1

13 BT-2620 Key - Pinion 1

14 BT-2621 Screw - Hex Cap 4

Figure 7. Hand Geared Rigid Mount Trolley Assembly.

(4" øWheels — 6" c/c Pins.)

12686

Page 9

Ref. Part Qty.

No. Number Description Req’d

15 BT-2622 Ring - Retaining 2

16 BT-2623 Bushing 2

17 BT-2624 Plate and Tube Assembly 1

18 BT-2625 Nut - Self-locking 4

19 BT-2626 Shaft - Hand Chain Wheel 1

20 BT-2627 Key - Hand Chain Wheel 1

21 BT-2628 Washer 2

22 Guide - Chain

BT-2629 For 8-5/8" O.D. Hand Chain Wheel 1

BT-2630 For 11-5/8" O.D. Hand Chain Wheel 1

23 Wheel - Hand Chain

BT-2631 8-5/8" Outside Diameter 1

BT-2632 11-5/8" Outside Diameter 1

* Chain - Hand (Not Shown)

BT-2633 Standard As Req’d.

BT-2634 Spark Resistant As Req’d.

BT-2635 Link - Open (Not Shown) 1

Notes

Figure 7. Hand Geared Rigid Mount Trolley Assembly - (4" øWheels — 6" c/c Pins) (Continued).

*Specify length of hand chain required. Standard length equals two times hoist lift plus 2'-6".

Page 10

Ref. Part Qty.

No. Number Description Req’d

1 Plate Assembly - Side

BT-2800 For 4" to 6-1/4" Flange Widths and Patented Track 2

BT-2801 For 6-3/8" to 8-5/8" Flange Widths 2

BT-2802 For 8-3/4" to 11" Flange Widths 2

2 BT-2803 Bearing - Ball 8

3 BT-2804 Ring - Retaining 4

4 Wheel - Plain

BT-2805 Standard 2

BT-2806 Patented Track 2

BT-2807 Spark Resistant 2

5 Wheel - Geared

BT-2808 Standard 2

BT-2809 Patented Track 2

BT-2810 Spark Resistant 2

6 BT-2811 Ring - Retaining 4

7 BT-2812 Nut - Hex Jam 4

8 BT-2813 Lockwasher 4

9 BT-2814 Washer - Spacer 40

10 Pin - Suspension

BT-2815 For 4" to 6-1/4" Flange Widths and Patented Track 2

BT-2816 For 6-3/8" to 8-5/8" Flange Widths 2

BT-2817 For 8-3/4" to 11" Flange Widths 2

11 BT-2818 Ring - Retaining 2

Figure 8. Hand Geared Rigid Mount Trolley Assembly.

(6½" øWheels.)

12687

Este manual sirve para los siguientes modelos

Otros manuales de Polipasto de cadena de Budgit

Budgit

Budgit LOAD LIFTER 622 Series Manual de usuario

Manuales populares de Polipasto de cadena de otras marcas

EINHELL

EINHELL Herkules H-F 1000 Manual de usuario

RED ROOSTER

RED ROOSTER TCR-250 Manual de usuario

POWERTEX

POWERTEX PCB-S1 Manual de usuario

Parkside

Parkside PSZ 250 A1 Manual de usuario

Ingersoll-Rand

Ingersoll-Rand QCH Series Manual de usuario

Creative Conners

Creative Conners CM Varistar Smart Chain Hoist Manual de usuario

Stagemaker

Stagemaker SR05 Manual de usuario

KITO

KITO TCL Series Manual de usuario

CRYSTEEL

CRYSTEEL LO-BOY Manual de usuario

Performance Tool

Performance Tool W4005DB Manual de usuario

Parkside

Parkside PSZ 250 A1 Manual de usuario

Stahl

Stahl ST Series Manual de usuario

Coffing Hoists

Coffing Hoists EC Series Manual de usuario

CM 622A Series Manual de usuario

KITO

KITO RY Series Instrucciones de instalación

Haklift

Haklift LOABT800 Manual de usuario

Tractel

Tractel bravo Manual de funcionamiento

Villager

Villager VEH 250 Manual de usuario
