Converse 2015

Corded Data Telephone

User

Guide

This product is intended for connection

to analo ue public switched telephone

networks and private switchboards in the

United Kin dom.

YOU MUST PURCHASE

A CONVERSE 2015 PIC

OR RAPID COPY EATURE

TO WORK.

All manuals and user guides at all-guides.com

all-guides.com

Converse 2015 ~ 4th Edition ~ 10th September ’02 ~ 4517

Please open this page for an ‘At a glance’

guide to your Converse 2015

All manuals and user guides at all-guides.com

Converse 2015 ~ 4th Edition ~ 10th September ’02 ~ 4517 Converse 2015 ~ 4th Edition ~ 10th September ’02 ~ 4517

1 2

At a glance

PIC socket

Lets you insert the PIC to copy the

phone’s settings or download new

settings.

Recall

Used to access some BT Select Services

and when using your phone with a

switchboard.

Redial

Press to redial the last number called.

Inductive coupler

Improves sound quality for people

with hearing aids.

Ringer volume

Switch between Hi, Med and Lo.

Line 1 & Line 2/Data sockets

Line 1/Line 2 switch

Set to Line 1 if one telephone line is plugged in. (A

single line must be connected to the Line 1

socket)

Set to Line 2 if two telephone lines are plugged in.

Ring/M 1/M 2

Sets the calls/messages mode, see page 8.

123

456

789

RRedial Pause

Messages

Calls

Data

Line

Volume

Converse 2015

One touch memory buttons (M1-M8)

Each button dials a stored name and

number with just one press.

In use data light

Comes on when the data line is being

used.

Calls/Messages light

Flashes to indicate an incoming call. Also

flashes when a new message is waiting to

be collected.

Pause

Lets you insert a dialling pause into a

stored number.

Hold

Lets you put a caller on hold.

Secrecy

Stops your caller from hearing you, so you

can talk privately to someone else in the

room.

Volume

Lets you increase or decrease the

loudspeaker or handset volume.

Handsfree and Handsfree indicator light

Lets you use the loudspeaker for making

and receiving calls. The handsfree

indicator light will come on when the

handsfree feature is in use.

Keypad

Ringer

Hi LoMed

Data

Line 2 Line 1

In use phone light

Comes on when the phone line is in use.

Flashes when a caller is on hold.

All manuals and user guides at all-guides.com

Converse 2015 ~ 4th Edition ~ 10th September ’02 ~ 4517

In this guide

At a glance 1

Key features 4

Introduction 5

Unpacking your Converse 2015 5

For your records 5

Safety information 6

Setting up 7

Using your Converse 2015

Making and receiving calls 9

old 10

Secrecy 10

andsfree 10

Volume 10

Using the one-touch memory 11

Message waiting 12

Data port 12

Using the Converse 2015 PIC 13

PIC program controls 13

Program mode 13

Fast transfer from PIC to phone 16

PIC additional functions 17

General information 1

Guarantee 19

Switchboard compatibility 20

Help 21

Wall mounting 22

Index 25

Hints and tips boxes

In this user guide, we have included helpful

tips and useful notes. They are shown in a

white box like this.

Note

Please note that there is a detailed Index at the back of this guide, see page 25.

All manuals and user guides at all-guides.com

2 line capacity

Enables two lines to be connected,

one for phone calls and one exclusively

for Internet and data use.

One-touch buttons

Provides one-touch dialling for

8 phone numbers.

Handsfree

Handsfree puts calls on the

loudspeaker, leaving you free to take

notes and for others in the room to hear and take

part in the call.

PIC memory copy

Makes it easy to programme each

Converse 2015 with the same stored

numbers. Saves time, effort and helps ensure

accuracy. Please note that the PIC is available

separately.

Secrecy

Prevents a caller from hearing you

speak to someone else close by.

Message waiting indicator

Lets you know you have messages

waiting (for compatible switchboards

only, consult your service provider).

Desk or wall mountable

Use the plinth to set your Converse

2015 at a comfortable angle on a

desk or as a wall-mounting bracket.

Converse 2015 ~ 4th Edition ~ 10th September ’02 ~ 4517

Key features

All manuals and user guides at all-guides.com

Converse 2015 ~ 4th Edition ~ 10th September ’02 ~ 4517

Introduction

Your Converse 2015 has been designed for ease of use and made to the

high standards set by BT.

Unpacking your Converse 2015

For your records

For guarantee purposes, proof of purchase is

required, so please keep your receipt.

Please read the instructions carefully before use

and keep this user guide for future reference.

If anything is missing, please contact your place

of purchase immediately.

Converse 2015 base

Handset

Handset coiled cord

2 telephone line cords

Screws and wall plugs

Desk/wall mounting plinth

123

456

789

RRedial Pause

▲

Messages

Calls

Date

Line

Volume

Converse2015

Date of purchase:

Place of purchase:

Serial number

(on the underside of the telephone base):

Purchase price:

INTRODUCTION

All manuals and user guides at all-guides.com

all-guides.com

Converse 2015 ~ 4th Edition ~ 10th September ’02 ~ 4517

INTRODUCTION

Safety information

General

Do not open the Converse 2015. This could

expose you to high voltages or other risks.

Contact the Helpline for all repairs.

Cleaning

Simply clean your Converse 2015 with a damp

(not wet) cloth, or an antistatic wipe.

Never use household polish as this may

damage the product.

Never use a dry cloth as this may cause

static shock.

Environmental

Do not expose to direct sunlight.

We recommend that you do not place the

product on antique/veneered wood to avoid

damage.

Do not stand your product on carpets or

other surfaces which generate fibres, or place

it in locations preventing free flow of air over

its surfaces.

Do not submerge any part of your product

in water and do not use it in damp or humid

conditions, such as in bathrooms.

Do not expose your product to fire, explosive

or other hazardous conditions.

All manuals and user guides at all-guides.com

Converse 2015 ~ 4th Edition ~ 10th September ’02 ~ 4517

Plan t e location

Situate your Converse 2015 close enough to a

phone socket so that the line cord will reach.

Your Converse 2015 can be wall-mounted. See

‘Wall-mounting’, on page 22.

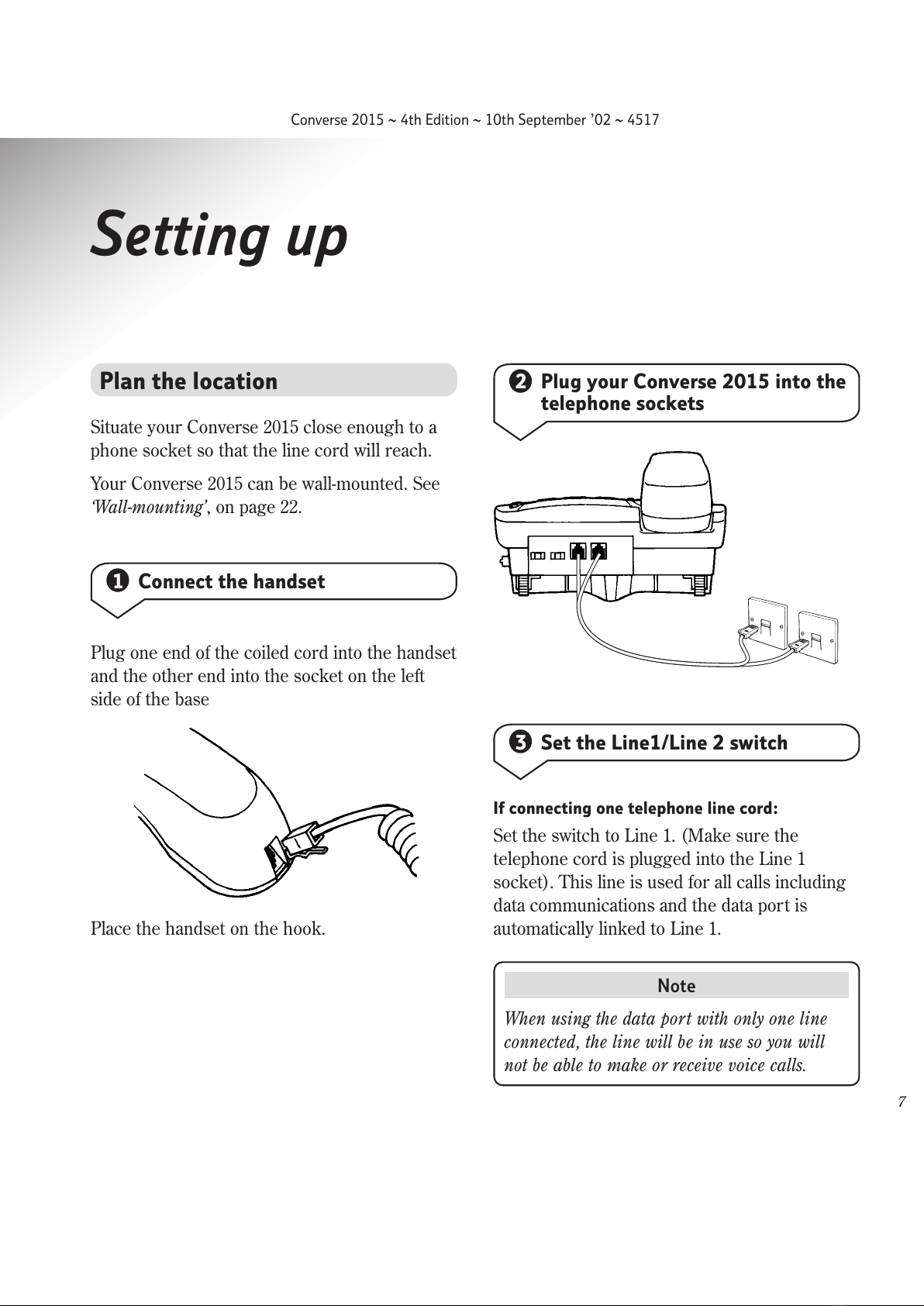

Setting up

2Plug your Converse 2015 into t e

telep one sockets

3Set t e Line1/Line 2 switc

If connecting one telep one line cord:

Set the switch to Line 1. (Make sure the

telephone cord is plugged into the Line 1

socket). This line is used for all calls including

data communications and the data port is

automatically linked to Line 1.

Note

When using the data port with only one line

connected, the line will be in use so you will

not be able to make or receive voice calls.

SETTING UP

1Connect t e andset

Plug one end of the coiled cord into the handset

and the other end into the socket on the left

side of the base

Place the handset on the hook.

All manuals and user guides at all-guides.com

Converse 2015 ~ 4th Edition ~ 10th September ’02 ~ 4517

4Set t e Ring/MW1/MW2 switc

If your switchboard provides compatible

signalling (dc voltage switching) to indicate

message waiting you will need to move the

switch to either MW1 or MW2 to enable the

indication.

Ring Message Waiting is switched off.

The Calls/Messages light indicates

incoming calls only.

MW1 Message Waiting is switched on.

The Calls/Message light will indicate both

incoming calls and when the switchboard

has taken a voice message for you. For

voice messages the lamp will flash or be

permanently on, depending on the type of

switchboard it is connected to.

MW2 Message waiting is switched on. This

setting provides the same indication as

MW1 but should only be used if MW1

results in a permanently ON light without

any voice messages waiting. This setting

corrects some line conditions.

5Desk mounting

If preferred, you can attach the desk/wall mount

to the base of your phone to raise it up at a

convenient angle.

To wall mount, see page 22.

Your Converse 2015 is now ready for use

SETTING UP

Helpline

If you have any difficulties setting up or using

your Converse 2015, please call the BT Converse

2015 Helpline on 0845 050 1331.

If connecting two telep one line cords:

Set the switch to Line 2. The line cord connected

to Line 1 is used for calls. The line cord

connected to Line 2 for data communications and

the data port is automatically linked to Line 2.

All manuals and user guides at all-guides.com

Converse 2015 ~ 4th Edition ~ 10th September ’02 ~ 4517

Using your Converse 2015

Making and receiving calls

To make a call

Pick up the handset.

Press the Handsfree button.

Dial the number.

To dial a number under a one-touc

button (M1-M8)

Pick up the handset.

Press the Handsfree button.

Press the one touch button (M1-M8)

that holds the number you want. The

display shows the stored name and the

number is dialled.

To end a call

Replace the handset.

Press the Handsfree button again.

To answer a call

When the phone rings

Pick up the handset.

Press the Handsfree button.

Note

The redial store will only hold a maximum

of 32 digits. If this is exceeded the store will

empty and no numbers are held.

USING YOUR PHONE

To redial t e last number

Pick up the handset.

Press the Handsfree button.

Press the Redial button. The display

shows

LNR

then the number being

dialled.

Redial

All manuals and user guides at all-guides.com

Otros manuales para CONVERSE 2015

Tabla de contenidos

Otros manuales de Teléfono de BT

BT 2-Line Manual de usuario

BT Renown Manual de usuario

BT CALLER DISPLAY 1000 Manual de usuario

BT EQUINOX 1200 Manual de usuario

BT Decor 400 Manual de usuario

BT Converse 1300 Manual de usuario

BT Diverse 6350 Manual de usuario

BT PARAGON 500 Manual de usuario

BT Elements Manual de usuario

BT Decor 2200 Manual de usuario

BT Converse 1100 Manual de usuario

BT CONVERSE 425 Manual de usuario

BT Studio 4500 Plus Manual de usuario

BT Big Button 100 Manual de usuario

BT DECOR 200 Manual de usuario

BT DECOR 210 Manual de usuario

BT Paragon 550 Manual de usuario

BT Big Button 200 Manual de usuario

BT Essential Digital Home Phone Instrucciones de instalación

BT Versatility Hoja de especificaciones

BT Big Button 100 Manual de usuario

BT CALYPSO 120 Manual de usuario

BT Payphone Contour 300 Plus Manual de usuario

BT RELATE 700 Manual de usuario

Manuales populares de Teléfono de otras marcas

GE 2-9480 Manual de usuario

Geemarc

Geemarc PHOTOPHONE 155 Manual de usuario

D-Link

D-Link DWR-720/PW Manual de usuario

Interquartz

Interquartz Gemini IQ333 Manual de usuario

SSS Siedle

SSS Siedle HT 840-0 Manual de usuario

Motorola

Motorola TITANIUM Manual de usuario

Panasonic

Panasonic ICX Manual de usuario

LG H870DS Manual de usuario

Samsung

Samsung GT-I9500 Manual de usuario

AT&T

AT&T Trimline 205 Manual de usuario

Selta

Selta zenyth 600 Manual de usuario

Doro

Doro AFTI 20 Manual de usuario

UNIQCELL

UNIQCELL A1 Manual de usuario

Panasonic

Panasonic KX Series Manual de usuario

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone Manual de usuario

NEC

NEC SV8500 Manual de usuario

Teledex

Teledex PEARL Manual de usuario

Ericsson

Ericsson Dialog 3213 Manual de usuario
