BT DF450 Manual de usuario
DF450 plain paper
fax machine
User guide
Top view
❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍
❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍
❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍
A4 I
STD FINE HALF TONE
123
456
789
0
✱
P - TB SYMBOLS
FUNCTION
QUICKDIAL
CLEAR
LAST TX
RX MODE RESOL. CONTRAST
§©
-+
EXTERNAL HOLD
A - aREDIAL PAUSE 2. TONE
MONITOR START STOP
1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
R
S
T
U
V
W
X
Y
Q
Z
2
34
56
78
910
ERROR
DF 450
Adjustable paper
guide. Place documents
face down to ensure
straight feeding into the
machine for fax
transmission.
Printer cover. Open to
install the print cartridge.
One touch memory
buttons. Use to dial your
most frequently used
numbers with one touch.
Error indication light.
Comes on when there is a
fault in fax transmission
or reception.
Sent document tray.
Holds the original copies
of documents that have
been faxed or copied.
Received document
tray (beneath sent
document tray). Holds
received faxes and copies
of documents.
Automatic sheet
feeder. Holds up to 70
A4 sheets of plain paper
for copies and incoming
faxes.
Automatic document
feeder. Holds up to 10
sheets to be faxed or
copied.
LCD display. Shows
dialled numbers, time
and date and function
information.
Keypad. Press to dial fax
or phone numbers and to
input names and numbers
into the memory.
Control panel. Use to
access the features of the
DF450. Seven buttons
have dual functions.
Monitor button. Use for
making telephone calls
when you have a
telephone connected.
Please open this page for a further ‘at a glance’
guide to your DF450 plain paper fax machine.
At a glance
1
At a glance

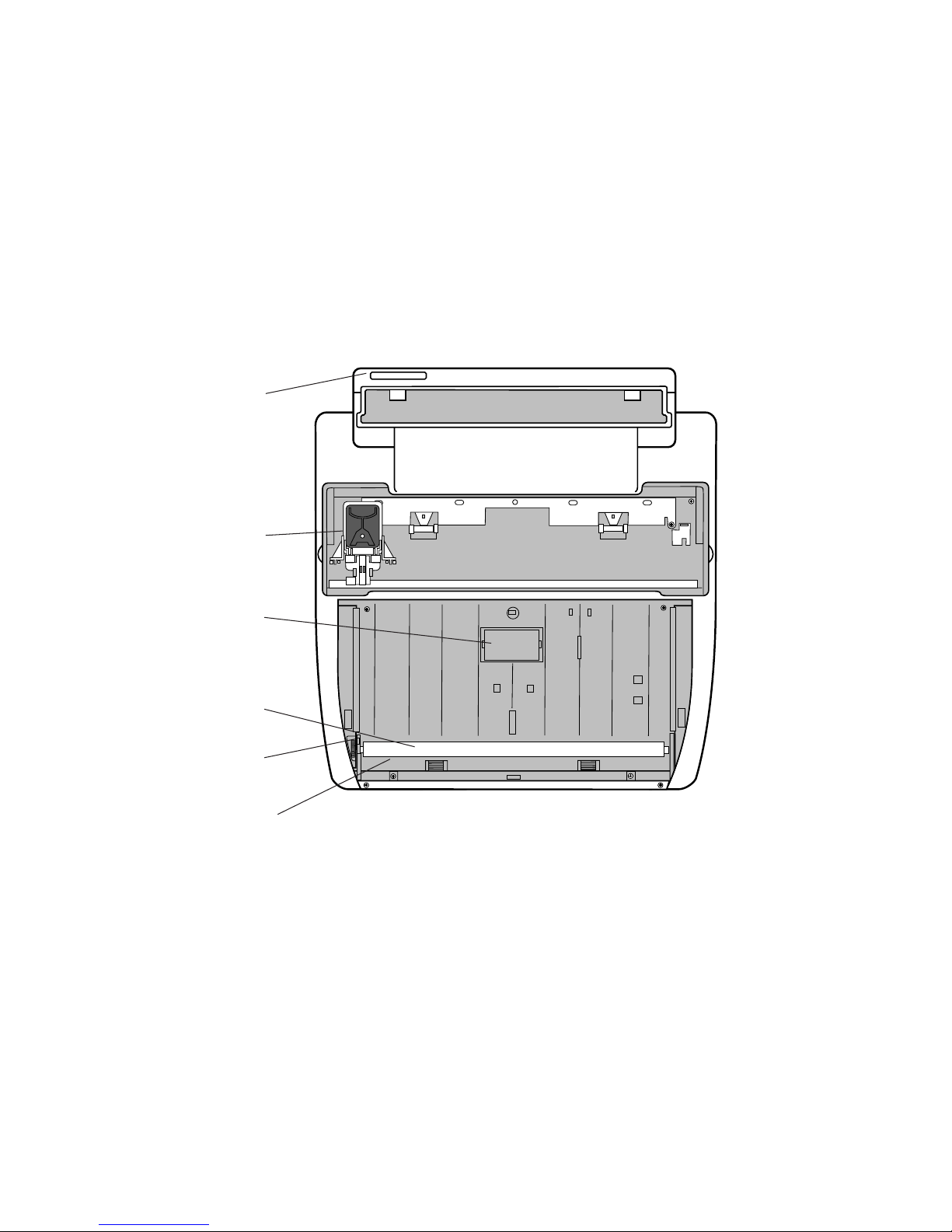

Top view with the printer cover and control panel open.
❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍
❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍
❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍
BT telephone line
cord socket.
Print head with
interchangeable ink
cartridge.
Black paper feed
roller.
White paper feed
roller.
Green release lever
for paper feed roller.
Optical scanner
(beneath white paper
roller).
FUNCTION Press to access the various menus.
CLEAR Deletes incorrect entries.
RX MODE Changes document reception settings.
§
Scrolls through settings available
under the function button.
RESOL Selects the resolution for scanning
documents to be sent or copied.
-Decreases the speaker volume (after
pressing the MONITOR button)
©
Scrolls through settings available
under the function button.
CONTRAST
Selects the contrast for scanning
documents to be sent or copied.
+Increases the speaker volume (after
pressing the MONITOR button)
QUICKDIAL Sets the machine for you to dial out
numbers stored under the Quickdial
function.
A-a Selects capital or lower case letters
when storing names in the memory.
LAST TX Prints a status report on last fax sent.
REDIAL Redials the last number.
EXTERNAL(If connected to a switchboard): can be
programmed to give you an outside
line, ready to dial.
PAUSE Inserts a pause in a number.
HOLD Puts a telephone call on hold.
2. TONE Use this key to detect secondary dial
tone on certain PBXs. When this
function is activated, a colon will
appear in the display.
MONITOR Allows you to dial a telephone number
without lifting the handset. You can
hear the line tone and dialling tone
through the internal loudspeaker.
A telephone will need to be connected
for you to be able to hold a
conversation.
START Use to send or copy a document.
Confirms the choices and selections
you make on the FUNCTION button.
STOP Stops any current operation; resets the
machine if there is an operating error.
FUNCTION
QUICKDIAL
CLEAR
LAST TX
RX MODE RESOL. CONTRAST
§©
-+
EXTERNAL HOLD
A - aREDIAL PAUSE 2. TONE
MONITOR START STOP
Control panel
2
In this guide
In this guide
At a glance 1
Introduction to your DF450 3
Setting up 4
Using your DF450 14
Additional features 25
Maintenance 34
Help 36
Technical specifications 46
Technical information 47
Index 49
Hints and tips boxes
In this user guide, we’ve included helpful tips and
useful notes. They are shown in a grey box.
3
Introduction Your DF450 fax machine is designed
for ease of use and made to the high standards set by BT.
We thank you for making the right choice and
expect that the machine will give you many
years of quality service.
Please read the instructions carefully before
use, and retain this User Guide for future
reference.
For your records
Date of purchase:
Place of purchase:
Serial number (on base of facsimile):
Purchase price:
(For warranty purposes, proof of purchase is
required, so please keep your receipt. See also
page 38.)
Introduction
Customer Helpline
If you have problems with your
machine, call the DF450 Helpline Service,
Freefone 0800 215 200.
Check that your DF450 is complete. When
you unpack you must have:
•DF450 plain paper fax with attached
mains lead.
•Automatic sheet feeder cassette.
•Sent document tray.
•Received document tray.
•Telephone line cord.
•Print cartridge (print head with ink
cartridge attached).
4
Setting up
Setting upFollow these steps to get your DF450 ready.
Electrical storm warning
Note 1.
Please note that during periods of electrical
storm, you should disconnect your DF450
because damage may occur.
Note 2.
If a fault occurs during the 12-month warranty
period and it is due to accidental or wilful
damage (including lightning and electrical
damage), BT will not replace or repair the
equipment free of charge. Should any damage of
this nature occur, you are advised to claim
against your home contents insurance.
If you do not have a BT socket, call BT* and
ask for a BT engineer to come and fit the right
socket. This is a chargeable service.
*Call 150 if you are a residential customer or
152 if you are a business customer.
1 Check your telephone wall
socket
5
3 Plug into the BT socket
Plug the telephone line cord into
your socket
2 Plug the telephone line cord
into the socket on back of the
machine
When fitted correctly, the line cord should
click into place.
Setting up
TEL2 TEL1 LINE
6
Setting up
4 Plug the mains lead into a
convenient socket
Your DF450 automatically performs a quick
self test. The Liquid Crystal Display shows
AUTOMATIC RX and ADD PAPER.
5 Fit your DF450 attachments
to the main unit
❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍
❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍
❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍❍
A4 I
STD FINE HALF TONE
123
456
789
0
✱
P - TB SYMBOLS
FUNCTION
QUICKDIAL
CLEAR
LAST TX
RX MODE RESOL. CONTRAST
§©
-+
EXTERNAL HOLD
A - aREDIAL PAUSE 2. TONE
MONITOR START STOP
1
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
R
S
T
U
V
W
X
Y
Q
Z
2
34
56
78
910
ERROR
DF 450
Received document
tray
Sent document tray
Automatic sheet
feeder cassette
The DF450 is designed to be permanently
connected, ready to receive and send faxes 24
hours a day. If you need to turn the machine off,
switch off at the mains power plug. The machine
does not have an on/off switch.
d
d
d
d
•Slide the received document tray into the
slots on the base of the main unit.
To fit the sent document tray
•Slot the automatic sheet feeder cassette into
the main unit. Make sure it is fully inserted.
•Slot the sent document tray into the front of
the main unit. It will click into place.
Setting up
7
To fit the received document tray To fit the automatic sheet feeder
