Brunton ADC Summit Manual de usuario

User Manual

06MAR

12:38.28

THU

28.0 C888.2%

1.0 General Guide

Thank you for purchasing your new ADC.

We recommend reading this manual, and

practicing the operations before using your

ADC in the field.

The ADC is designed to provide you with

information essential to your needs. Data

such as temperature, wind speed, barometric

pressure, altitude and humidity are features

specific to four different ADC models: Wind,

Summit, Pro and JetSet.

Each ADC model is constructed to withstand

water submersion and is ideal for conditions

you endure during outdoor activities such as

hiking, climbing, hunting, kayaking, skiing,

and racing. Every ADC also includes current

time, daily alarm, chronograph and race

timer functions. ADCs are equipped with a

propeller and other precise sensors to

measure outdoor conditions.

WARNING !

Make sure that you fully understand the

functions and limitations of the ADC

before relying on it.

The ADC is an assisting device for the

outdoor user, and is not a substitute for

weather advisories from a weather

station. It is helpful to check the

readings provided by this product

periodically with those broadcasted by

the weather station.

2.0 Care and Maintenance

Prevent getting dirt in the ADC propeller. It

could clog the mechanism.

Avoid exposing this product to extreme heat

or extreme cold for an unreasonable amount

of time.

Avoid severe impacts to the ADC.

Store the ADC in a dry place when it is not in

use.

Clean the ADC with a soft moistened cloth

occasionally.

DO NOT expose the ADC to strong

chemicals such as gasoline and alcohol, as

they will damage this product.

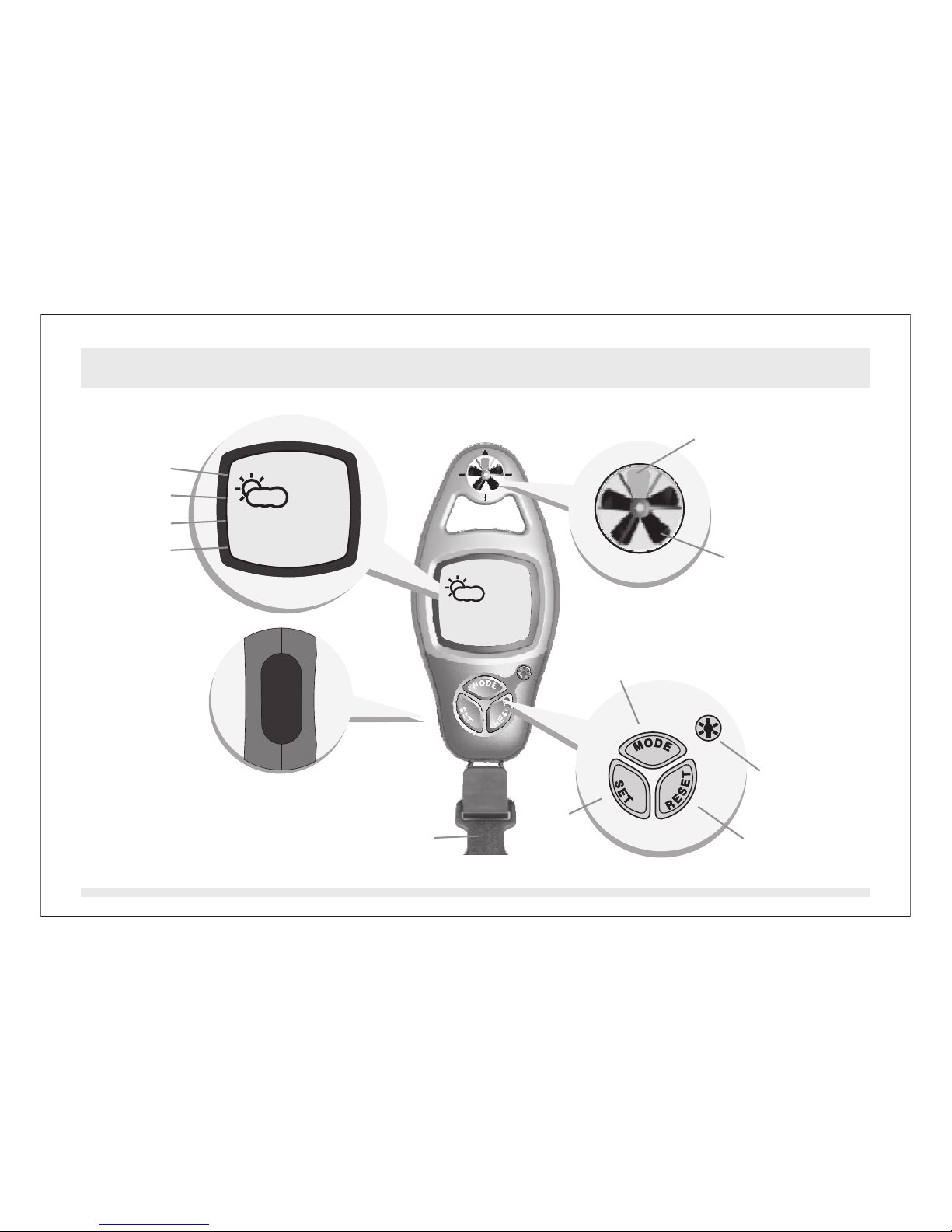

3.0 Part description

Propeller

Infrared Port

(send data from this

product to PC via

this port) Detachable

Belt Clip

[mode]

North Orientation

blade (RED)

Propeller

blades

[set]

[light]

[reset]

Buttons

Display

1st row

2nd row

3rd row

4nd row

06MAR

12:38.28

THU

06MAR

12:38.28

THU

28.0 C888.2%

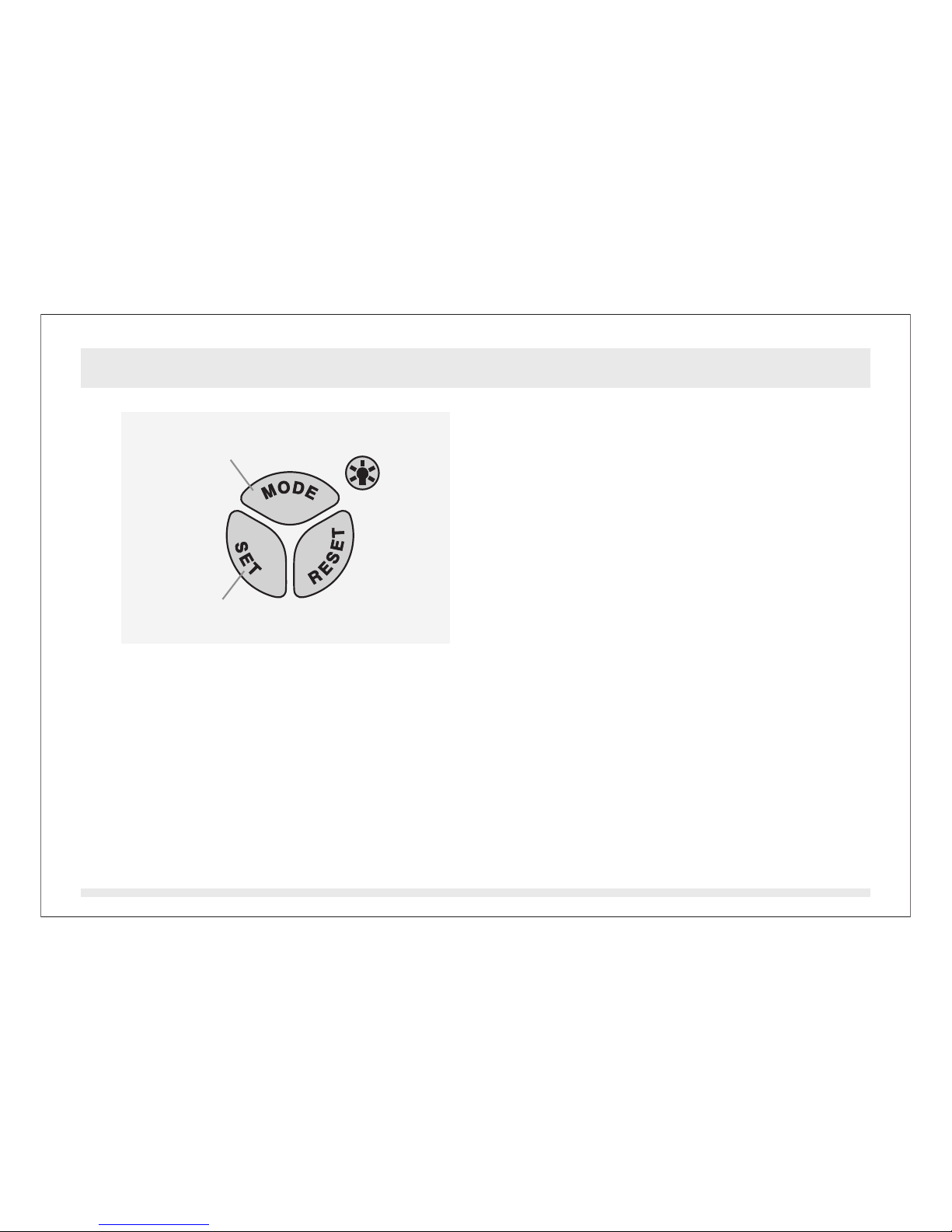

[mode] Button

[set] Button

Press the mode button to select among the

major function modes

In function modes: Press and hold the mode

button to select setting display

In any setting display: Press the mode button to

select among different settings. Press and

hold the mode button to exit setting sequence.

In Current Time Mode: press the set button to

select the Daily Alarm Display.

In Daily Alarm Mode: Press the set button to

switch the daily alarm between ON and OFF.

In Chronograph Mode and Race Timer Mode:

Press the set button to start or stop the

counting.

In Lap Time Recall Mode: Press the set button

to select the available lap time(s).

In setting displays: press the set button to scroll

the through the settings.

4.0 Button Operation Summary 1

Note:

The button operations are

summarized in the following

paragraphs, for detail operating

instructions, please continue

reading.

[mode]

[set]

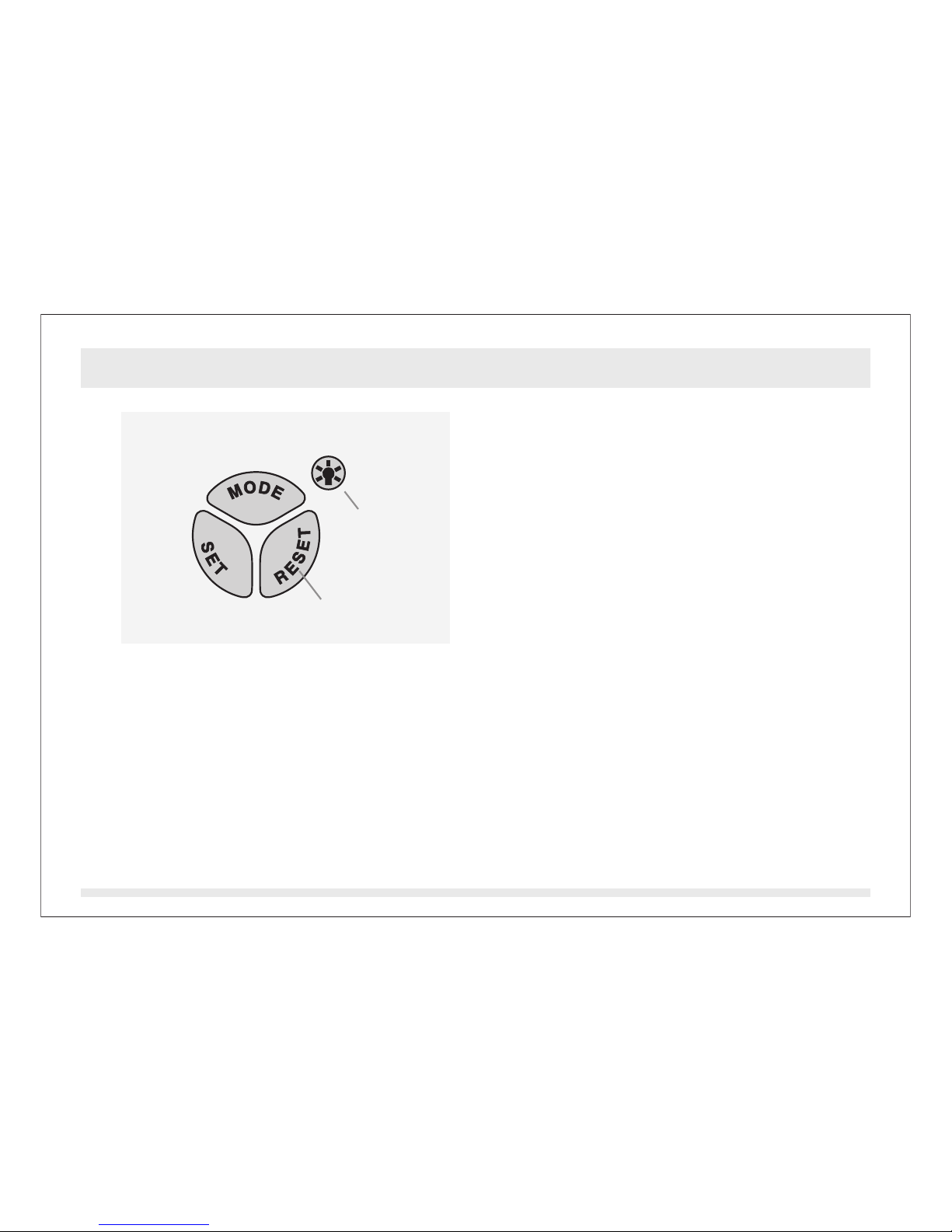

[reset] Button

[light] Button

In Chronograph Mode (counting): Press the

reset button to get Lap Time Display.

In Chronograph Mode (stop-counting): Press

the reset button to reset the display to zero.

In Timer Mode (stop-counting): Press the

reset button to reset the timer to target time.

In Lap Time Recall Mode: Press the reset

button to select the available lap time(s).

In setting displays: press the reset button to

scroll the through the settings.

In any functional mode/display, press the light

button once to turn ON the EL backlight for

about 3 seconds.

4.1 Button Operation Summary 2

[light]

[reset]

Note:

The button operations are

summarized in the following

paragraphs, for detail operating

instructions, please continue

reading.

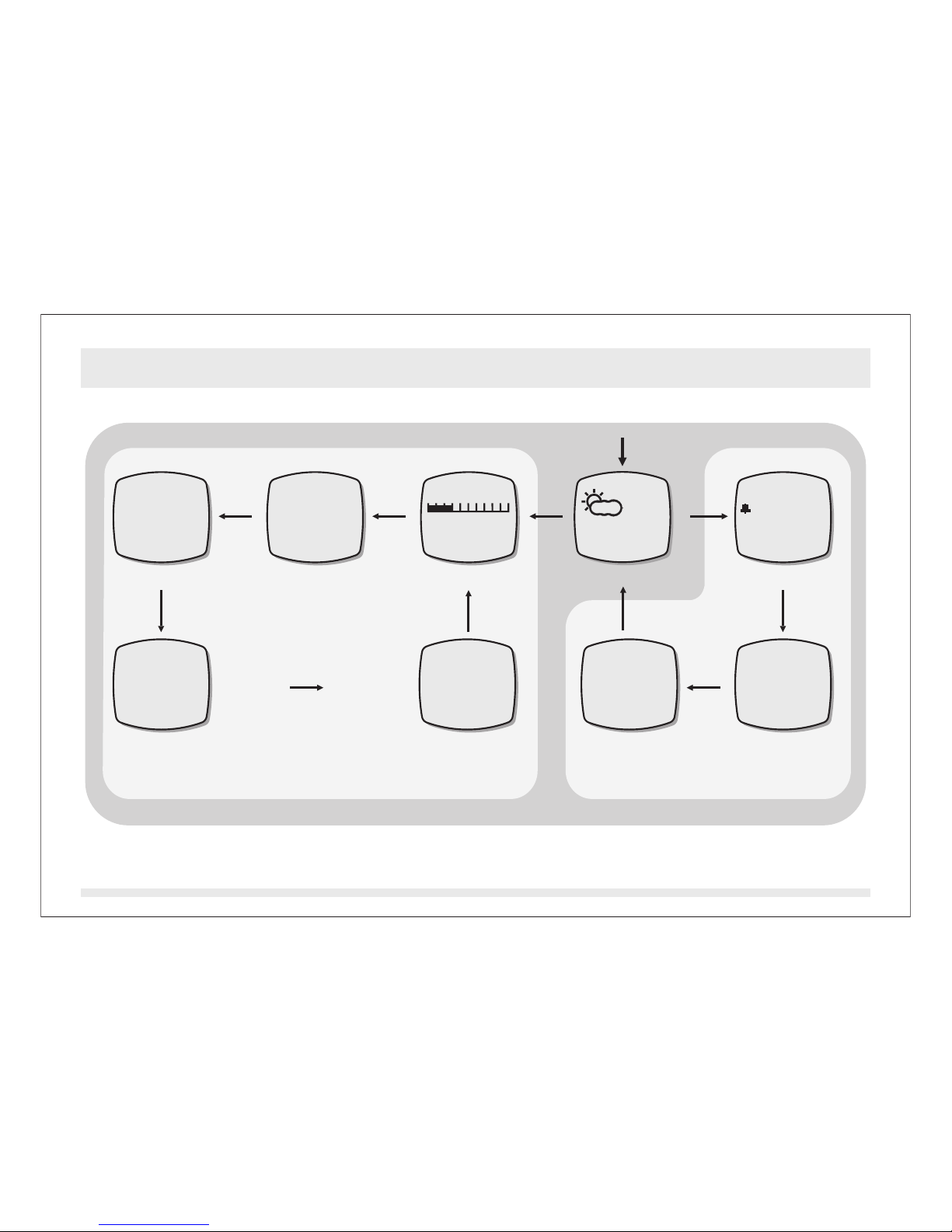

5.0 Major Functional Modes

Current Time ModeWind Mode

Altitude Mode Data Log Mode

Barometer Mode Temperature Mode Daily Alarm Mode

Race Timer Mode Chronograph Mode

Time Function

Major Functional Modes

[set]

[mode][mode][mode]

[mode] [mode]

[mode] [mode] [mode] [mode]

CHRONO

GRAPH

RACE TIMER

DAILY ALARM

0:00.00

0:10.00

12:00

BARO hPa

18.3 8.3

TEMP C8

18.2 13.2

28.31001.3 21.3

DATALOG

r001-0023

2:10.30

06 MAR 2003

06MAR

28.0 C888.2%

12:38.28

THU

ALTITUDE m

734 80

144

WIND mph

Sensor Function

6.0

Functional Displays

Weather Forecast Display

Altitude Display

Barometer Display

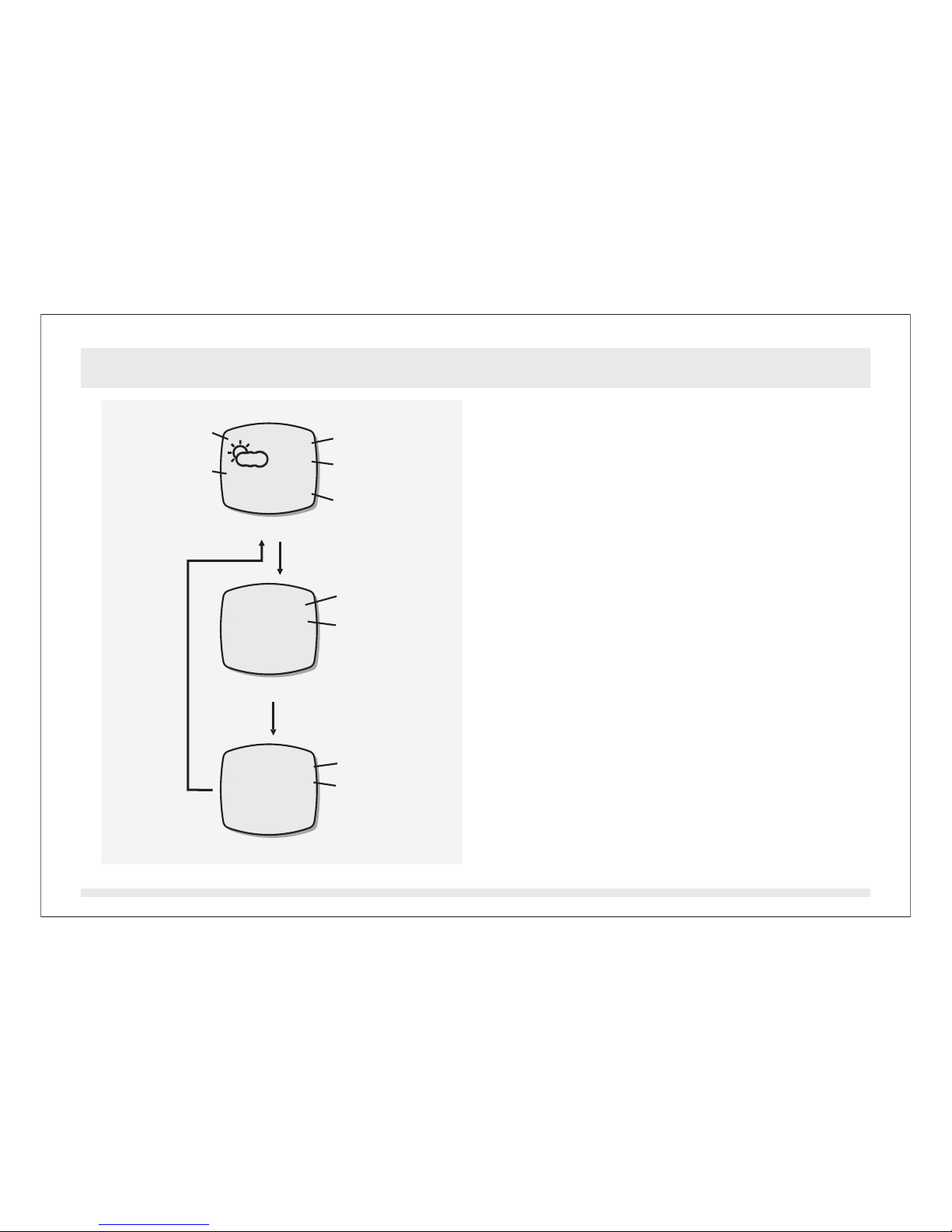

Current Time Mode includes three different

displays: the Weather Forecast Display,

Altitude Display and Barometer Display.

The above displays rotate through every 5

seconds.

The current time, relative humidity and current

temperature appear on the 3rd and 4th row of

the display respectively.

In Weather Forecast Display, the weather

forecast symbol and day of week appear on

the 1st and 2nd row of the display respectively.

Check the coming 'Weather Forecast

Symbols' section below for more detail on the

means of the weather forecast symbols

The indicator ' ' appears on the 1st row

of the display. The altitude at the current

location appears on the 2nd row of the display.

The indicator ' ' appears on the 1st

row of the display. The current barometric

pressure appears on the 2nd row of the

display.

ALTITUDE

BAROMETER

Current Time Mode - Functional Displays

5 Seconds

5 Seconds5 Seconds

06MAR

ALTITUDE:

BAROMETER:

28.0 C8

88.2%

12:38.28

THU

57m

1001.3h Pa

Weather Forecast Display

Altitude Display

Barometer Display

Current Time Mode

Weather

Forecast

Symbol Date

Mode

Indicator

Mode

Indicator

Current

Time Day of week

Current

Altitude

Current

Barometric

Pressure

Current

Temperature

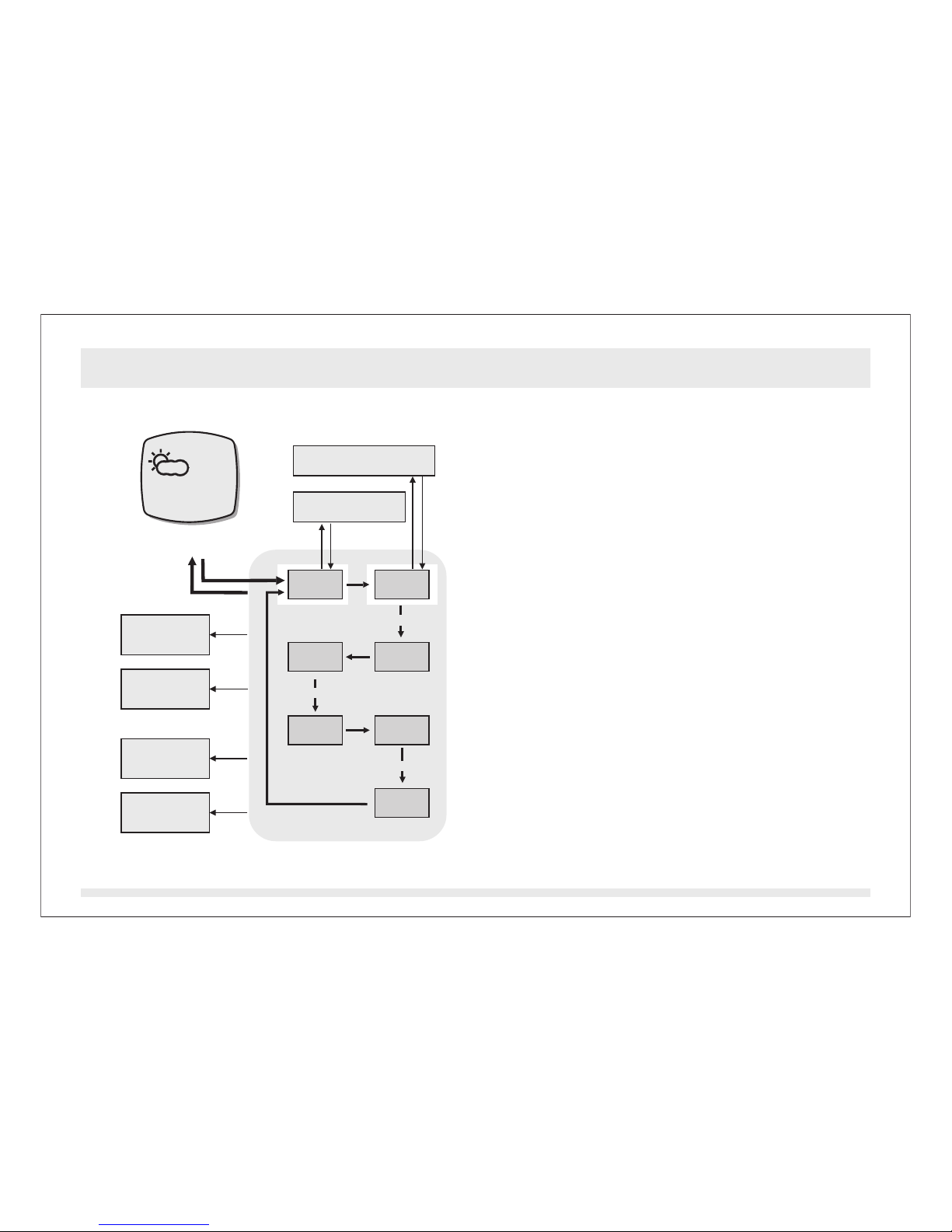

Current Time Mode - Setting the Current Time Mode

To Select Setting Display

The Setting Sequence

Setting the current time and date, and their

display formats, press and hold the [mode]

button for about 2 seconds to select the

setting display (the '12' indicator will start

flashing).

In setting display, press the [mode] button to

move the setting following the adjacent

diagram.

When the ' ' or ' ' digits starts flash,

press the [set] or [reset] button to switch

between ' ' (12 hour format) and ' ' (24

hour format). When the ' ' digits starts

flash on the display, press [set] or [reset]

button to reset the second to zero.

If one of the settings (minute, hour, year,

month, date) starts flash, press the [set] or

[reset] button to scroll through the setting

(hold down the button to scroll the setting at

a faster pace).

When the above settings finished, press and

hold the [mode] button for about 2 seconds

to exit the setting sequence.

12 24

second

year

12/24

minute

month

date

second

hour

hold

[mode]

hold

[mode] [mode]

'12' changes to '24';

'24' changes to '12'.

reset Second to zero

[mode]

[set]

or [reset]

[set]

or [reset]

[mode]

[reset]

[set]

hold [reset]

hold [set]

Current Time Setting Sequence

Current Time Mode

scroll through

the settings by

increment

scroll

the setting at

a faster pace

scroll through

the settings by

decrement

scroll

the setting at

a faster pace

06MAR

12:38.28

THU

28.0 C888.2%

6.1

6.2

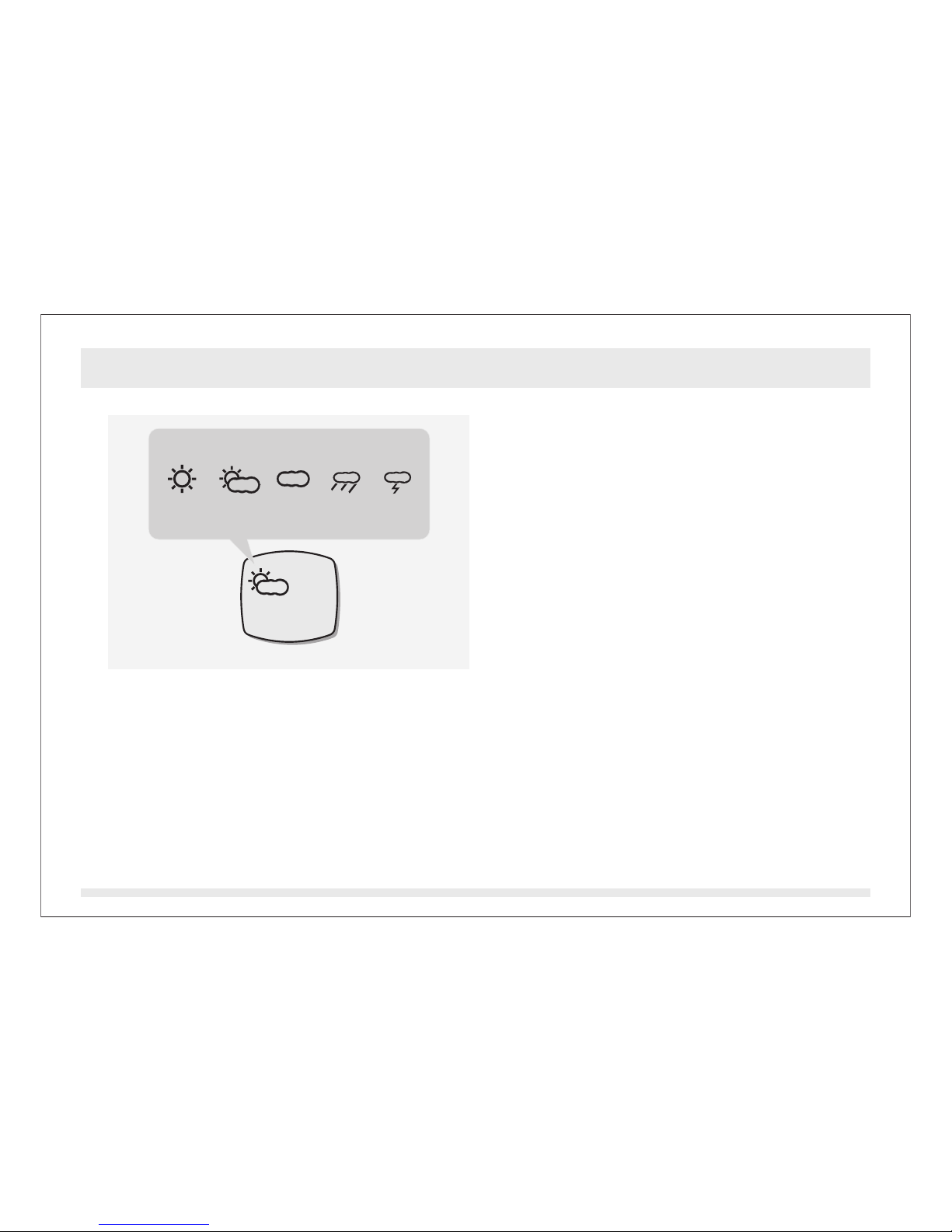

Weather Forecast Symbol

What Does the Weather Forecast Symbol

indicate

The ADC includes a weather forecast function

that predicts the weather for the next 12 hours.

The ADC will display the forecasted weather

by the weather forecast symbol. There are five

kind of weather forecast symbols, they are the

Sunny, Partial Cloudy, Cloudy, Rainy and

Stormy.

A 'Sunny' symbol generally indicates

improving weather or sunny weather ahead.

A 'Partial Cloudy' symbol generally indicates

slightly cloudy weather ahead.

A 'Cloudy' symbol generally indicates

deteriorating weather or cloudy weather

ahead.

A 'Rainy' symbol generally indicates adverse

weather or rainy weather ahead.

A 'Stormy' symbol generally indicates stormy

weather ahead.

06MAR

12:38.28

THU

Weather Forecast Display

Weather Forecast Symbols

Sunny Partial

Cloudy

Cloudy Rainy Stormy

Current Time Mode

Note:

!When the ADC has been reset or the battery

has been replaced, partial cloudy symbol will

be displayed. To get an accurate weather

forecasting, the ADC must stay at the same

altitude for over 12 hours.

Current Time Mode - Weather Forecast Symbols

28.0 C888.2%
