Brother Serger 1034D Manual de usuario

Brother 1034D Serger Quick Reference Guide

Threading

You will thread one spool at a time. You must thread the machine in the correct order.

Brother 1034D Serger Quick Reference Guide

Remember, some stitches use all 4 spools, but some use

only three spools. Refer to the Serger Techniques

booklet for detailed information on stitches.

1. Pull the grey thread tree up to its highest position.

2. Place spools of thread on the spool pins, and place

thread spool caps on top of spools. If you are using

very fine or silky thread, cover your spools of thread

with the nets in the supply compartment.

3. Turn thread tension knobs on the front of the machine

to “0”.

4. Open the front cover by pulling right then down.

Brother 1034D Serger Quick Reference Guide

Spool #1 (The Upperlooper)

1. Repeat steps 1-3 for Spool #1.

2. Follow the green line down to the hook marked with

the green “5”. Then pull thread left through the prong

with the green dot. Pull up and through the hook

marked with the green “7”.

3. Pull the thread left and, using the tweezers, insert the

thread through the hole on the metal arm that extends

left toward the needles.

4. Pull thread under press foot and behind.

Tweezers

Thread goes through here

Brother 1034D Serger Quick Reference Guide

Spool #2(The Lowerlooper)

1. Starting with the right-most spool (this is the

lowerlooper), first bring the thread up through the

right-most hole in the thread tree, from back to front.

2. Pull thread through the metal guide next to the

number “2” and then through the groove to the left of

the blue tension knob.

3. Continue down through the groove past the “4”.

4. Follow the blue line to the hook next to the blue

number “5”. Pull left from the hook through the two

metal prongs marked with blue dots. Then pull thread

through the hook marked “8”.

Brother 1034D Serger Quick Reference Guide

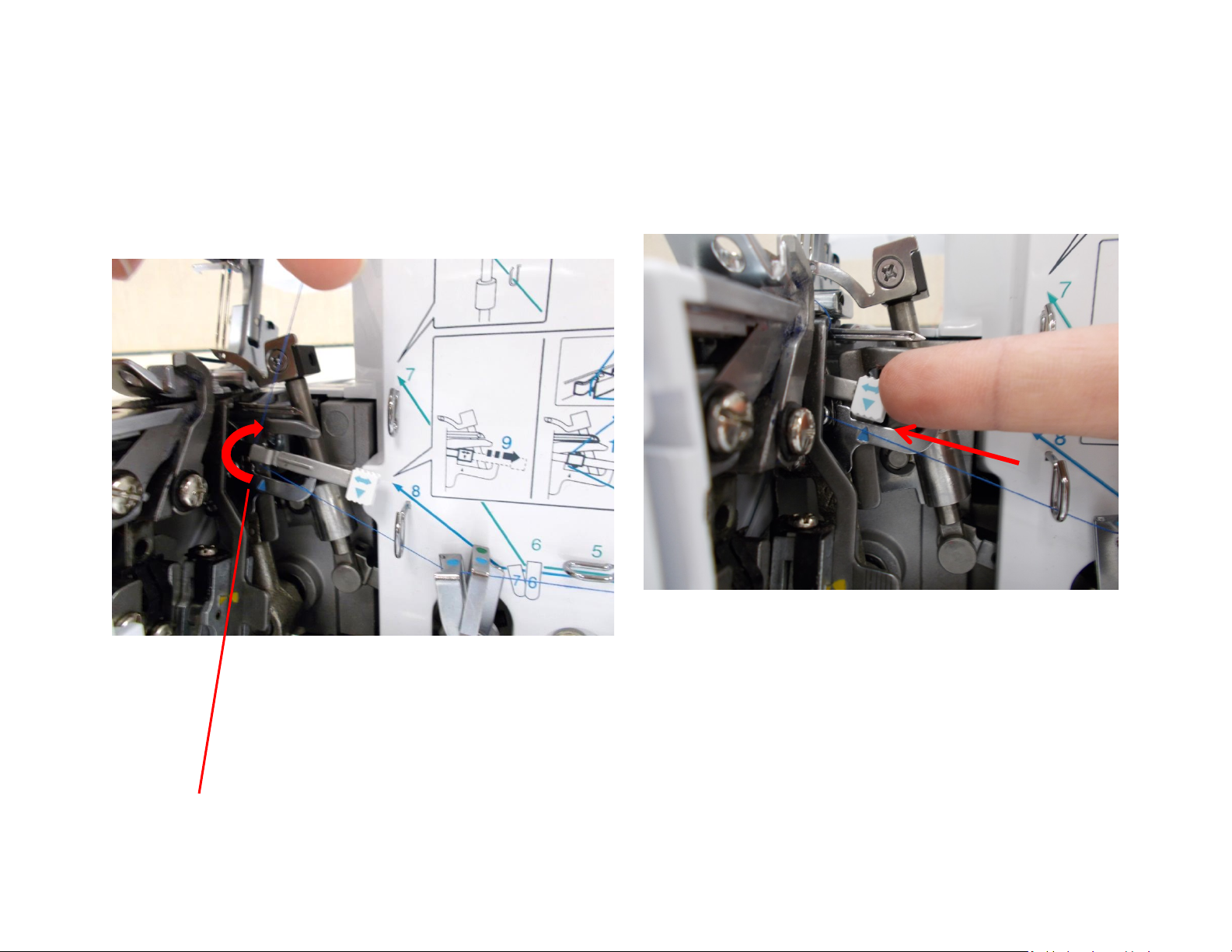

5. Next, pull the white lever with blue arrows all the way

to the right. Hook the thread around the prong on the

left side of this lever.

6. Once thread is wrapped around prong, push the white

lever in all the way back to the left until it clicks.

Thread goes around prong.

Brother 1034D Serger Quick Reference Guide

7. Using the tweezers, guide the thread through the

small hole on the metal hook just above the white

lever.

8. Pull the thread under the presser foot and behind.

TWEEZERS

Thread goes through here

Brother 1034D Serger Quick Reference Guide

Spool #3 (The right needle)

1. Repeat steps 1-3 for Spool #1.

2. Pull thread down in groove past the number “4,” then

pull left.

3. Guide the thread up through the groove with the

number “5.”

4. Follow the groove around and down toward the

needles.

Brother 1034D Serger Quick Reference Guide

5. Slide the thread behind the metal hook just above the

needles.

6. Using tweezers, insert the thread through the needle

on the right.

7. Pull the thread under the presser foot and behind.

Brother 1034D Serger Quick Reference Guide

Spool #4 (The Left Needle)

1. Repeat steps 1-3 for Spool #1.

2. Pull thread down in groove past the number “4,” then

pull left.

3. Go up and around the arched groove marked with the

number “5.”

4. Then pull down towards the needles.

5. Repeat steps 5-7 for Spool #3, except thread the left

needle.

Brother 1034D Serger Quick Reference Guide

Removing/Replacing the Needles

1. Using the hexagonal wrench from the supplies bag,

loosen the small screw directly above the needles.

2. Grab the needles between your thumb and forefinger

and pull down and out.

3. To replace needles, hold the same way (both at the

same time) and insert the needles into the slot as far

as they will go.

4. Tighten the screw until snug.

5. To use only one needle, use the same method but

insert only one needle. Different stitches require the

use of either the left or right needle. Refer to the

“Serger Techniques” guide for stitch details.

Tighten

Loosen
