Brother ADDENDUM 884-T07 Instrucciones de instalación y funcionamiento

Operation Manual Addendum

Embroidery Machine

Product Code: 884-T07

Additional Features of PR650e

The following features have been added with version 2 and 3. Before using the machine,

carefully read both this manual and the Operation manual (which provides descriptions of Ver. 1)

included with your PR650e machine.

■Ten embroidery patterns ( ) have been added.

For details on the patterns, refer to the Quick Reference Guide.

■The brightness of your LCD screen can be adjusted. (p. 1)

■The thread color settings for previously stitched designs can be canceled. (p. 2)

■The stitching can be moved forward or backward 500 stitches. (p. 3)

■Combined patterns can be grouped. (p. 3-p. 5)

This function allows you to sew the repeated pattern without sorting colors.

■The settings screen now has a total of six pages.

For page illustrations and content, refer to the "Quick Reference Guide" for the PR650e. (p.9)

■The Link function has been added. (p. 5)

This function allows embroidery patterns edited in embroidery editing software provided with the Link

function, such as PE-DESIGN NEXT or later, to be transferred from a computer to multiple embroidery

machines.

Please consult with your authorized retailer for exact machine specifications for linking.

■The manufacturer specified thread numbers can be displayed on the machine if the "PES" thread code is

"ON". (p. 10)

■The length of time until the embroidery machine will stop can be viewed in the embroidering screen.

(p. 11)

■If the temporary needle bar setting has been applied, the icon ( ) indicating the selected needle bar

in the embroidering screen can now be viewed. (p. 11)

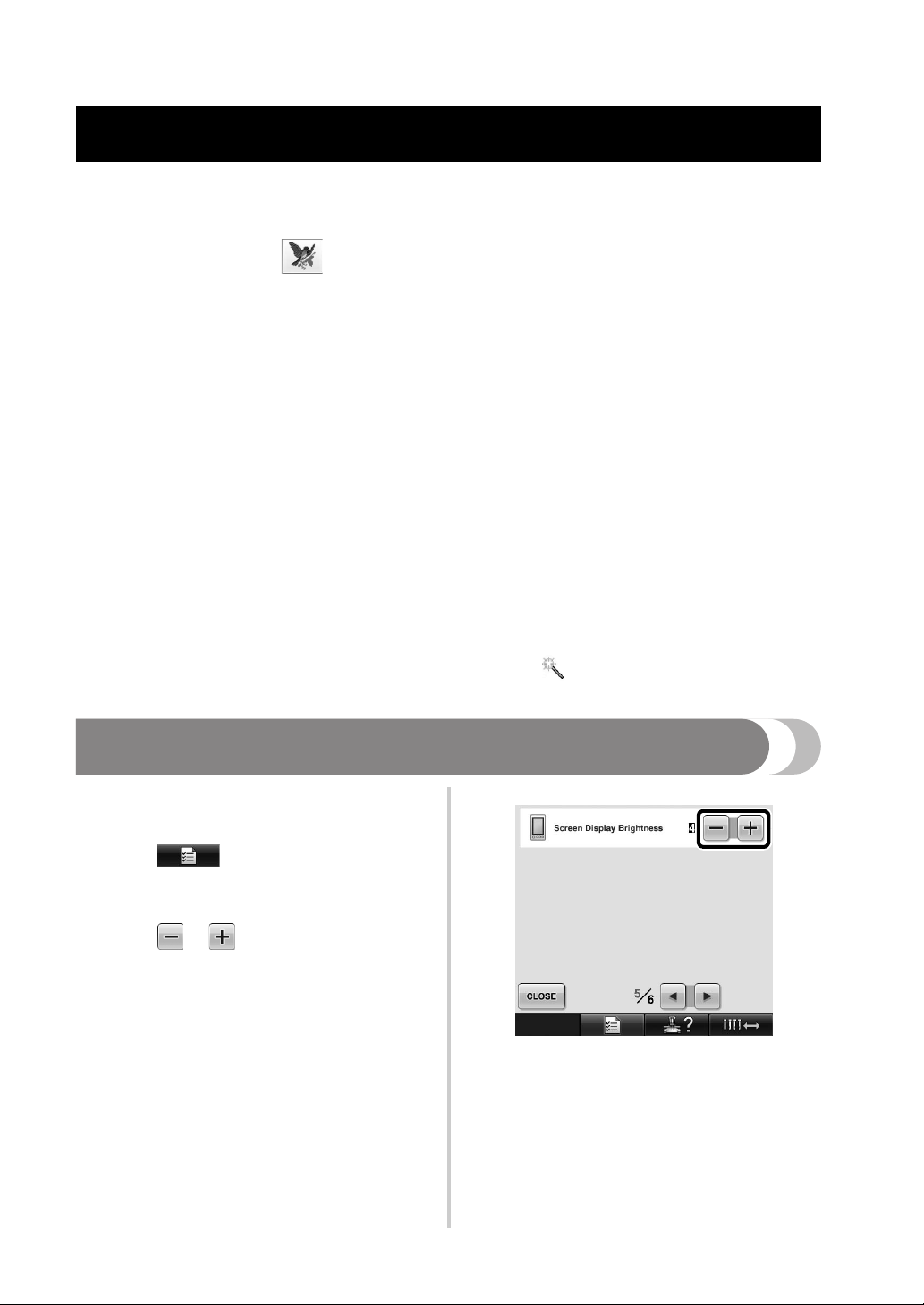

Adjusting the Brightness of the Screen Display

If the LCD screen is too dark or too light, you can

now adjust the brightness of the screen display.

1Press .

2Display page 5 of the settings screen.

3Press or to adjust the brightness of

the screen display.

* The screen will appear dimmer if the number on the

settings screen decreases. The screen will appear

brighter as the number increases.

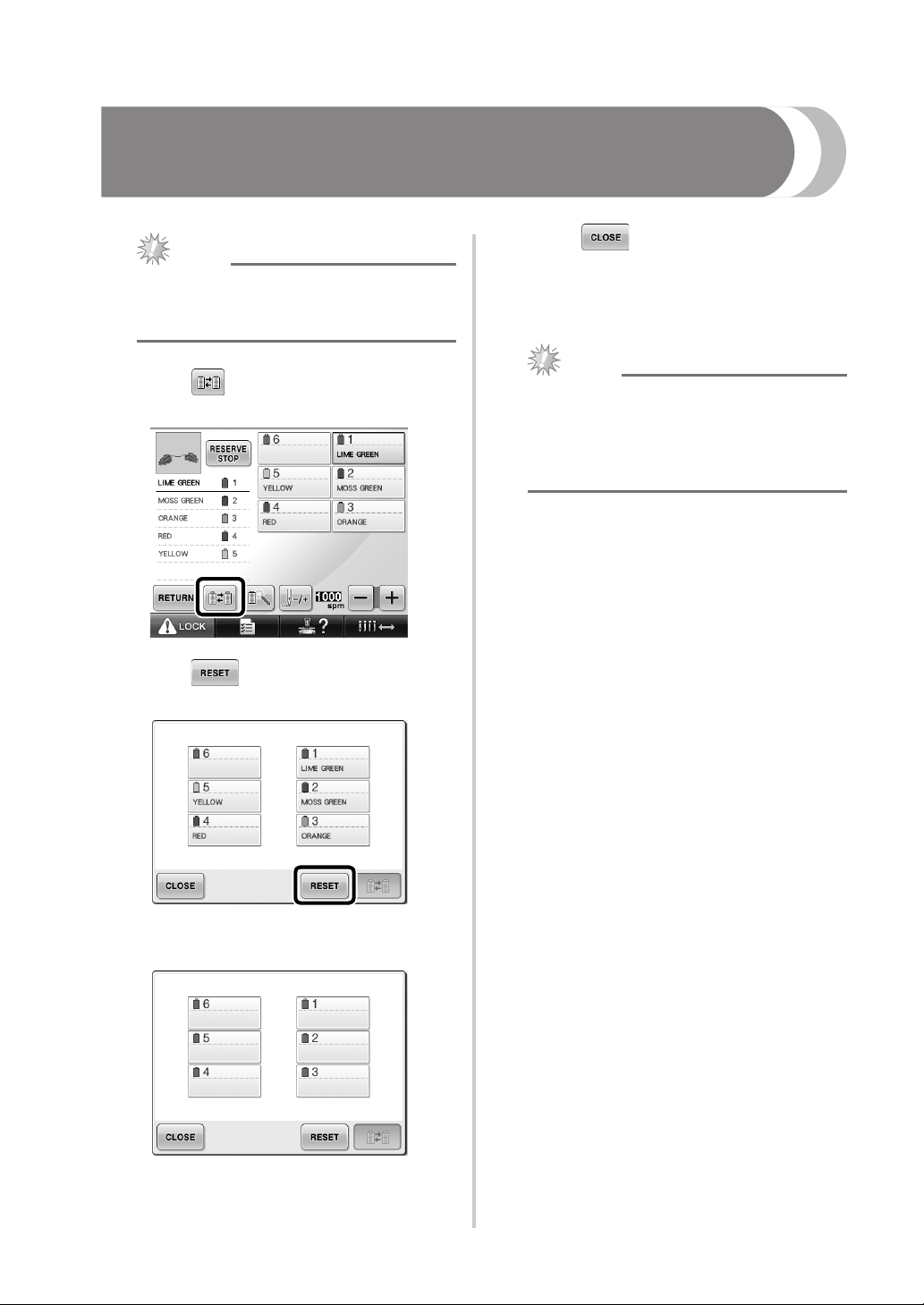

Cancelling the Thread Color Settings for All Previously

Stitched Design

Note

●The color settings will be completely

canceled even if the machine is in the

middle of the embroidery.

1Touch .

2Touch .

XThe thread color setting is canceled.

3Touch .

XThread colors are assigned by the machine

again, regardless of the previous spool

setting.

Note

●This function will not clear anchor settings

of any of the needles which have been

assigned a thread color (Refer to “Reserved

Needle Bar Settings” on page 132 in the

PR650e Operation Manual).

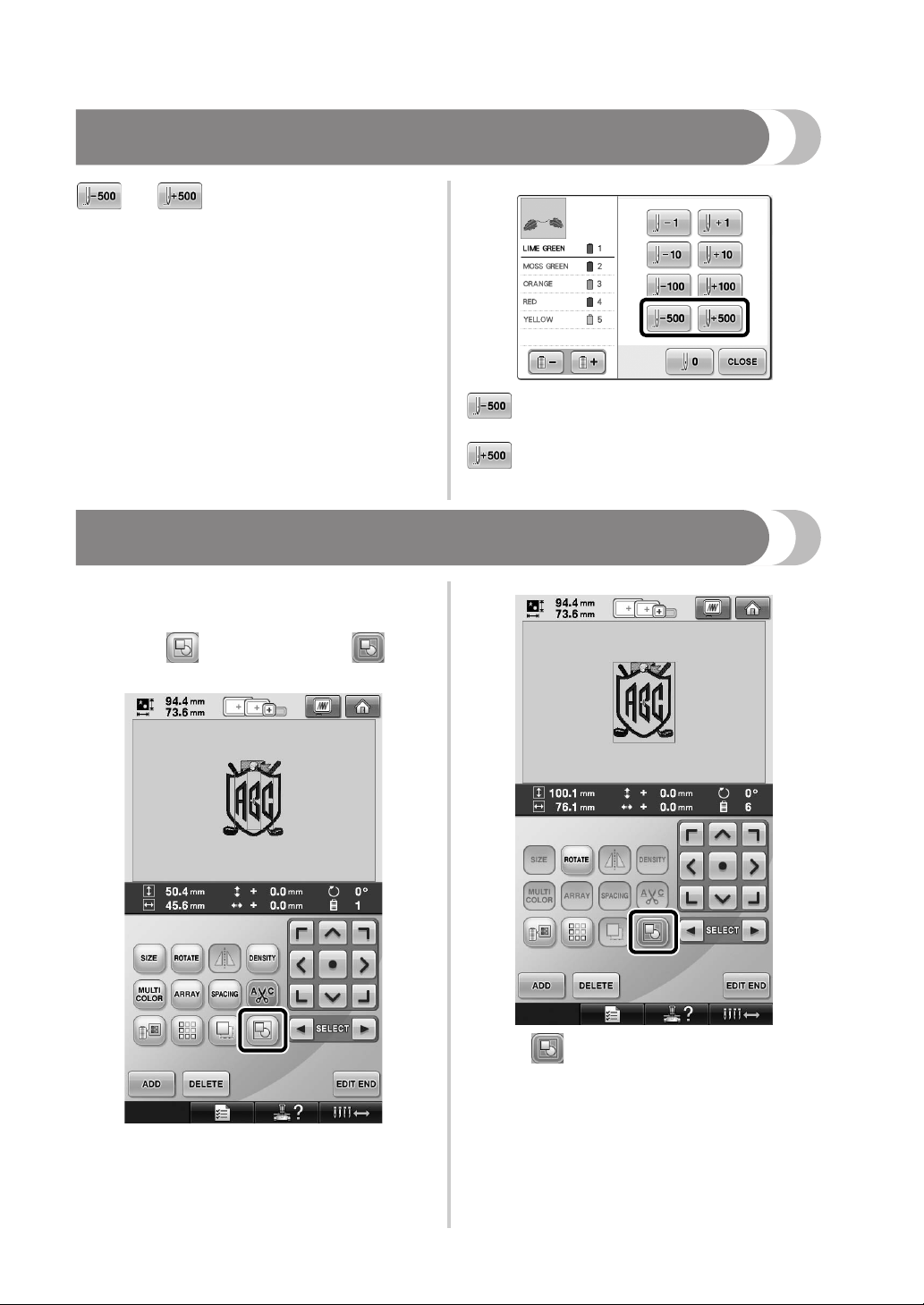

Moving Five Hundred Stitches Forward/Back

and have been added to the stitch

navigation screen. For details on moving forward or

backward through the stitching, refer to

“Embroidering From the Beginning or Middle of the

Pattern” on page 108 of the PR650e Operation

Manual.

Each touch of this key moves five hundred

stitches back through the stitching.

Each touch of this key moves five hundred

stitches forward through the stitching.

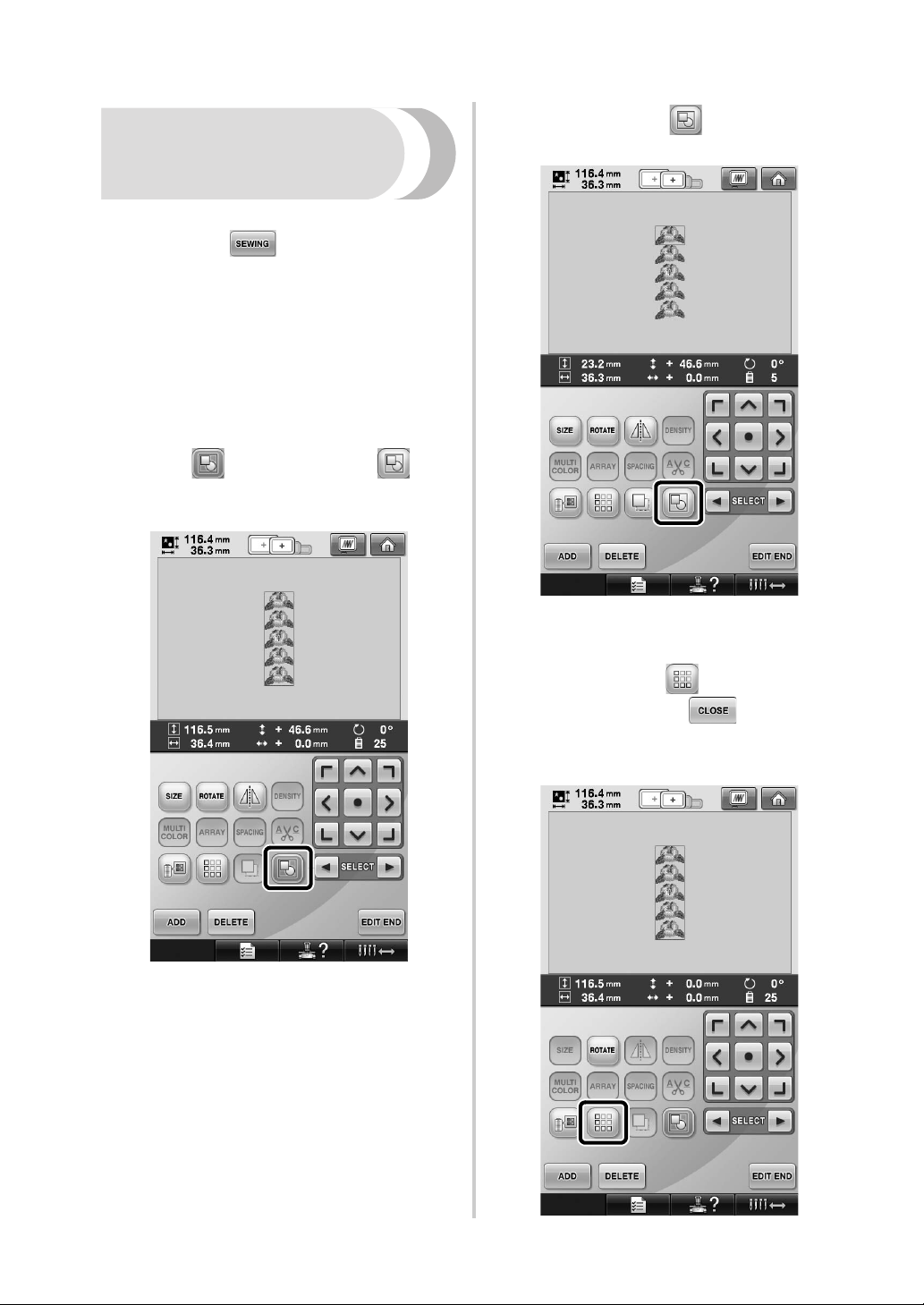

Editing Patterns as a Group

Combined patterns can be grouped and can all be

edited (rotated, resized, etc.) at the same time.

1Touch so that it changes to .

XAll patterns displayed in the pattern

display area are grouped.

* Touch to ungroup the patterns. If there are

multiple grouped patterns, the selected pattern group

is ungrouped.

Sewing the repeated

pattern without sorting

colors

With repeated patterns created using the border

function, pressing automatically changes

the sewing order of the colors so that the same

color can be continuously sewn. You can edit the

pattern according to the procedure below to sew

the repeated pattern without sorting the colors.

1Create the combined border embroidery

pattern (Refer to “Designing repeated

patterns” on page 172 in the PR650e

Operation Manual).

2Touch so that it changes to .

XThe border function is canceled.

3If necessary, touch so that the patterns

are regrouped.

XAll patterns displayed in the pattern

display area are grouped.

4If necessary touch to sew the thread

mark, and then touch .

(Refer to page 175 in the PR650e Operation

Manual)

5Touch , then .

Sending Embroidery Patterns From a Computer to the

Machine (Link Function)

Operations available with

the Link function

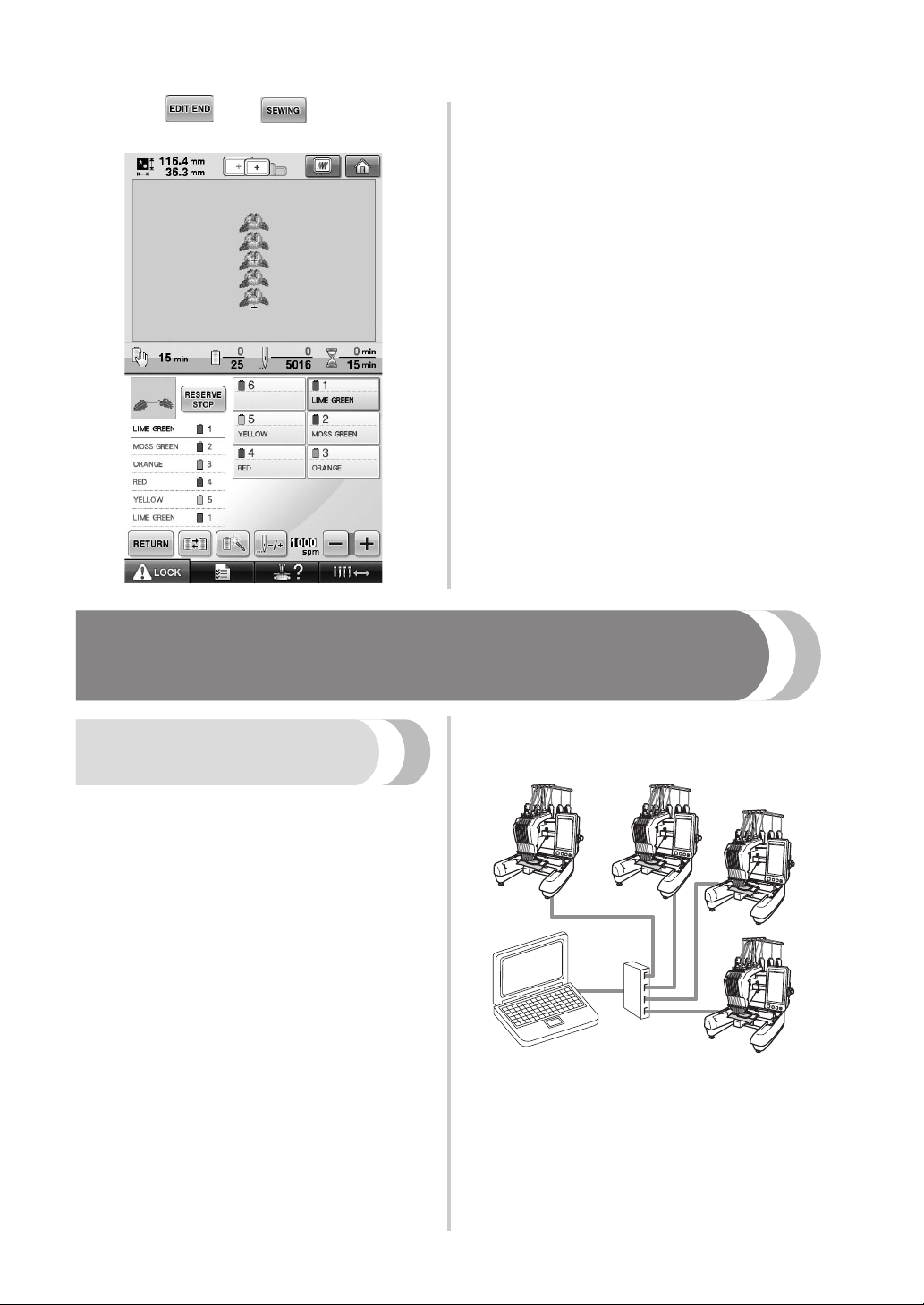

■Send multiple embroidery patterns to

connected embroidery machines

As many as 100 embroidery patterns can be

transferred to an embroidery machine, and the

embroidering status of the patterns being

transferred can be viewed from the computer

monitor.

Use the included USB cable to connect the

embroidery machine to a computer.

■Check the sewing status of the embroidery

machine (this model) from the computer

(Example of multiple machines connected)

Memo

●When connecting multiple embroidery

machines to the computer, use a

commercially available USB hub.

Please note that we recommend using a

self-powered USB hub. Do not use USB

extension cables or repeater cables. For

details on using the USB hub, refer to its

operating instructions.

Embroidering using

the Link function

First, use the embroidery editing software to create

the embroidery pattern to be sent to the embroidery

machine.

Note

●Only embroidery data in the PES format

(.pes) can be embroidered using the Link

function.

●You cannot select .dst data to send from a

computer using the Link function.

●The Link function cannot be used with

large-size (split) embroidery patterns.

●Attach to the embroidery machine the

embroidery frame for the size of the

pattern to be sent.

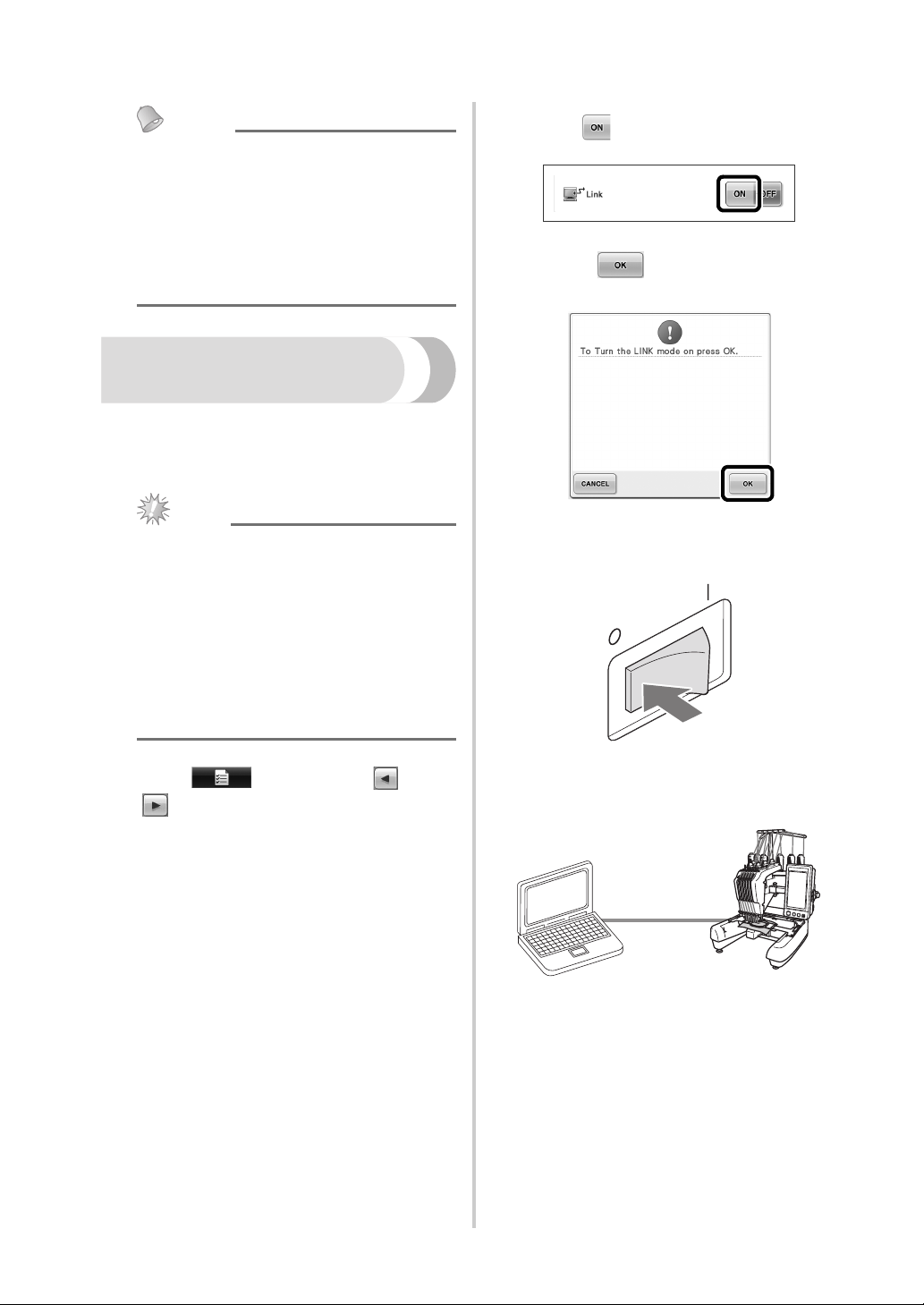

1Touch , and then touch and

to display page 5 of the machine settings

screen.

2Touch to enable the Link function.

XWhen the following message appears,

touch .

3Turn off the machine.

4Use the included USB cable to connect the

embroidery machine to the computer.

5Turn on the machine.

6Using embroidery editing software provided

with the Link function, such as PE-DESIGN

NEXT, or later, will allow you to send the

embroidery pattern(s) to the machine in the

Link mode from your computer.

7When the following message appears, touch

XA message appears in the machine’s LCD

while the machine is connecting to PC.

Note

●For details on using the embroidery editing

software, refer to the Instruction Manual

included with the software.

* This Link dialog box is found in PE-DESIGN

NEXT software.

●If the following error message appears, the

type of embroidery frame installed on the

machine is not compatible with the size of

the pattern. Replace the embroidery frame

with one compatible with the size of the

pattern.

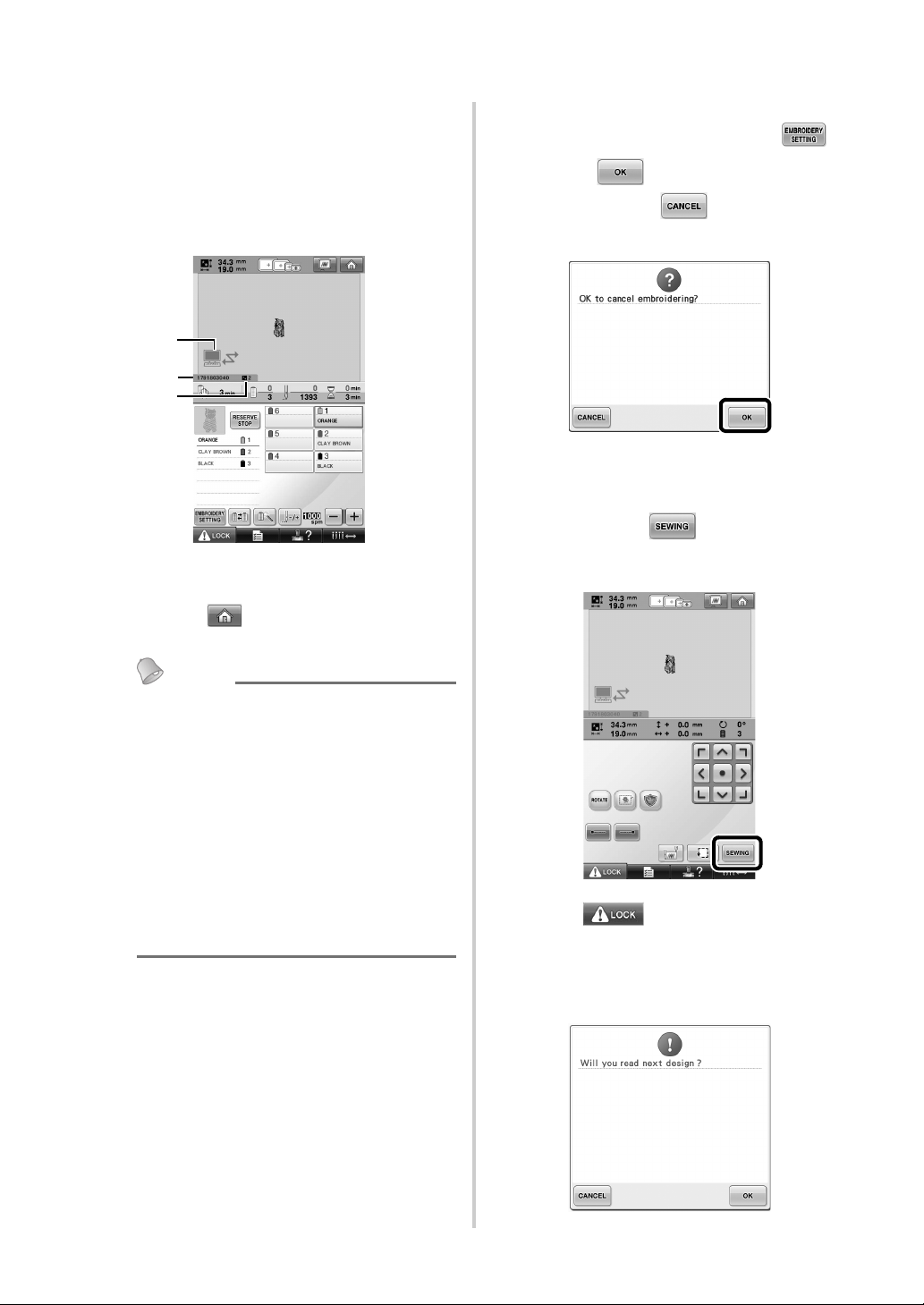

8After the embroidery pattern has been

opened by the machine, the embroidering

screen appears.

XThe opened embroidery pattern appears in

the pattern display area with the icon for

the Link function.

1Icon for Link function

210-digit machine ID

3Number of the pattern in the queue

• Touch to delete the pattern.

Memo

●While the embroidery machine is

connected to the computer, the machine’s

status can be displayed by using a function

of the embroidery editing software. If

multiple embroidery machines are

connected at the same time, check the

status of the machines using the 10-digit

machine ID that appears in the machine’s

screen. The following information can be

viewed from the computer.

• Number of the stitch being sewn and

total number of stitches in the pattern

• Information about sewing errors

9To change the embroidery settings for the

opened embroidery pattern, touch .

• Touch when the following message

appears. Touch to return to the

embroidering screen.

XThe embroidery settings screen appears.

0After the desired settings have been

specified, touch to return to the

embroidering screen.

aTouch , and then press the start/

stop button to start embroidering.

XWhen embroidering is finished, the

following message appears.

bTo open another pattern sent from the

computer, touch , and then repeat the

procedure starting from step 8to continue

embroidering.

• To stop embroidering or to embroider the

same pattern again, touch .

Note

●The embroidering screen settings specified

in step 0are saved even if was

touched to continue sewing after

embroidering is finished.

Memo

●If the embroidery machine is turned off

while it is embroidering, the resume

operation can be used the next time it is

turned on.

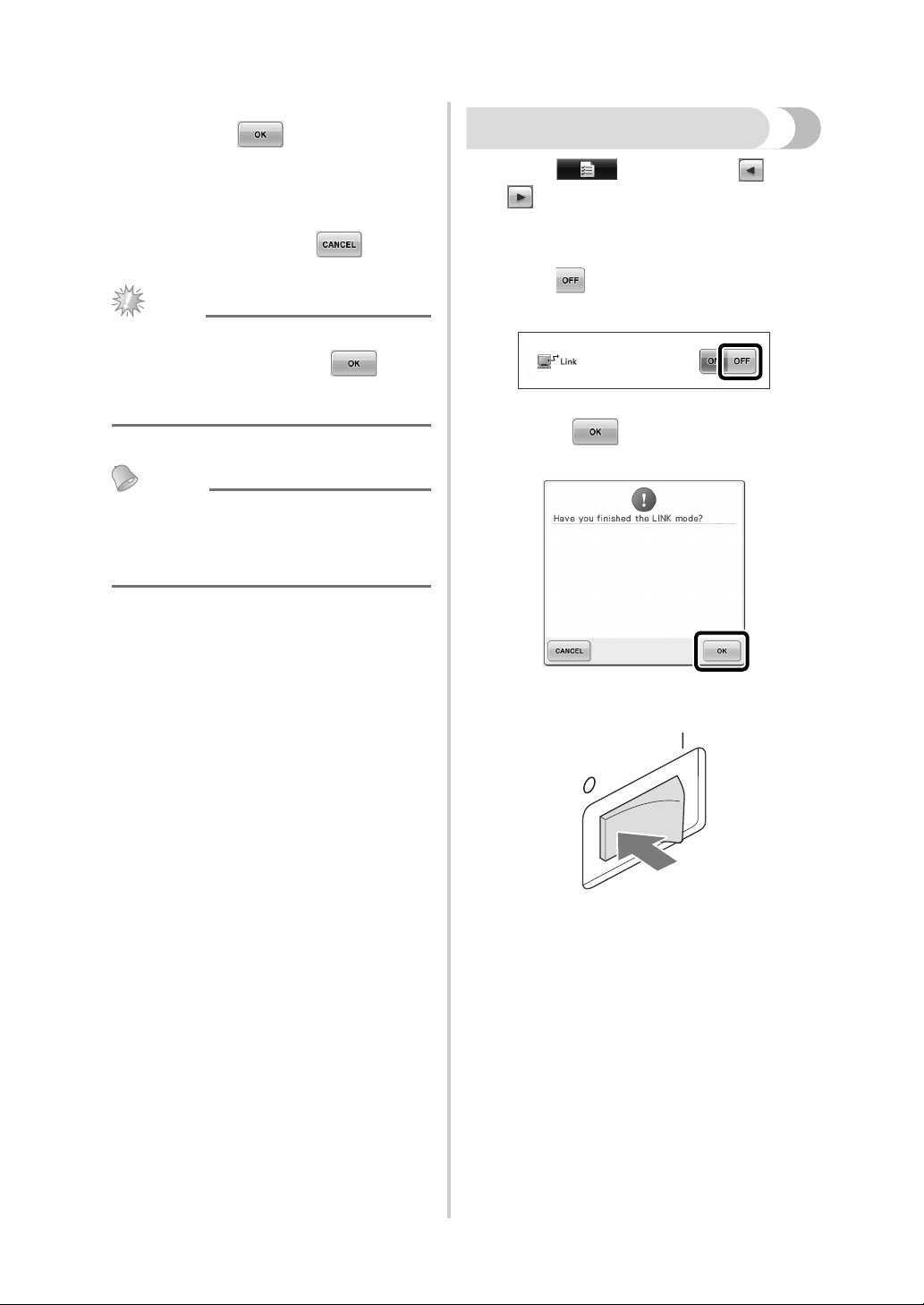

Disabling the Link function

1Touch , and then touch and

to display page 5 of the machine settings

screen.

2Touch to disable the Link function.

XWhen the following message appears,

touch .

3Turn off the machine.
