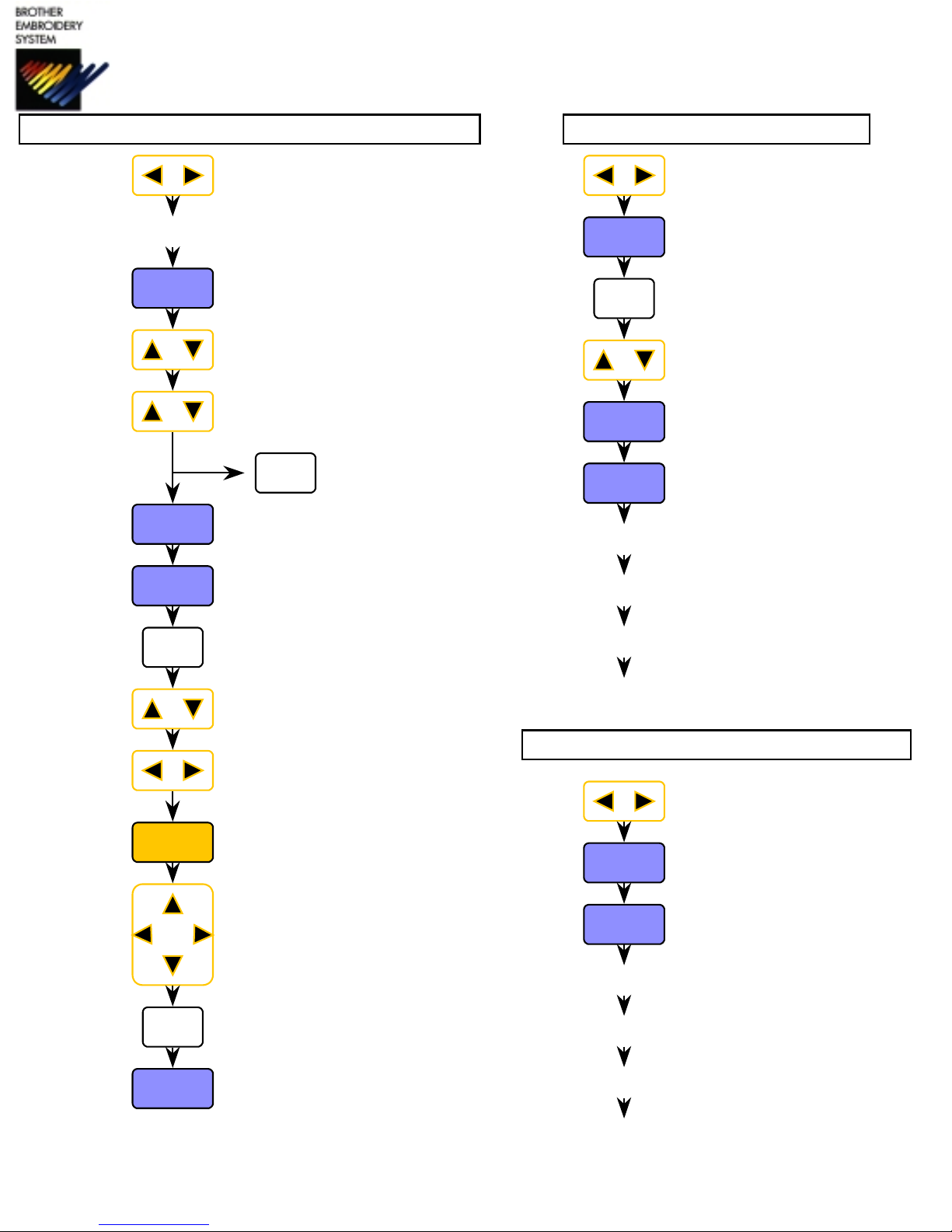

ENTERING DISK DATA & SETTING THE COLOR SEQUENCE

Insert floppy disk into disk drive

ENTER

START

NEEDLE

SET

END

START

Press ENTER.

Press UP or DOWN arrows to scroll

the disk directory.

Press (*) key to read

the design name.

Press ENTER to copy the design to

the machine memory.

Press START to calculate design

size and number of color changes.

Press NEEDLE SET to enter

color programming mode.

Press UP or Down arrow keys to

assign needle number (Color).

Press FORWARD arrow to select

next color of design or BACK arrow

for previous color of design.

Press END to exit needle set mode.

Use ARROW keys to center your

design in the frame.

Press (#) key to trace the mask

(outside edge) of the design.

Press START to start sewing.

ENTER A DESIGN FROM EDITOR MODE

ENTER Press ENTER.

Press UP or DOWN arrows to begin

reading computer directory.

ENTER Press ENTER to copy the design to

the machine memory.

START Press START to calculate design

size and number of color changes.

ENTER A DESIGN FROM THE MACHINE MEMORY

ENTER

START Press START to calculate design

size and number of color changes.

Use BACK and FORWARD keys

to pick a design from memory.

Press ENTER to view design name

Press the (#) key until “EDITOR”

appears on the screen.

Program color sequence (see Step 8)

Use ARROW keys to center your design (see Step 12)

Press (#) key to trace the mask of the design (see Step 13)

Press START to start sewing (see Step 14)

Program color sequence (see Step 8)

Use ARROW keys to center your design (see Step 12)

Press (#) key to trace the mask of the design (see Step 13)

Press START to start sewing (see Step 14)

Press UP or DOWN arrow to begin

reading the disk.

Use BACK and FORWARD keys

to pick an empty memory location.

Use BACK and FORWARD keys

to pick an empty memory location.

10.

11.

12.

13.

14.

BAS-416,416A-Quick Reference Guide

For Technical Assistance Please Call 1-877-4BROTHER

FO/SB - 2000/1 - 002

BAS-416

SETTING THE ROTATE, MIRROR, REPEAT

START

EDIT

Set STR_P. Co. # #

N_No. # # # # # # # # #

After loading your design and at the

display below, do the following.

EDIT

END

To enter EDIT mode.

To select which option you wish

to change.

To enter that options EDIT

values.

To change the values of the

option you choose

To EXIT the edit mode

To return to the above display

with changes in effect.

ERASING A STORED DESIGN FROM MEMORY

ENTER

CLEAR Press CLEAR to delete the design

from machine memory.

Use BACK and FORWARD keys

to pick a design from memory.

Press ENTER to view design name

END Press END to return to

“FileNo” screen

SETTING HOOP FEED POSITION

HOOP

FEED

HOOP

FEED

Press HOOP FEED to move the frame to

the current HOOP FEED position

If you wish to change the position

Use the ARROW keys to move the frame

to a new position

Press HOOP FEED to toggle between

sewing position and hoop feed position

ENTER Press ENTER to store the new HOOP

FEED position

MOVING THE NEEDLE CASE

NEEDLE

SELECT

END

To enter the NEEDLE

SELECT mode

To move the needle case left

and right.

To EXIT the NEEDLE SELECT

mode

ERASE ALL DESIGNS / HARD RESET

Turn the power OFF on the machine.

Press and HOLD the DOWN ARROW

button while turning the power ON

CLEAR When asked “Do you want to clear?”

Press the CLEAR key.

The machine will continue the power up sequence.

“FLOATING” THROUGH A DESIGN

R_St: # # # # # # # # # Co. # #

N_No. # # # # # # # #

To move through a design after you have started

sewing you must first STOP the machine.

#Press “#” to display a “J” in the gray

box

To move by 100 stitches either

FORWARD or BACK in design

#Press “#” again to display a “C” in

the gray box

To move by color changes either

FORWARD or BACK in design

#Press “#” again to display a “T” in

the gray box

To move BACK only to the first stitch

of the design

#Press “#” To display a “I” in the gray

box

To move the frame in small increments

to correct registration

FO/SB - 2000/1 - 002
