Brother HL-L5000D Manual de usuario

Reference Guide

Brief explanations for routine operations

HL-L5000D

HL-L5100DN

HL-L5200DW

HL-L5200DWT

HL-L6200DW

HL-L6200DWT

Brother recommends keeping this guide next to your Brother machine for quick reference.

Online User's Guide

This Reference Guide contains basic instructions

and information for your Brother machine.

For more advanced instructions and information,

see the Online User's Guide at

solutions.brother.com/manuals

User's Guides and Where to Find Them

Which Guide? What's in It? Where Is It?

Product Safety Guide Read this Guide first. Please read the Safety

Instructions before you set up your machine.

See this Guide for trademarks and legal

limitations.

Printed / In the box

Quick Setup Guide Follow the instructions for setting up your

machine, and installing the drivers and

software for the operating system and

connection type you are using.

Printed / In the box

Reference Guide Learn the basic operations and basic

machine maintenance. See troubleshooting

tips.

Printed / In the box

Online User's Guide This guide includes the additional contents of

the Reference Guide.

In addition to information about the Print

operations, useful information is included

about using the machine on a network.

HTML and PDF file /

Brother Solutions

Center 1

AirPrint Guide This Guide provides information for using

AirPrint to print from OS X v10.8.5 or later

and your iPhone, iPod touch, iPad, or other

iOS device to your Brother machine without

installing a printer driver.

PDF file / Brother

Solutions Center 1

Google Cloud Print Guide This Guide provides details about how to use

Google Cloud Print™ services for printing

over the Internet.

PDF file / Brother

Solutions Center 1

Mobile Print/Scan Guide

for Brother iPrint&Scan

This Guide provides useful information about

printing from your mobile device when

connected to a Wi-Fi® network.

PDF file / Brother

Solutions Center 1

1Visit solutions.brother.com/manuals.

The Online User's Guide Helps You Get the Most

Out of Your Machine

We hope that you find this guide helpful. To learn more about your machine's features, please

take a look at our Online User's Guide. It offers:

Quicker Navigation!

Search box

Navigation index in a separate panel

Comprehensive!

Every topic in one guide

Simplified Layout!

Provides step-by-step instructions

Feature summary at the top of the page

1. Search Box

2. Navigation

3. Summary

4. Step-by-Step Instructions

To View Online User's Guides

To view the Online User's Guide and other available guides, visit solutions.brother.com/manuals.

(Windows®)

You can also access your machine's guides using Brother Utilities. The Brother Utilities tool is

included in the standard installation and, when installed, you can find it either as a shortcut on

your desktop, or from the Windows® Start menu.

Questions or Problems? Please Take a Look at

our FAQs, Solutions, and Videos Online.

Go to your model's FAQs & Troubleshooting page on the Brother Solutions Center at

support.brother.com.

•Provides several ways to search!

•Displays related questions for more information

•Receives regular updates based on customer feedback

Since the Brother Solutions Center is updated regularly, this screen is subject to change without

notice.

Control Panel Overview

The control panel may vary depending on your model.

1. Liquid Crystal Display (LCD)

Displays messages to help you set up and use the machine.

Wireless Network Models

A four-level indicator shows the wireless signal strength if you are using a wireless

connection.

0 Max

2. Data LED

The Data LED blinks depending on the machine’s status.

When the Data LED is on, data is in the machine’s memory. When the Data LED blinks, the

machine is receiving or processing data.

3. Error LED

The Error LED blinks when the LCD displays an error or an important status message.

1General Information

4. Menu Buttons

Press to store your machine’s settings. After you change a setting, the machine returns to

the previous menu level.

Back

• Press to go back one level in the menu.

• Press to select the previous digit when entering numbers.

a or b (+ or -)

• Press to scroll through menus and options.

• Press to enter a number or to increase or decrease the number. Hold down a or b to

scroll faster. When you see the number you want, press OK.

5. Secure

Press to print jobs saved in the memory when you enter your four-digit password.

6. Go

• Press to clear certain error messages. To clear all other errors, follow the LCD instructions.

• Press to print any data remaining in the machine's memory.

• Press to select the displayed option. After you change a setting, the machine returns to

Ready Mode.

7. Cancel

• Press to cancel the current setting.

• Press to cancel a programmed print job and clear it from the machine’s memory. To cancel

multiple print jobs, hold down Cancel until the LCD displays [Cancel All Jobs].

8. Power On/Off

• Turn on the machine by pressing .

• Turn off the machine by pressing and holding down . The LCD displays [Shutting

Down] for a few seconds before going off.

9. WiFi, Network, or Report buttons

• Non-Network Models:

Report

Press the Report button to print the Printer Settings page.

• Wired Network Models:

Network

Press the Network button to set up wired network settings.

1General Information

• Wireless Network Models:

WiFi

Launch the wireless installer on your computer and press the WiFi button. Follow the on-

screen instructions to set up a wireless connection between your machine and your

network.

When the WiFi light is on, your Brother machine is connected to a wireless access point.

When the WiFi light blinks, the wireless connection is down, or your machine is in the

process of connecting to a wireless access point.

Access Brother Utilities

(Windows®)

Brother Utilities is an application launcher

that offers convenient access to all Brother

applications installed on your computer.

1Do one of the following:

• (Windows® XP, Windows Vista®,

Windows® 7, Windows Server® 2003,

Windows Server® 2008 and Windows

Server® 2008 R2)

Click (Start) > All Programs >

Brother > Brother Utilities.

• (Windows® 8 and Windows Server®

2012)

Tap or click (Brother Utilities)

either on the Start screen or the

desktop.

• (Windows® 8.1 and Windows

Server® 2012 R2)

Move your mouse to the lower left

corner of the Start screen and click

(if you are using a touch-based

device, swipe up from the bottom of

the Start screen to bring up the Apps

screen).

When the Apps screen appears, tap

or click (Brother Utilities).

2Select your machine (where XXXX is

the name of your model).

3Choose the operation you want to use.

1General Information

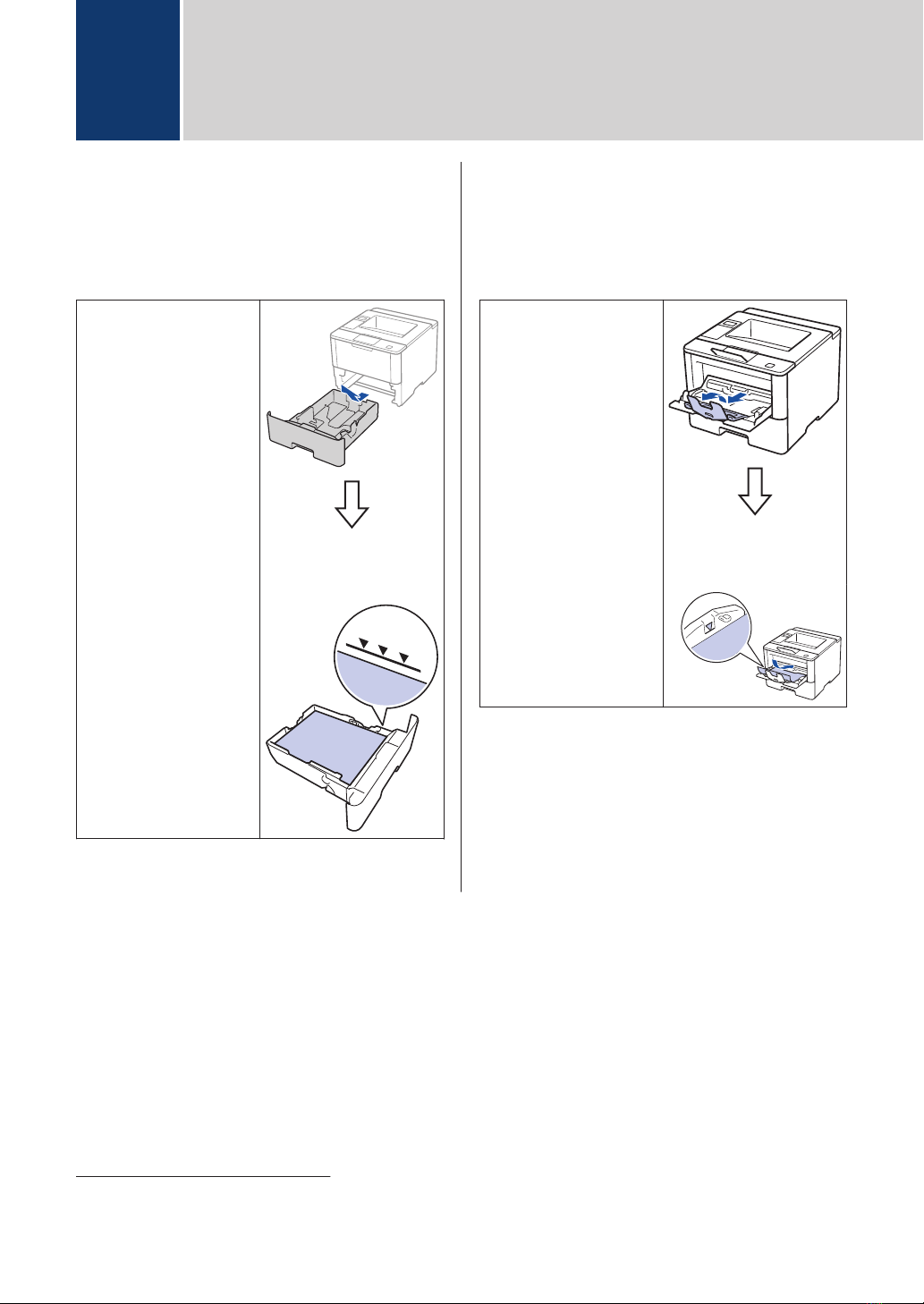

Load Paper in the

Paper Tray

Use the paper tray when printing on the

following media:

Plain paper

Thin paper

Recycled paper

Letterhead

Colored paper

Thick paper 1

• Adjust the guides

• Fan the paper

For more information, see the Online User's

Guide: Load and Print Using the Paper Tray.

Load Paper in the Multi-

purpose Tray (MP Tray)

Use the MP tray when printing on the

following media:

Plain paper

Thin paper

Recycled paper

Bond paper

Letterhead

Colored paper

Thick paper 2

Labels 2

Envelopes 2

• Adjust the guides

• Fan the paper

For more information, see the Online User's

Guide: Load and Print Using the

Multi

‑

purpose Tray (MP Tray).

2Load Paper

1Open the back cover (face up output tray) before printing to let the printed paper exit onto the face up output tray.

2Open the back cover (face up output tray) before printing to let the printed paper exit onto the face up output tray.

Print from Your Computer

Print a Document

(Macintosh)

For printing instructions, see the Online User's

Guide: Print from Your Computer (Macintosh).

Print a Document

(Windows®)

1Select the print command in your

application.

2Select Brother XXX-XXXX (where

XXXX is the name of your model).

3Click Print.

4Complete your print operation.

For more information, see the Online

User's Guide: Print from Your Computer

(Windows®).

Print More Than One Page

on a Single Sheet of Paper

(N in 1) (Windows®)

1Select the print command in your

application.

2Select Brother XXX-XXXX (where

XXXX is the name of your model), and

then click the printing properties or

preferences button.

The printer driver window appears.

3Click the Multiple Page drop-down list

and select the 2 in 1, 4 in 1, 9 in 1, 16

in 1, or 25 in 1 option.

4Click OK.

5Complete your print operation.

3Print
