Brother HL-1020 Manual de usuario

Apr., '98

84U005BE0

PARTS REFERENCE LIST

MODEL:HL-820/1020/1040/1050

LASER PRINTER

NOTE FOR USING THIS PARTS REFERENCE LIST

1. In the case of ordering parts, it needs mentioning the following items:

(1) Code

(2) Q'ty

(3) Description

(4) Symbol ( PCB No., Revision , and Parts location mounted on the PCB.)

Note : No orders without Parts Code or Tool No. can be accepted.

< Example >

REF.NO.

CODE

Q’TY

DESCRIPTION

SYMBOL

REMARK

Revision No.: marked on the printed circuit board.

B48K056 - 201A

2. Design-changed parts :

If the parts are changed, any one of the following symbols is indicated in the REMARKS

column.

#A : compatible between old and new

#B : replaceable from old to new

#D : incompatible

# : newly established

3. The original of this list was made based on the information available in April, 1998.

4. Parts are subject to change in design without prior notice.

(1)

(4)

(3)

(2)

Design change indication

Specification No .

Pattern alteration No.

Circuit board No.

CONTENTS

GENERAL DRAWING..................................................................................1

MAIN PCB DRAWING (HL-820/1020/1040).................................................2

MAIN PCB DRAWING (HL-1050).................................................................3

AC CORD / PACKING MATERIAL DRAWING.............................................4

1. DRIVE UNIT..........................................................................................5

2. SCANNER UNIT...................................................................................5

3. MP SHEET FEEDER............................................................................6

4. FIXING UNIT.........................................................................................6

5. COVERS...............................................................................................7

6-1. MAIN PCB <HL-820/1020>...................................................................8

6-2. MAIN PCB <HL-1040 OTHERS>..........................................................8

6-3. MAIN PCB <HL-1040 ISRAEL>............................................................8

6-4. MAIN PCB <HL-1050 OTHERS>..........................................................9

6-5. MAIN PCB <HL-1050 ISRAEL>............................................................9

7. PANEL SENSOR PCB........................................................................10

8. POWER SUPPLY PCB.......................................................................10

9. HIGH VOLTAGE POWER SUPPLY....................................................11

10. AC CORD............................................................................................11

11. ACCESSORIES..................................................................................12

12. PACKING MATERIALS.......................................................................12

- 1 -

GENERAL DRAWING

MODEL HL-820/1020/1040/1050 84U821/831/832/861/862

5-24 5-23

5-22

5-12

5-14

11-8

5-14

5-16

5-15

7-1

5-2

5-3

5-13

5-9

5-33

5-11

5-10

5-325-33

8-2

5-18

5-19

1-3

5-35 (100V only)

1-2

1-1

1-5

1-6

1-4

8-1

5-7

5-33

5-35(200V only)

5-34

5-8

5-1

5-215-25 5-26

5-6

5-5

5-20

5-26

5-31

5-16

5-15

2-4

2-3

2-4

2-3 2-2

2-2

2-1 5-27

5-28

2-5

4-1-1

4-7

4-2

4-6

4-3

4-2

4-3

11-3

11-1

11-2

11-6

11-7

11-4

3-1

5-29

2-2

11-5

5-30

4-1

4-5

4-6

4-4

4-8

5-17

9-1

5-4

5-33

4-1-11

5-34

T/I NO. PR98096 / PR98100 / PR98176 / PR98235 / PR98271 / PR98292

(Legend model only)

11-5-1

4-9

4-10

4-11

1-1

MODEL HL-820/1020 84U-821-101/104

6-1. MAIN PCB <HL-820/1020>

MODEL HL-1040 84U-831-101/103, 84U-832-101

6-2/3. MAIN PCB <HL-1040 OTHERS/ISRAEL>

1-1

- 2 -

1-1

MODEL HL-1050 84U-861-101/103/104, 84U-862-106

6-4/5. MAIN PCB <HL-1050 OTHERS/ISRAEL>

- 3 -

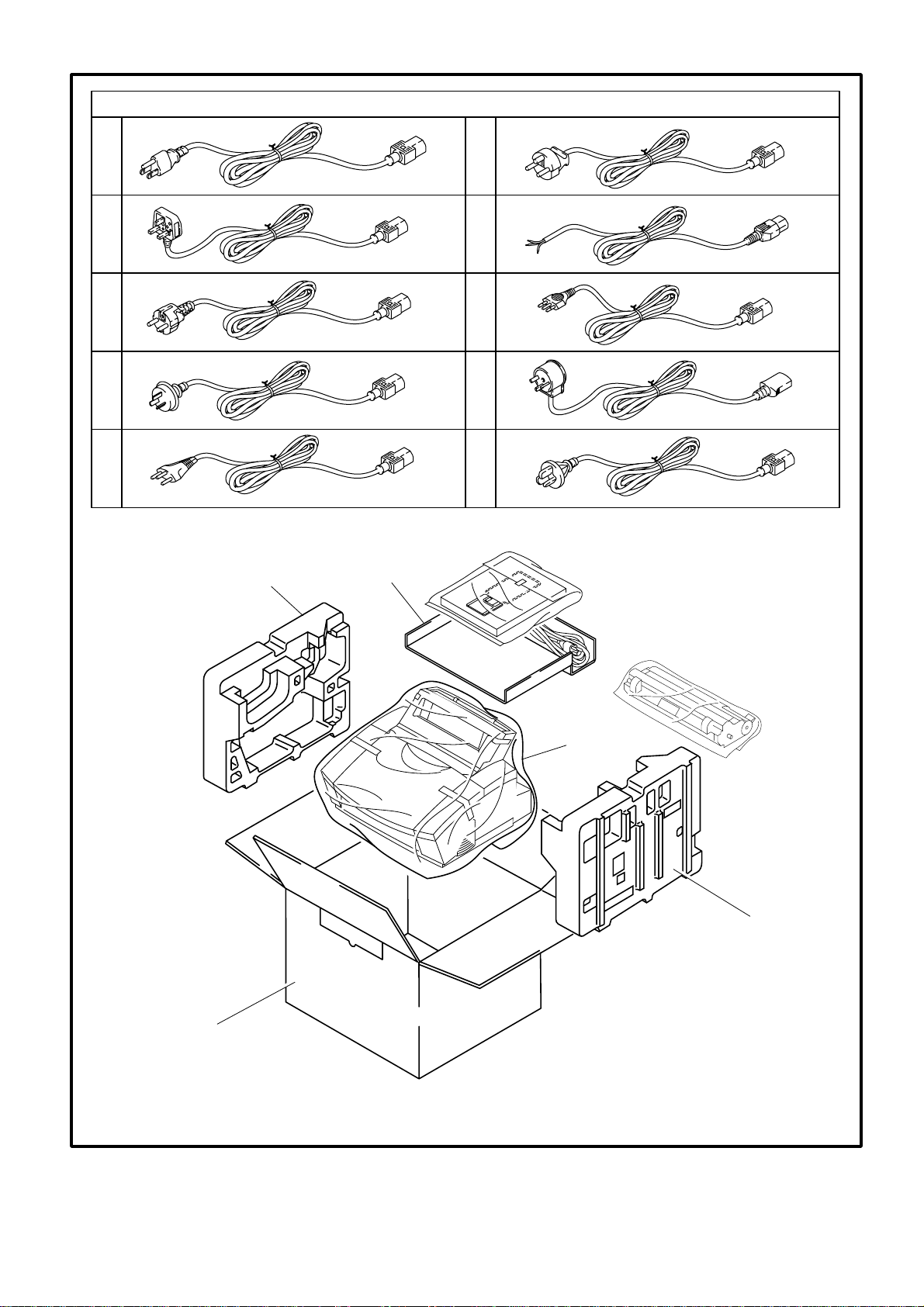

POWER CORDS & PACKING DRAWING

MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-230/930

10-

12-2

12-2 12-3

12-4

- 4 -

12-1

T/I NO. PR98176

1. DRIVE UNIT

REF.NO. CODE Q'TY DESCRIPTION REMARK

1UL8747001 1DRIVE UNIT ASSY (SP)

2087412016 3TAPTITE, CUP B M4X20

3085411215 1TAPTITE, BIND B M4X12

4UL7964001 1MAIN MOTOR ASSY

5UL7968001 1SUB MOTOR ASSY

6085320616 4TAPTITE, BIND S M3X6

MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-010

2. SCANNER UNIT

REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK

1UL8748001 1SCANNER UNIT Y (SP) (B48K226)

2085411215 3TAPTITE, BIND B M4X12

3UL8759001 1TONER SENSOR PCB ASSY B48K231

3UL8810001 1TONER SENSOR PCB ASSY (LEGEND) B512028

4087310815 1TAPTITE, CUP B M3X8

4084311015 1TAPTITE, SARA B M3X10 (LEGEND)

5UH3064001 1S SEAL SPONGE 4

MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-020

T/I NO. PR98176

- 5 -

3. MP SHEET FEEDER

REF.NO. CODE Q'TY DESCRIPTION REMARK

1UL8749001 1MP SHEET FEEDER ASSY (SP)

1UL8832001 1MP SHEET FEEDER ASSY (LEGEND) (SP)

MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-040

T/I NO. PR98176

4. FIXING UNIT

REF.NO. CODE Q'TY DESCRIPTION REMARK

1-11 UL8750001 1FIXING UNIT, 120V (SP)

1-11 UL8751001 1FIXING UNIT, 230V (SP)

1-11 UL8833001 1FIXING UNIT (LEGEND) (SP)

1UH3306001 1HALOGEN LAMP Y, 120V (SP)

1UH3307001 1HALOGEN LAMP Y, 230V (SP)

2087411616 2TAPTITE, CUP B M4X16

3085311216 2TAPTITE, BIND B M3X12

4083311017 2TAPTITE, PAN B M3X10

5UL8757001 1HEAT ROLLER YS (SP)

5UL8834001 1HEAT ROLLER (LEGEND) (SP)

6UH3178000 2H/R BEARING Y

7UL8758001 1H/R CLEANER

7UL8855001 1H/R CLEANER (LEGEND)

8UL8754001 1H/R WASHER

9UH3196001 1THERMISTOR Y ASSY

10 UH3323001 4EJECT PINCH ROLLER ASSY

11 UL6682001 4PINCH SPRING

MODEL HL-820/1020/1040/1050 84U-821/831/861-050/051 84U-832/862-052

T/I NO. PR98116 / PR98176 / PR98271 / PR98292

- 6 -

5. COVERS

REF.NO. CODE Q'TY DESCRIPTION SYMBOL REMARK

1UL7983001 1MAIN COVER ASSY

2085411215 1TAPTITE, BIND B M4X12

3085411215 1TAPTITE, BIND B M4X12

4085411215 1TAPTITE, BIND B M4X12

5002400616 3SCREW PAN M4X6

6087320616 2TAPTITE, CUP S M3X6

70A5350605 1SCREW PAN(WASHER), M3.5X6

8UL8659001 1EL PCB UNIT B48K304

9UL8753001 1MAIN FAN MOTOR

10 UL8509001 1SUB FAN MOTOR

11 085411215 2TAPTITE, BIND B M4X12

12 UL8505001 1BASE PLATE 820/1020/1040

12 UL8601001 1BASE PLATE 1050

13 UL8506001 1MAIN PCB GUIDE RAIL (820/1020/1040)

14 UL8507001 2RUBBER FOOT

15 085411215 8TAPTITE, BIND B M4X12

16 087320616 5TAPTITE, CUP S M3X6

17 UL8508001 1INSULATION SHEET

18 UL8512001 1INLET HOLDER

19 085411215 1TAPTITE, BIND B M4X12

20 UL8510001 1I/F SHIELD ASSY 820/1020/1040

20 UL8604001 1I/F SHIELD ASSY 1050

21 UL8518001 1PANEL COVER, GRAY1227

22 UL8745001 1TOP COVER ASSY

23 UL8515001 1OUTPUT TRAY

24 UL8516001 1EXTENSION SUPPORT WIRE

25 UL8746001 1REAR COVER ASSY

26 085411215 2TAPTITE, BIND B M4X12

27 UL6740001 1LASER CAUTION LABEL

27 UL7931001 1LASER CAUTION LABEL (LEGEND)

28 UL6741001 1TONER WARNING LABEL

29 UL8575001 1MODEL PLATE, HL-820

29 UL8639001 1MODEL PLATE, HL-1020

29 UL8519001 1MODEL PLATE, HL-1040

29 UL8641001 1MODEL PLATE, HL-1040DX

29 UL8686001 1MODEL PLATE, HL-1040 (LEGEND)

29 UL8611001 1MODEL PLATE, HL-1050

29 UL8645001 1MODEL PLATE, HL-1050DX

29 UL8820001 1MODEL PLATE, HL-1050 (LEGEND)

30 UL8640001 1MYLAR LABEL, HL-1020 CAN

30 UL8650001 1MYLAR LABEL, HL-820 EUR

30 UL8522001 1MYLAR LABEL, HL-1040 US

30 UL8547001 1MYLAR LABEL, HL-1040 CAN

30 UL8642001 1MYLAR LABEL, HL-1040DX CAN

30 UL8651001 1MYLAR LABEL, HL-1040 EUR

30 UL8612001 1MYLAR LABEL, HL-1050 US

30 UL8596001 1MYLAR LABEL, HL-1050 CAN

30 UL8646001 1MYLAR LABEL, HL-1050DX CAN

30 UL8652001 1MYLAR LABEL, HL-1050 EUR

31 UH3297001 1C-TICK MARK LABEL

32 UH0905001 1US PATENT SEAL HL-10

33 UG3005000 4FERRITE CORE

34 UG3005000 7FERRITE CORE (HL1050)

35 UK3617000 1CORE, TFC-16813 (HL1050)

MODEL HL-820/1020/1040/1050 84U-821/831/832/861/862-060

T/I NO. PR98096 / PR98110 / PR98176

- 7 -
