Brother GTX pro Guía del usuario

GTX pro

GARMENT PRINTER

Setup Manual

Please be sure to read this manual before using this product.

Keep this manual in a safe place for future use.

Please be sure to read "SAFETY INSTRUCTIONS" before use.

Installation 1

Setup of the printer 5

Connection to a PC 18

Adjustment 24

Maintenance list 28

Table of contents

SAFETY INSTRUCTIONS

Thank you very much for buying a BROTHER printer. Before

using your new printer, please read the "SAFETY

INSTRUCTIONS" and handling instructions carefully.

SAFETY INSTRUCTIONS

1. Safety indications and their meanings

This instruction manual and the indications and symbols that

are used on the printer itself are provided in order to ensure

safe operation of this printer and to prevent accidents and

injury to yourself or other people.

The meanings of these indications and symbols are given

below.

Indications

DANGER

The instructions which follow this

term indicate situations where

failure to follow the instructions

will result in death or serious

injury.

WARNING

The instructions which follow this

term indicate situations where

failure to follow the instructions

could result in death or serious

injury.

CAUTION

The instructions which follow this

term indicate situations where

failure to follow the instructions

may result in minor or moderate

injury.

IMPORTANT

The instructions which follow this term

indicate situations where failure to follow

the instructions may result in damage to

property.

NOTE

The instructions which follow this term

indicate precautions and restrictions for

use.

Symbols

This symbol ( ) indicates something that you

should be careful of. The picture inside the triangle

indicates the nature of the caution that must be

taken. (For example, the symbol at left means

"beware of injury".)

This symbol ( ) indicates something that you

must not do.

This symbol ( ) indicates something that you

must do. The picture inside the circle indicates the

nature of the thing that must be done. (For

example, the symbol at left means "you must make

a ground connection".)

2. Notes on safety

DANGER

Contact with high voltage sections may lead to a

serious injury. Turn off the power, and remove the

cover 5 minutes later.



WARNING

Basic precautions



To prevent accidents and problems, do not modify

the machine yourself. Brother will not be held

responsible for any accidents or problems

resulting from modifications made to the machine.

Do not handle the power cord with wet hands.

Otherwise, it may cause electric shocks.

Installation



Do not set up the printer in a dusty environment. If

dust collects inside the printer, it may cause fire or

electric shocks or problems with correct operation.



Be sure to connect the ground. If the ground

connection is not secure, you run a high risk of

receiving a serious electric shock, and problems

with correct operation may also occur.

Do not bend the cords excessively or fasten them

too hard with staples or anything similar to secure

cords. Otherwise it may cause fire or electric

shocks.

Printing

If a foreign object gets inside the printer,

immediately turn off the power, disconnect the

power cord, and contact the place of purchase or a

qualified technician. If you continue to use the

printer while there is a foreign object inside, it may

result in fire or electric shocks or problems with

correct operation.

Do not allow the printer to come into contact with

liquids. Otherwise it may cause fire or electric

shocks or problems with correct operation.

If any liquid gets inside the printer, immediately

turn off the power, disconnect the power cord, and

contact the place of purchase or a qualified

technician.

Do not use the printer when smoke or a bad odor

is coming from the printer. Otherwise it may cause

fire or electric shocks or problems with correct

operation. Immediately turn off the power,

disconnect the power cord, and contact the place

of purchase or a qualified technician.

iii

SAFETY INSTRUCTIONS

WARNING

Printing

Keep your finger or any body part away from the

rotating fan. Otherwise it will be caught up, which

results in injuries.

Turn off the power when you approach the fan.

CAUTION

Environmental requirements

Use the printer in a place which is adequately

ventilated. A slight odor is generated when the

printed articles are being fixed by heat.

Installation

Setting up and moving of the printer should only be

carried out by a qualified technician.

The printer machine weighs 128 kg (282 lb).

Transporting and setting up of the printer should

be held in the proper way. Otherwise it may fall

down and cause injury.

When the printer falls down, disconnect the power

cord and contact the place of purchase or a

qualified technician. If you continue to use it, it may

result in fire or electric shocks or poor printing

quality.

Do not place the printer on a shaky table or high

shelf or other unstable location. Otherwise it may

tip over or fall down and cause injury. Furthermore,

the table that supports the machine should be at

least 35.4 in. (90 cm) in width and 23.6 in. (60 cm)

in depth, and should be able to bear a weight of

150 kg (330 lb) or more.

Do not set up the printer in a place where it will be

affected by vibration. Otherwise the printing quality

may be degraded or the printer may fall down,

which causes injury or results in failure of the

printer.

Do not connect the power cord until installation is

complete. The printer may operate if the power is

turned on by mistake, which could result in injury.

Do not climb onto the printer or place heavy

objects on top of it. Otherwise it may become

unbalanced and tip over or fall down and cause

injury.

Be careful not to touch the claws of the mounting

portion on the upper side of the rear cover.

Otherwise you may be injured.

Printing

This printer should only be used by operators who

are appropriately trained in its safe operation.

CAUTION

Printing

Ensure there is adequate space left in front of the

printer and avoid placing any objects. Otherwise

your hand may get caught between the platen and

an object, which may result in injury.

Do not handle the platen while printing. If your

hand gets caught between the platen or the T-shirt

tray and the covers, it may be injured.

Do not put your hands inside the covers while the

printer’s power is turned on. Otherwise your hands

may touch against moving parts and this may

result in injury.

When the pretreatment is applied to printed

objects (like a T-shirt) with a spray or pretreatment

applicator, sprayed mist is generated. So wear a

pair of plastic gloves, a mask and protective

glasses (or goggles) designed to shield against

liquid splash, and fully take care of the air

ventilation when you are working with it.

When a problem occurs with the operation of the

printer, contact the place of purchase or a qualified

technician.

Maintenance

Be careful not to get your fingers caught when

closing the front cover, otherwise it may result in

injury to your fingers.

When you mount or replace the head, be careful

not to get your hands or fingers caught. Otherwise

you may be injured.

Do not disassemble the ink pouch. If the ink gets

into your eyes or onto your skin, it may cause

inflammation. In case of contact with eyes, do not

rub but immediately rinse the eyes with water.

Do not drink liquids such as the ink, maintenance

solution, cleaning solution, pretreatment, or waste.

They may cause diarrhea or vomiting.

Avoid causing your eyes or skin to make contact

with the ink, maintenance solution, cleaning

solution, pretreatment or waste. It may cause

inflammation. In case of contact with eyes, do not

rub but immediately rinse the eyes with water.

Keep the liquids out of the reach of children.

Be sure to wear protective goggles and gloves

when handling the grease, so that it does not get

into your eyes or onto your skin.

It can cause inflammation. Do not drink or eat the

grease. It may cause diarrhea or vomiting.

Keep the liquids out of the reach of children.

SAFETY INSTRUCTIONS

CAUTION

Maintenance

When replacing parts and installing optional

accessories, be sure to use only genuine Brother

parts. Brother will not be held responsible for any

accidents or problems resulting from the use of

non-genuine parts.

When replacing parts or installing optional

accessories, be sure to follow the procedures

described in the Instruction Manual. Incorrect

procedures could cause injuries or problems.

IMPORTANT

Printing



Do not move the platen by hand. Otherwise the

printer may be mechanically and electrically

damaged.

Ensure there is adequate space left in front of the

printer and avoid placing any objects. The platen

may be hit and damaged.

NOTE

Use the printer in an area which is free from

sources of strong electrical noise such as electrical

line noise or static electric noise. Sources of strong

electrical noise may cause problems with correct

operation.

Any fluctuations in the power supply voltage should

be within ±10% of the rated voltage for the printer.

Voltage fluctuations which are greater than this

may cause problems with correct operation.

The power supply capacity should be greater than

the requirements for the printer’s power

consumption. Insufficient power supply capacity

may cause problems with correct operation.

In the event of an electrical storm, turn off the

power and disconnect the power cord from the wall

outlet. Lightning may cause problems with correct

operation.

The names of operating systems described in the main context

of this manual are abbreviated. Product names used in this

manual are, in general, trademarks or registered trademarks of

their respective developer or manufacture. However, in this

manual, the ® marks or TM marks are not used.

Brother logo is registered trademark of Brother Industries, Ltd.

Apple, Macintosh, Mac OS, iOS, OS X, macOS, Safari, iPad,

iPhone, iPod and iPod touch are the trademarks or registered

trademarks of Apple Inc. in the United States and other

countries.

The official name of Windows®8.1 is Microsoft®Windows®8.1

operating system. (represented as Windows 8.1 in this manual)

The official name of Windows®10 is Microsoft®Windows®10

operating system. (represented as Windows 10 in this manual)

Microsoft®, Windows®8.1, and Windows®10 are trademarks

and registered trademarks of Microsoft Corporation in the

United States of America and other countries.

Other product and company names mentioned herein may be

the trademarks or registered trademarks of their respective

owners.

Information in this document and the specifications of this

product are subject to change without notice.

＜About the CE declarations＞

Downloadable from: http://www.brother.com 

vii

SAFETY INSTRUCTIONS

3. Warning labels

This printer has the following warning labels displayed on it.

Follow the precautions given on each warning label for your

work.

When the label is peeled off or illegible, contact the place of

purchase.

13

4

5

6

X0337

China only

Watch your

fingers, or you

may be injured.

Grease

Cleaning solution

Waste ink tan

Pretreatment

5 k

(

11 lb

)

Pretreatment

20 k

(

44 lb

)

Ink pouch

Maintenance solution pouch

viii

710

High temperature

warning display

SAFETY INSTRUCTIONS

Required Tools

Phillips screwdriver: M3 to M5

Disassembling

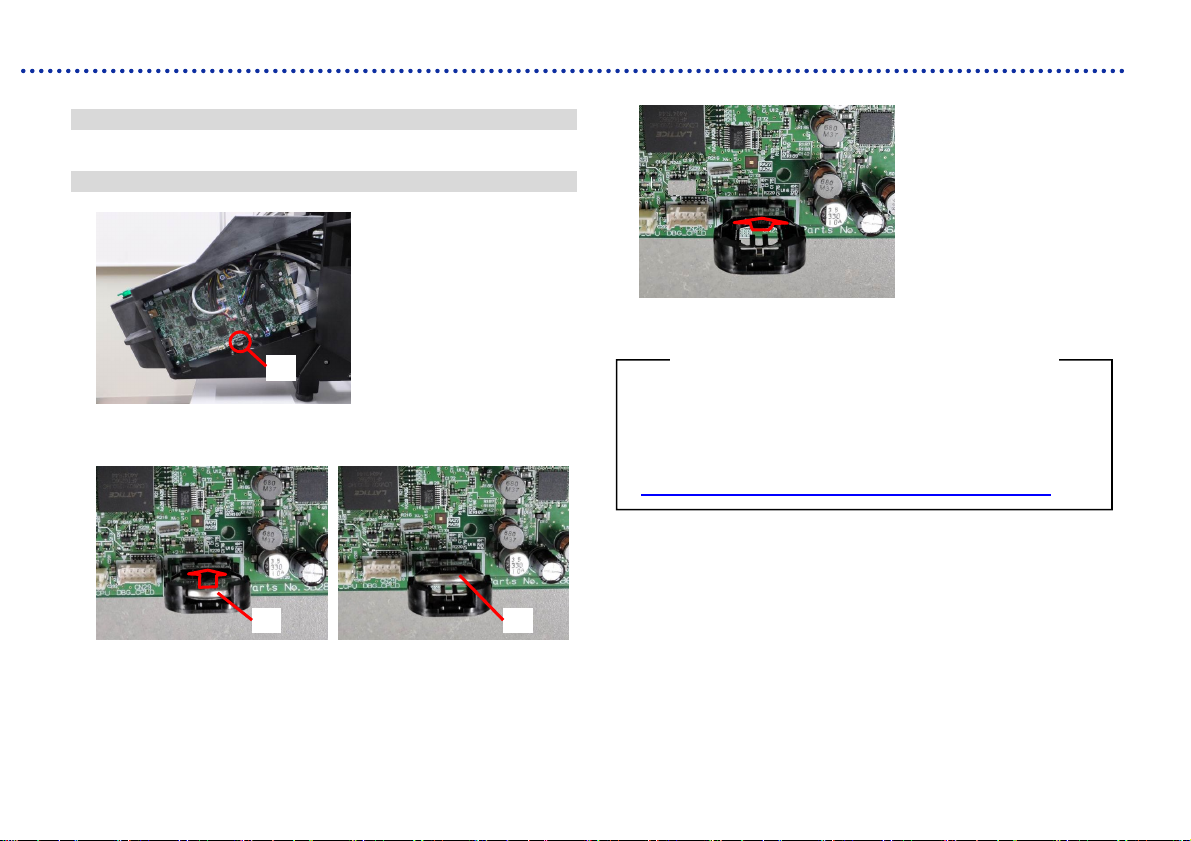

1) Remove the Cover PANEL SIDE.

2) Remove the Lithium Battery (1) by pulling out the holder in

the direction of the arrow.

3) Pickup the Lithium Battery (1) to the direction of the arrow.

(1)

(

)

(

)

Note based on California law (USA) on the

use and handling of Perchlorate

This product contains a CR Coin Lithium Battery which

contains Perchlorate Material – special handling may

apply.

See

http://www.dtsc.ca/gov/hazardouswaste.perchlorate.

Otros manuales para GTX pro

Tabla de contenidos

Otros manuales de Impresora de Brother

Brother

Brother HL 1270N - B/W Laser Printer Instrucciones de instalación

Brother

Brother HL-L2380DW Manual de operación y mantenimiento

Brother

Brother HL-2130 Manual de usuario

Brother

Brother DCP-7055 Manual de usuario

Brother

Brother HL-2700CN Series Manual de usuario

Brother

Brother HL-5280DW Manual de usuario

Brother

Brother HL-1260 Manual de usuario

Brother

Brother RuggedJet RJ-4030 Manual de usuario

Brother

Brother DCP-365CN Manual de usuario

Brother

Brother DCP-J100 Manual de usuario

Brother

Brother RJ-3230B Manual de usuario

Brother

Brother DCP-8110DN Manual de usuario

Brother

Brother HL-L5000D Manual de usuario

Brother

Brother HL-4000CN Manual de usuario

Brother

Brother Pocket Jet PJ-763MFi Instrucciones de operación

Brother

Brother HL-L9200CDW(T) HL-L9300CDW(T) Manual de usuario

Brother

Brother Schulze PRETREATmaker III Manual de usuario

Brother

Brother HL-1070 - B/W Laser Printer Manual de uso y cuidado

Brother

Brother DCP-L5500DN Manual de usuario

Brother

Brother DCP-T420W Manual de usuario

Brother

Brother 1440 - HL B/W Laser Printer Guía de inicio rápido

Brother

Brother MFC-J1215W Manual de funcionamiento

Brother

Brother HL-1070 Manual de usuario

Brother

Brother Rugged Jet RJ-3150Ai Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
