Brother HL-1240 Manual de usuario

LaserPrinterHL-1240/1250/1270N

Quick Setup Guide

ReadthisSetupGuidebeforeyousetuptheprinter.

Beforeyoucanusetheprinter,youmustsetupthehardwareandinstall

thedriver.

❏IdentifytheOperatingSystemonyourcomputer(Window®3.1x,

95/98,NT®4.0orMacintosh)

❏Purchasetheappropriateinterfacecableforyourcomputer

(Parallel,USBorNetwork)

❏Followtheinstructionsinthisguideforyouroperatingsystem

andcableinterface.

countries.MacintoshandiMacareregisteredtrademarksofAppleComputer,Inc.

Allotherbrandandproductnamesaretrademarksorregisteredtrademarksoftheirrespectiveholders.

Table of Contents

Carton Components

For Windows

users only

(Windows

3.1x, 95/98 or NT 4.0)

You can set up the printer easily by following the Initial Setup instructions on

the CD-ROM.

For Windows

users without CD-ROM drive only

(Windows

3.1x, 95/98)

If you don’t have a CD-ROM drive, follow the instructions in this section.

For Windows

users with USB only(Windows

98)

The steps in this section are essential for USB interface cable users.

For Macintosh users only

(iMac and Power Macintosh G3 with USB)

You can setup the printer by following the Initial Setup instructions on the

supplied CD-ROM

Troubleshooting

For Network users

See the Quick Network Setup Guide (HL-1270N only)

Carton Components

CartonComponentsmaydifferfromonecountrytoanother.Saveallpacking

materialsandtheprintercarton.Theyshouldbeusedwhenshippingtheprinter.

✒Note

SomeillustrationsarebasedontheHL-1240/1250printers.TheHL-1270Nprinter

hasaNetworkinterfacefittedinthebackpaneloftheprinter.

CD-ROMincludes:InitialSetupinstructions

Printerdriver

Fonts

User’sGuide

InstructionalVideo

NetworkUtilities

Floppydiskincludes:PrinterdriverforWindows®only

ACpowercord

Drumunitassembly

(withtonercartridgeincluded)

Floppydisk

Documents

CD-ROM

Printer

For Windows

users only

(Windows

3.1x, 95/98

or NT

4.0)

You can set up the printer easily by following the Initial Setup instructions on the

CD-ROM.

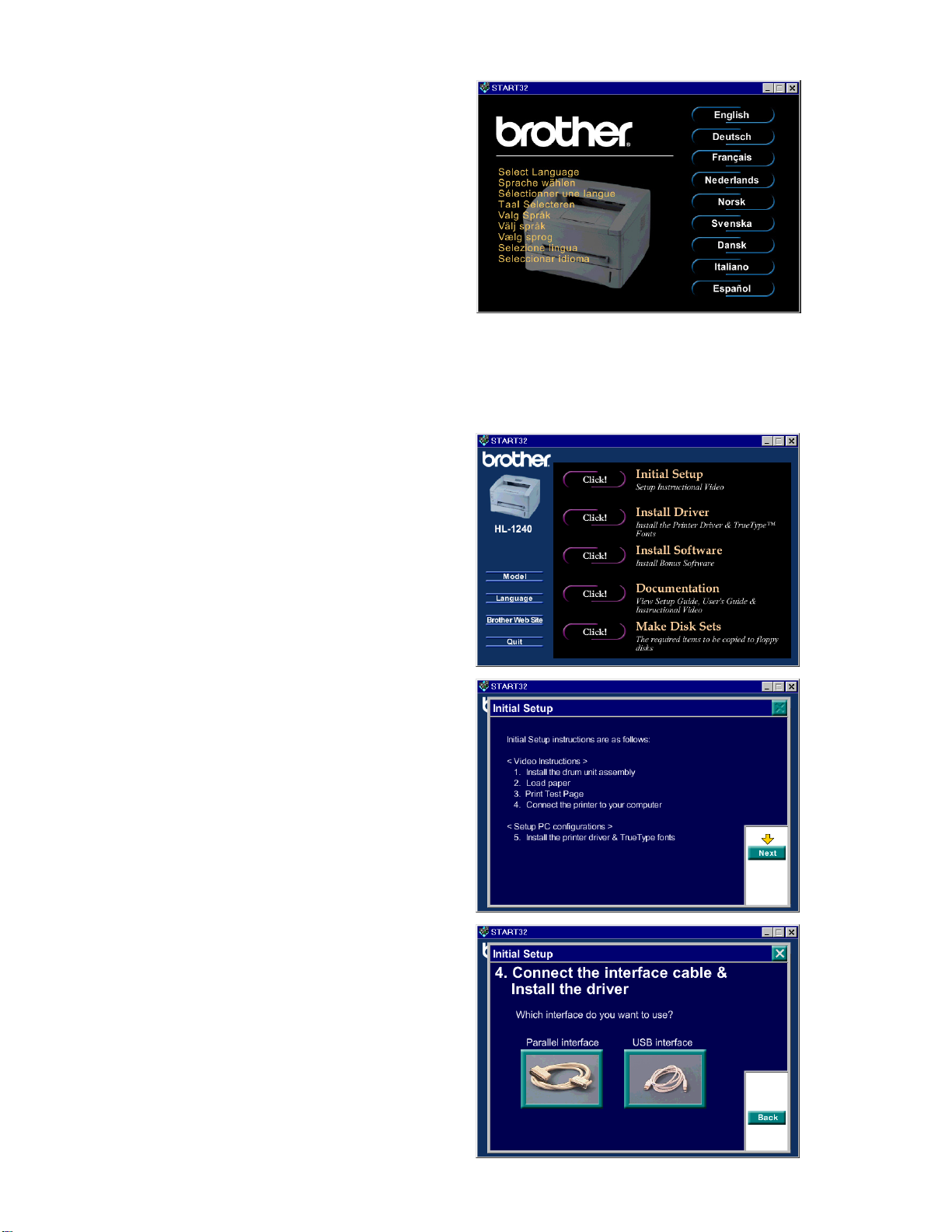

Step 1 Insert the CD-ROM

1. Turn on your PC power. Insert the CD-ROM into the CD-ROM drive.

The opening screen will appear automatically in Windows®95/98/NT®4.0.

If the screen does not appear, click Start and choose Run, enter the CD drive letter

and type START.EXE.

If you are using Windows®3.1x, click Run from the File Menu in Program

Manager, enter the CD drive letter and type START.EXE.

2. Click the model number of your

printer.

3. Select the language you want then

follow the instructions on the

screen.

Step 2 Initial Setup

1. Click the Initial Setup button.

2. You can view the Initial Setup

operations in the video movie.

3. Click the interface cable you are

going to use Parallel, USB or

Network.

Step3Installtheprinterdriver

1.IfyouclicktheNowbutton,you

caninstalltheprinterdriverand

Fontsimmediately.

2.Aftertheprinterdriverhasbeen

installed,theHL-1240/1250/1270N

windowwillappear.Followthe

on-screenmessagestocompletethe

installation.

Ifyourprinterisconnectedusingaparallelinterfacecable,thesetupisnow

completed.IfyouwanttoconnectyourprinterusingaUSBinterfacecable,see

‘ForWindows

userswithUSBonly’laterintheseinstructions.

Whenyouwanttoconnectyourprintertoanetwork,refertothe“QuickNetwork

SetupGuide”.

For Windows

users with no CD-ROM drive

only

(Windows

3.1x, 95/98)

Ifyoudon’thaveaCD-ROMdrive,followtheinstructionsinthissection.

Step1Installthedrumunitassembly

1. Openthefrontcover.

2. Unpackthedrumunitassembly.Rockitfromsidetoside5or6timesto

distributethetonerevenlyinsidethecartridge.

3. Installthedrumunitassemblyintotheprinter.

4. Pushitfullyintotheprinteruntilitsnapsintoplace.

5. Closethefrontcover.

Step2Loadpaperintothepapercassette

1. Pullthepapercassettecompletelyoutoftheprinter.

2. Slidethepaperwidthandlengthadjusterstothepapersizeyouwantuntilthey

snapintoaslot.

3. Loadpaperintothepapercassette.Checkthatthepaperisflatinthetray.

4. Re-installthepapercassetteintotheprinter.

Step 3 Print a test page

1. Make sure that the power switch is off. Connect the AC power cord to the

printer.

2. Plug theAC power cord into an AC outlet. Turn on the power switch.

3. After the printer has warmed up, the Ready LED stops blinking and stays lit.

4. Press the control panel button. The printer will print a test page. Check that

the test page has printed correctly.

Step 4 Connect the printer to your PC

1. Turn the printer power off.

2. Connect the parallel interface cable to your PC then connect it to the printer.

3. Use the clips on the printer connector to secure the parallel interface cable.

4. Turn on the printer power.

Step 5 Install the printer driver from floppy disk

1. Turn on your PC power. If the "Add

New Hardware Wizard" window

appears, click the Cancel button.

2. Insert the floppy disk into the floppy disk drive. (For Windows®3.1x users, please

follow the instructions on the disk label.)

3. Click Start and select Run.

4. Type A:\SETUP andclicktheOK

button. Follow the instructions on

the screen. The printer driver will

be installed and the setup will be

completed.

For Windows

users with USB only

(Windows

98)

The steps in this section are essential for USB interface cable users.

Step 1 to 3 Follow the CD-ROM instructions at the beginning of these instructions

Step 4 Install the USB driver

1. Make sure the printer power switch is on.

2. Connect the USB interface cable to your PC then connect it to the printer.

3. The "Add New Hardware Wizard"

window will appear. Click the Next

button.
